9432-G1-01-90-PP: DescriptionBoard Connector; CategoryThe connector The connector; File Size121KB，1 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

9432-G1-01-90-PP Overview

Board Connector

9432-G1-01-90-PP Parametric

Parameter Name	Attribute value
Maker	ECS
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Manufacturer's serial number	9400

Preview

Download Datasheet

View All

Specifications

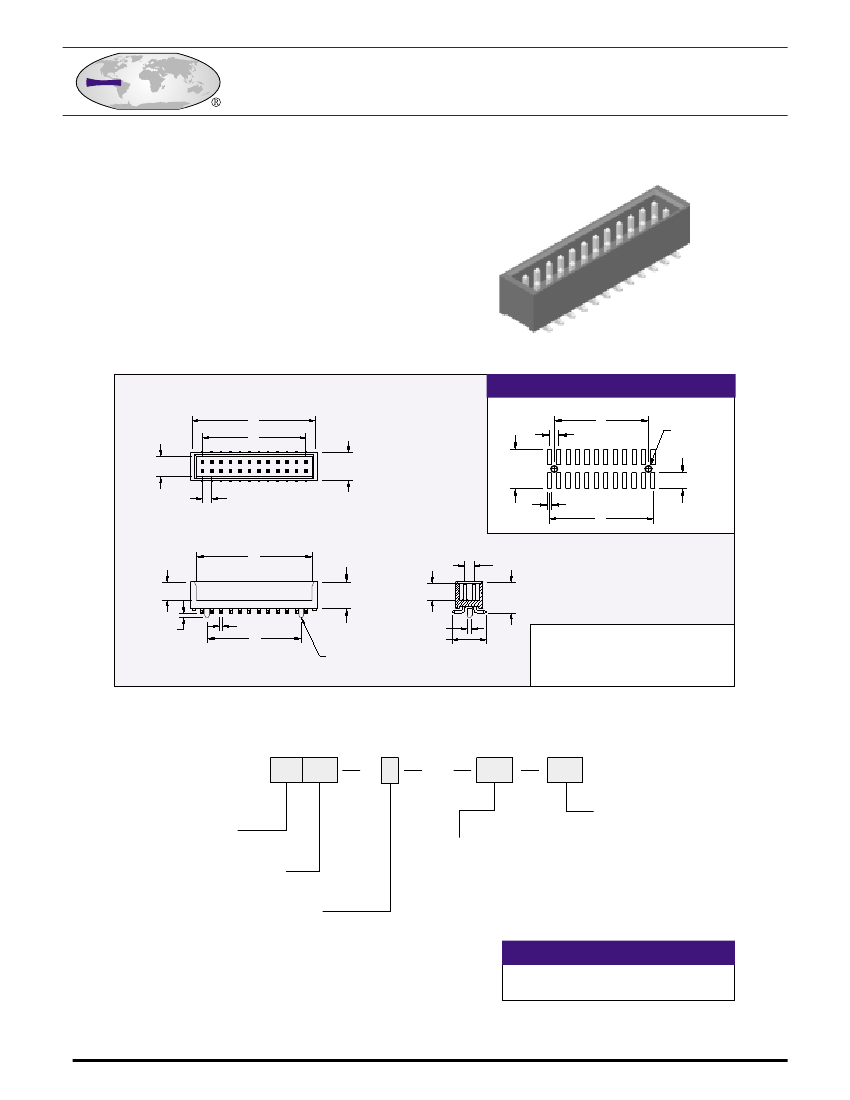

.079 [2.00] SMT Box Header

9400 Series Headers

Insulator Material: Glass filled polyester, Thermoplastic,

94V-O Nylon-6T, UL Recognized.

Contact Material: Copper Alloy

Contact Plating: Gold over .000050” Ni

(See contact plating options)

Insulation Resistance:

5000 M ohms min.

Dielectric Withstand Voltage: 500 VAC

Current Rating:

1 AMP

Operating Temperature:

-40°C To +105°C

Max. Processing Temp.:

230°C for 60 seconds

UL File Numbers:

E146967 & E176234

PCB LAYOUT

.173 [4.40]

.232 [5.9]

.327 [8.3]

.130 [3.3]

.079 [2.0]

.033 [.85]

.0787 [1.27]

Ø.047 [1.20]

.079 [2.0]

.220 [5.6]

.142 [3.6]

.260 [6.6]

.150 [3.8]

.039 [1.0]

.020 [.50] SQ.

LOCATING PEG

(OPTIONAL)

Ø.039 [1.0]

.287 [7.3]

= .083 + .0787 x No. of Pos.

= .0787 x (No. of Cont./2 -1)

= .0787 x (No. of Cont./2 -2)

= .102 + .0787 x (No. of Cont./2 -1)

DIMENSIONS ARE IN INCHES & [MM]

PART NUMBERING

94 XX

SERIES CODE

.079 HEADERS

PACKAGING

= TAPE & REEL PACKAGING

= PICK AND PLACE PAD

BLANK = STANDARD PACKAGING

CONTACT PLATING

.000050” Nickel underplate

CONTACT

TAIL

= Au Flash

Au Flash

= 10µ”Au

10µ”Au

= 30µ”Au

30µ”Au

NO. OF CONTACTS

06 - 80

CONSULT FACTORY FOR

AND

PACKAGING

AVAILABILITY

LOCATING PEG

= WITHOUT LOCATING PEG

= WITH LOCATING PEG

SUGGESTED MATING CONNECTORS

94XXS-DX-XX-XX (PAGE F-31)

94XXS-FX-XX-XX (PAGE F-33)

CONSULT FACTORY FOR CUSTOM CONNECTORS BUILT TO YOUR SPECIFICATION

WWW.ECSCONN.COM
