B32592-C1225-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> B32592-C1225-K

B32592-C1225-K: DescriptionFilm Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 2.2uF,; CategoryPassive components capacitor; File Size591KB，14 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B32592-C1225-K Overview

Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 2.2uF,

B32592-C1225-K Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EPCOS (TDK)
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	2.2 µF
Capacitor type	FILM CAPACITOR
Custom functions	Special Dimensions Available on Request
dielectric materials	POLYESTER
JESD-609 code	e3
length	18 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
Package form	Radial
positive tolerance	10%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
series	B32592
Terminal surface	Matte Tin (Sn)
Terminal pitch	15 mm

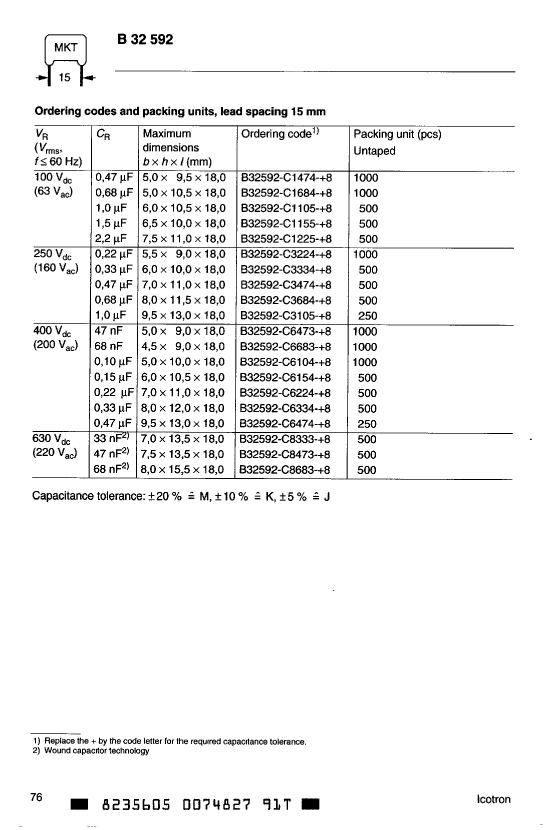

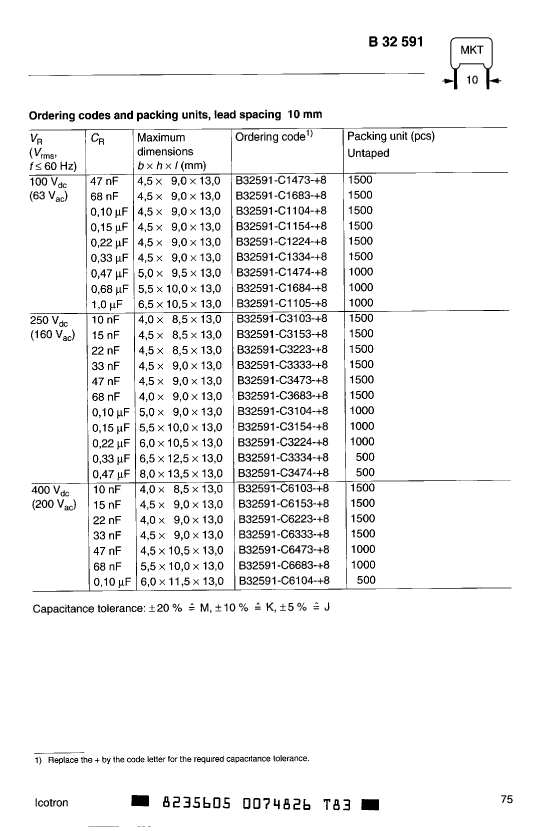

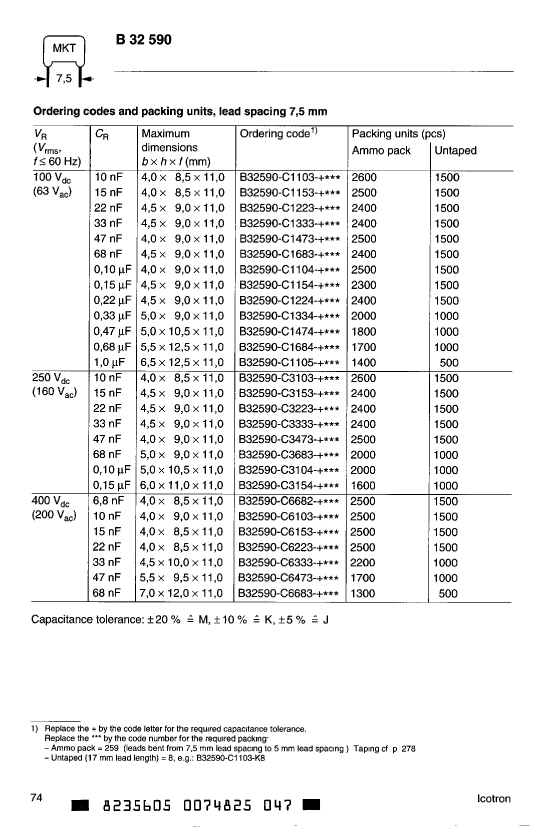

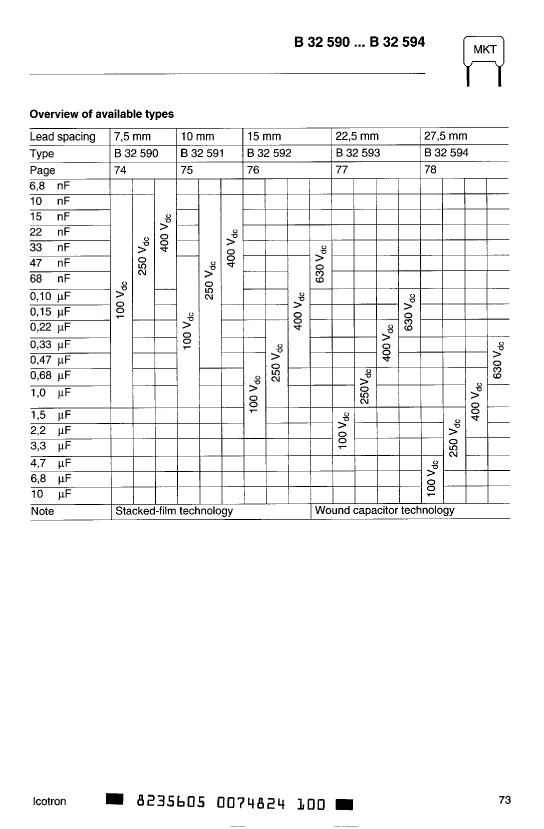

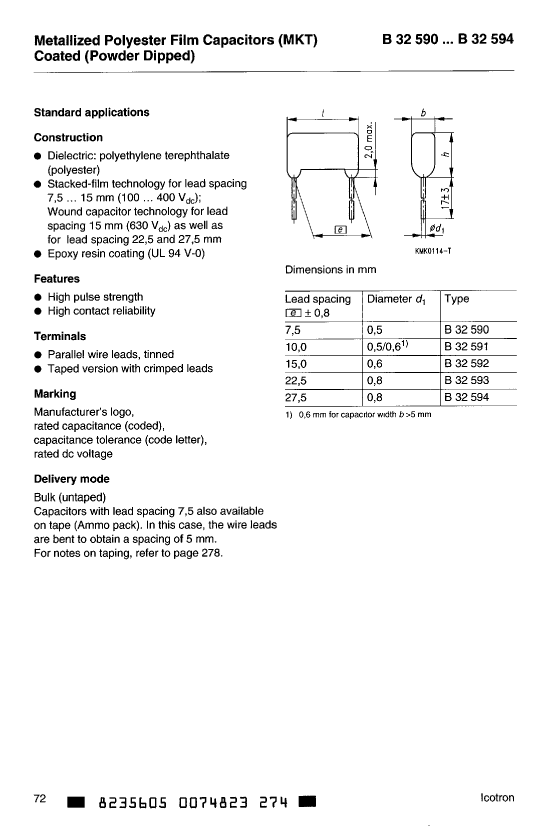

Preview

Download Datasheet

View All

B32592-C1225-K Related Products

	B32592-C1225-K	B32592-C3105-K	B32592-C1225-J	B32592-C1684-K	B32592-C3224-J	B32592-C6224-J	B32592-C6474-J	B32592-C6683-J
Description	Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 2.2uF,	Film Capacitor, Polyester, 250V, 1uF	Film Capacitor, Polyester, 100V, 50% +Tol, 5% -Tol, 2.2uF,	Film Capacitor, Polyester, 100V, 10% +Tol, 10% -Tol, 0.68uF,	Film Capacitor, Polyester, 250V, 50% +Tol, 5% -Tol, 0.22uF,	Film Capacitor, Polyester, 400V, 50% +Tol, 5% -Tol, 0.22uF,	Film Capacitor, Polyester, 400V, 50% +Tol, 5% -Tol, 0.47uF,	Film Capacitor, Polyester, 400V, 50% +Tol, 5% -Tol, 0.068uF,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	2.2 µF	1 µF	2.2 µF	0.68 µF	0.22 µF	0.22 µF	0.47 µF	0.068 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
Custom functions	Special Dimensions Available on Request	Special Dimensions Available on Reques	Special Dimensions Available on Request	Special Dimensions Available on Request	Special Dimensions Available on Request	Special Dimensions Available on Request	Special Dimensions Available on Request	Special Dimensions Available on Request
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
negative tolerance	10%	10%	5%	10%	5%	5%	5%	5%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
positive tolerance	10%	10%	50%	10%	50%	50%	50%	50%
Rated (AC) voltage (URac)	63 V	160 V	63 V	63 V	160 V	200 V	200 V	200 V
Rated (DC) voltage (URdc)	100 V	250 V	100 V	100 V	250 V	400 V	400 V	400 V
series	B32592	B32592	B32592	B32592	B32592	B32592	B32592	B32592
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm	15 mm
Objectid	-	-	-	730527968	730527909	730527910	730527918	730527898
