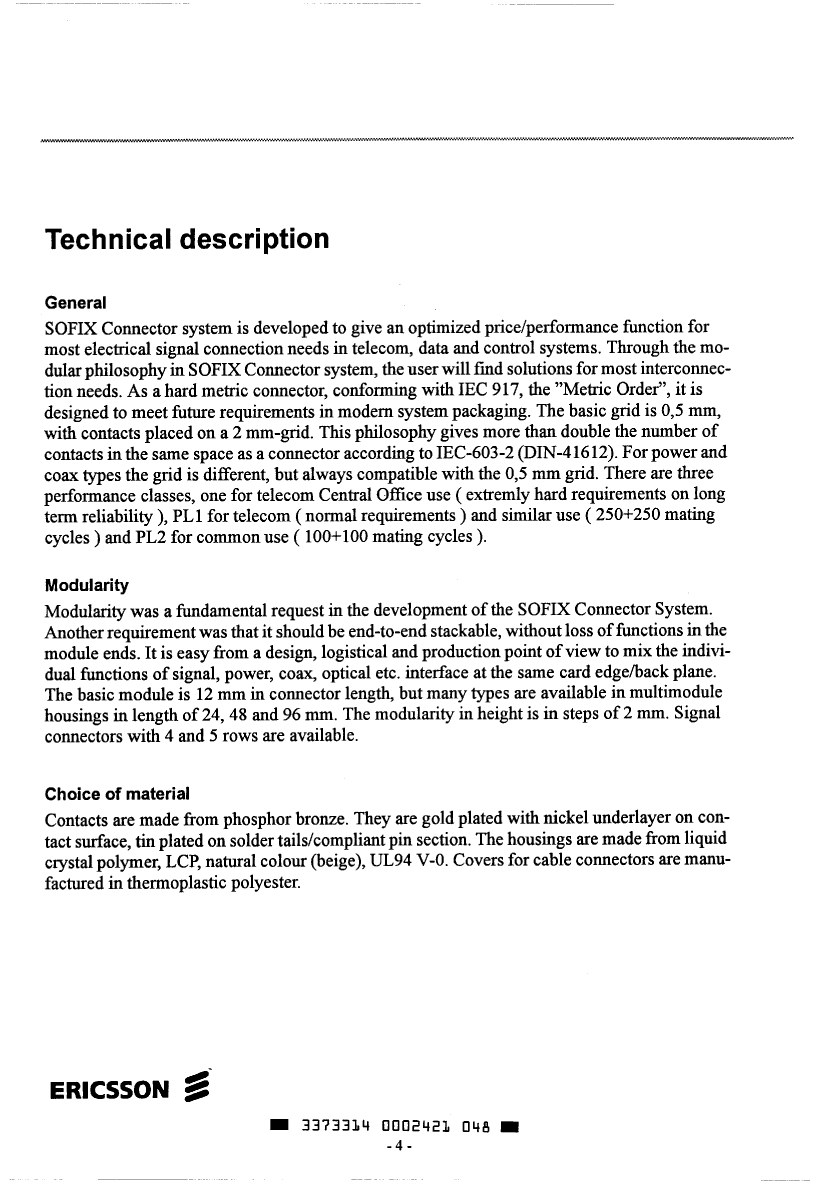

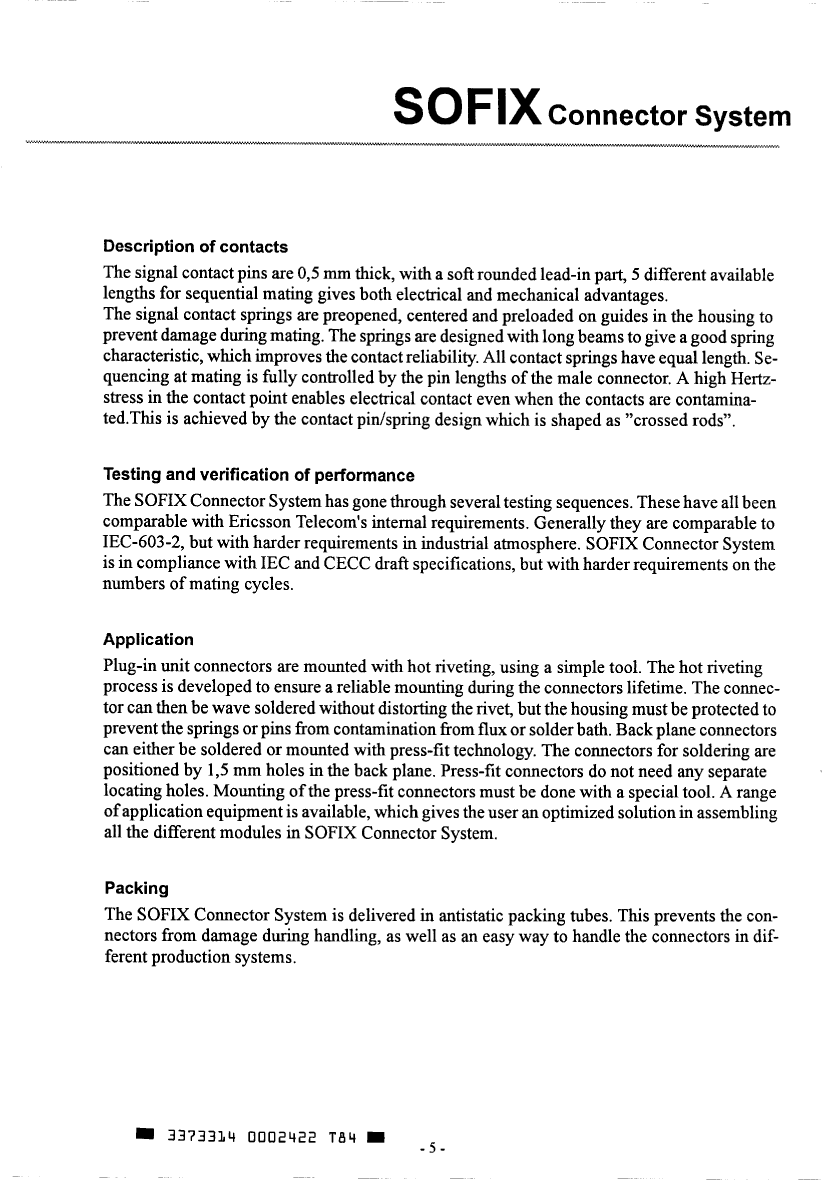

Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle

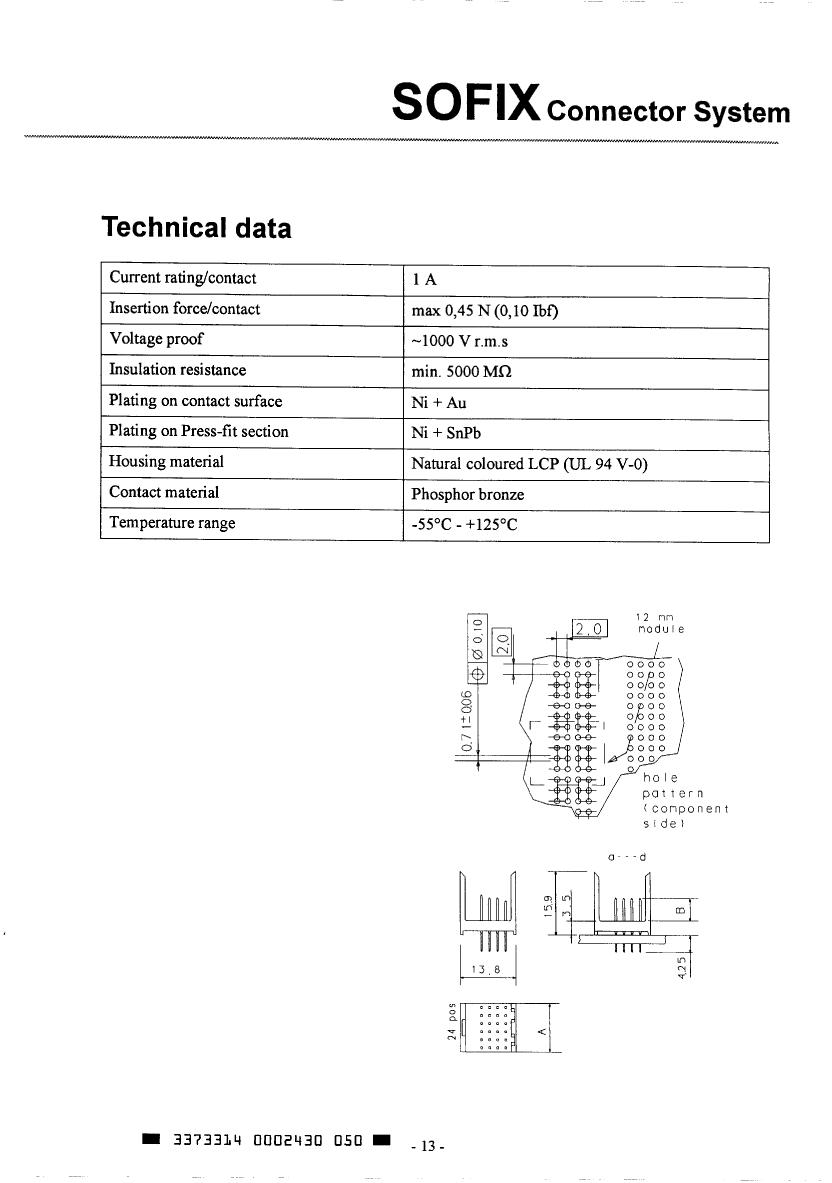

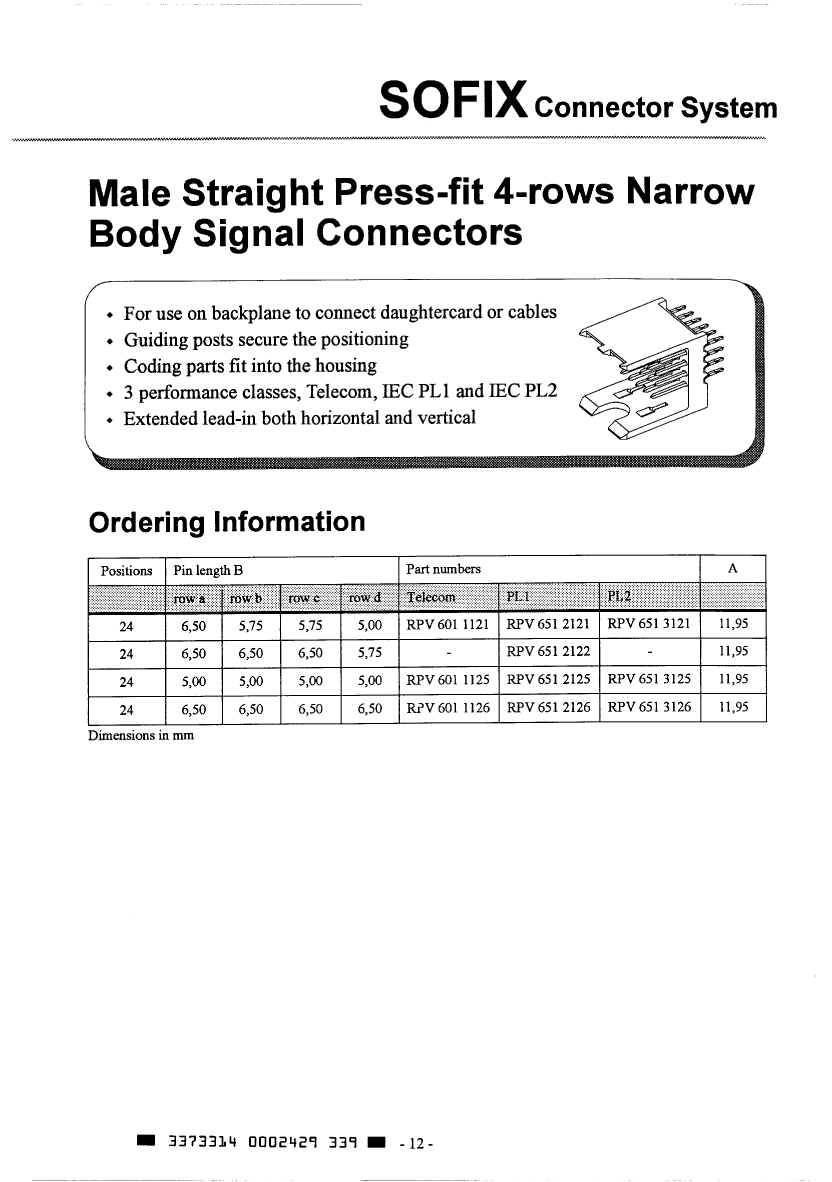

| Parameter Name | Attribute value |
| Maker | Ericsson |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | PL1 |
| body width | 0.543 inch |
| subject depth | 0.626 inch |
| body length | 0.47 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| maximum insertion force | .4448 N |
| Insulation resistance | 5000000000 Ω |
| Insulator color | NATURAL |
| Manufacturer's serial number | RPV6 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | GUIDE PIN |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | CENTER |
| Rated current (signal) | 1 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.167 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 24 |
| RPV6512121 | RPV6011121 | RPV6512122 | RPV6512126 | RPV6513121 | RPV6513125 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle | Board Connector, 24 Contact(s), 4 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Guide Pin, Natural Insulator, Receptacle |
| Maker | Ericsson | Ericsson | Ericsson | Ericsson | Ericsson | Ericsson |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | PL1 | TELECOM | PL1 | PL1 | PL2 | PL2 |
| body width | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch | 0.543 inch |
| subject depth | 0.626 inch | 0.626 inch | 0.626 inch | 0.626 inch | 0.626 inch | 0.626 inch |
| body length | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI | AU ON NI |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V | 1000VAC V |
| maximum insertion force | .4448 N | .4448 N | .4448 N | .4448 N | .4448 N | .4448 N |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω |
| Insulator color | NATURAL | NATURAL | NATURAL | NATURAL | NATURAL | NATURAL |
| Manufacturer's serial number | RPV6 | RPV6 | RPV6 | RPV6 | RPV6 | RPV6 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Installation option 1 | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN | GUIDE PIN |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| polarization key | CENTER | CENTER | CENTER | CENTER | CENTER | CENTER |
| Rated current (signal) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.167 inch | 0.167 inch | 0.167 inch | 0.167 inch | 0.167 inch | 0.167 inch |
| Terminal pitch | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 24 | 24 | 24 | 24 | 24 | 24 |
