56.000MHZXOR53-7C-UT28 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 56.000MHZXOR53-7C-UT28

56.000MHZXOR53-7C-UT28: DescriptionLVCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size147KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

56.000MHZXOR53-7C-UT28 Overview

LVCMOS Output Clock Oscillator,

56.000MHZXOR53-7C-UT28 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	SMD, 6 PIN
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FIUNCTION
Frequency Adjustment - Mechanical	NO
frequency stability	7%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	56 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 1.0mm
Maximum supply voltage	3.08 V
Minimum supply voltage	2.52 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	55/45 %
technology	LVCMOS

Preview

Download Datasheet

View All

EURO

QUARTZ

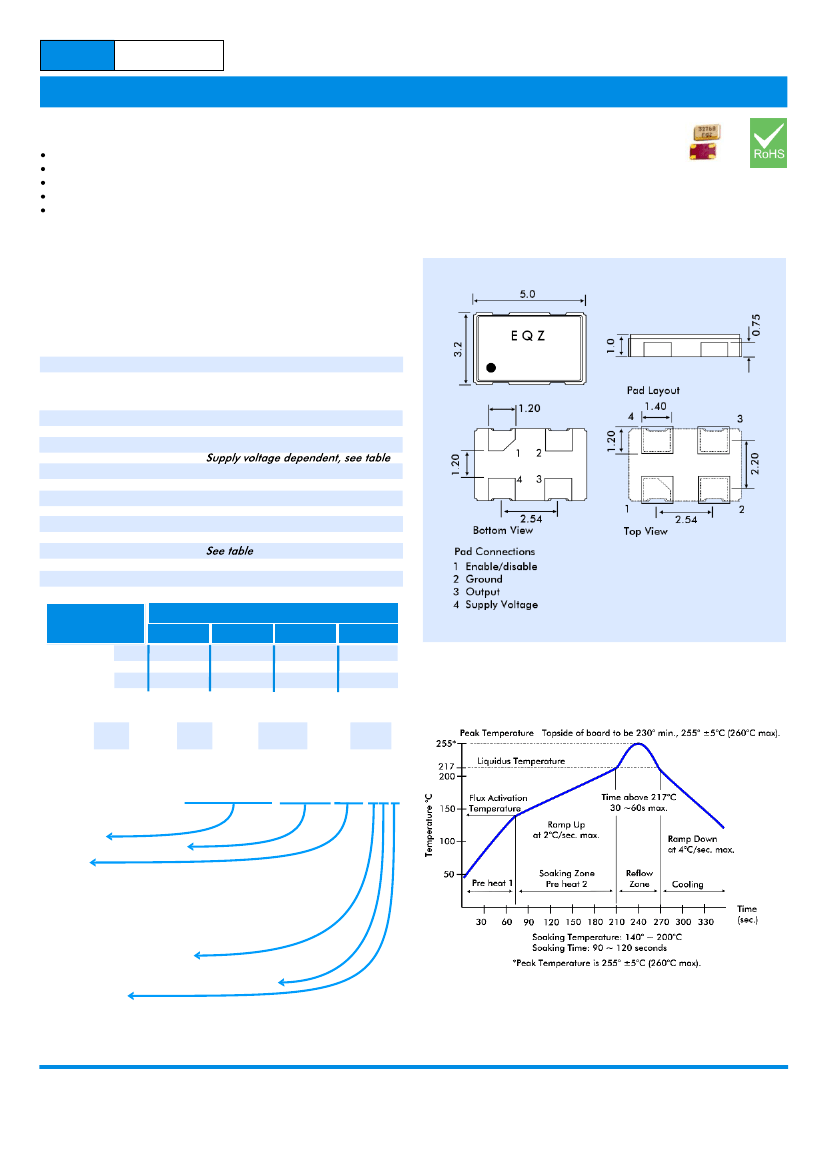

5 x 3.2mm SMD High Precision Oscillator

FEATURES

High frequency stability 5 x 3.2mm SMD oscillator

Femto second integrated phase jitter (300 fs typical)

Superior phase noise -145dBc/Hz at 100kHz offset

Frequency Range 1.0MHz to 56MHz

Supply voltage 1.8V, 2.5V or 3.3Volts

DESCRIPTION

XOR53 oscillators are high performance SMD clock oscillators with

tight temperature stability. The part exhibits superior phase noise

performance, -145dBc/Hz at 10kHz and -150dBc/Hz at 100kHz

offset. Integrated phase jitter is 300fs typical, 12kHZ to 20MHz.

XOR53 Oscillators

1.0MHz to 56.0MHz

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Frequency Stability

Commercial:

Industrial:

Output Voltage HIGH ‘1’:

Output Voltage LOW ‘0’:

Output Logic:

Current Consumption:

Load:

Rise/Fall Time:

Start-up Time:

Symmetry:

Tristate Function:

Phase Jitter:

Phase Noise:

Storage Temperature:

Ageing:

1.0MHz to 56.0MHz

from ±7ppm over -10° to +70°C

from ±15ppm over -40° to +85°C

Vdd-0.4 min.

0.1V typical. 0.4V maximum

LVCMOS

15pF

2ns typical (10% to 90%Vdd)

0.6ms typical, 1.0ms maximum

50%±5% measured at Vdd/2

Implemented as standard

300 fs typical, 12kHz to 20MHz

-55° to +150°C

±2ppm/year max. for first year

Supply Voltage (±10%)

+1.8V

1.5mA

3.0mA

4.5mA

+2.5V

2.5mA

3.5mA

5.0mA

+2.8V

3.7mA

4.7mA

6.5mA

+3.3V

4.0mA

5.0mA

7.0mA

SOLDER TEMPERATURE PROFILE

SSB PHASE NOISE

Offset

10Hz 100Hz

dBc/Hz

-65

-100

PART NUMBERING

Example:

1kHz 10kHz

-130 -148

100kHz 1MHz

-152

10MHz

-155

Current

Consumption

1.0~19.99MHz

20.0~39.99MHz

40.0~52.0MHz

32.000MHz XOR53-7C-UTC

Frequency

Series Designation XOR53

Stability

Required stability over

operating temperature

range. e.g '7C' for ±7ppm over

-10° to +70°C; '15I' = ±15ppm

over -40° to +85°C

Output Universal (HCMOS)

Tristate (Enable/Disable) Function (Standard)

Supply Voltage

A = 3.3 Volts

B = 2.5 Volts

28 = 2.8 Volts

C = 1.8 Volts

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
