MX27C1610MI-12 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MX27C1610MI-12

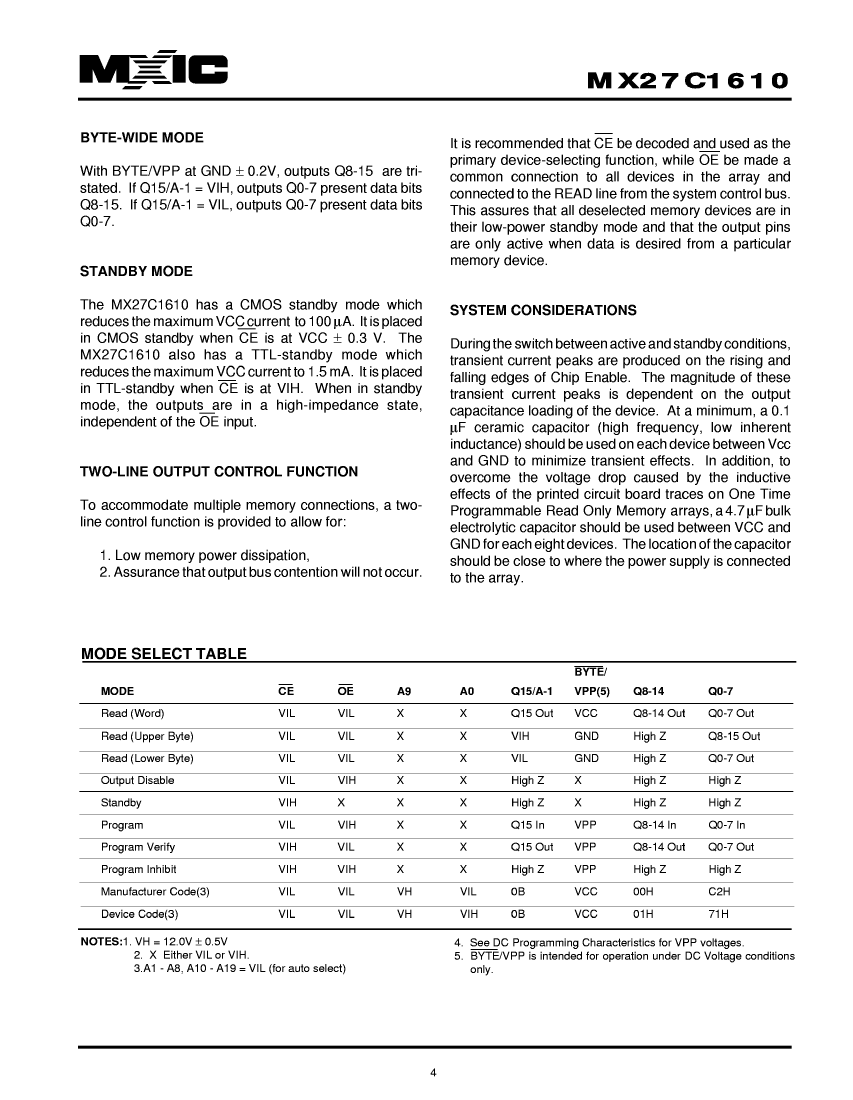

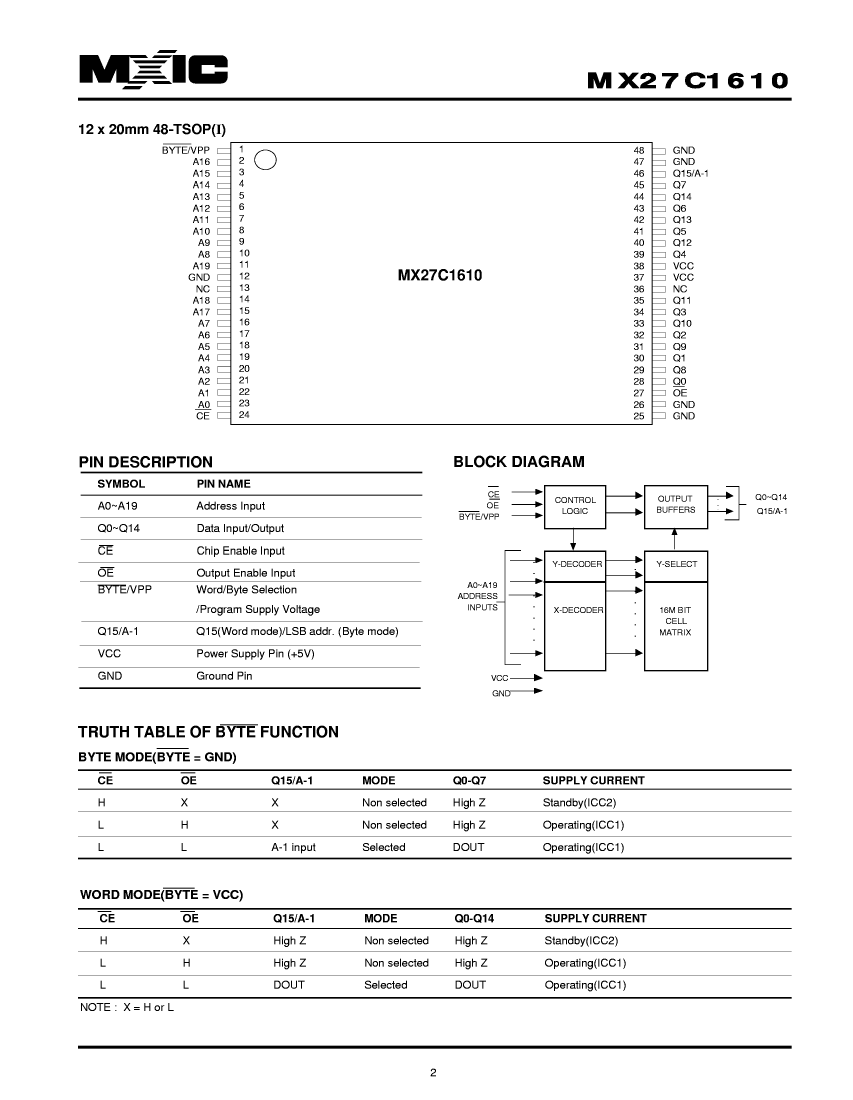

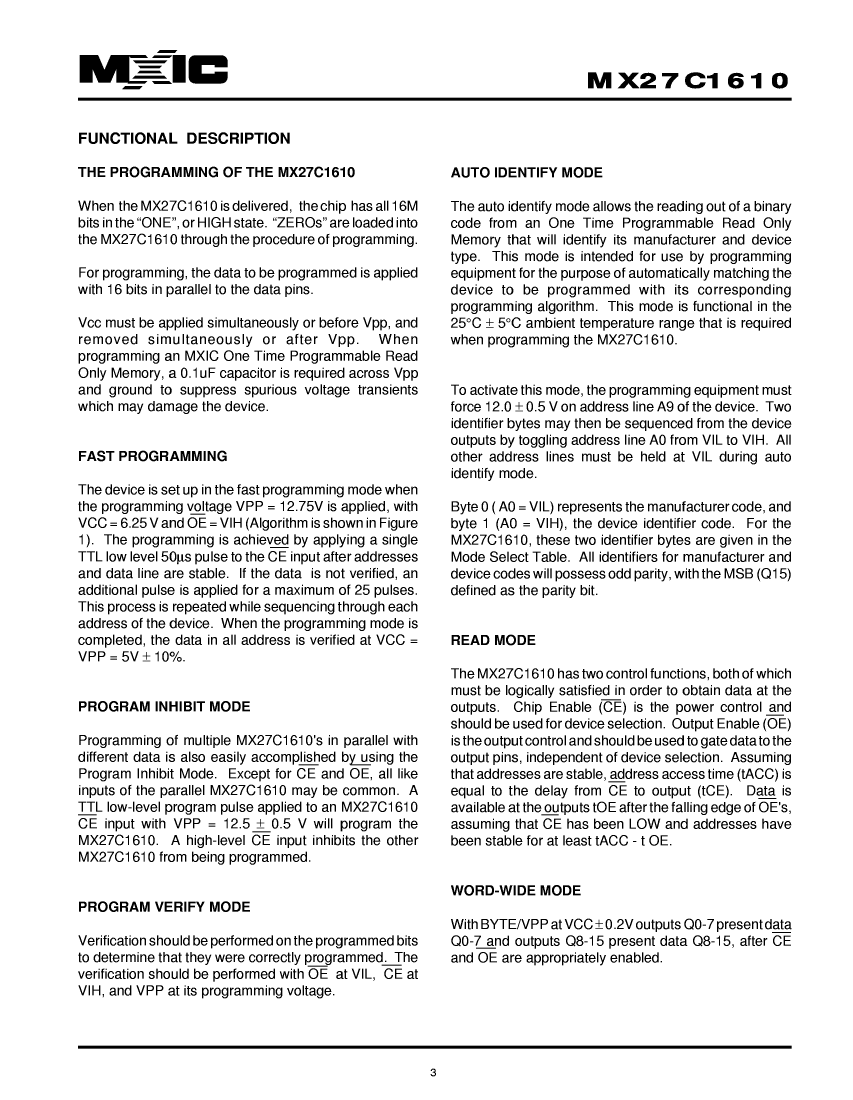

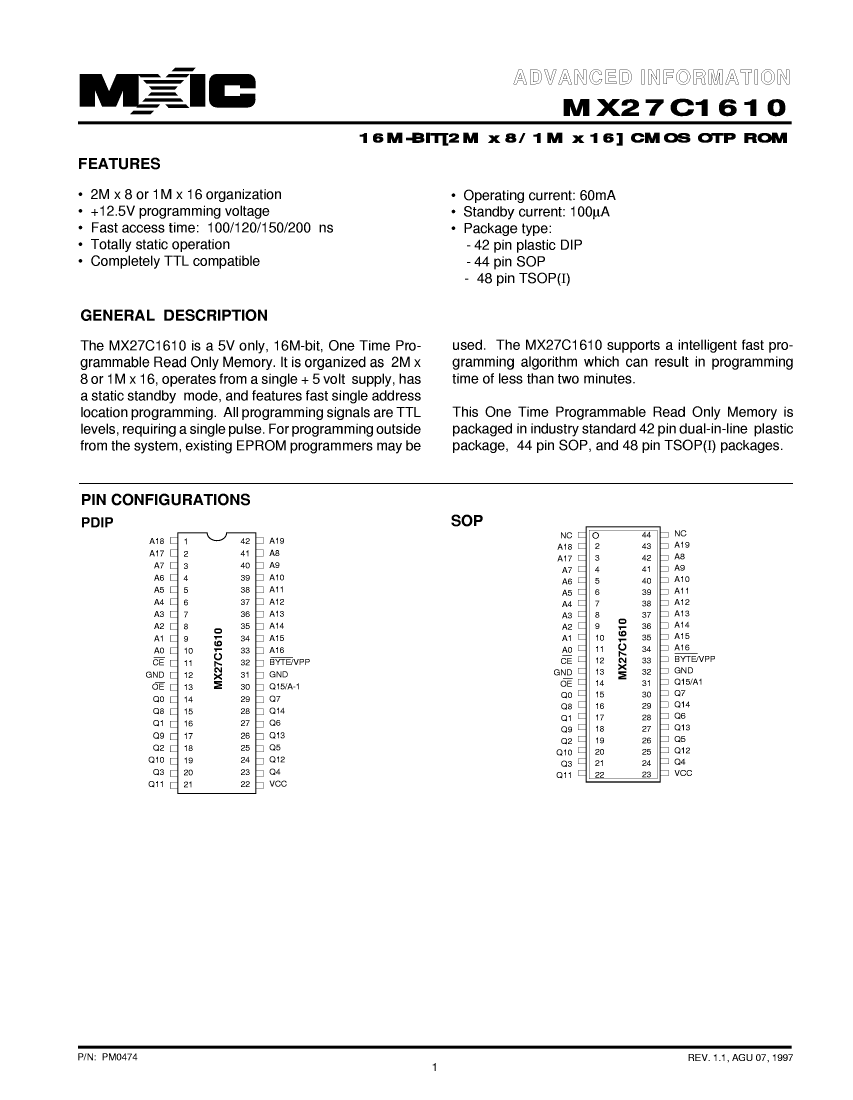

Preview

MX27C1610MI-12: DescriptionOTP ROM, 1MX16, 120ns, CMOS, PDSO44; Categorystorage storage; File Size610KB，13 Pages; ManufacturerMacronix; Websitehttp://www.macronix.com/en-us/Pages/default.aspx

Download Datasheet Parametric Compare View All

MX27C1610MI-12 Overview

OTP ROM, 1MX16, 120ns, CMOS, PDSO44

MX27C1610MI-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Macronix
package instruction	SOP, SOP44,.63
Reach Compliance Code	unknow
Maximum access time	120 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
memory density	16777216 bi
memory width	16
Number of terminals	44
word count	1048576 words
character code	1000000
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	1MX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP44,.63
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.06 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

MX27C1610MI-12 Related Products

	MX27C1610MI-12	MX27C1610MC-10	MX27C1610MC-15	MX27C1610MC-20	MX27C1610PI-15	MX27C1610TC-20	MX27C1610TI-10	MX27C1610TI-12	MX27C1610TI-15
Description	OTP ROM, 1MX16, 120ns, CMOS, PDSO44	OTP ROM, 1MX16, 100ns, CMOS, PDSO44	OTP ROM, 1MX16, 150ns, CMOS, PDSO44	OTP ROM, 1MX16, 200ns, CMOS, PDSO44	OTP ROM, 1MX16, 150ns, CMOS, PDIP42	OTP ROM, 1MX16, 200ns, CMOS, PDSO48	OTP ROM, 1MX16, 100ns, CMOS, PDSO48	OTP ROM, 1MX16, 120ns, CMOS, PDSO48	OTP ROM, 1MX16, 150ns, CMOS, PDSO48
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Macronix	Macronix	Macronix	Macronix	Macronix	Macronix	Macronix	Macronix	Macronix
package instruction	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	SOP, SOP44,.63	DIP, DIP42,.6	TSSOP, TSSOP48,.8,20	TSSOP, TSSOP48,.8,20	TSSOP, TSSOP48,.8,20	TSSOP, TSSOP48,.8,20
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum access time	120 ns	100 ns	150 ns	200 ns	150 ns	200 ns	100 ns	120 ns	150 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44	R-PDIP-T42	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi	16777216 bi
memory width	16	16	16	16	16	16	16	16	16
Number of terminals	44	44	44	44	42	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000	1000000
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	85 °C	70 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-	-	-	-40 °C	-	-40 °C	-40 °C	-40 °C
organize	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16	1MX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP	TSSOP	TSSOP	TSSOP	TSSOP
Encapsulate equivalent code	SOP44,.63	SOP44,.63	SOP44,.63	SOP44,.63	DIP42,.6	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20	TSSOP48,.8,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
