Thick Film Chip Resistors, Military/Established Reliability MIL-PRF-55342 Qualified, Type RM

Preview

Download Datasheet

View All

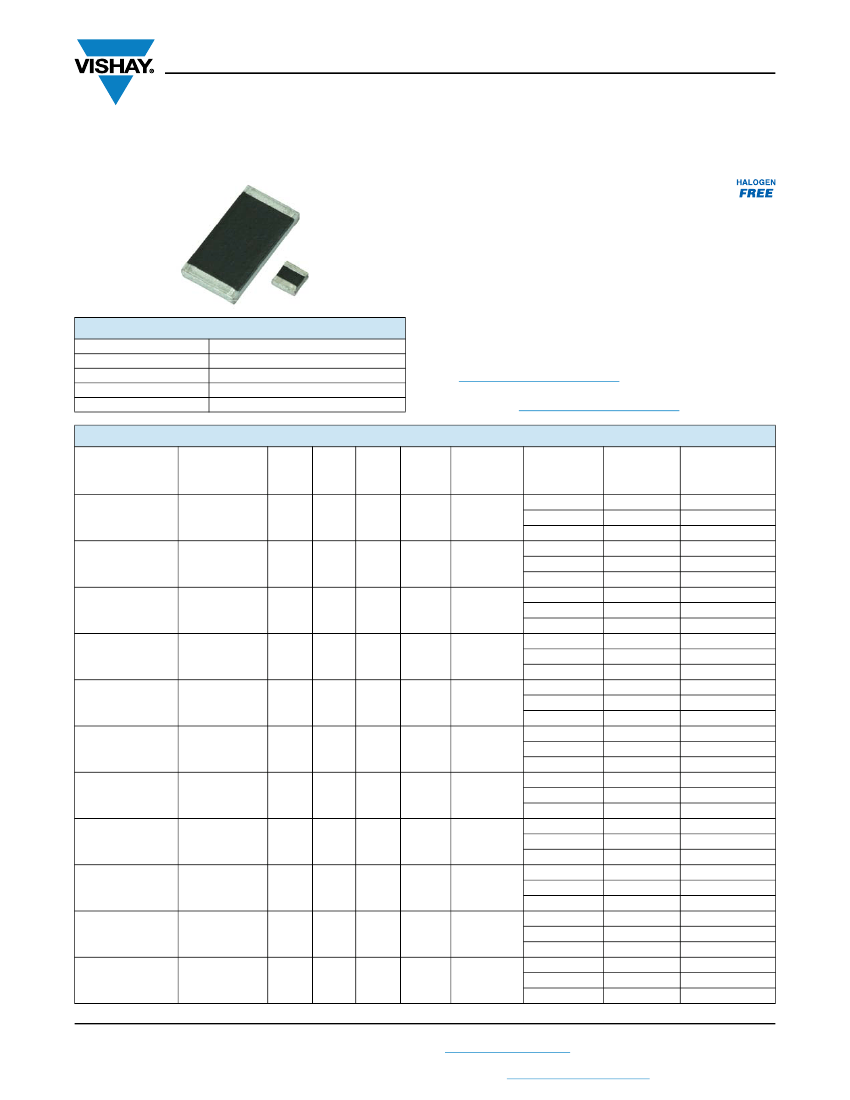

RCWPM (Military M/D55342)

www.vishay.com

Vishay Dale

Thick Film Chip Resistors, Military/Established Reliability

MIL-PRF-55342 Qualified, Type RM

FEATURES

• Fully conforms to the requirements of

MIL-PRF-55342

• Established reliability - verified failure rate; M, P, R, U, S,

V, and T levels

• Construction is sulfur impervious against a high sulfur

environment (ASTM B 809-95 test method)

• 100 % group A screening per MIL-PRF-55342

• Termination style B - tin/lead wraparound over nickel

barrier

• Operating temperature range is -55 °C to +150 °C

• For MIL-PRF-32159 zero ohm jumpers, see Vishay Dale’s

RCWPM

Jumper

(Military

M32159)

datasheet

(www.vishay.com/doc?31028)

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

MATERIAL SPECIFICATIONS

Resistive element

Encapsulation

Substrate

Termination

Solder finish

Ruthenium oxide

Epoxy

96 % alumina

Solder-coated nickel barrier

Tin/lead solder alloy

STANDARD ELECTRICAL SPECIFICATIONS

VISHAY DALE

MODEL

RCWPM-0502,

RCWPM-0502-98

RCWPM-550,

RCWPM-550-98

RCWPM-5100,

RCWPM-5100-98

RCWPM-5150,

RCWPM-5150-98

RCWPM-7225,

RCWPM-7225-98

RCWPM-575,

RCWPM-575-98

RCWPM-1206,

RCWPM-1206-98

RCWPM-2010,

RCWPM-2010-98

RCWPM-2512,

RCWPM-2512-98

RCWPM-1100,

RCWPM-1100-98

RCWPM-0402,

RCWPM-0402-98

MIL-PRF-55342 MIL

SPEC. TERM.

STYLE

SHEET

RM0502

CASE

SIZE

POWER

MAX.

RATING WORKING RESISTANCE TOLERANCE TEMPERATURE

COEFFICIENT

(2)

RANGE

70 °C

VOLTAGE

(1)

±%



± ppm/°C

1 to 9.1

2, 5, 10

200, 300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

1 to 9.1

2, 5, 10

200, 300

0.125

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.20

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.15

125

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.225

175

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.15

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.25

100

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.80

150

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

1.0

200

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 5.1

2, 5, 10

200, 300

0.50

5.6 to 22M

1, 2, 5, 10

100, 200, 300

5.62 to 10M

0.5

100, 200, 300

1 to 9.1

2, 5, 10

200, 300

0.05

10 to 22M

1, 2, 5, 10

100, 200, 300

10 to 10M

0.5

100, 200, 300

0502

RM0505

0505

RM1005

1005

RM1505

1505

RM2208

2208

RM0705

0705

(3)

RM1206

1206

RM2010

2010

RM2512

2512

RM1010

1010

RM0402

0402

Revision: 15-Oct-15
