Product Brief
FX1000/FX1041
FXO for Voice over IP Applications
Video Server, and VTR Applications
F e at u r e s
n
FX1000 plus FX1041 implements
complete Foreign Exchange Office
(FXO) functionality
24-pin MLCC (4 x 4 mm) FX1000
package
SoC interface (compatible with other
Foreign Exchange Subscriber (FXS)
and FXO devices):
– Serial Peripheral Interface (SPI) for
control
– Time-division multiplexed (TDM)
interface for data (up to 8.192 MHz)
n
n
The FX1000, when used with the FX1041 line-side codec, provides all of
the functionality required to implement an FXO for Voice over IP (VoIP)
applications. The FX1000 provides the interface to the VoIP SoC through
its TDM interface (for data) and SPI bus (for control), and an interface to the
FX1041 Line-side codec through a high-voltage isolation barrier.
n
Single 3.3-V supply with 5-V-tolerant I/O
No external crystal required
(uses TDM clock)
System-powered solution
Greater than 4KV Isolation
Single programmable solution for
worldwide support
Overcurrent Protection
Line snooping
Supports multiple interrupt events
FXO functionality:
– Highest voice quality with low noise
(16-bit linear codec w/ >80 dB
dynamic range)
– Ring detect
– Support for Type I and Type II caller ID
– General-purpose I/O (GPIO) interface
to support ground start applications
– FXO call-disconnect detection on
loop start lines
– Hardware support for pulse dialing
LSI
FX1041-E11
LSI
FXO1000-
M24
n
LSI
FX1041-E11
LSI
FXO1000-
M24
n
n
n
n
n
n
n

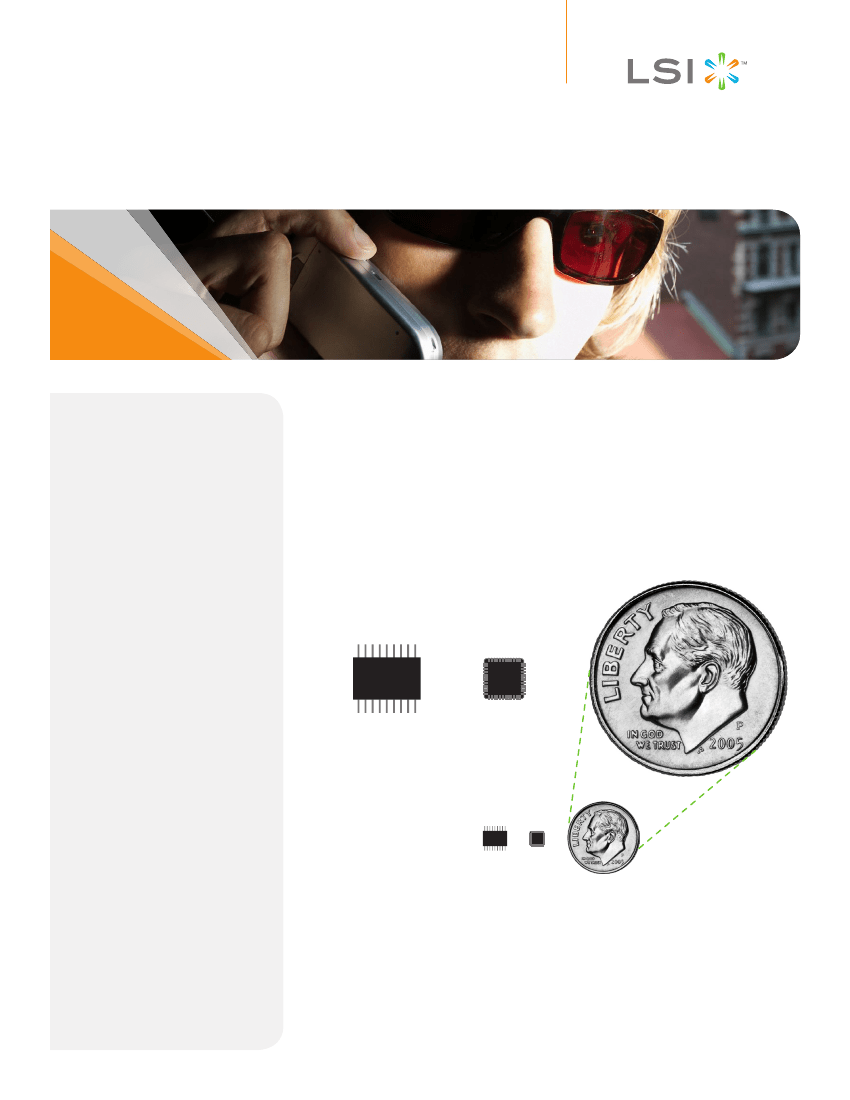

Actual Size
FX1000/FX1041 System Overview
The LSI FX1000 chipset is a two-chip solution consisting of an LSI FX1000 serial interface device and an FX1041 line-side codec. The FX1000 device is
available in a 24-pin MLCC suitable for most VoIP applications. Figure 1 shows a typical application using an FX1000 interface device along with FX1041
silicon Data Access Arrangement (DAA) to add FXO capability to a system.
VoIP
SoC
LSI
FX1000-
M24
Barrier Interface
FXS
Device
FXS
Device
FXS
Device
FXO
FXS
Figure 1. FX1000 System Block Diagram
FXS
Device
FX1000
Part Number
L-FX1000-M24-D
L-FX1000-M24-DT
DescriPtioN
FXO Interface (tubes)
FXO Interface (tape and reel)
FXO Line-side Codec (tubes)
FXO Line-side Codec (tape and reel)
Pack age
24-pin MLCC
24-pin MLCC
20-pin ETSSOP
20-pin ETSSOP
comcoDe
7110201700
7110203020
7110222830
7110222840
FX1041
L-FX1041A3-E11-D
L-FX1041A3-E11-DT
