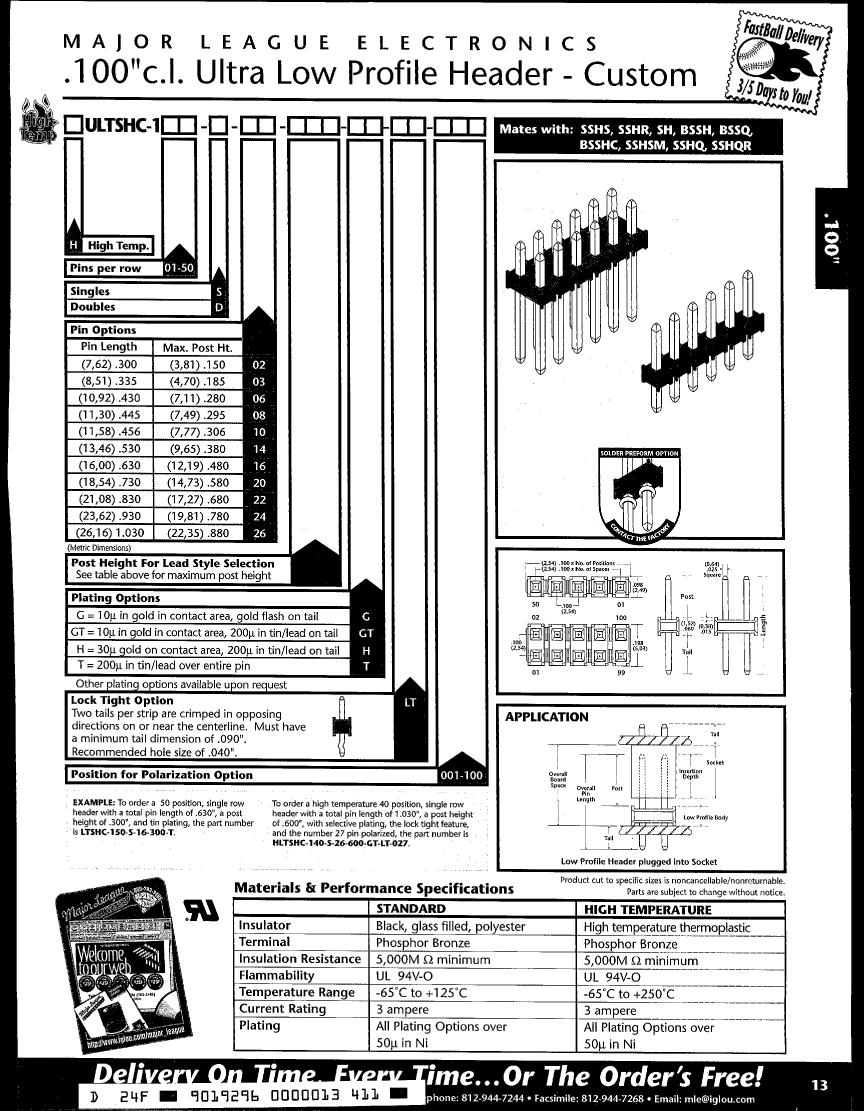

HULTSHC-111-D-20-580-G-LT-001 datasheet, PDF

HULTSHC-111-D-20-580-G-LT-001: DescriptionBoard Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle; CategoryThe connector The connector; File Size140KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet Parametric View All

HULTSHC-111-D-20-580-G-LT-001 Overview

Board Connector, 22 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Major League Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MATING PIN LENGTH=0.580 INCH
body width	0.198 inch
subject depth	0.06 inch
body length	1.1 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	HULTSHC
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	250 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	10u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.09 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	22
