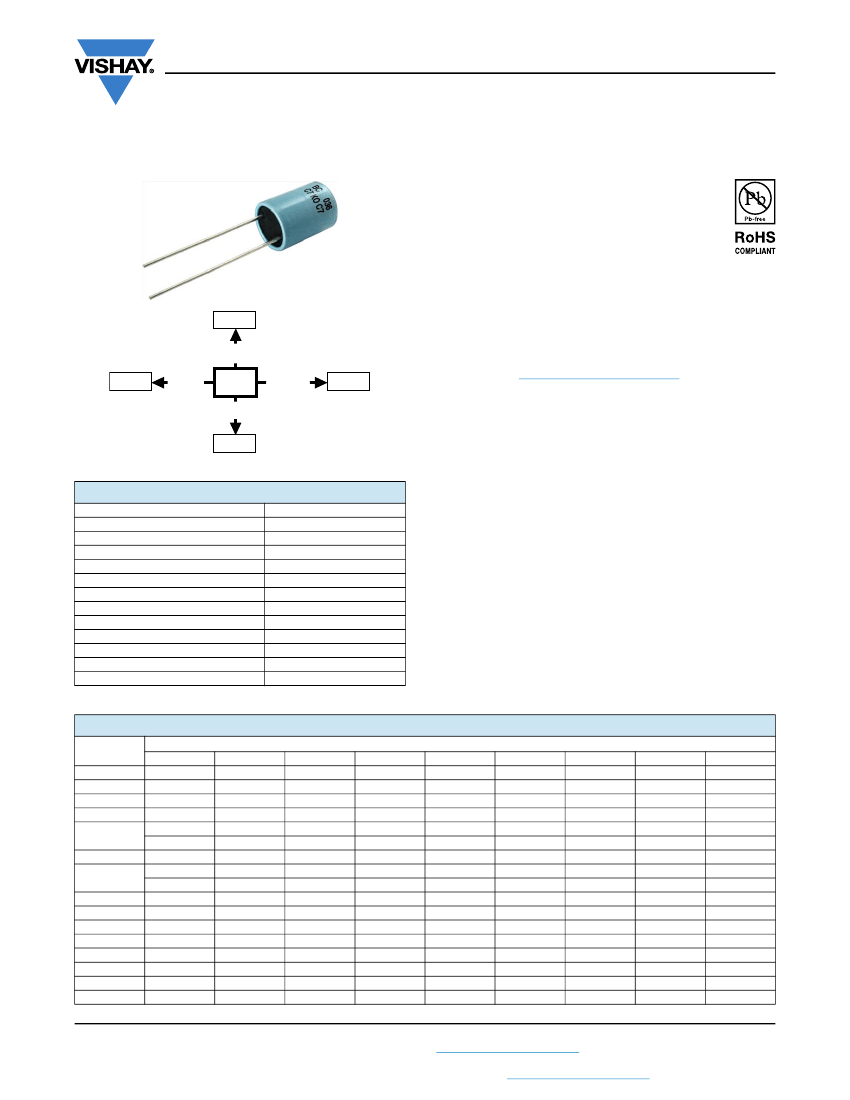

• Portable and mobile equipment (small size, low mass)
038 RSU
Fig. 1
QUICK REFERENCE DATA
DESCRIPTION
VALUE
Nominal case sizes (Ø D x L in mm)
5 x 11 and 8.2 x 11
2.2 μF to 470 μF
Rated capacitance range, C
R
± 20 %; ± 10 % on request
Tolerance on C
R
6.3 V to 100 V
Rated voltage range, U
R
Category temperature range
-55 °C to +85 °C
Endurance test at 85 °C
2000 h
Useful life at 105 °C
750 h
Useful life at 85 °C
3000 h
80 000 h
Useful life at 40 °C, 1.4 x I
R
applied
Shelf life at 0 V, 85 °C
500 h
Based on sectional specification
IEC 60384-4 / EN130300
Climatic category IEC 60068
55 / 085 / 56
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code in accordance with IEC 60062
• Code indicating factory of origin
• Name of manufacturer
• Minus-sign on top to identify the negative terminal
• Series number (036)
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
6.3
-
-
-
-
-
-
-
-
-
-
-
-
5 x 11
-
-
8.2 x 11
-
10
-
-
-
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
8.2 x 11
-
8.2 x 11
16
-
-
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
-
25
-
-
-
-
-
-
-
-
-
-
-
5 x 11
8.2 x 11
-
8.2 x 11
-
-
U
R
(V)
35
-
-
-
-
-
-
-
5 x 11
-
-
5 x 11
-
-
8.2 x 11
-
-
-
40
-
-
-
-
-
-
5 x 11
-
-
-
-
8.2 x 11
-
-
-
-
-
50
-
-
-
-
5 x 11
-
-
-
-
5 x 11
8.2 x 11
-
8.2 x 11
-
-
-
-
63
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
-
-
-
-
-
100
-
-
-
-
8.2 x 11
-
-
8.2 x 11
-
-
-
-
-
-
-
-
-
Revision: 15-Jul-16
Document Number: 28312
1
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
036 RSP
www.vishay.com
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
ØD
ØD
Vishay BCcomponents
L
L
+
-
15 min.
4
+1
0
+
-
Ød
F
Ød
5 min.
5 ± 0.5
Case Ø D x L = 8.2 mm x 11 mm only
Fig. 2 -
Form CA:
Long leads
Fig. 3 -
Form CB:
Cut leads
Pitch F = 5 mm
Case Ø D x L = 5 mm x 11 mm and 8.2 mm x 11 mm
Pitch F = 2.5 mm
Case Ø D x L = 5 mm x 11 mm only
Fig. 4 -
Form TFA:
Taped in box (ammopack)
Fig. 5 -
Form TNA:
Taped in box (ammopack)
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
5 x 11
8.2 x 11
CASE
CODE
11
13
Ød
0.5
0.6
Ø D
max.
5.5
8.7
L
max.
12
12
F
2.5 ± 0.5
5.0 ± 0.5
MASS
(g)
0.4
1.1
PACKAGING QUANTITIES
FORM
CA, CB
1000
1000
FORM
TFA, TNA
2000
1000
Note
• For tape dimensions, please see
www.vishay.com/doc?28360.
Revision: 15-Jul-16
Document Number: 28312
2
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
036 RSP
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 036 series
100 μF / 16 V; ± 20 %
Nominal case size: Ø 5 x 11 mm; Form TFA
Ordering code: MAL203635101E3
Former 12NC: 2222 036 35101
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
tan
Z
DESCRIPTION
Rated capacitance at 100 Hz, tolerance ± 20 %
Rated RMS ripple current at 100 Hz, 85 °C
Max. leakage current after 1 min at U
R
Max. dissipation factor at 100 Hz
Max. impedance at 10 kHz and 20 °C
Note
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
100
330
47
150
220
470
33
100
150
220
330
68
100
220
22
47
150
15
68
10
33
47
100
2.2
3.3
4.7
6.8
10
10
15
22
22
33
47
68
10
22
NOMINAL
CASE
SIZE
ØDxL
(mm)
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
5 x 11
8.2 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
5 x 11
5 x 11
5 x 11
5 x 11
5 x 11
8.2 x 11
5 x 11
5 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
8.2 x 11
I
R
I
L2
100 Hz
tan
2 min
85 °C
100 Hz
(μA)
(mA)
130
300
95
150
260
400
90
160
230
280
390
140
210
310
87
130
270
72
180
60
110
160
250
25
38
45
55
70
120
80
100
150
160
190
210
80
110
7
16
6
12
17
31
7
13
18
24
35
13
18
36
8
13
35
7
20
6
13
18
33
4
5
5
6
7
7
9
11
11
16
21
29
9
16
0.20
0.20
0.16
0.20
0.16
0.20
0.14
0.16
0.14
0.16
0.16
0.14
0.12
0.14
0.10
0.12
0.12
0.10
0.10
0.08
0.10
0.08
0.10
0.06
0.06
0.06
0.06
0.06
0.04
0.07
0.08
0.05
0.06
0.07
0.08
0.06
0.06
Z
10 kHz
()
1.7
0.52
2.8
1.3
0.59
0.43
2.7
1.6
0.6
0.55
0.48
1.8
0.7
0.55
2.7
1.9
0.6
3.7
0.81
4.5
2.1
0.96
0.7
18
12
8.5
5.9
4.0
2.8
3.1
2.7
1.4
1.2
1.0
0.88
3.5
1.8
ORDERING CODE MAL2036.......
BULK PACKAGING
TAPED AMMOPACK
LONG LEADS
CUT LEADS
FORM
F
FORM
F
FORM
F
FORM
F
CA
(mm)
CB
(mm)
TFA
(mm)
TNA
(mm)
53101E3
2.5
-
-
33101E3
5.0
73101E3
2.5
53331E3
5.0
63331E3
5.0
33331E3
5.0
-
-
54479E3
2.5
-
-
34479E3
5.0
74479E3
2.5
54151E3
2.5
-
-
34151E3
5.0
74151E3
2.5
54221E3
5.0
64221E3
5.0
34221E3
5.0
-
-
54471E3
5.0
64471E3
5.0
34471E3
5.0
-
-
55339E3
2.5
-
-
35339E3
5.0
75339E3
2.5
55101E3
2.5
-
-
35101E3
5.0
75101E3
2.5
55151E3
5.0
65151E3
5.0
35151E3
5.0
-
-
55221E3
5.0
65221E3
5.0
35221E3
5.0
-
-
55331E3
5.0
65331E3
5.0
35331E3
5.0
-
-
56689E3
2.5
-
-
36689E3
5.0
76689E3
2.5
56101E3
5.0
66101E3
5.0
36101E3
5.0
-
-
56221E3
5.0
66221E3
5.0
36221E3
5.0
-
-
90001E3
2.5
-
-
90027E3
5.0
90389E3
2.5
90094E3
2.5
-
-
90098E3
5.0
90391E3
2.5
90099E3
5.0
90101E3
5.0
90103E3
5.0
-
-
57159E3
2.5
-
-
37159E3
5.0
77159E3
2.5
57689E3
5.0
67689E3
5.0
37689E3
5.0
-
-
90004E3
2.5
-
-
90028E3
5.0
90392E3
2.5
90104E3
2.5
-
-
90108E3
5.0
90393E3
2.5
90011E3
5.0
90012E3
5.0
90031E3
5.0
-
-
90109E3
5.0
90111E3
5.0
90113E3
5.0
-
-
58228E3
2.5
-
-
38228E3
5.0
78228E3
2.5
58338E3
2.5
-
-
38338E3
5.0
78338E3
2.5
58478E3
2.5
-
-
38478E3
5.0
78478E3
2.5
58688E3
2.5
-
-
38688E3
5.0
78688E3
2.5
58109E3
2.5
-
-
38109E3
5.0
78109E3
2.5
90036E3
5.0
90041E3
5.0
90181E3
5.0
-
-
58159E3
2.5
-
-
38159E3
5.0
78159E3
2.5
58229E3
2.5
-
-
38229E3
5.0
78229E3
2.5
90117E3
5.0
90118E3
5.0
90139E3
5.0
-
-
58339E3
5.0
68339E3
5.0
38339E3
5.0
-
-
58479E3
5.0
68479E3
5.0
38479E3
5.0
-
-
58689E3
5.0
68689E3
5.0
38689E3
5.0
-
-
59109E3
5.0
69109E3
5.0
39109E3
5.0
-
-
59229E3
5.0
69229E3
5.0
39229E3
5.0
-
-
6.3
10
16
25
35
40
50
63
100
Revision: 15-Jul-16
Document Number: 28312
3
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
036 RSP
www.vishay.com
Vishay BCcomponents
CONDITIONS
VALUE
U
s
1.15 U
R
U
rev
1 V
After 1 min
U
R
= 6.3 V to 100 V
After 5 min
U
R
= 6.3 V to 100 V
Case Ø D x L = 5 mm x 11 mm
Case Ø D x L = 8.2 mm x 11 mm
Calculated from tan
max.
and C
R
(see Table 2)
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
I
L1
0.006 C
R
x U
R
+ 3 μA
I
L5
0.001 C
R
x U
R
+ 3 μA
Typ. 13 nH
Typ. 16 nH
ESR = tan
/2 f
C
R
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
CAPACITANCE (C)
1.1
C
C
0
1.0
0.9 1
2
0.8
0.7
0.6
0.5
5
3
4
Curve 1: 63 V
Curve 2: 50 V
Curve 3: 35 V; 40 V; 100 V
Curve 4: 16 V; 25 V
Curve 5: 6.3 V; 10 V
-40
-20
0
20
40
60
80
T
amb
(°C)
0.7
0.6
0.5
5
1
C
C
0
1.1
1.0
0.9
0.8
Curve 1: 63 V (2.2 µF)
Curve 2: 63 V (> 2.2 µF)
Curve 3: 50 V
Curve 4: 35 V; 40 V; 100 V
Curve 5: 25 V
Curve 6: 16 V
Curve 7: 6.3 V; 10 V
10
10
2
10
3
6
7
1
3
4
5
2
-60
10
4
f (Hz)
10
5
C
0
= Capacitance at 20 °C, 100 Hz
C
0
= Capacitance at 20 °C, 100 Hz
T
amb
= 20 °C
Fig. 6 - Typical multiplier of capacitance
as a function of ambient temperature
Fig. 7 - Typical multiplier of capacitance
as a function of ambient temperature
IMPEDANCE (Z)
Curve 1: 2.2 µF
Curve 2: 3.3 µF
Curve 3: 4.7 µF
Curve 4: 6.8 µF
Curve 5: 10 µF
Curve 6: 15 µF
Curve 7: 22 µF
Curve 8: 33 µF
Curve 9: 47 µF
Curve 10: 68 µF
Curve 11: 100 µF
Curve 12: 150 µF
10
3
Z
(Ω)
10
2
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
10
3
Z
(Ω)
10
2
1
2
3
4
5
6
7
8
9
10
11
12
10
10
1
1
2
3
4
Curve 1: 2.2 µF
Curve 2: 4.7 µF
Curve 3: 10 µF, 100 V
Curve 4: 10 µF, 63 V
Curve 5: 22 µF, 63 V
Curve 6: 33 µF
Curve 7: 47 µF
Curve 8: 68 µF
Curve 9: 100 µF
Curve 10: 150 µF
Curve 11: 220 µF
Curve 12: 330 µF
Curve 13: 470 µF
1
10
2
10
3
10
4
10
5
f (Hz)
10
6
10
2
10
3
10
4
10
5
10
6
f (Hz)
Case Ø D x L = 5 mm x 11 mm
T
amb
= 20 °C
Case Ø D x L = 8.2 mm x 11 mm
T
amb
= 20 °C

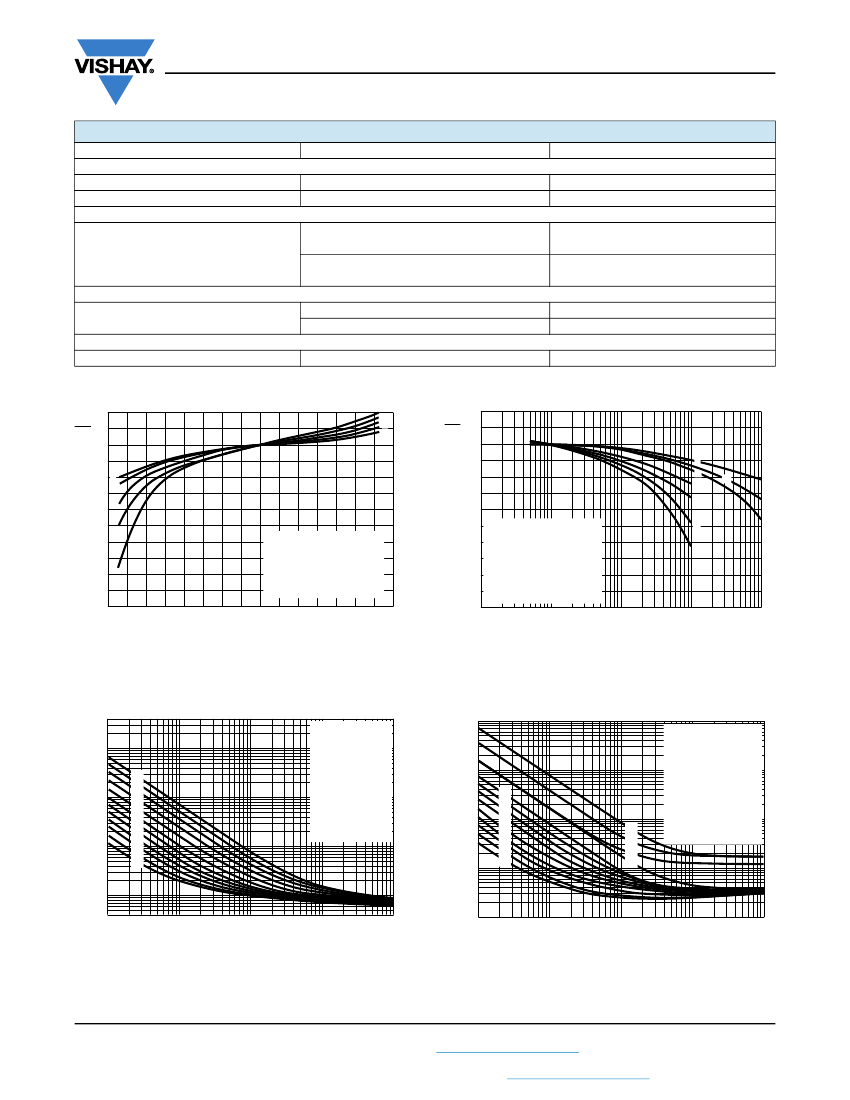

Fig. 8 - Typical impedance as a function of frequency
Fig. 9 - Typical impedance as a function of frequency
Revision: 15-Jul-16
Document Number: 28312
4
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
036 RSP
www.vishay.com
RIPPLE CURRENT AND USEFUL LIFE
3.3
I
A
3.2
I
R
3.1
3.0
2.8
2.6
2.4
2.2
0
1.
CCC205
Vishay BCcomponents
Lifetime multiplier
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.5
0.0
10
15
20
0
3.
0
4.
0
6.
5
1.
0
2.
I
A
= Actual ripple current at 100 Hz
I
R
= Rated ripple current at 100 Hz, 85 °C
(1)
(1)
30
50 0
7
Useful life at 85 °C and I
R
applied: 3000 h
40
50
60
70
80
90
100
T
amb
(°C)
Fig. 10 - Multiplier of useful life as a function of ambient temperature and ripple current load
Table 3
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY
(Hz)
50
100
300
1000
3000
10
000
U
R
= 6.3 V TO 10 V
0.90
1.00
1.12
1.20
1.25
1.30
I
R
MULTIPLIER
U
R
= 16 V TO 35 V
0.85
1.00
1.20
1.30
1.35
1.40
U
R
= 40 V TO 100 V
0.80
1.00
1.25
1.40
1.50
1.60
Table 4
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
Endurance
REFERENCE
IEC 60384-4 /
EN130300
subclause 4.13
T
amb
= 85 °C;
U
R
applied;
2000 h
PROCEDURE
(quick reference)
REQUIREMENTS
U
R
6.3 V;
C/C:
+15 % / -30 %
U
R
> 6.3 V;
C/C:
± 15 %
tan
1.3 x spec. limit
Z
2 x spec. limit
I
L5
spec. limit
U
R
6.3 V;
C/C:
+45 % / -50 %
U
R
> 6.3 V;
C/C:
± 45 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L5
spec. limit
No short or open circuit
Total failure percentage:
1 %
C/C,
tan
,
Z:
for requirements see
“Endurance test” above
I
L5
spec. limit
Useful life
CECC 30301
subclause 1.8.1
T
amb
= 85 °C;
U
R
and I
R
applied;
3000 h
T
amb
= 85 °C; no voltage applied;
500 h
After test: U
R
to be applied for 30 min,
24 h to 48 h before measurement
Shelf life
(storage at high
temperature)
IEC 60384-4 /
EN130300
subclause 4.17
Statements about product lifetime are based on calculations and internal testing. They should only be interpreted as estimations. Also due to external factors, the
lifetime in the field application may deviate from the calculated lifetime. In general, nothing stated herein shall be construed as a guarantee of durability.
Revision: 15-Jul-16
Document Number: 28312
5
For technical questions, contact:
aluminumcaps1@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ASUS, P7H55DM-EVO, ASUS, LGA1156, H55 [img]http://pic.xfastest.com/johnnydee/ASUS_P7H55D-M_EVO/0.5.jpg[/img] Since INTEL launched a new generation of internal display CPU, it is also equivalent to Ann...
Please help me.
Can I find S9S12D64F0MFUER FREESCALE 750PCS/disc?
The dimensions and specifications of this packaging method. (Belt length, width, spacing)
Customers need this size information to prog...
Live Topic : Wi-Fi Security for Enterprises | Microchip Security Solutions Seminar Series 16Content Description: Many of us are familiar with logging into home Wi-Fi networks using WPA2. However, larg...
I am learning STM8S103 and want to switch the internal high-speed clock to the low-speed clock. I operate the registers according to the manual as follows:void CLK_init(void){CLK_ICKR=0x08；
CLK_SWCR=0...
[p=35, null, left][color=#555555]I have been studying TM4C123 microcontroller these days. Generally speaking, combining official routines and reference manuals, plus a good oscilloscope, the efficienc...
Emergency hand-held lamps powered by 6V maintenance-free batteries are widely used in rural areas. The charger used is a transformer step-down and single diode half-wave rectifier, and the charging...[Details]
All electronic design engineers and scientists have performed electrical signal analysis, or signal analysis for short. Through this basic measurement, they can gain insight into signal details and...[Details]
System design is a complex process. It is not enough to just use ICs. There are many details to consider. This article uses a high-fidelity music playback system as an example to introduce how to s...[Details]
Battery life is critical for portable applications. For applications such as smoke detectors, security devices, and thermostats, factory-installed batteries need to last for more than 10 years. The...[Details]
1. Introduction
At present, most lighting equipment still uses traditional energy for lighting. Making full use of solar energy as the energy supply for lighting equipment is of great si...[Details]
1. What is temperature?
Heat is a type of molecular motion. The hotter an object is, the faster its molecules move. Absolute zero is defined as the temperature at which all molecular motion ...[Details]
1. Background:
The instrument system parameter detection and control of the chemical production workshop of Tangshan Coal Gas Coking Plant are all analog instruments, some of which are eve...[Details]
Product series: PB-B-RS232/485 interface (hereinafter sometimes referred to as "interface") is a product in the PROFIBUS bus bridge series.
The main purpose of the bridge series ...[Details]
Overview:
This paper introduces a method of connecting a CAN-bus network with Ethernet to form a medium-sized remote monitoring/data transmission network.
CAN (Controller Area Network) is ...[Details]
1. Introduction to CIF Board
Fieldbus integration based on PC system
Whether it is a master or a slave, fieldbus has won unanimous praise in the field of PC-based automation. For more...[Details]
Many battery-powered systems require a visual indicator to show when the battery needs to be replaced. LEDs are commonly used for this purpose, but they consume at least 10mA of current. This con...[Details]
At present, a large number of cooling tower fans, speed fans and special fans are in use in petroleum, chemical, pharmaceutical, metallurgical and other enterprises. Some fans have no monitoring in...[Details]
0 Introduction
Ultrasonic waves
are mechanical waves with a frequency of more than 20KHz, and the propagation speed in the air is about 340 m/s (at 20°C). Ultrasonic waves can be gene...[Details]
In the "digital pressure measurement" experimental device of applied physics, the subject technical knowledge of analog circuits, digital circuits, sensors and single-chip microcomputers is used. In o...[Details]
The emergence and development of street lamps are inseparable from the prosperity and progress of cities, which makes street lamps useful. Conversely, street lamps also make the night of the city n...[Details]
Embedded System
京公网安备 11010802033920号
EEWORLD
