MAL205962681E3

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 40 V, 10000 uF, THROUGH HOLE MOUNT
CategoryPassive components    capacitor
File Size147KB,11 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

MAL205962681E3 Online Shopping

Suppliers Part Number Price MOQ In stock
MAL205962681E3 - - View Buy Now

MAL205962681E3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 40 V, 10000 uF, THROUGH HOLE MOUNT

MAL205962681E3 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instruction,
Reach Compliance Code_compli
ECCN codeEAR99
Other featuresSTANDARD: IEC60384-4
capacitance680 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter35 mm
dielectric materialsALUMINUM (WET)
ESR235 mΩ
JESD-609 codee3
leakage current0.82 mA
length35 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
Package formSnap-i
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)200 V
ripple current1850 mA
surface mountNO
Terminal surfaceMatte Tin (Sn)
Terminal pitch10 mm
Terminal shapeSNAP-IN
058/059 PLL-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Long Life Snap-In

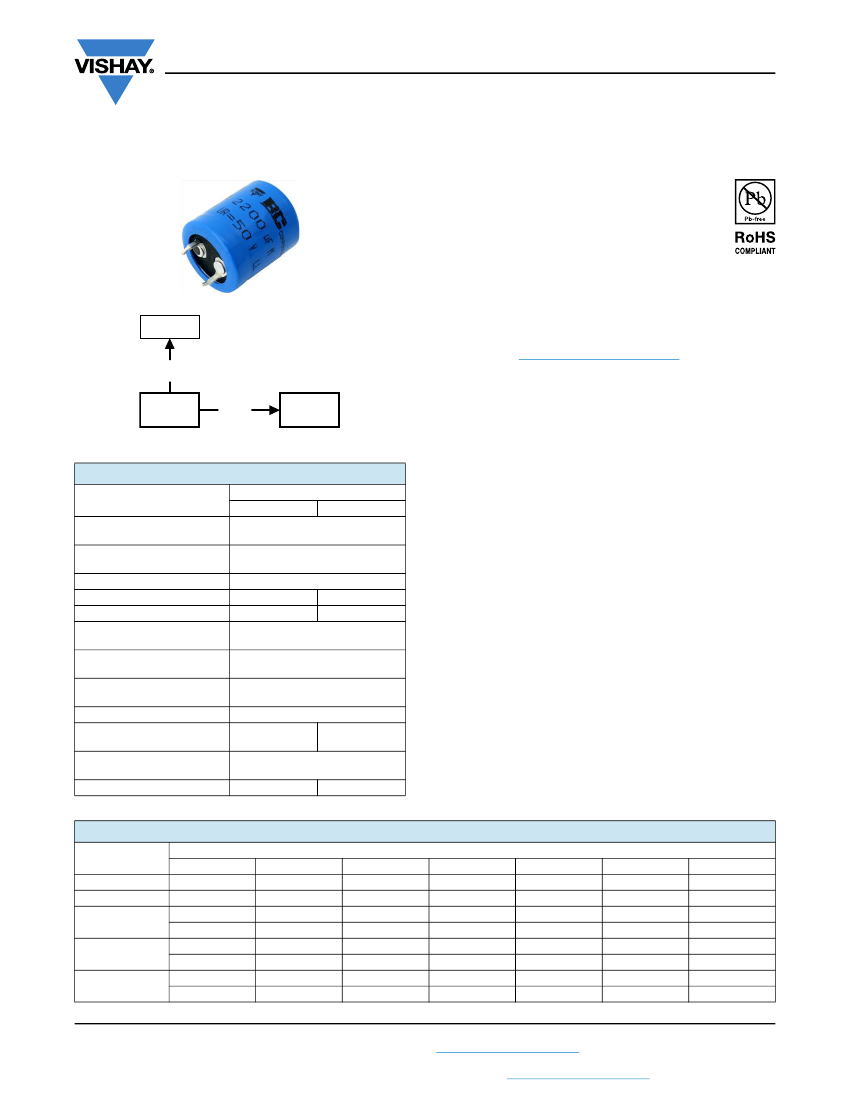

FEATURES
• Long useful life: 10 000 h at +105 °C
• High ripple current capability
• Keyed polarity version available
• Polarized aluminum electrolytic capacitors, non-solid
electrolyte
• Large types, minimized dimensions, cylindrical aluminum
case, insulated with a blue sleeve
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
smaller
dimensions
058/059
PLL-SI
056/057
PSM-SI
159 PUL-SI
APPLICATIONS
85 °C
• Computer, telecommunication and industrial systems
• Smoothing and filtering applications
• Standard and switched mode power supplies
• Energy storage in pulse systems
Fig. 1
QUICK REFERENCE DATA
DESCRIPTION
VALUE
058
059
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number
• Climatic category in accordance with IEC 60068
Nominal case sizes
22 x 25 to 35 x 50
(Ø D x L in mm)
Rated capacitance range
33 μF to 47 000 μF
(E6 series), C
R
Tolerance on C
R
± 20 %
Rated voltage range, U
R
10 V to 100 V
200 V to 400 V
Category temperature range -40 °C to 105 °C -25 °C to 105 °C
50
V: 2000 h;
Endurance test at 105 °C
63 V: 5000 h
50
V: 5000 h;
Useful life at 105 °C
63 V: 10 000 h
Useful life at 40 °C,
50
V: 125 000 h;
1.9 x I
R
applied
63 V: 250 000 h
Shelf life at 0 V, 105 °C
500 h
Max. RMS value of
n/a
12 V
ripple voltage
Based on sectional
IEC 60384-4 / EN130300
specification
Climatic category IEC 60068
40 / 105 / 56
25 / 105 / 56
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 058 SERIES
(Ø D x L in mm)
C
R
(μF)
330
470
680
1000
1500
10
-
-
-
-
-
-
-
-
16
-
-
-
-
-
-
-
-
25
-
-
-
-
-
-
-
-
U
R
(V)
40
-
-
-
-
-
-
22 x 25
-
50
-
-
-
-
22 x 25
-
22 x 30
-
63
-
-
22 x 25
-
22 x 30
-
25 x 30
22 x 40
100
22 x 25
22 x 30
25 x 30
22 x 40
30 x 30
25 x 40
30 x 40
25 x 50
Revision: 12-Oct-16
Document Number: 28342
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
