MAL208564688E3

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63 V, 3.3 uF, SURFACE MOUNT
CategoryPassive components    capacitor
File Size111KB,8 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

MAL208564688E3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63 V, 3.3 uF, SURFACE MOUNT

MAL208564688E3 Parametric

Parameter NameAttribute value
MakerVishay
package instruction, 3515
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance6.8 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
Manufacturer's serial number085CS
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, BLISTER
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current10 mA
size code3515
surface mountYES
Delta tangent0.25
Terminal shapeJ BEND
085 CS
Vishay BCcomponents
Aluminum Capacitors
SMD (Chip) Standard
FEATURES
Polarized aluminum electrolytic
non-solid electrolyte, self healing
capacitors,
Miniaturized, high CV per unit volume, low height
Charge and discharge proof

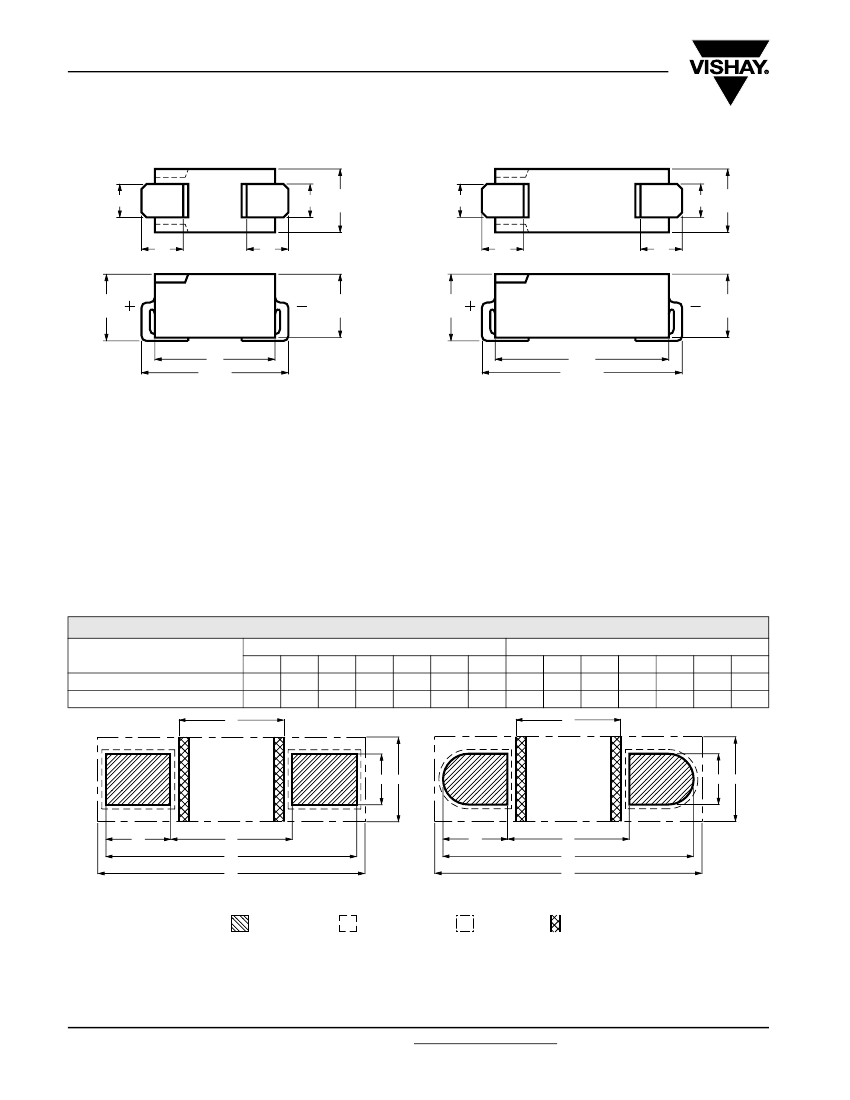

Fig.1 Component outlines
APPLICATIONS
SMD technology, boards with restricted mounting height
085 CS
longer
life
139 CLL
General applications, consumer electronics, low profile
and lightweight equipment
Decoupling, smoothing, filtering and buffering
MARKING
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes
(L x W x H in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85
°C
Useful life at 85 °C
Useful life at 40 °C;
1.4 x l
R
applied
VALUE
8.8 x 3.7 x 3.9 and
11.9 x 3.7 x 3.9
0.47 to 22 µF
6.3 to 63 V
- 10 to + 50 % or ± 20 %
The capacitors are marked (where possible) with the
following information:
E
N
- 40 to + 85 °C
1000 hours
R
1500 hours
W
Rated capacitance (in µF)
Rated voltage code (see Table 1), the U
R
code letter
indicates the position of the decimal point in the
capacitance value
Name of manufacturer
‘-’ sign indicating the cathode. The anode is identified by
bevelled edges
Examples
for C
R
; U
R
marking:
H22 represents 0.22 µF; 63 V
2G2 represents 2.2 µF; 40 V
22C represents 22 µF; 6.3 V
Table 1
Shelf life at 0 V, 85 °C
FO
40 000 hours
500 hours
Resistance to soldering
heat test
Based on sectional
specification
immersion in solder:
10 s at 260 °Cor 20 s at 215 °C
IEC 60384-18/CECC 32300
40/085/56
D
U
R
(V)
Code letter
RATED VOLTAGE MARKING CODE
6.3
C
10
D
16
E
25
F
40
G
63
H
Climatic category IEC 60068
N
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(L x W x H in mm)
C
R
(µF)
U
R
(V)
6.3
-
-
-
-
-
-
8.8 x 3.7 x 3.9
-
11.9 x 3.7 x 3.9
10
-
-
-
-
-
8.8 x 3.7 x 3.9
-
11.9 x 3.7 x 3.9
-
16
-
-
-
-
8.8 x 3.7 x 3.9
-
11.9 x 3.7 x 3.9
-
-
25
-
-
-
8.8 x 3.7 x 3.9
-
11.9 x 3.7 x 3.9
-
-
-
40
-
-
8.8 x 3.7 x 3.9
-
11.9 x 3.7 x 3.9
-
-
-
-
63
8.8 x 3.7 x 3.9
8.8 x 3.7 x 3.9
11.9 x 3.7 x 3.9
11.9 x 3.7 x 3.9
-
-
-
-
-
O
0.47
1.0
2.2
3.3
4.7
6.8
10
15
22
T
E
S
IG
Supplied in blister tape on reel
N
Flexible terminals, reflow and wave solderable
Document Number: 28300
Revision: 28-May-08
For technical questions, contact: aluminumcaps1@vishay.com
S
SMD-version, rectangular case, insulated
www.vishay.com
1
