87568-1472 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87568-1472

87568-1472: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size78KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87568-1472 Overview

Board Connector, 14 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Black Insulator, Plug

87568-1472 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH STRAIN RELIEF
body width	0.234 inch
subject depth	0.449 inch
body length	0.81 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	600 Cycles
maximum insertion force	1.946 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	87568
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	14
Maximum wire diameter	28 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	.3892 N

Preview

Download Datasheet

View All

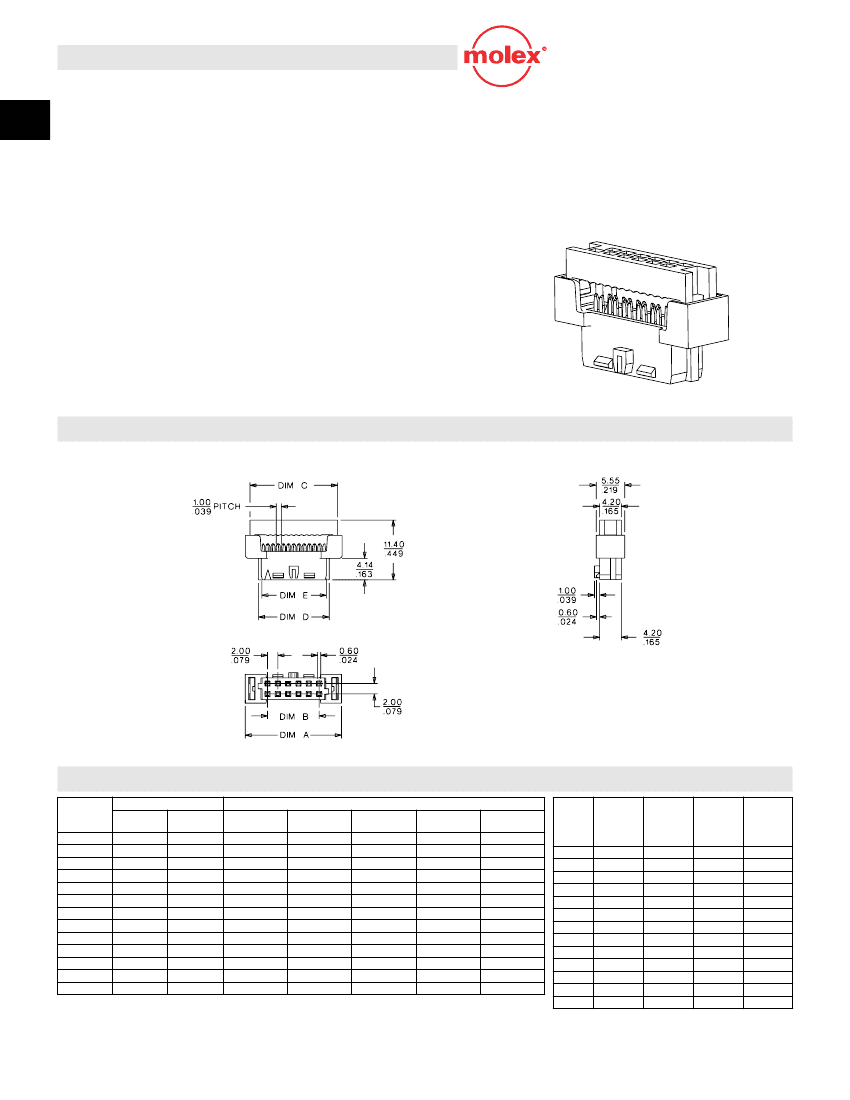

C-Grid

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Pre-loaded upper housing offers precise cover-to-base

alignment, ensuring a reliable termination

Early-entry single-beam contact provides long wiping

action during mating

Optional polarization and locking ramp

Optional strain relief is available

Electrical

Voltage: 125V DC

Current: 1.0A

Contact Resistance: 30m

Ω

max.

Dielectric Withstanding Voltage: 500V AC

Insulation Resistance: 5000 M

Ω

min.

Mechanical

Contact Retention to Housing: 1.96N (0.44 lb) max.

Wire Pull-Out Force: 2.45N (0.55 lb) max.

Mating Force: 1.96N (0.44 lb) max.

Unmating Force: 0.39N (0.09 lb) min.

Durability: 600 cycles max.

Physical

Housing: High Thermoplastic, UL 94V-0

Contact: Copper Alloy

Plating: Contact Area—See Table Below

Underplating—Nickel

Operating Temperature: -20 to +85

Cable: 1.00mm Flat Cable, 7 Strands, 28 AWG

2.00mm (.079") Pitch

Milli-Grid

™

Cable-to-Board

Receptacle

87568

Dual Row, IDT

Reference Information

Product Specification: PS-87568-004

Packaging: Tray

Wire Style: UL2651, UL2678

UL File No.: E29179

CSA File No: LR19980

Mates With: Milli-Grid 2.00mm (.079") Headers

Use With: 87569 Strain Relief

Designed In: Millimeters

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order

0.38

(15

)

Gold

87568-10X1

87568-12X1

87568-14X1

87568-16X1

87568-20X1

87568-22X1

87568-24X1

87568-26X1

87568-30X1

87568-34X1

87568-40X1

87568-44X1

87568-50X1

No.

0.76

(30

)

Gold

87568-10X2

87568-12X2

87568-14X2

87568-16X2

87568-20X2

87568-22X2

87568-24X2

87568-26X2

87568-30X2

87568-34X2

87568-40X2

87568-44X2

87568-50X2

Dimension

16.65

18.65

20.65

22.65

26.65

28.65

30.65

32.65

36.65

40.65

46.65

50.65

56.65

(.660)

(.730)

(.810)

(.890)

(1.050)

(1.130)

(1.210)

(1.290)

(1.440)

(1.600)

(1.840)

(1.990)

(2.230)

8.00

10.00

12.00

14.00

18.00

20.00

22.00

24.00

28.00

32.00

38.00

42.00

48.00

(.310)

(.390)

(.470)

(.550)

(.710)

(.790)

(.870)

(.940)

(1.100)

(1.260)

(1.500)

(1.650)

(1.890)

14.90

16.90

18.90

20.90

24.90

26.90

28.90

30.90

34.90

38.90

44.90

48.90

54.90

(.590)

(.670)

(.740)

(.820)

(.980)

(1.060)

(1.140)

(1.220)

(1.370)

(1.530)

(1.770)

(1.930)

(2.160)

11.65

13.65

15.65

17.65

21.65

23.65

25.65

27.65

31.65

35.65

41.65

45.65

61.65

(.460)

(.540)

(.620)

(.690)

(.850)

(.930)

(1.010)

(1.090)

(1.250)

(1.400)

(1.640)

(1.800)

(2.430)

10.55

12.55

14.55

16.55

20.55

22.55

24.55

26.55

30.55

34.55

40.55

44.55

50.55

(.420)

(.490)

(.570)

(.650)

(.810)

(.890)

(.970)

(1.050)

(1.200)

(1.360)

(1.600)

(1.750)

(1.990)

Circuits

X=9

X=6

X=7

With

Without

X=4

With Center Polarization With Single Polarization

Locking

and Locking

Polarization and Locking

Ramp

Yes

A-152

MX01
