BD941F datasheet, PDF - EEWORLD Datasheet

BD941F: DescriptionSILICON EPITAXIAL BASE POWER TRANSISTORS; CategoryDiscrete semiconductor The transistor; File Size292KB，6 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

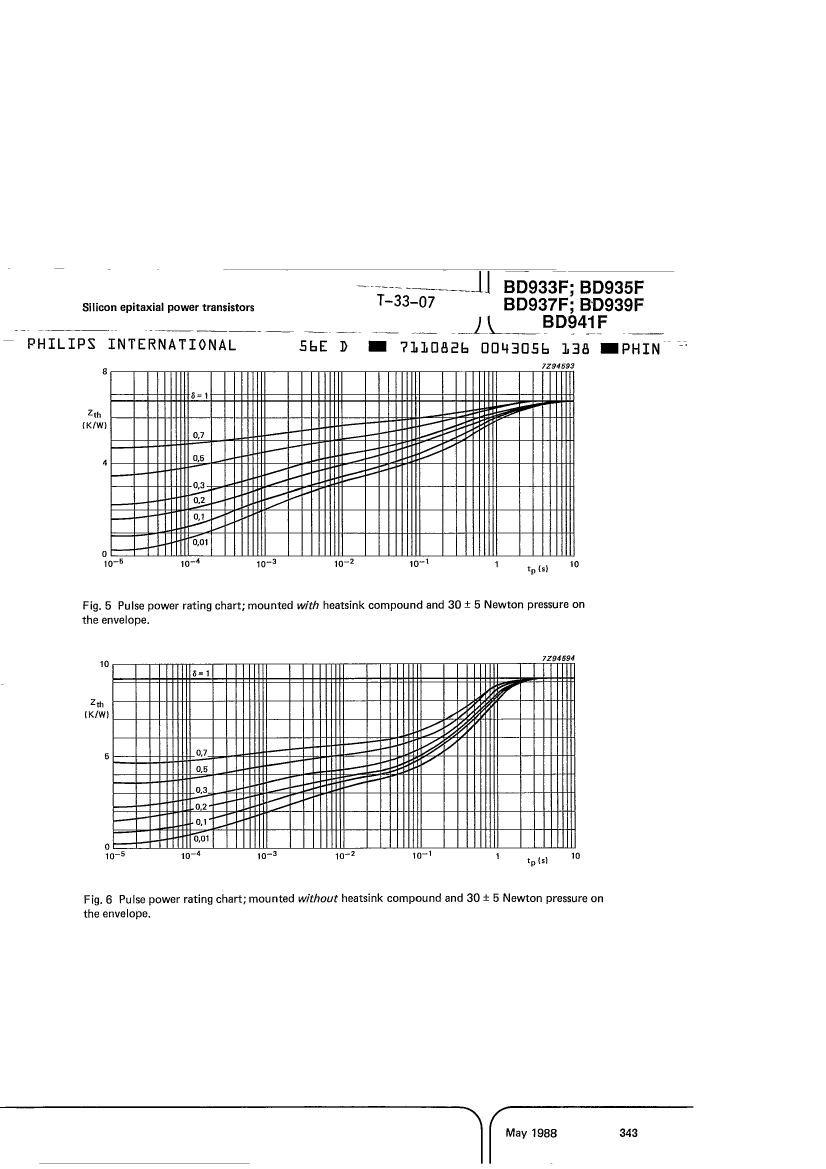

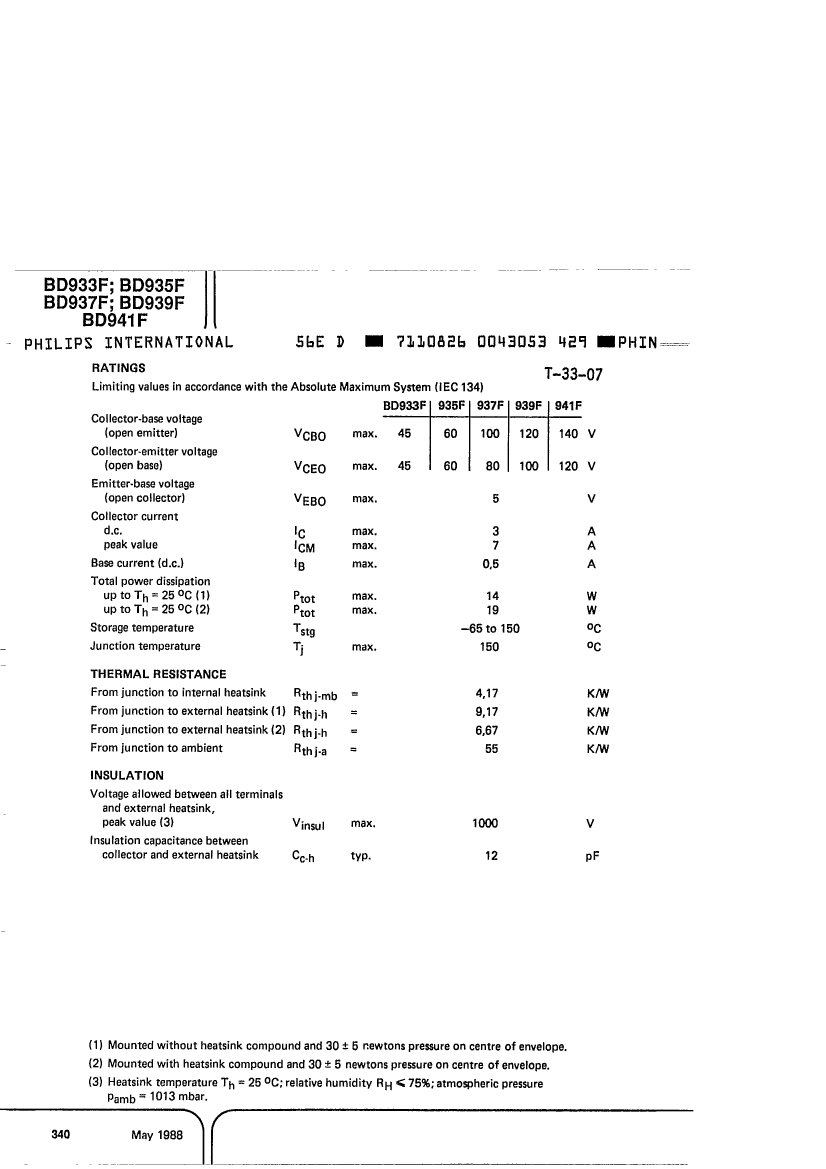

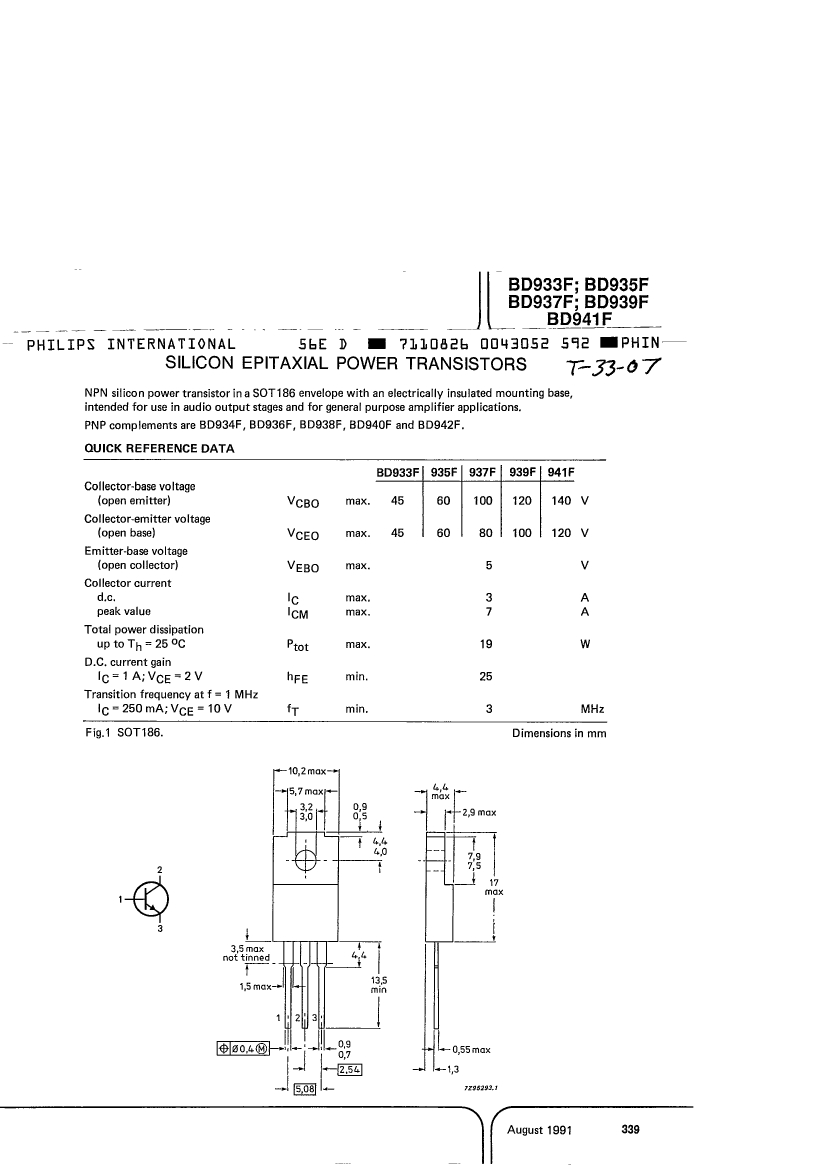

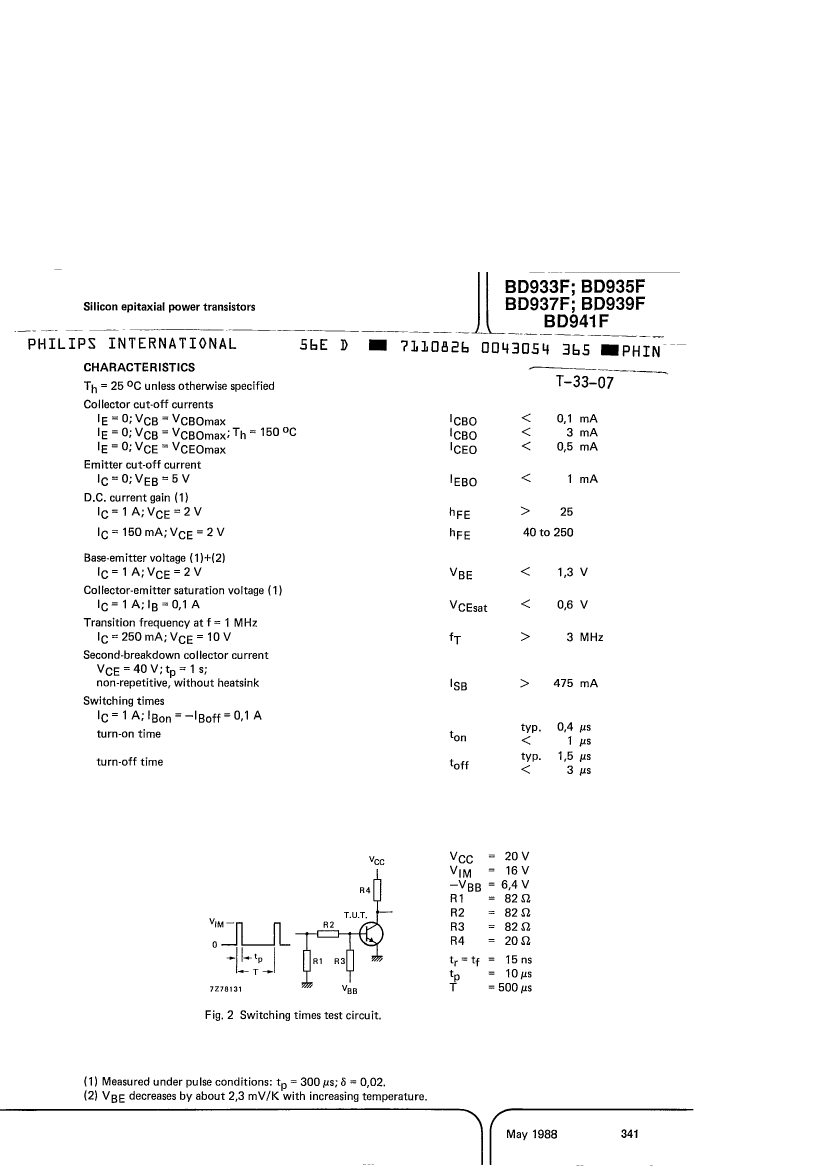

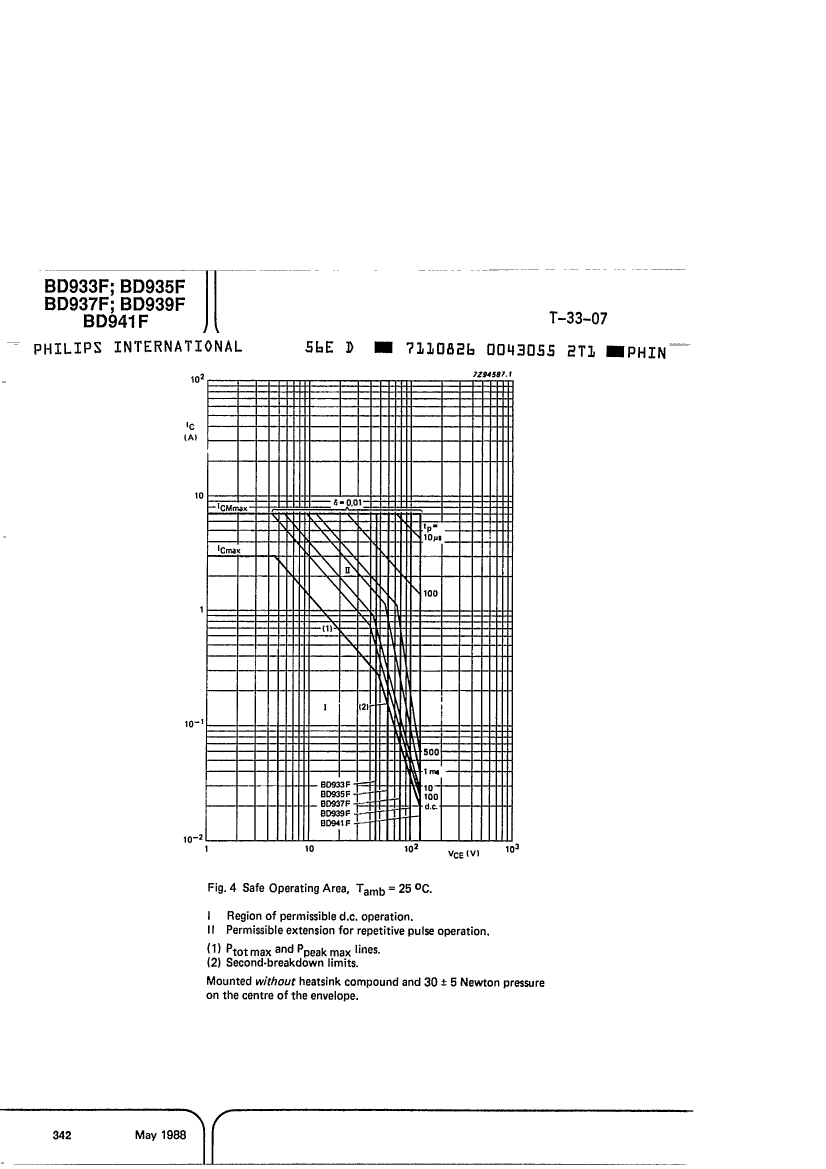

BD941F Overview

SILICON EPITAXIAL BASE POWER TRANSISTORS

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	3 A
Configuration	Single
Minimum DC current gain (hFE)	40
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	19 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz

	BD941F	BD939F	BD937F
Description	SILICON EPITAXIAL BASE POWER TRANSISTORS	SILICON EPITAXIAL BASE POWER TRANSISTORS	SILICON EPITAXIAL BASE POWER TRANSISTORS
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknow	unknow	unknow
Maximum collector current (IC)	3 A	3 A	3 A
Configuration	Single	Single	Single
Minimum DC current gain (hFE)	40	40	40
JESD-609 code	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	19 W	19 W	19 W
surface mount	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	3 MHz	3 MHz	3 MHz
