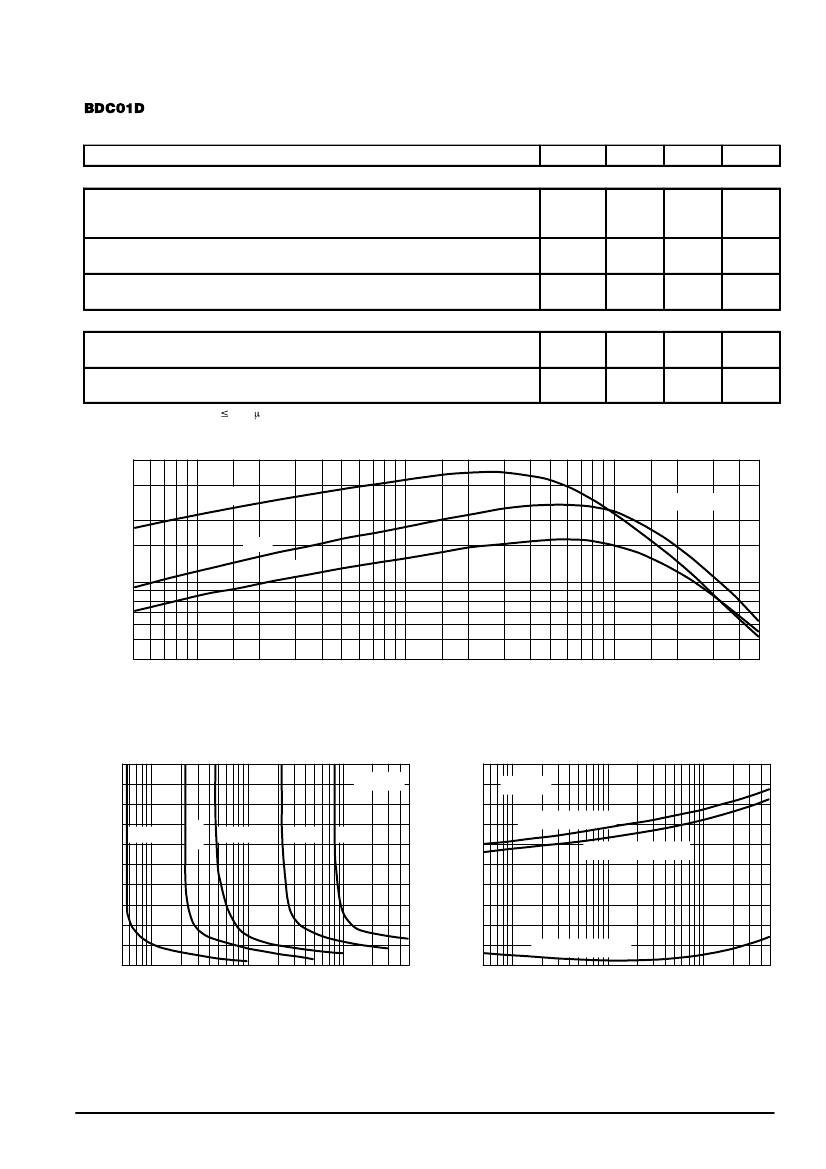

Motorola Small–Signal Transistors, FETs and Diodes Device Data
BDC01D
θ
VB, TEMPERATURE COEFFICIENT (mV/
°
C)
–0.8
–1.2
C, CAPACITANCE (pF)
80
60
40
Cibo
TJ = 25°C
–1.6
θ
VB for VBE
20
–2.0
–2.4
10
8.0
6.0
Cobo
0.2
0.5 1.0 2.0
5.0 10
20
VR, REVERSE VOLTAGE (VOLTS)
50
100
–2.8
0.5
1.0
2.0
5.0
20
50
10
100
IC, COLLECTOR CURRENT (mA)
200
500
4.0
0.1
Figure 4. Base–Emitter Temperature Coefficient
f T, CURRENT–GAIN — BANDWIDTH PRODUCT (MHz)
Figure 5. Capacitance
300
IC, COLLECTOR CURRENT (mA)
200
VCE = 2.0 V
TJ = 25°C
DUTY CYCLE
≤
10%
2k
1k
500
200
100
50
20
30
2.0
3.0
5.0 7.0 10
20 30
50 70 100
IC, COLLECTOR CURRENT (mA)
200
10
1.0
TA = 25°C
TC = 25°C
1.0 s
1.0 ms
100
µs
100
70
50
dc
dc
CURRENT LIMIT
THERMAL LIMIT
SECOND BREAKDOWN LIMIT
MPSW05
MPSW06
2.0
5.0
10
20
60 80 100
VCE, COLLECTOR–EMITTER VOLTAGE (VOLTS)
Figure 6. Current–Gain — Bandwidth Product
Figure 7. Active Region — Safe Operating Area
Motorola Small–Signal Transistors, FETs and Diodes Device Data
3
BDC01D
PACKAGE DIMENSIONS
A
R
P
F
L
B
SEATING
PLANE
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. DIMENSION F APPLIES BETWEEN P AND L.
DIMENSIONS D AND J APPLY BETWEEN L AND K
MIMIMUM. LEAD DIMENSION IS UNCONTROLLED
IN P AND BEYOND DIMENSION K MINIMUM.
INCHES
MIN
MAX
0.175
0.205
0.290
0.310
0.125
0.165
0.018
0.022
0.016
0.019
0.045
0.055
0.095
0.105
0.018
0.024
0.500
–––
0.250
–––
0.080
0.105
–––
0.100
0.135
–––
0.135
–––
MILLIMETERS
MIN
MAX
4.44
5.21
7.37
7.87
3.18
4.19
0.46
0.56
0.41
0.48
1.15
1.39
2.42
2.66
0.46
0.61
12.70
–––
6.35
–––
2.04
2.66
–––
2.54
3.43
–––
3.43
–––
K
DIM
A
B
C
D
F
G
H
J
K
L
N
P
R
V
X X
G
H
V
1 2 3
D
J
SECTION X–X
N C
N
CASE 029–05
(TO–226AE)
ISSUE AD
STYLE 14:
PIN 1. EMITTER
2. COLLECTOR
3. BASE
Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding
the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit,
and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different
applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does
not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in
systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of
the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless
against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.
Motorola and
are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.
