12103E103ZAJ2A

Description
Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.01uF, Surface Mount, 1210, CHIP
CategoryPassive components    capacitor
File Size333KB,12 Pages
ManufacturerAVX
Download Datasheet Parametric Compare View All

12103E103ZAJ2A Overview

Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.01uF, Surface Mount, 1210, CHIP

12103E103ZAJ2A Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerAVX
package instruction, 1210
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.01 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
JESD-609 codee0
Manufacturer's serial number1210
Installation featuresSURFACE MOUNT
multi-layerYes
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature10 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, PAPER, 7 INCH
positive tolerance80%
Rated (DC) voltage (URdc)25 V
size code1210
surface mountYES
Temperature characteristic codeZ5U
Temperature Coefficient-56/+22% ppm/°C
Terminal surfaceTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND

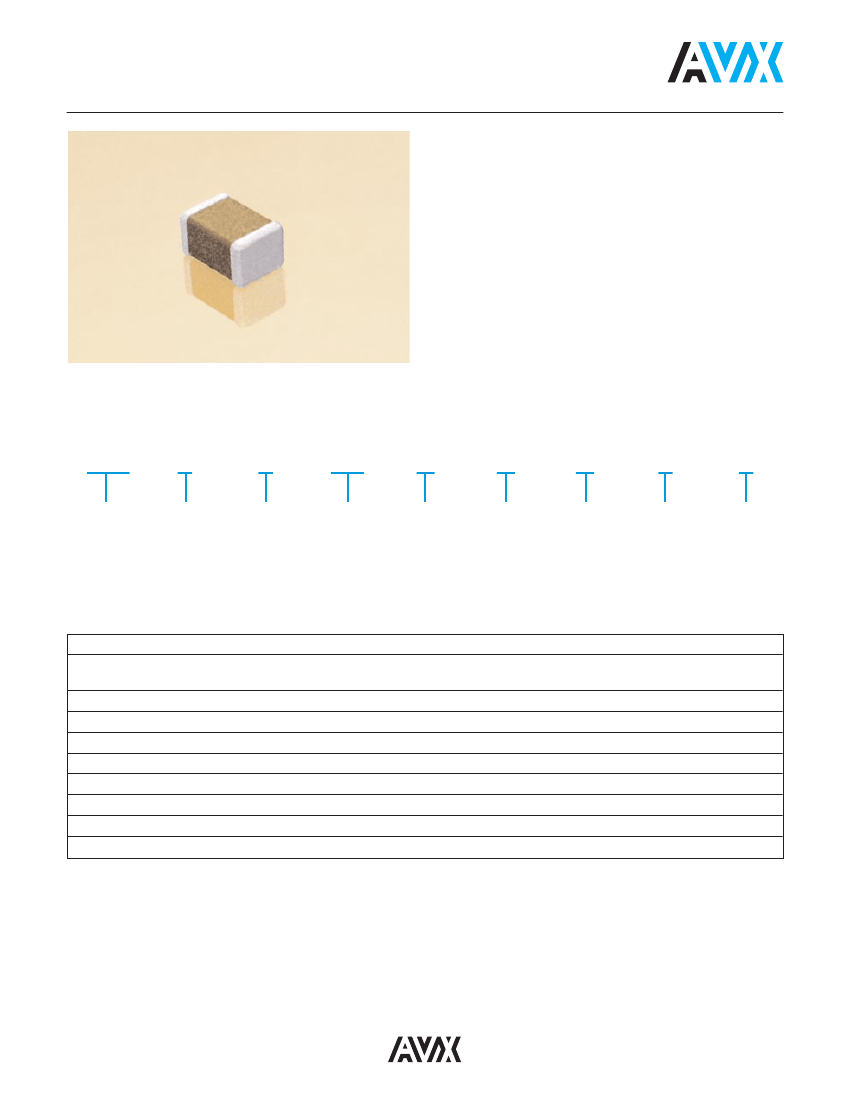

12103E103ZAJ2A Preview

Z5U Dielectric
General Specifications
Z5U formulations are “general-purpose” ceramics which are
meant primarily for use in limited temperature applications
where small size and cost are important. Z5U show wide
variations in capacitance under influence of environmental
and electrical operating conditions.
Despite their capacitance instability, Z5U formulations
are very popular because of their small size, low ESL, low
ESR and excellent frequency response. These features are
particularly important for decoupling application where only a
minimum capacitance value is required.
PART NUMBER (see page 3 for complete part number explanation)
0805
Size
(L" x W")
5
Voltage
25V = 3
50V = 5
E
Dielectric
Z5U = E
104
Capacitance
Code
Z
Capacitance
Tolerance
Preferred
Z = +80%
–20%
M = ±20%
A
Failure
Rate
A = Not
Applicable
T
Terminations
T = Plated Ni
and Solder
2
Packaging
2 = 7" Reel
4 = 13" Reel
A
Special
Code
A = Std.
Product
PERFORMANCE CHARACTERISTICS
Capacitance Range
Capacitance Tolerances
Operating Temperature Range
Temperature Characteristic
Voltage Ratings
Dissipation Factor
Insulation Resistance
(+25°C, RVDC)
Dielectric Strength
Test Voltage
Test Frequency
0.01 µF to 1.0 µF
Preferred +80 –20%
others available: ±20%, +100 –0%
+10°C to +85°C
+22% to –56% max.
25 and 50VDC (+85°C)
4% max.
10,000 megohms min. or 1000 MΩ - µF min., whichever is less
250% of rated voltage for 5 seconds at 50 mamp max. current
0.5 ± 0.2 Vrms
1 KHz
12
Z5U Dielectric
Typical Characteristic Curves**
Temperature Coefficient
+30
+20
+10
0
-10
-20
-30
-40
-50
-60
+10 +25 +30 +35 +40 +45 +50 +55 +65 +85
Capacitance
Variation of Impedance with Cap Value
Impedance vs. Frequency
1206 -Z5U
100.00
10.00
Impedance,
%
10,000 pF
1.00
100,000 pF
0.10
Temperature
°C
0.01
1
10
100
1,000
Frequency, MHz
Capacitance vs. Frequency
Capacitance
1000
0
-10
-20
-30
-40
1KHz
10 KHz
100 KHz
1 MHz
10 MHz
100
Variation of Impedance with Chip Size
Impedance vs. Frequency
.33 F - Z5U
Z5U 1206
Z5U 1210
Z5U 1812
|Z| (ohms)
Frequency
10
%
1
0.1
0.001
0.01
0.1
1
10
100
1,000
Frequency, MHz
Insulation Resistance (Ohm-Farads)
nsu ation Resistance vs Temperature
100,000
Variation of Impedance with Ceramic Formulation
Impedance vs. Frequency
.1 F X7R vs. Z5U
0805
10000
1000
X7R 0805
Z5U 0805
10,000
|Z| (ohms)
+20
+30
+40
+50
+60
+70
+80
1,000
100
10
1
0.1
0.01
0.001
0.01
0.1
1
10
100
1,000
100
0
Temperature
°C
Frequency, MHz
SUMMARY OF CAPACITANCE RANGES VS. CHIP SIZE
Style
0603*
0805*
1206*
1210*
1808
1812*
1825*
2225
25V
.01µF - .047µF
.01µF - .12µF
.01µF - .33µF
.01µF - .56µF
.01µF - .56µF
.01µF - 1.0µF
.01µF - 1.0µF
.01µF - 1.0µF
50V
.01µF - .027µF
.01µF - 0.1µF
.01µF - .33µF
.01µF - .47µF
.01µF - .47µF
.01µF - 1.0µF
.01µF - 1.0µF
.01µF - 1.0µF
* Standard Sizes
** For additional information on performance changes with operating conditions consult AVX’s software SpiCap.
13
Z5U Dielectric
Capacitance Range
PREFERRED SIZES ARE SHADED
SIZE
Standard Reel Packaging
(L)
Length
(W) Width
(T) Max. Thickness
(t) Terminal
MM
(in.)
MM
(in.)
MM
(in.)
MM
(in.)
0603*
All Paper
1.60 ± .15
(.063 ± .006)
.81 ± .15
(.032 ± .006)
.90
(.035)
.35 ± .15
(.014 ± .006)
0805
Paper/Embossed
2.01 ± .20
(.079 ± .008)
1.25 ± .20
(.049 ± .008)
1.30
(.051)
.50 ± .25
(.020 ± .010)
1206
Paper/Embossed
3.20 ± .20
(.126 ± .008)
1.60 ± .20
(.063 ± .008)
1.50
(.059)
.50 ± .25
(.020 ± .010)
1210
Paper/Embossed
3.20 ± .20
(.126 ± .008)
2.50 ± .20
(.098 ± .008)
1.70
(.067)
.50 ± .25
(.020 ± .010)
WVDC
Cap
(µF)
.010
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.5
25
50
25
50
25
50
25
50
L
W
T
t
*Reflow soldering only.
NOTES:
For low profile chips, see page 19.
= Paper Tape
= Embossed Tape
14
Z5U Dielectric
Capacitance Range
PREFERRED SIZES ARE SHADED
SIZE
Standard Reel Packaging
1808*
All Embossed
04.57 ± .25
(.180 ± .010)
2.03 ± .25
(.080 ± .010)
1.52
(.060)
.64 ± .39
(.025 ± .015)
MM
(in.)
MM
(in.)
MM
(in.)
MM
(in.)
1812*
All Embossed
4.50 ± .30
(.177 ± .012)
3.20 ± .20
(.126 ± .008)
1.70
(.067)
.61 ± .36
(.024 ± .014)
1825*
All Embossed
4.50 ± .30
(.177 ± .012)
6.40 ± .40
(.252 ± .016)
1.70
(.067)
.61 ± .36
(.024 ± .014)
2225*
All Embossed
5.72 ± .25
(.225 ± .010)
6.35 ± .25
(.250 ± .010)
1.70
(.067)
.64 ± .39
(.025 ± .015)
(
L) Length
(W) Width
(T) Max. Thickness
(t) Terminal
WVDC
Cap
(µF)
.010
.012
.015
.018
.022
.027
.033
.039
.047
.056
.068
.082
.10
.12
.15
.18
.22
.27
.33
.39
.47
.56
.68
.82
1.0
1.5
25
50
25
50
25
50
25
50
L
W
T
t
*Reflow soldering only.
NOTES:
For low profile chips, see page 19.
= Paper Tape
= Embossed Tape
15
How to Order
Part Number Explanation
EXAMPLE: 08055A101JAT2A
0805
Size
(L" x W")
0402
0504
0603
0805
1005
0907
1206
1210
1505
1805
1808
1812
1825
2225
3640
5
A
Dielectric
C0G (NP0) = A
X7R = C
X5R = D
Z5U = E
Y5V = G
101
J
Capacitance
Tolerance
= ±.25 pF*
= ±.50 pF*
= ±1% (≥ 25 pF)
= ±2% (≥ 13 pF)
= ±5%
= ±10%
= ±20%
= +80%, -20%
= +100%, -0%
A
T
Terminations
2
A
Special**
Code
A = Standard
Product
Non-Standard
P = Embossed
unmarked
M = Embossed
marked
E = Standard
packaging
marked
Low Profile
Chips Only
Max. Thickness
T = .66mm (.026")
S = .56mm (.022")
R = .46mm (.018")
C
D
F
G
J
K
M
Z
P
Standard:
T = Ni and Tin
Plated
Others:
7 = Plated Ni
Gold Plated
1 = Pd/Ag
Voltage
10V = Z
16V = Y
25V = 3
50V = 5
100V = 1
200V = 2
250V = V
500V = 7
600V = C
1000V = A
1500V = S
2000V = G
2500V = W
3000V = H
4000V = J
5000V = K
Capacitance
Code
(2 significant
digits + no. of
zeros)
Examples:
10 pF = 100
100 pF = 101
1,000 pF = 102
22,000 pF = 223
220,000 pF = 224
1 µF = 105
For values below 10 pF,
use “R” in place of
decimal point, e.g., 9.1
pfd = 9R1.
Failure
Rate
A = Not
Applicable
Packaging**
Recommended:
2 =7" Reel
4 =13" Reel
Others:
7 = Bulk Cassette
9 = Bulk
* C&D tolerances for 10 pF values.
** Standard Tape and Reel material depends upon chip size and thickness.
See individual part tables for tape material type for each capacitance value.
Note: Unmarked product is standard. Marked product is available on special request, please contact AVX.
Standard packaging is shown in the individual tables.
Non-standard packaging is available on special request, please contact AVX.
3

12103E103ZAJ2A Related Products

12103E103ZAJ2A 08055E104ZAJ2A 08055E683ZAJ2A 12065E333ZAJ2A 12063E224ZAJ2A 12063E154ZAJ2A
Description Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.01uF, Surface Mount, 1210, CHIP Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.1uF, Surface Mount, 0805, CHIP Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.068uF, Surface Mount, 0805, CHIP Ceramic Capacitor, Multilayer, Ceramic, 50V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.033uF, Surface Mount, 1206, CHIP Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.22uF, Surface Mount, 1206, CHIP Ceramic Capacitor, Multilayer, Ceramic, 25V, 80% +Tol, 20% -Tol, Z5U, -56/+22% TC, 0.15uF, Surface Mount, 1206, CHIP
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
package instruction , 1210 , 0805 , 0805 , 1206 , 1206 , 1206
Reach Compliance Code compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 0.01 µF 0.1 µF 0.068 µF 0.033 µF 0.22 µF 0.15 µF
Capacitor type CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR CERAMIC CAPACITOR
dielectric materials CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC CERAMIC
JESD-609 code e0 e0 e0 e0 e0 e0
Manufacturer's serial number 1210 0805 0805 1206 1206 1206
Installation features SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
multi-layer Yes Yes Yes Yes Yes Yes
negative tolerance 20% 20% 20% 20% 20% 20%
Number of terminals 2 2 2 2 2 2
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature 10 °C 10 °C 10 °C 10 °C 10 °C 10 °C
Package shape RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE RECTANGULAR PACKAGE
method of packing TR, PAPER, 7 INCH TR, EMBOSSED, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH TR, PAPER, 7 INCH
positive tolerance 80% 80% 80% 80% 80% 80%
Rated (DC) voltage (URdc) 25 V 50 V 50 V 50 V 25 V 25 V
size code 1210 0805 0805 1206 1206 1206
surface mount YES YES YES YES YES YES
Temperature characteristic code Z5U Z5U Z5U Z5U Z5U Z5U
Temperature Coefficient -56/+22% ppm/°C -56/+22% ppm/°C -56/+22% ppm/°C -56/+22% ppm/°C -56/+22% ppm/°C -56/+22% ppm/°C
Terminal surface Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND WRAPAROUND
