MAX11100
16-Bit, +5V, 200ksps ADC with 10µA Shutdown
General Description
The MAX11100 low-power, 16-bit analog-to-digital con-
verter (ADC) features a successive-approximation ADC,
automatic power-down, fast 1.1Fs wake-up, and a high-
speed SPI/QSPI™/MICROWIRE®-compatible interface.
The MAX11100 operates with a single +5V analog supply
and features a separate digital supply, allowing direct
interfacing with 2.7V to 5.25V digital logic.
At the maximum sampling rate of 200ksps, the MAX11100
typically consumes 2.45mA. Power consumption is typi-
cally 12.25mW (V
AVDD
= V
DVDD
= +5V) at a 200ksps
(max) sampling rate. AutoShutdown™ reduces supply
current to 140FA at 10ksps and to less than 10FA at
reduced sampling rates.
Excellent dynamic performance and low power, com-
bined with ease of use and small package size (10-pin
FMAX
®
and 12-bump WLP), make the MAX11100 ideal
for battery-powered and data-acquisition applications
or for other circuits with demanding power consumption
and space requirements.
S
16-Bit Resolution, No Missing Codes
S
+5V Single-Supply Operation
S
Adjustable Logic Level (2.7V to 5.25V)
S
Input Voltage Range: 0 to V
REF
S
Internal Track-and-Hold, 4MHz Input Bandwidth
S
SPI/QSPI/MICROWIRE-Compatible Serial Interface
S
Small 10-Pin µMAX and WLP Packages
S
Low Power
Features
2.45mA at 200ksps
140µA at 10ksps
0.1µA in Power-Down Mode
Functional Diagram
AVDD
DVDD
Applications
Motor Control
Industrial Process Control
Industrial I/O Modules
Data-Acquisition Systems
Thermocouple Measurements
Accelerometer Measurements
Portable- and Battery-Powered Equipment
REF
AIN
AGND
TRACK-AND-
HOLD
16-BIT SAR
ADC
OUTPUT
BUFFER
DOUT
SCLK
CONTROL
CS
MAX11100
Ordering Information
appears at end of data sheet.
DGND
QSPI is a trademark of Motorola, Inc.
MICROWIRE is a registered trademark of National Semiconductor Corp.
AutoShutdown is a trademark and µMAX is a registered trademark of Maxim Integrated Products, Inc.
For related parts and recommended products to use with this part, refer to:
www.maxim-ic.com/MAX11100.related
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Maxim Integrated Products
1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX11100
16-Bit, +5V, 200ksps ADC with 10µA Shutdown
ABSOLUTE MAXIMUM RATINGS
AVDD to AGND .......................................................-0.3V to +6V
DVDD to DGND .......................................................-0.3V to +6V
DGND to AGND ...................................................-0.3V to +0.3V
AIN, REF to AGND ............................... -0.3V to (V
AVDD
+ 0.3V)
SCLK,
CS
to DGND .................................................-0.3V to +6V
DOUT to DGND .................................... -0.3V to (V
DVDD
+ 0.3V)
Maximum Current Into Any Pin .......................................
Q50mA
Continuous Power Dissipation (T
A
= +70NC)
FMAX
(derate 5.6mW/NC above +70NC) .....................444mW
WLP (derate 16.1mW/NC above +70NC)......1300mW (Note 1)
Operating Temperature Range .......................... -40NC to +85NC
Maximum Junction Temperature.....................................+150NC
Storage Temperature Range............................ -65NC to +150NC
Lead Temperature (FMAX only; soldering, 10s) .............+300NC
Soldering Temperature (reflow) ......................................+260NC
Note 1:
All WLP devices are 100% production tested at T
A
= +25NC. Specifications over temperature limits are guaranteed by
design and characterization.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional opera-
tion of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(V
AVDD
= V
DVDD
= 4.75V to 5.25V, f
SCLK
= 4.8MHz (50% duty cycle), 24 clocks/conversion (200ksps), V
REF
= 4.096V, C
REF
= 4.7FF,
T
A
= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at T
A
= +25NC.)
PARAMETER
DC ACCURACY (Note 2)
Resolution
Relative Accuracy
Differential Nonlinearity
Transition Noise
Offset Error
Gain Error
Offset Drift
Gain Drift
Signal-to-Noise Plus Distortion
Signal-to-Noise Ratio
Total Harmonic Distortion
Spurious-Free Dynamic Range
Full-Power Bandwidth
Full-Linear Bandwidth
CONVERSION RATE
Conversion Time
Serial Clock Frequency
Aperture Delay
Aperture Jitter
Sample Rate
Track/Hold Acquisition Time
t
CONV
f
SCLK
t
AD
t
AJ
f
S
t
ACQ
f
SCLK
/24
1.1
(Note 5)
5
0.1
15
< 50
200
240
4.8
Fs
MHz
ns
ps
ksps
Fs
SINAD
SNR
THD
SFDR
-3dB point
SINAD > 86dB
92
(Note 4)
86
87
DYNAMIC SPECIFICATIONS (1kHz sine wave, 4.096V
P-P
) (Note 2)
91.5
91.7
-106
108
4
10
-90
dB
dB
dB
dB
MHz
kHz
(Note 4)
INL
DNL
RMS noise
(Note 3)
16
-2
-1
Q0.65
0.1
Q0.002
0.4
0.2
1
Q0.01
+2
+2
Bits
LSB
LSB
LSB
RMS
mV
%FSR
ppm/°C
ppm/°C
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Maxim Integrated Products
2
MAX11100
16-Bit, +5V, 200ksps ADC with 10µA Shutdown
ELECTRICAL CHARACTERISTICS (continued)
(V
AVDD
= V
DVDD
= 4.75V to 5.25V, f
SCLK
= 4.8MHz (50% duty cycle), 24 clocks/conversion (200ksps), V
REF
= 4.096V, C
REF
= 4.7FF,
T
A
= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at T
A
= +25NC.)
PARAMETER
ANALOG INPUT (AIN)
Input Range
Input Capacitance
Input Leakage Current
EXTERNAL REFERENCE
Input-Voltage Range
Input Current
DIGITAL INPUTS (SCLK,
CS)
Input High Voltage
Input Low Voltage
Input Leakage Current
Input Hysteresis
Input Capacitance
DIGITAL OUTPUT (DOUT)
Output High Voltage
Output Low Voltage
Three-State Output Leakage
Current
Three-State Output Capacitance
POWER SUPPLIES
Analog Supply
Digital Supply
Analog Supply Current
Digital Supply Current
Shutdown Supply Current
Power-Supply Rejection Ratio
V
AVDD
V
DVDD
I
AVDD
I
DVDD
I
AVDD
+
I
DVDD
PSRR
CS
= DGND, 200ksps
CS
= DGND, DOUT = all zeros, 200ksps
CS
= DVDD, SCLK = idle
V
AVDD
= V
DVDD
= 4.75V to 5.25V, full-
scale input (Note 6)
4.75
2.7
1.85
0.6
0.1
68
5.25
5.25
2.5
1.0
10
V
V
mA
mA
FA
dB
V
OH
V
OL
I
L
C
OUT
I
SOURCE
= 0.5mA, V
DVDD
= 2.7V to 5.25V
I
SINK
= 2mA, V
DVDD
= 2.7V to 5.25V
CS
= DVDD
CS
= DVDD
Q0.1
15
V
DVDD
- 0.25
0.4
Q10
V
V
FA
pF
V
IH
V
IL
I
IN
V
HYST
C
IN
V
DVDD
= 2.7V to 5.25V
V
DVDD
= 2.7V to 5.25V
V
IN
= 0 to V
DVDD
Q0.1
0.2
15
0.7 x
V
DVDD
0.3 x
V
DVDD
Q1
V
V
FA
V
pF
V
REF
V
REF
= 4.096V, f
SCLK
= 4.8MHz
I
REF
V
REF
= 4.096V, SCLK idle
CS
= DVDD, SCLK idle
3.8
60
0.01
0.01
V
AVDD
150
10
FA
V
V
AIN
C
AIN
SCLK idle
0
40
0.01
10
V
REF
V
pF
FA
SYMBOL
CONDITIONS
MIN
TYP
MAX
UNITS
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Maxim Integrated Products
3
MAX11100
16-Bit, +5V, 200ksps ADC with 10µA Shutdown
TIMING CHARACTERISTICS
(V
AVDD
= V
DVDD
= 4.75V to 5.25V,
f
SCLK
= 4.8MHz (50% duty cycle), 24 clocks/conversion (200ksps), V
REF
= 4.096V, T
A
= T
MIN
to
T
MAX
, unless otherwise noted. Typical values are at T
A
= +25NC.) (See
Figure 1, Figure 2, Figure 3,
and
Figure 6.)
PARAMETER
Acquisition Time
SCLK to DOUT Valid
CS
Fall to DOUT Enable
CS
Rise to DOUT Disable
CS
Pulse Width
CS
Fall to SCLK Rise Setup
CS
Rise to SCLK Rise Hold
SCLK High Pulse Width
SCLK Low Pulse Width
SCLK Period
SYMBOL
t
ACQ
t
DO
t
DV
t
TR
t
CSW
t
CSS
t
CSH
t
CH
t
CL
t
CP
65
65
208
C
DOUT
= 50pF
C
DOUT
= 50pF
C
DOUT
= 50pF
50
100
0
CONDITIONS
MIN
1.1
50
80
80
TYP
MAX
UNITS
Fs
ns
ns
ns
ns
ns
ns
ns
ns
ns
TIMING CHARACTERISTICS
(V
AVDD
= 4.75V to 5.25V,
V
DVDD
= 2.7V to 5.25V,
f
SCLK
= 4.8MHz (50% duty cycle), 24 clocks/conversion (200ksps), V
REF
= 4.096V,
T
A
= T
MIN
to T
MAX
, unless otherwise noted. Typical values are at T
A
= +25NC.) (See
Figure 1, Figure 2, Figure 3,
and
Figure 6.)
PARAMETER
Acquisition Time
SCLK to DOUT Valid
CS
Fall to DOUT Enable
CS
Rise to DOUT Disable
CS
Pulse Width
CS
Fall to SCLK Rise Setup
CS
Rise to SCLK Rise Hold
SCLK High Pulse Width
SCLK Low Pulse Width
SCLK Period
SYMBOL
t
ACQ
t
DO
t
DV
t
TR
t
CSW
t
CSS
t
CSH
t
CH
t
CL
t
CP
65
65
208
C
DOUT
= 50pF
C
DOUT
= 50pF
C
DOUT
= 50pF
50
100
0
CONDITIONS
MIN
1.1
100
100
80
TYP
MAX
UNITS
Fs
ns
ns
ns
ns
ns
ns
ns
ns
ns
Note 2:
V
AVDD
= V
DVDD
= +5V.
Note 3:
Relative accuracy is the deviation of the analog value at any code from its theoretical value after the full-scale range has
been calibrated.
Note 4:
Offset and reference errors nulled.
Note 5:
Conversion time is defined as the number of clock cycles multiplied by the clock period; clock has 50% duty cycle.
Note 6:
Defined as the change in positive full scale caused by a
Q5%
variation in the nominal supply voltage.
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Maxim Integrated Products
4
MAX11100
16-Bit, +5V, 200ksps ADC with 10µA Shutdown
Typical Operating Characteristics
(V
AVDD
= V
DVDD
= 5V, f
SCLK
= 4.8MHz, C
LOAD
= 50pF, C
REF
= 4.7FF, V
REF
= 4.096V, T
A
= +25NC, unless otherwise noted.)

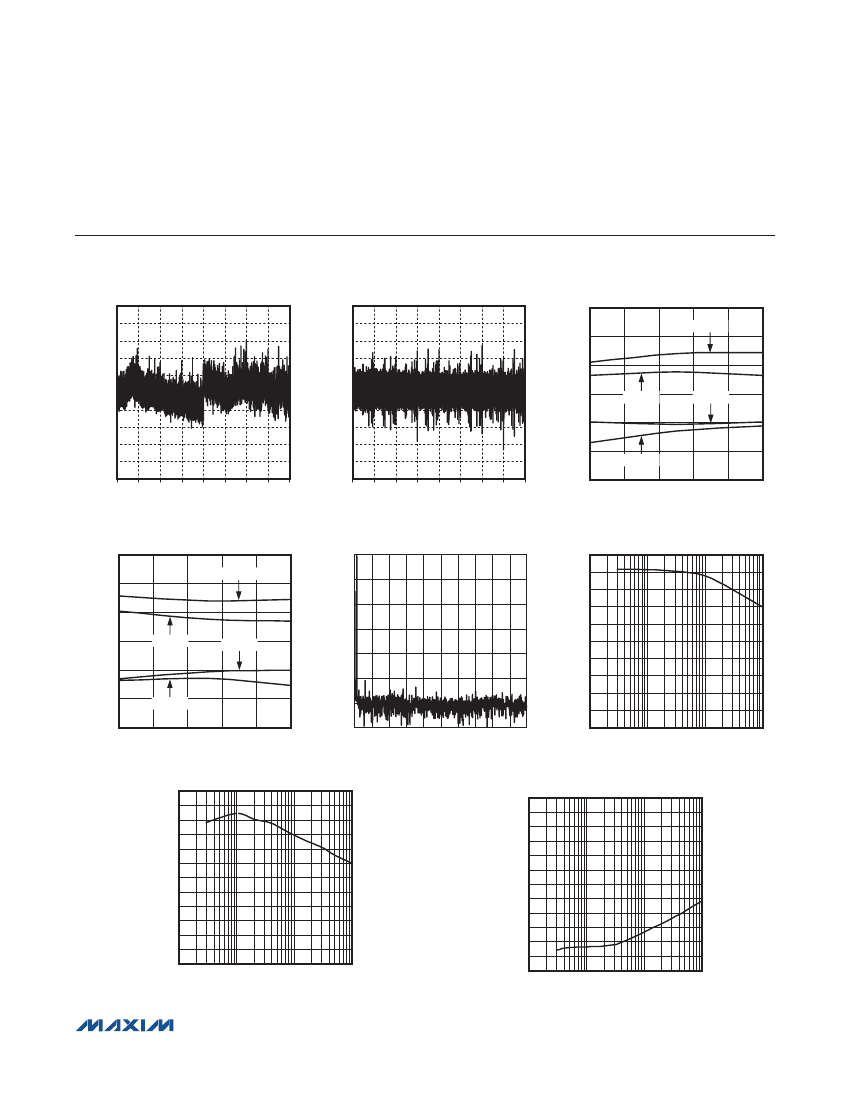

INTEGRAL NONLINEARITY (INL)
vs. CODE
MAX11100 toc01
DIFFERENTIAL NONLINEARITY (DNL)
vs. CODE
MAX11100 toc02
INL AND DNL
vs. ANALOG SUPPLY VOLTAGE
MAX INL
MAX11100 toc03
1.0
0.8
0.6
0.4
0.2
0
-0.2
-0.4
-0.6
-0.8
-1.0
0
8192
16384
24576
32768
40960
49152
57344
1.0
0.8
0.6
0.4
DNL (LSB)
0.2
0
-0.2
-0.4
-0.6
-0.8
-1.0
1.5
1.0
INL AND DNL (LSB)
0.5
0
-0.5
-1.0
-1.5
4.75
4.85
4.95
5.05
5.15
INL (LSB)
MAX DNL
MIN DNL
MIN INL
5.25
65536
0
8192
16384
24576
32768
40960
49152
57344
65536
V
AVDD
(V)
OUTPUT CODE (DECIMAL)
OUTPUT CODE (DECIMAL)
INL AND DNL vs. TEMPERATURE
MAX11100 toc04
MAX11100 FFT
MAX11100 toc05
SINAD vs. FREQUENCY
90
80
70
SINAD (dB)
60
50
40
30
20
10
0
MAX11100 toc06
1.5
1.0
INL AND DNL (LSB)
0.5
0
-0.5
-1.0
-1.5
-40
-15
10
35
60
0
-20
MAGNITUDE (dB)
-40
-60
-80
-100
100
MAX INL
MAX DNL
MIN DNL
MIN INL
-120
85
-140
0
10 20 30 40 50 60 70 80 90 100
0
1
10
100
TEMPERATURE (°C)
FREQUENCY (kHz)
FREQUENCY (kHz)
SFDR vs. FREQUENCY
120
110
100
90
80
70
60
50
40
30
20
10
0
0.1
1
10
FREQUENCY (kHz)
MAX11100 toc07
TOTAL HARMONIC DISTORTION
vs. FREQUENCY
MAX11100 toc08
0
-10
-20
-30
THD (dB)
-40
-50
-60
-70
-80
-90
-100
-110
-120
0
1
10
SFDR (dB)
100
100
FREQUENCY (kHz)
½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½½
Maxim Integrated Products
5
京公网安备 11010802033920号
EEWORLD
