8 Megabit (512K x 16-Bit) Multi-Purpose Flash
SST39VF800Q / SST39VF800
Advance Information
FEATURES:
• Organized as 512 K X 16
• Single 2.7-3.6V Read and Write Operations
• V
DDQ
Power Supply to Support 5V I/O
for SST39VF800Q
- V
DDQ
not available on SST39VF800
• Superior Reliability
- Endurance: 100,000 Cycles (typical)
- Greater than 100 years Data Retention
• Low Power Consumption:
- Active Current: 15 mA (typical)
- Standby Current: 3 µA (typical)
- Auto Low Power Mode: 3 µA (typical)
• Small Sector Erase Capability (256 sectors)
- Uniform 2 KWord sectors
• Block Erase Capability (16 blocks)
- Uniform 32 KWord blocks
• Fast Read Access Time:
- 70 and 90 ns
PRODUCT DESCRIPTION
The SST39VF800Q/VF800 devices are 512K x 16
CMOS Multi-Purpose Flash (MPF) manufactured with
SST’s proprietary, high performance CMOS SuperFlash
technology. The split-gate cell design and thick oxide
tunneling injector attain better reliability and
manufacturability compared with alternate approaches.
The SST39VF800Q/VF800 write (Program or Erase)
with a 2.7-3.6V power supply. The SST39VF800Q/
VF800 conform to JEDEC standard pinouts for x16
memories.
Featuring high performance word program, the
SST39VF800Q/VF800 devices provide a typical word
program time of 14 µsec. The entire memory can typi-
cally be erased and programmed word-by-word in 8
seconds, when using interface features such as Toggle
Bit or Data# Polling to indicate the completion of Program
operation. To protect against inadvertent write, the
SST39VF800Q/VF800 have on-chip hardware and soft-
ware data protection schemes. Designed, manufac-
tured, and tested for a wide spectrum of applications, the
SST39VF800Q/VF800 are offered with a guaranteed
endurance of 10,000 cycles. Data retention is rated at
greater than 100 years.
The SST39VF800Q/VF800 devices are suited for appli-
cations that require convenient and economical updating
of program, configuration, or data memory. For all sys-
tem applications, the SST39VF800Q/VF800 signifi-
cantly improve performance and reliability, while lower-
ing power consumption. The SST39VF800Q/VF800 in-
• Latched Address and Data
• Fast Sector Erase and Word Program:
- Sector Erase Time: 18 ms (typical)
- Block Erase Time: 18 ms (typical)
- Chip Erase Time: 70 ms (typical)
- Word Program time: 14 µs (typical)
- Chip Rewrite Time: 8 seconds (typical)
• Automatic Write Timing
- Internal V
PP
Generation
• End of Write Detection
- Toggle Bit
- Data# Polling
• CMOS I/O Compatibility
• JEDEC Standard
- Flash EEPROM Pinouts and command sets
• Packages Available
- 48-Pin TSOP (12mm x 20mm)
- 6 x 8 Ball TFBGA
herently use less energy during Erase and Program than
alternative flash technologies. The total energy con-
sumed is a function of the applied voltage, current, and
time of application. Since for any given voltage range, the
SuperFlash technology uses less current to program and
has a shorter erase time, the total energy consumed
during any Erase or Program operation is less than
alternative flash technologies. The SST39VF800Q/
VF800 also improve flexibility while lowering the cost for
program, data, and configuration storage applications.
The SuperFlash technology provides fixed Erase and
Program times, independent of the number of Erase/
Program cycles that have occurred. Therefore the sys-
tem software or hardware does not have to be modified
or de-rated as is necessary with alternative flash tech-
nologies, whose erase and program times increase with
accumulated Erase/Program cycles.
To meet high density, surface mount requirements, the
SST39VF800Q/VF800 are offered in 48-pin TSOP and

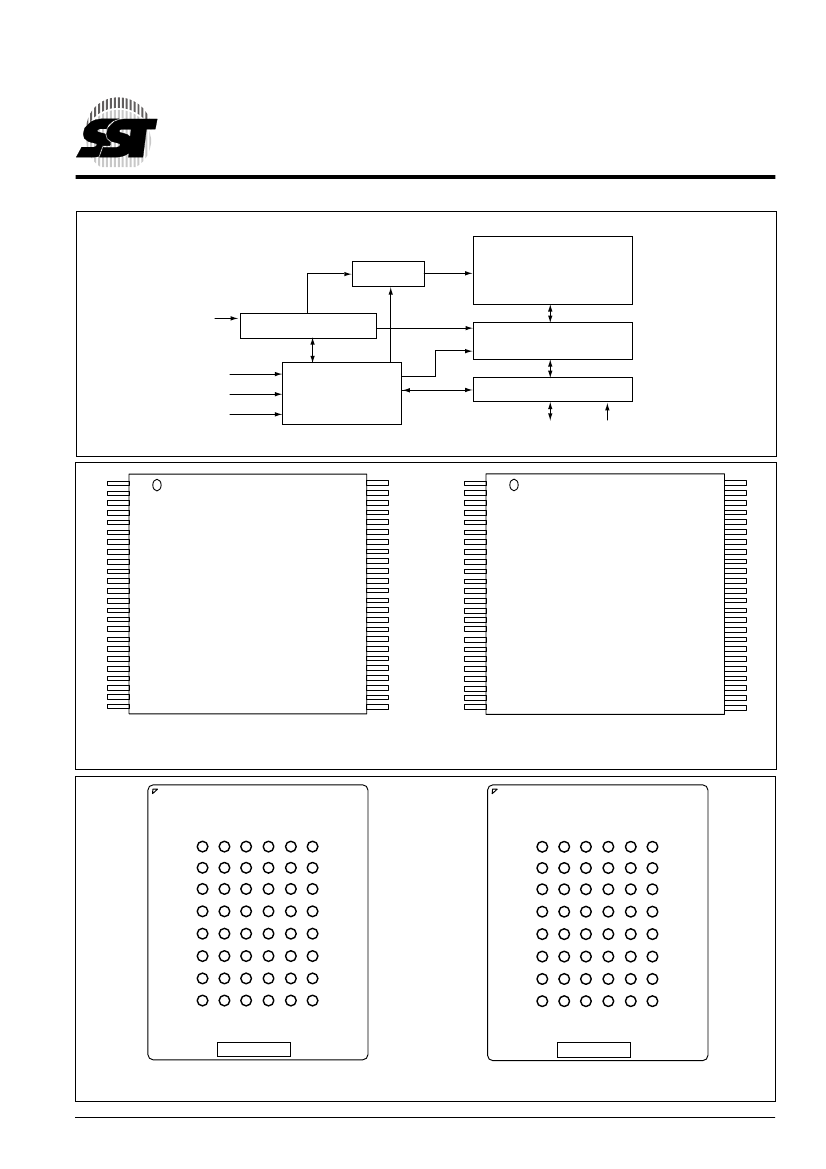

48-pin TFBGA packages. See Figures 1 and 2 for
pinouts.
Device Operation
Commands are used to initiate the memory operation
functions of the device. Commands are written to the
device using standard microprocessor write sequences.
A command is written by asserting WE# low while
keeping CE# low. The address bus is latched on the
falling edge of WE# or CE#, whichever occurs last. The
data bus is latched on the rising edge of WE# or CE#,
whichever occurs first.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
© 1999 Silicon Storage Technology, Inc.The SST logo and SuperFlash are registered trademarks of Silicon Storage Technology, Inc. MPF is a trademark of Silicon Storage Technology, Inc.
343-04 2/99
These specifications are subject to change without notice.
1
8 Megabit Multi-Purpose Flash
SST39VF800Q / SST39VF800
Advance Information
The SST39VF800Q/VF800 also have the
Auto Low
Power
mode which puts the device in a near standby mode
after data has been accessed with a valid read operation.
This reduces the I
DD
active read current from typically 15
mA to typically 3 µA. The Auto Low Power mode reduces
the typical I
DD
active read current to the range of 1 mA/MHz
of read cycle time. The device exits the Auto Low Power
mode with any address transition or control signal transi-
tion used to initiate another read cycle, with no access time
penalty.
Read
The Read operation of the SST39VF800Q/VF800 is con-
trolled by CE# and OE#, both have to be low for the system
to obtain data from the outputs. CE# is used for device
selection. When CE# is high, the chip is deselected and
only standby power is consumed. OE# is the output control
and is used to gate data from the output pins. The data bus
is in high impedance state when either CE# or OE# is high.
Refer to the Read cycle timing diagram for further details
(Figure 3).
Word Program Operation
The SST39VF800Q/VF800 are programmed on a word-
by-word basis. The Program operation consists of three
steps. The first step is the three-byte load sequence for
Software Data Protection. The second step is to load word
address and word data. During the Word Program opera-
tion, the addresses are latched on the falling edge of either
CE# or WE#, whichever occurs last. The data is latched on
the rising edge of either CE# or WE#, whichever occurs
first. The third step is the internal Program operation which
is initiated after the rising edge of the fourth WE# or CE#,
whichever occurs first. The Program operation, once initi-
ated, will be completed within 20 µs. See Figures 4 and 5
for WE# and CE# controlled Program operation timing
diagrams and Figure 16 for flowcharts. During the Pro-
gram operation, the only valid reads are Data# Polling and
Toggle Bit. During the internal Program operation, the host
is free to perform additional tasks. Any commands issued
during the internal Program operation are ignored.
Sector/Block Erase Operation
The Sector/Block Erase operation allows the system to
erase the device on a sector-by-sector (or block-by-block)
basis. The SST39VF800Q/VF800 offer both small Sector
Erase and Block Erase mode. The sector architecture is
based on uniform sector size of 2 KWord. The Block Erase
mode is based on uniform block size of 32 KWord. The
Sector Erase operation is initiated by executing a six-byte-
command sequence with Sector Erase command (30H)
and sector address (SA) in the last bus cycle. The address
lines A11-A18 are used to determine the sector address.
The Block Erase operation is initiated by executing a six-
© 1999 Silicon Storage Technology, Inc.
byte command sequence with Block Erase command
(50H) and block address (BA) in the last bus cycle. The
address lines A15-A18 are used to determine the block
address. The sector or block address is latched on the
falling edge of the sixth WE# pulse, while the command
(30H or 50H) is latched on the rising edge of the sixth WE#
pulse. The internal Erase operation begins after the sixth
WE# pulse. The end of Erase operation can be determined
using either Data# Polling or Toggle Bit methods. See
Figures 9 and 10 for timing waveforms. Any commands
issued during the Sector or Block Erase operation are
ignored.
Chip Erase Operation
The SST39VF800Q/VF800 provide a Chip Erase opera-
tion, which allows the user to erase the entire memory array
to the “1” state. This is useful when the entire device must
be quickly erased.
The Chip Erase operation is initiated by executing a six-
byte command sequence with Chip Erase command
(10H) at address 5555H in the last byte sequence. The
Erase operation begins with the rising edge of the sixth
WE# or CE#, whichever occurs first. During the Erase
operation, the only valid read is Toggle Bit or Data# Polling.
See Table 4 for the command sequence, Figure 8 for timing
diagram, and Figure 19 for the flowchart. Any commands
issued during the Chip Erase operation are ignored.
Write Operation Status Detection
The SST39VF800Q/VF800 provide two software means
to detect the completion of a write (Program or Erase)
cycle, in order to optimize the system write cycle time. The
software detection includes two status bits: Data# Polling
(DQ
7
) and Toggle Bit (DQ
6
). The end of write detection
mode is enabled after the rising edge of WE#, which
initiates the internal program or erase operation.
The actual completion of the nonvolatile write is asynchro-
nous with the system; therefore, either a Data# Polling or
Toggle Bit read may be simultaneous with the completion
of the write cycle. If this occurs, the system may possibly
get an erroneous result, i.e., valid data may appear to
conflict with either DQ
7
or DQ
6
. In order to prevent spurious
rejection, if an erroneous result occurs, the software rou-
tine should include a loop to read the accessed location an
additional two (2) times. If both reads are valid, then the
device has completed the write cycle, otherwise the rejec-
tion is valid.
Data# Polling (DQ
7
)
When the SST39VF800Q/VF800 are in the internal Pro-
gram operation, any attempt to read DQ
7
will produce the
complement of the true data. Once the Program operation
is completed, DQ
7
will produce true data. The device is
2
343-04 2/99
8 Megabit Multi-Purpose Flash
SST39VF800Q / SST39VF800
Advance Information
then ready for the next operation. During internal Erase
operation, any attempt to read DQ7 will produce a ‘0’. Once
the internal Erase operation is completed, DQ7 will pro-
duce a ‘1’. The Data# Polling is valid after the rising edge
of fourth WE# (or CE#) pulse for Program operation. For
Sector, Block or Chip Erase, the Data# Polling is valid after
the rising edge of sixth WE# (or CE#) pulse. See Figure 6
for Data# Polling timing diagram and Figure 17 for a
flowchart.
Toggle Bit (DQ
6
)
During the internal Program or Erase operation, any con-
secutive attempts to read DQ
6
will produce alternating 1’s
and 0’s, i.e., toggling between 1 and 0. When the internal
Program or Erase operation is completed, the DQ6 bit will
stop toggling. The device is then ready for the next opera-
tion. The Toggle Bit is valid after the rising edge of fourth
WE# (or CE#) pulse for Program operation. For Sector,
Block or Chip Erase, the Toggle Bit is valid after the rising
edge of sixth WE# (or CE#) pulse. See Figure 7 for Toggle
Bit timing diagram and Figure 17 for a flowchart.
Data Protection
The SST39VF800Q/VF800 provide both hardware and
software features to protect nonvolatile data from inadvert-
ent writes.
Hardware Data Protection
Noise/Glitch Protection: A WE# or CE# pulse of less than
5 ns will not initiate a write cycle.
V
DD
Power Up/Down Detection: The Write operation is
inhibited when V
DD
is less than 1.5V.
Write Inhibit Mode: Forcing OE# low, CE# high, or WE#
high will inhibit the Write operation. This prevents inadvert-
ent writes during power-up or power-down.
Software Data Protection (SDP)
The SST39VF800Q/VF800 provide the JEDEC approved
Software Data Protection scheme for all data alteration
operations, i.e., Program and Erase. Any Program opera-
tion requires the inclusion of the three byte sequence. The
three-byte load sequence is used to initiate the Program
operation, providing optimal protection from inadvertent
Write operations, e.g., during the system power-up or
power-down. Any Erase operation requires the inclusion of
six-byte sequence. The SST39VF800Q/VF800 devices
are shipped with the software data protection permanently
enabled. See Table 4 for the specific software command
codes. During SDP command sequence, invalid com-
mands will abort the device to read mode within T
RC
. The
contents of DQ
15
-DQ
8
are “Don’t Care” during any SDP
command sequence.
Common Flash Memory Interface (CFI)
The SST39VF800Q/VF800 also contain the CFI informa-
tion to describe the characteristics of the device. In order to
enter the CFI Query mode, the system must write three-
byte sequence, same as product ID entry command with
98H (CFI Query command) to address 5555H in the last
byte sequence. Once the device enters the CFI Query
mode, the system can read CFI data at the addresses given
in tables 5 through 7. The system must write the CFI Exit
command to return to Read mode from the CFI Query
mode.
Product Identification
The Product Identification mode identifies the devices as
the SST39VF800Q, SST39VF800 and manufacturer as
SST. This mode may be accessed by hardware or software
operations. The hardware operation is typically used by a
programmer to identify the correct algorithm for the
SST39VF800Q/VF800. Users may wish to use the Soft-
ware Product Identification operation to identify the part
(i.e., using the device code) when using multiple manufac-
turers in the same socket. For details, see Table 3 for
hardware operation or Table 4 for software operation,
Figure 11 for the Software ID Entry and Read timing
diagram and Figure 18 for the ID Entry command sequence
flowchart.
T
ABLE
1: P
RODUCT
I
DENTIFICATION
T
ABLE
Address
Manufacturer’s Code
Device Code
0000H
0001H
Data
00BFH
2781H
343 PGM T1.0
1
2
3
4
5
6
7
8
9
10
Product Identification Mode Exit/CFI Mode Exit
In order to return to the standard Read mode, the Software
Product Identification mode must be exited. Exit is accom-
plished by issuing the Software ID Exit command se-
quence, which returns the device to the Read operation.
This command may also be used to reset the device to the
Read mode after any inadvertent transient condition that
apparently causes the device to behave abnormally, e.g.,
not read correctly. Please note that the Software ID Exit/CFI
Exit command is ignored during an internal Program or
Erase operation. See Table 4 for software command codes,
Figure 13 for timing waveform and Figure 18 for a flowchart.
V
DDQ
- I/O Power Supply
This feature is available only on the SST39VF800Q. This
pin functions as power supply pin for input/output buffers. It
should be tied to V
DD
(2.7-3.6V) in a 3.0V-only system. It
should be tied to a 5.0V±10% (4.5-5.5V) power supply in a
mixed voltage system environment where flash memory
has to be interfaced with 5V system chips. The V
DDQ
pin is
not offered on the SST39VF800, instead it is a No Connect
pin.
3
343-04 2/99
11
12
13
14
15
16
© 1999 Silicon Storage Technology, Inc.
8 Megabit Multi-Purpose Flash
SST39VF800Q / SST39VF800
Advance Information
F
UNCTIONAL
B
LOCK
D
IAGRAM
8,388,608 bit
EEPROM
Cell Array
X-Decoder
A18 - A0
Address Buffer & Latches
Y-Decoder
CE#
OE#
WE#
DQ15 - DQ0 VDDQ
343 ILL B1.0
Control Logic
I/O Buffers and Data Latches
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE#
NC
NC
NC
NC
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Standard Pinout
Top View
Die Up
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A16
VDDQ
VSS
DQ15
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VDD
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
A0
343 ILL1.0
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
WE#
NC
NC
NC
NC
A18
A17
A7
A6
A5
A4
A3
A2
A1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Standard Pinout
Top View
Die Up
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
A16
NC
VSS
DQ15
DQ7
DQ14
DQ6
DQ13
DQ5
DQ12
DQ4
VDD
DQ11
DQ3
DQ10
DQ2
DQ9
DQ1
DQ8
DQ0
OE#
VSS
CE#
A0
343 ILL1a.0
SST39VF800Q
SST39VF800
F
IGURE
1: P
IN
A
SSIGNMENTS FOR
48-
PIN
TSOP P
ACKAGES
A
B
C
D
E
F
TOP
VIEW
A
B
C
D
E
F
TOP
VIEW
1
A3
A7
A17
A6
A5
DQ0
NC
NC
A18
NC
WE#
NC
NC
NC
A9
A8
A10
A11
A13
1
A3
A7
A17
A6
A5
DQ0
NC
NC
A18
NC
WE#
NC
NC
NC
A9
A8
A10
A11
A13
A12
A14
A15
A16
NC
2
A4
A12
2
A4
3
A2
A14
3
A2
4
A1
A15
4
A1
5
A0
DQ2 DQ5 DQ7
A16
5
A0
DQ2 DQ5 DQ7
6
7
8
CE# DQ8 DQ10 DQ12 DQ14 VDDQ
OE# DQ9 DQ11 VDD DQ13 DQ15
VSS DQ1
DQ3 DQ4 DQ6
VSS
6
CE# DQ8 DQ10 DQ12 DQ14
7
8
OE# DQ9 DQ11 VDD DQ13 DQ15
VSS DQ1
DQ3 DQ4 DQ6
VSS
SST39VF800Q
343 ILL2.3
SST39VF800
343 ILL2a.2
F
IGURE
2: P
IN
A
SSIGNMENTS FOR
48-
BALL
TFBGA
© 1999 Silicon Storage Technology, Inc.
4
343-04 2/99
8 Megabit Multi-Purpose Flash
SST39VF800Q / SST39VF800
Advance Information
T
ABLE
2: P
IN
D
ESCRIPTION
Symbol
Pin Name
A
18
-A
0
Address Inputs
Functions
To provide memory addresses. During sector erase A
18
-A
11
address lines
will select the sector. During block erase A
18
-A
15
address lines will select
the block.
To output data during read cycles and receive input data during write
cycles. Data is internally latched during a write cycle. The outputs are in
tri-state when OE# or CE# is high.
To activate the device when CE# is low.
To gate the data output buffers.
To control the write operations.
To provide 3-volt supply (2.7-3.6V)
Supplies power for input/output buffers. It should be either tied to V
DD
(2.7 - 3.6V) for 3V I/O or to a 5.0V (4.5 - 5.5V) power supply to
support 5V I/O. (Not offered on SST39VF800 device, instead it is a NC)
Unconnected pins.
343 PGM T2.0
1
2
3
4
5
6
7
DQ
15
-DQ
0
Data Input/output
CE#
OE#
WE#
V
DD
V
DDQ
Chip Enable
Output Enable
Write Enable
Power Supply
I/O Power Supply
Vss
NC
Ground
No Connection
T
ABLE
3: O
PERATION
M
ODES
S
ELECTION
Mode
CE#
OE#
Read
V
IL
V
IL
Program
V
IL
V
IH
Erase
V
IL
V
IH
Standby
Write Inhibit
Product Identification
Hardware Mode
Software Mode
V
IH
X
X
V
IL
V
IL
X
V
IL
X
V
IL
V
IL
WE#
V
IH
V
IL
V
IL
X
X
V
IH
V
IH
V
IH
A9
A
IN
A
IN
X
X
X
X
V
H
A
IN
DQ
D
OUT
D
IN
X
High Z
High Z/ D
OUT
High Z/ D
OUT
Manufacturer Code (00BF)
Device Code (2781)
Address
A
IN
A
IN
Sector or block address,
XXh for chip erase
X
X
X
A
18
- A
1
= V
IL
, A
0
= V
IL
A
18
- A
1
= V
IL
, A
0
= V
IH
See Table 4
343 PGM T3.0
8
9
10
11
12
13
14
15
16
© 1999 Silicon Storage Technology, Inc.
5
343-04 2/99
stm32/stm8
京公网安备 11010802033920号
EEWORLD
