MBRF40030 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> MBRF40030

MBRF40030: Description20 A, SILICON, RECTIFIER DIODE, TO-220AB; Categorysemiconductor Discrete semiconductor; File Size811KB，2 Pages; ManufacturerKersemi Electronic; Websitehttp://www.kersemi.com

Download Datasheet Compare View All

MBRF40030 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBRF40030	-	-	View	Buy Now

MBRF40030 Overview

20 A, SILICON, RECTIFIER DIODE, TO-220AB

Preview

Download Datasheet

View All

MBRF40020(R)

THRU

MBRF400100(R)

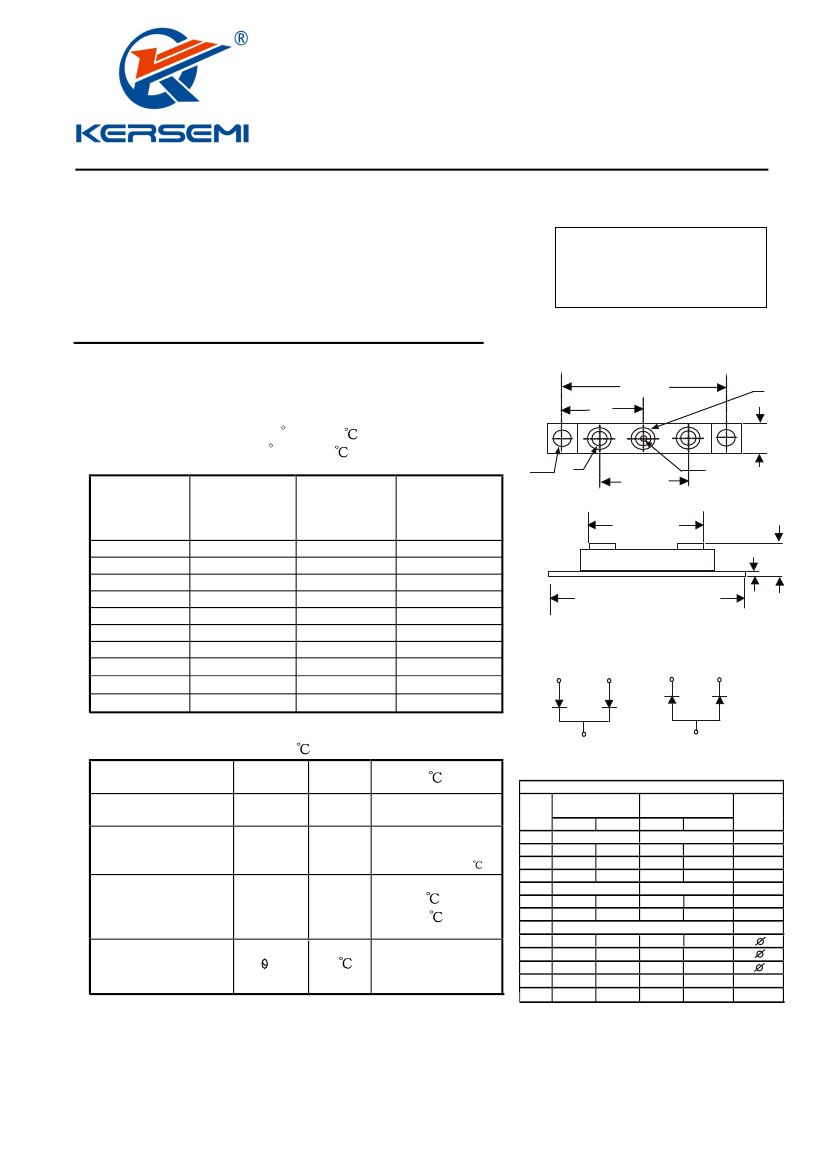

SCHOTTKY DIODES MODULE TYPE 400A

Features

High Surge Capability

Types Up to 100V V

RRM

400Amp Rectifier

20-100 Volts

FULL PACKAGE

Maximum Ratings

Operating Temperature: -40 C to +175

Storage Temperature: -40 C to +175

Part Number

Maximum

Recurrent

Peak Reverse

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

Maximum

RMS Voltage

14V

21V

25V

28V

32V

42V

56V

70V

Maximum DC

Blocking

Voltage

20V

30V

35V

40V

45V

60V

80V

100V

LUG

Teminal

Anode 1

LUG

Teminal

Anode 2

MBRF40020(R)

MBRF40030(R)

MBRF40035(R)

MBRF40040(R)

MBRF40045(R)

MBRF40060(R)

MBRF40080(R)

MBRF400100(R)

LUG

Teminal

Cathode 1 Cathode 2

Electrical Characteristics @ 25

Average Forward

(Per pkg)

Current

Peak Forward Surge

(Per leg)

Current

Maximum

(Per leg)

Instantaneous

NOTE (1)

Forward Voltage

NOTE (1)

Maximum

Instantaneous

Reverse Current At

Rated DC Blocking

Voltage

(Per leg)

F(AV)

FSM

Unless Otherwise Specified

400A

3000A

0.65V

0.75V

0.84V

Baseplate

Common Cathode

Baseplate

R=Common Anode

=125

DIMENSIONS

INCHES

MIN

MAX

NOM

3.150

1.585

1.565

.700

.800

.119

.132

1.375

REF

3.65

3.55

.635

.604

- 20

1/4

.380

.410

.195

.185

.295

.275

MIN

80.01

39.75

17.78

3.02

34.92

90.17

15.35

UNC

9.65

4.70

6.99

MAX

NOM

40.26

20.32

3.35

REF

92.71

16.35

FULL

10.41

4.95

7.49

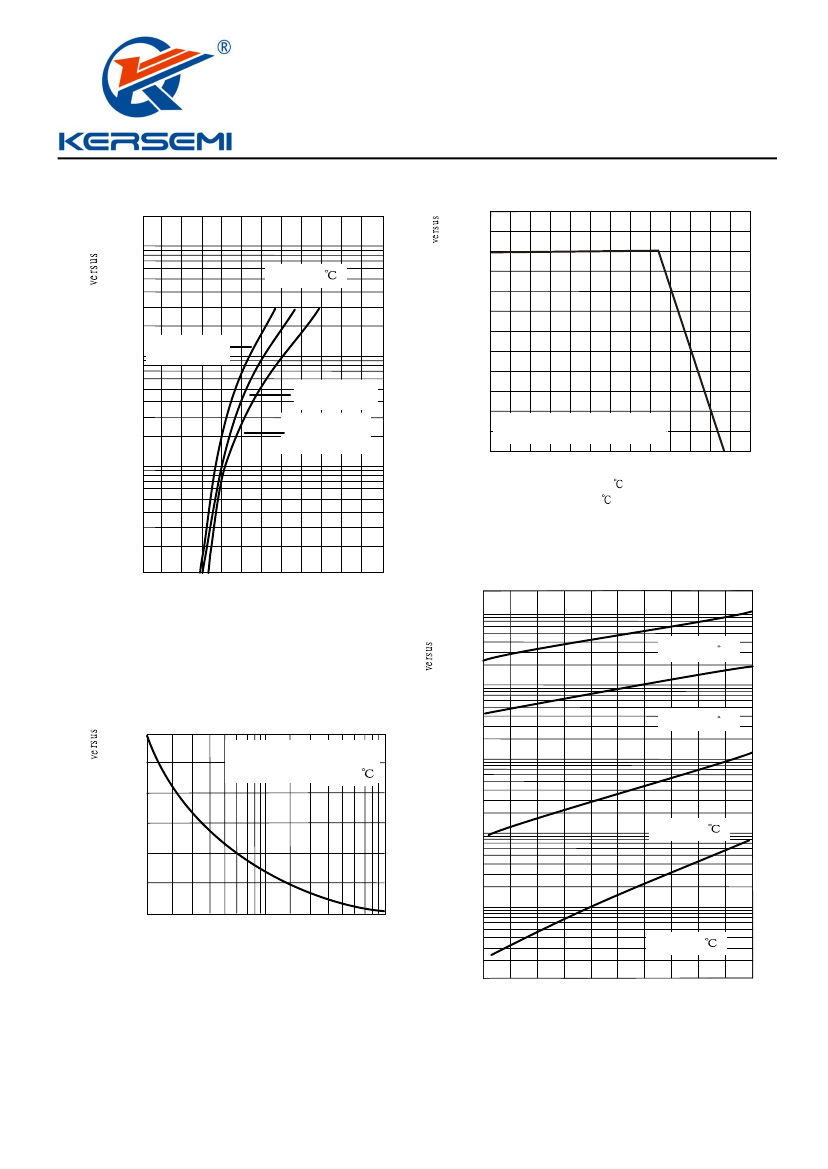

NOTE

8.3ms , half sine

(MBRF40020~MBRF40045)

(MBRF40060)

(MBRF40080~MBRF400100)

=200A;

= 25

5.0

A T

= 25

200

=125

0.8

Maximum Thermal

Resistance Junction

(Per leg)

To Case

R jc

DIM

NOTE :

(1)

Pulse Test: Pulse Width 300 usec, Duty Cycle
