BDW93B datasheet, PDF - EEWORLD Datasheet

BDW93B: Description12 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-220; CategoryDiscrete semiconductor The transistor; File Size184KB，4 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

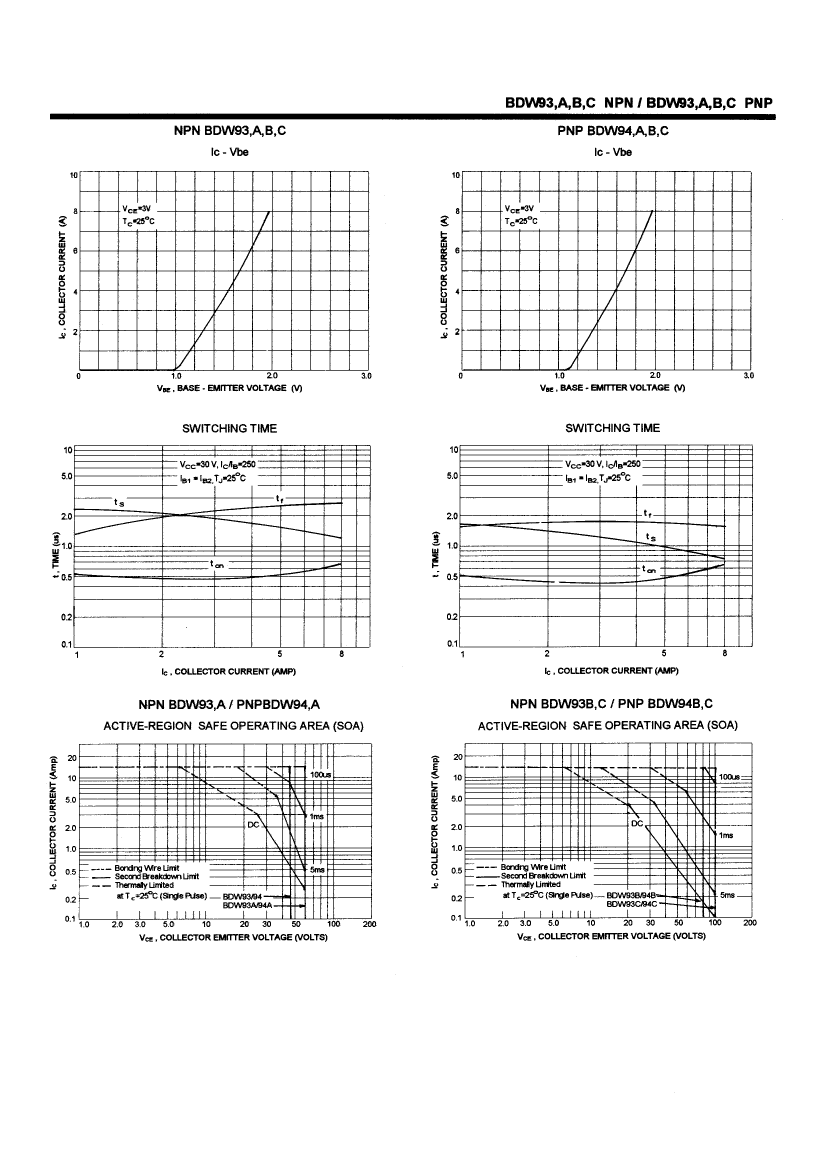

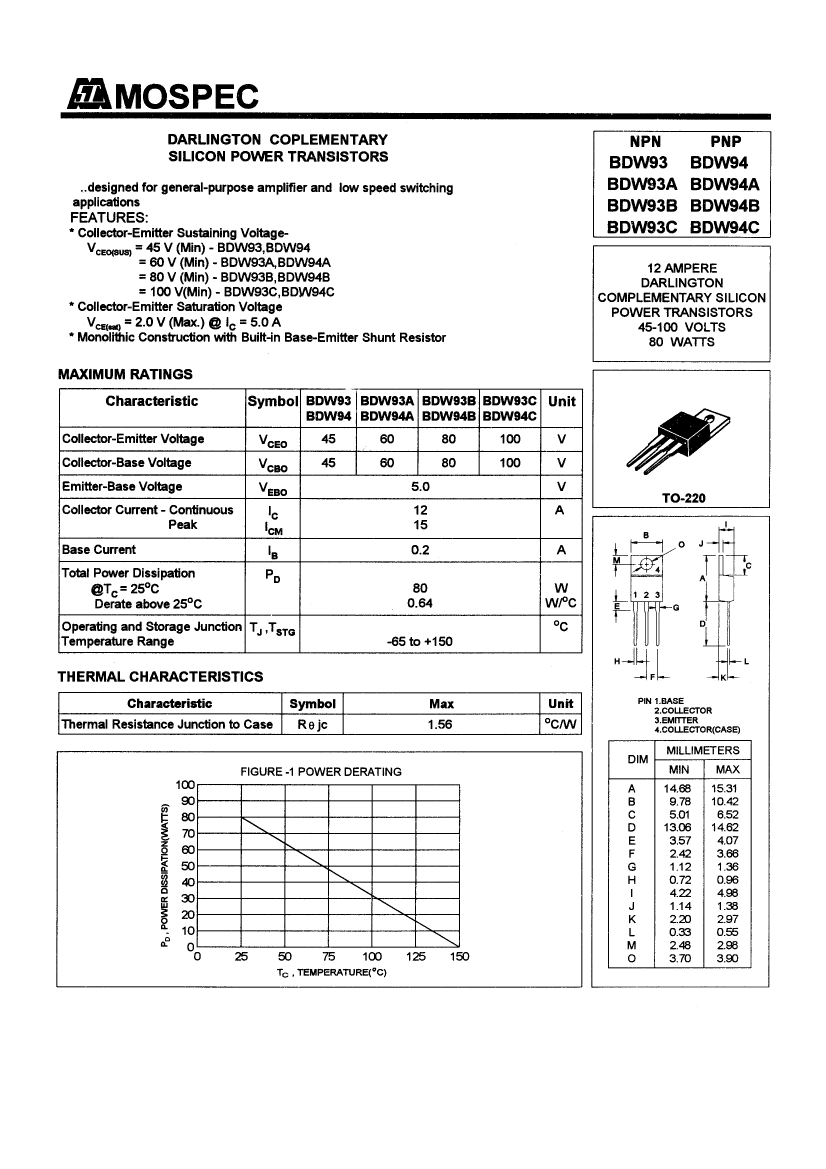

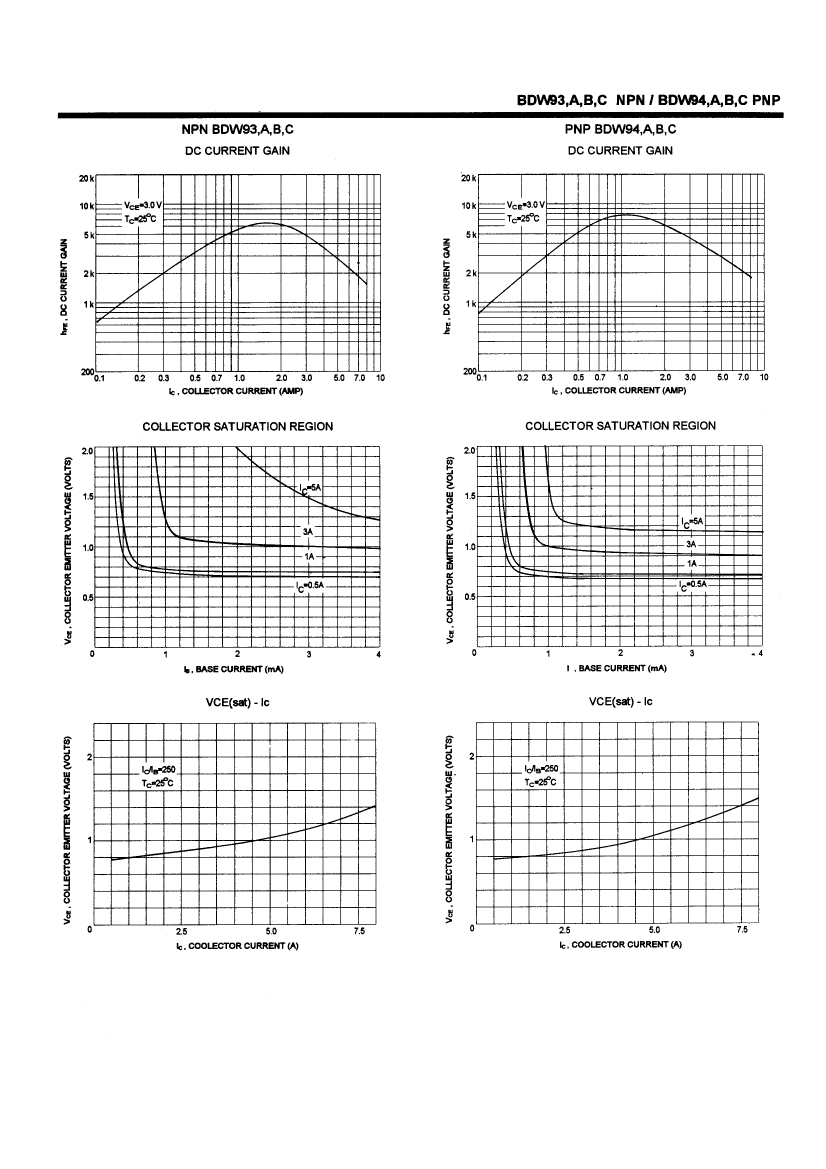

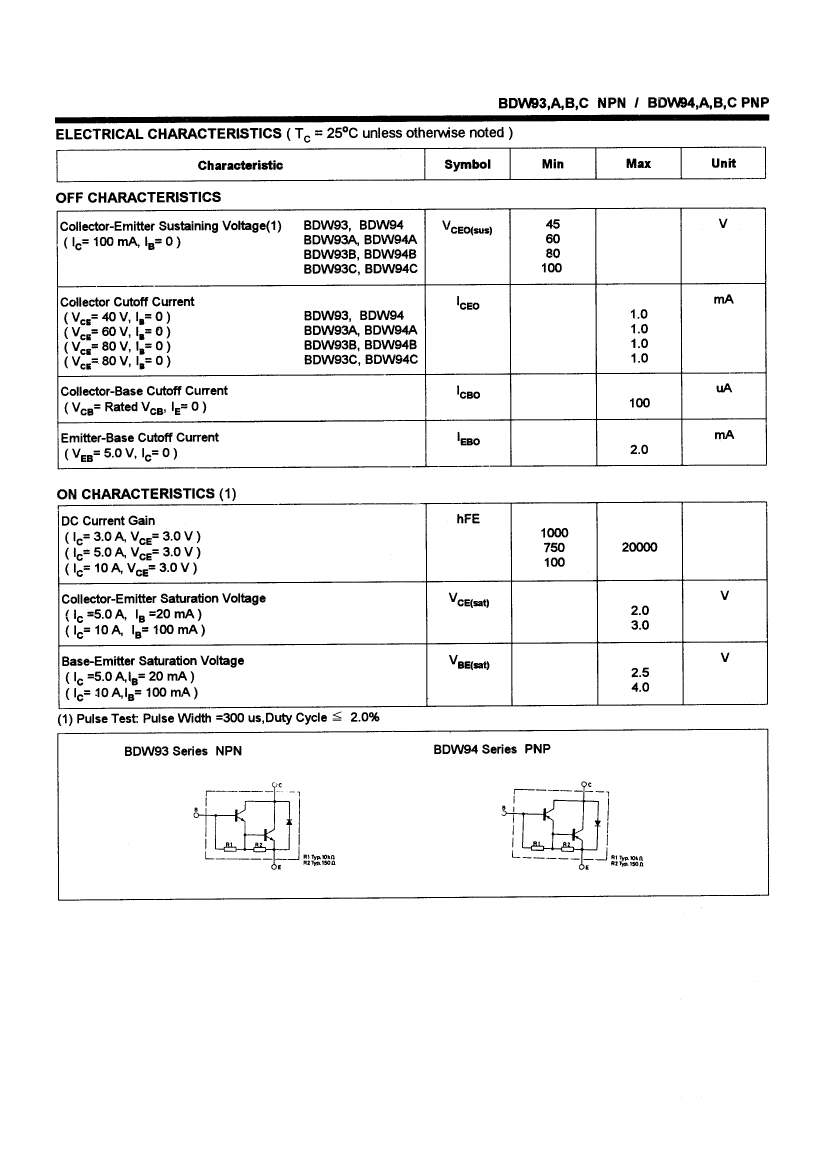

Download Datasheet Parametric Compare View All

BDW93B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDW93B	-	-	View	Buy Now

12 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-220

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	12 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	100
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	80 W
surface mount	NO

	BDW93B	BDW93	BDW93A	BDW93C	BDW94	BDW94A	BDW94B	BDW94C
Description	12 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-220	12 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-220AB	12 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-220AB	12 A, 100 V, NPN, Si, POWER TRANSISTOR, TO-220AB	12 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-220AB	12 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-220	12 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-220	POWER TRANSISTOR
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	12 A	12 A	12 A	12 A	12 A	12 A	12 A	12 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	100	100	100	100	100	100	100	100
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	NPN	NPN	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	80 W	80 W	80 W	80 W	80 W	80 W	80 W	80 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	-	MOSPEC	MOSPEC
