CRS-02-08-TN-SM: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

CRS-02-08-TN-SM Overview

Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Plug

CRS-02-08-TN-SM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.122 inch
subject depth	0.173 inch
body length	0.214 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	250 Cycles
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	CRS
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

B

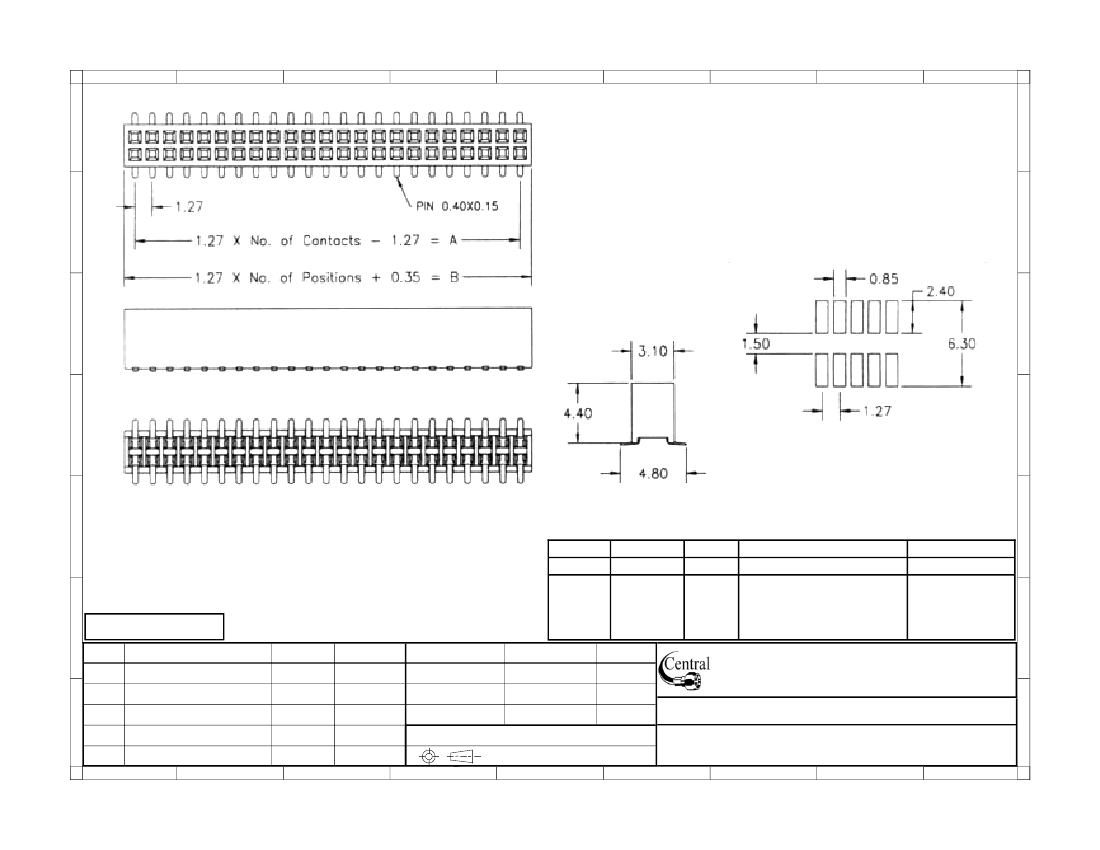

SPECIFICATIONS

Current rating:

Contact material:

Contact plating:

Contact resistance:

Insulation resistance:

Withstanding:

Insulator material:

Operating temperature:

1 amp

Phosphor bronze

Gold or tin over nickel

20 milliohms max.

500 megohms min.

300VAC for 1 min.

Glass-filled polyester, UL94V-0

-40°C to +105°C

A

B

C

D

Recommended PCB Layout

E

F

RoHS compliant

Rev.

Description

Date

Approved

Series

Rows

Contacts

Plating

Options

CRS

XX

1.27mm

02=Dual row 04-40

TN=Tin

SM=Surface mount

receptacle

SGXX=Selective gold

strip

GDXX=Gold

XX=Flash if blank; 15, 30, 50µ”

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

F

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

G

CRS-02-XX-XX-SM

7

8

9

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Receptacle strip, dual row, .05” x .05”, top entry, surface

mount

G

1

2

3

4
