B021-2011-103-Z: DescriptionIC Socket, PLCC20, 20 Contact(s), Solder; CategoryThe connector socket; File Size478KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

B021-2011-103-Z Overview

IC Socket, PLCC20, 20 Contact(s), Solder

B021-2011-103-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.61 inch
subject depth	0.319 inch
body length	0.61 inch
Contact structure	5X5
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC20
Dielectric withstand voltage	500VAC V
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	1000000000 Ω
Manufacturer's serial number	B021
Installation method	STRAIGHT
Number of contacts	20
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER

Preview

Download Datasheet

View All

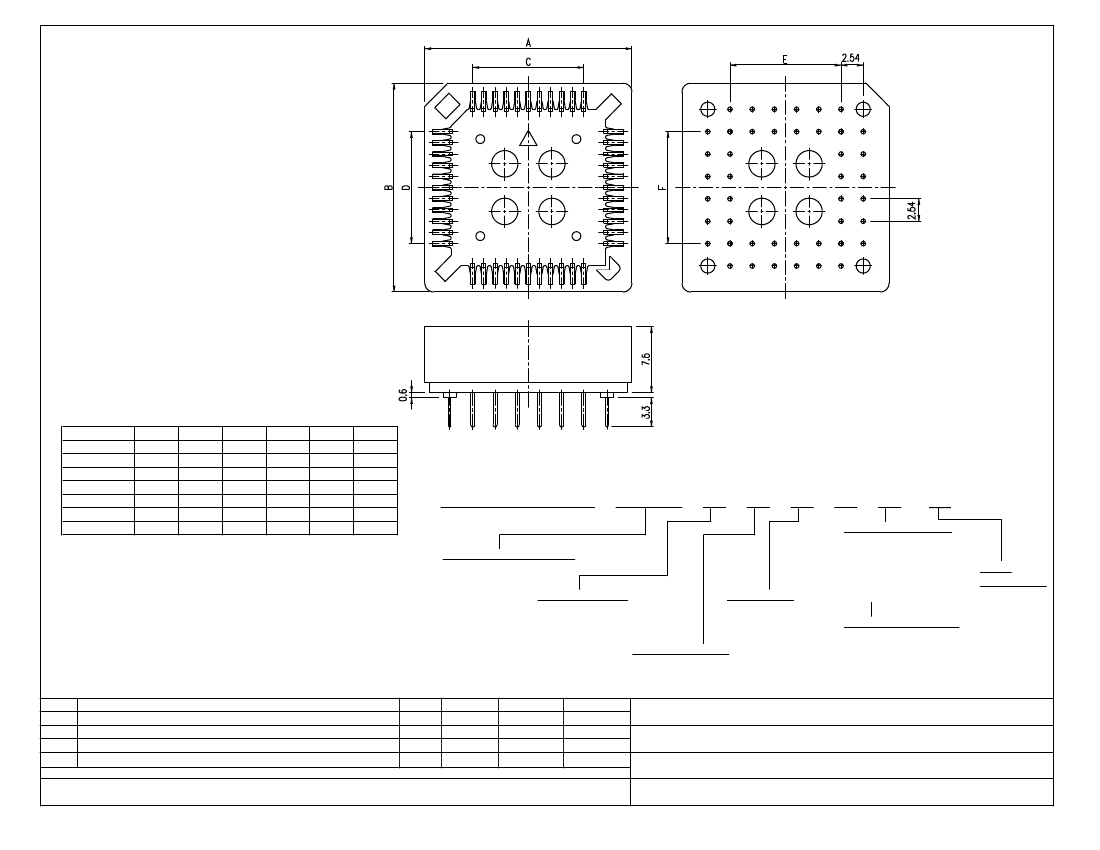

DIMENSION(mm)

CONTACTS

20

28

32

44

52

68

84

A

15.50

18.04

23.48

25.88

31.04

36.04

B

15.50

18.04

20.60

23.48

25.88

31.04

36.04

C

5.08

7.62

12.70

15.24

20.32

25.40

D

5.08

7.62

10.16

12.70

15.24

20.32

25.40

E

5.08

7.62

12.70

15.24

20.32

25.40

F

5.08

7.62

10.16

12.70

15.24

20.32

25.40

HOW TO ORDER:

B

0

2

1

-

X

-

X

0

X

-

Z

ELECTRICAL:

CURRENT: 1A

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 500VAC FOR 1 MIN

OPERATING TEMPERATURE: -55° C TO +105° C

NUMBER OF CONTACTS:

20 thru 84

PLASTIC STYLE:

1 - SQUARE

2 - RECTANGLE

INSULATOR:

1 - PBT (BLACK)

2 - PPS (BROWN)

CONTACT STYLE:

1 - HALF BELLOW

2 - LOOP BELLOW

Checked

S.M.

Approved

S.M.

Date

01/15/97

07/11/08

PLATING OVERALL:

0 - FULL TIN

1 - FULL Au FLASH

3 - 10u" Au

4 - 15u" Au

5 - 30u" Au

RoHS

COMPLIANT

MATERIAL:

CONTACT: PHOSPHOR BRONZE

INSULATOR: OPTIONAL POLYPHENYLENE SULFIDE (P.P.S.) OR PBT

Rev

0

A

Issued

Revised for RoHS Compliance

Drawn

S.E.

B.S.

SELECTIVE PLATING:

6 - Au FLASH CONTACT AREA/TIN TAIL

7 - 10u" Au CONTACT AREA/TIN TAIL

8 - 15u" Au CONTACT AREA/TIN TAIL

9 - 30u" Au CONTACT AREA/TIN TAIL

SMP TECHNOLOGY, INC.

DRAWING No. B021-1

TOL. DEC.

.X +/- 0.35

PLCC Socket, Through Hole

.XX +/- 0.25

.XXX +/-

ANGLE +/-

UNIT: mm

P/N: B021-XXXX -XXX-Z

Pg: 1
