BDX53C datasheet, PDF - EEWORLD Datasheet

BDX53C: DescriptionPOWER TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size189KB，4 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

Download Datasheet Parametric Compare View All

BDX53C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDX53C	-	-	View	Buy Now

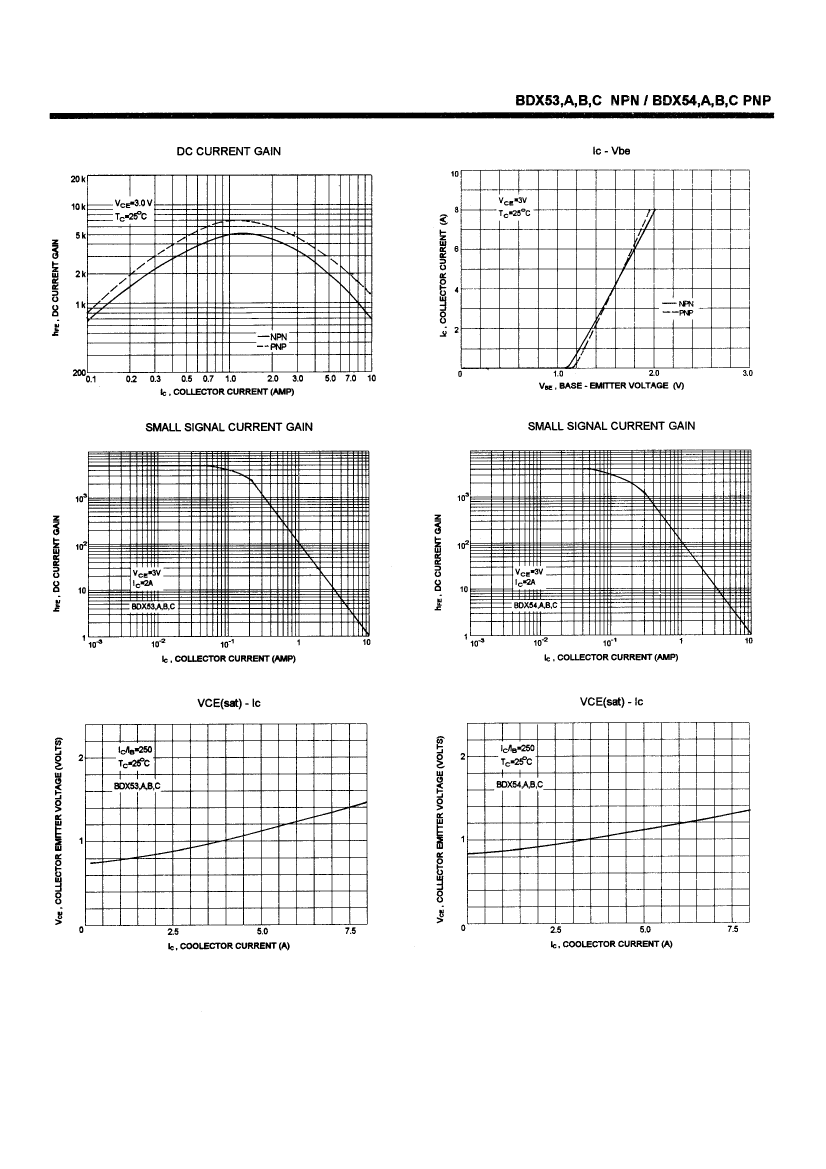

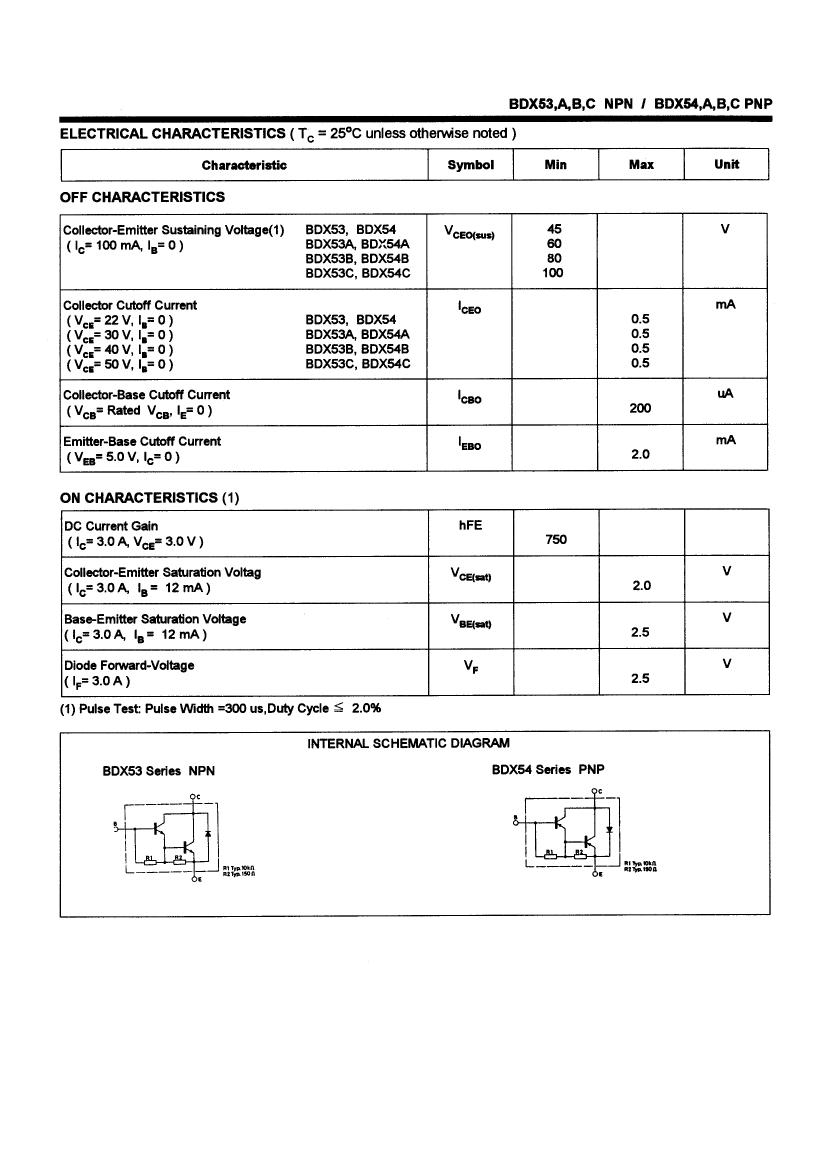

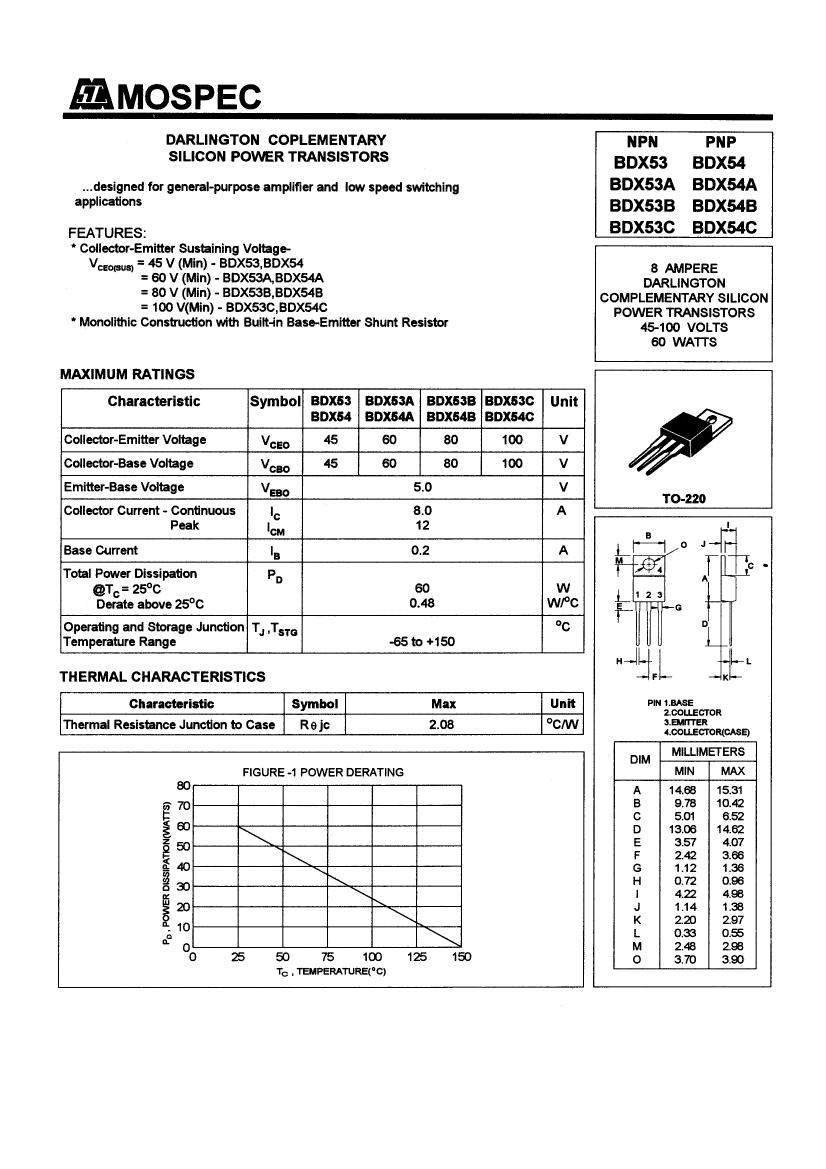

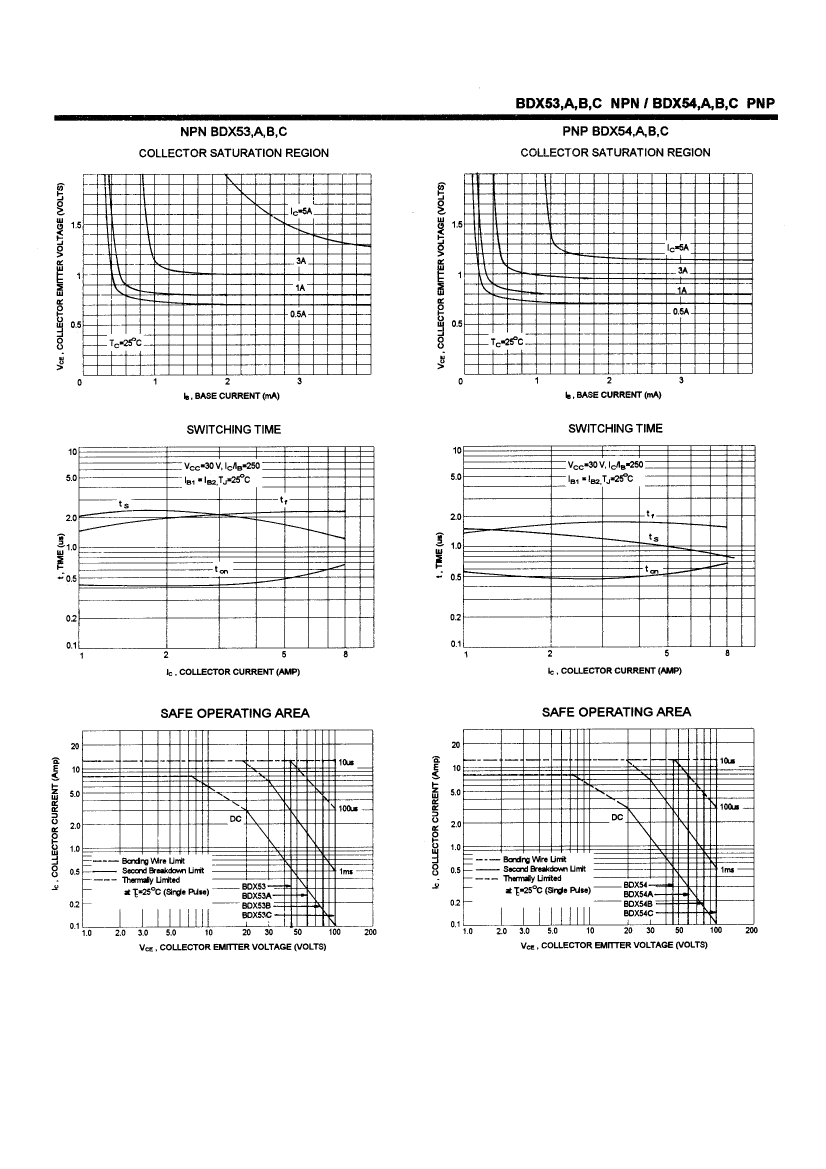

POWER TRANSISTOR

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	8 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	750
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	60 W
surface mount	NO
Nominal transition frequency (fT)	20 MHz

A

	BDX53C	BDX53	BDX53A	BDX53B	BDX54	BDX54A	BDX54C	BDX54B
Description	POWER TRANSISTOR	8 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-220AB	8 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-220AB	8 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-220AB	8 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-220AB	8 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-220	POWER TRANSISTOR	8 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-220
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	unknow
Maximum collector current (IC)	8 A	8 A	8 A	8 A	8 A	8 A	8 A	8 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON
Minimum DC current gain (hFE)	750	750	750	750	750	750	750	750
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	NPN	NPN	NPN	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	60 W	60 W	60 W	60 W	60 W	60 W	60 W	60 W
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Nominal transition frequency (fT)	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz	20 MHz
