CENRA-F50SDU2-L datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> CENRA-F50SDU2-L

Preview

CENRA-F50SDU2-L: DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size236KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

CENRA-F50SDU2-L Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Plug

CENRA-F50SDU2-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amtek Technology Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.61 inch
body length	3.262 inch
Body/casing type	PLUG
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	CEN
Plug contact pitch	0.085 inch
Installation option 1	LOCKING
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.191 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50

Preview

Download Datasheet

View All

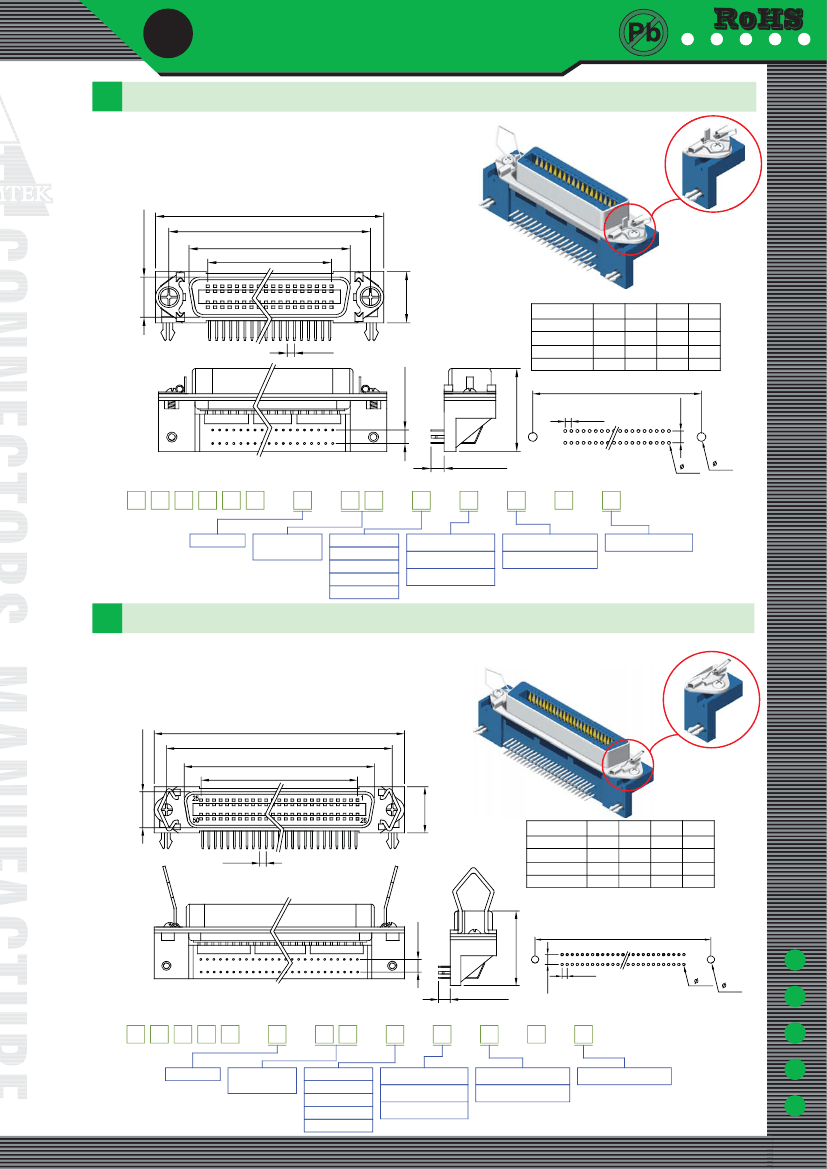

C

entronic Conn. Series

Centronic Right Angle Type , L Shape / Screw

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-55°C to +105°C

1 1 .90 ±0 .2 0

Material

V-0

Insulator:Polyester,UL 94V-0

◎

Standard:PBT

Terminal:Copper Alloy

A

B

C

D

18

36

1

19

1 5 .50 ±0 .2 0

P art N o.

C E N R A -F 14-L

C E N R A -F 24-L

C E N R A -F 36-L

C E N R A -F 50-L

A ±0.20 B ±0.20 C ±0 .20 D ±0 .20

44.05 35.99

54.95 46.85

67.69 59.74

82.85 74.85

B

2 .16

4 .20

2 .1 6

4 .2 0 ±0.20

25.20 12.96

35.65 23.76

48.90 36.72

64.10 51.84

4 .00±0.30

2 4 .60 ±0 .2 0

Order Information

C E N R A -

F :F e m ale

R e co m m e n d e d P C B Layout

(P C B T O LE R A N C E ±0 .0 5)

1.00

3.10

F

N o. of Contacts

(14,24,36,50)

X X

◎

S :S e lective

S A :S e le ctive 5 u "

S B :S elective 10u"

S C :S e le ctive 2 0 u "

S D :S e le ctive 3 0 u "

X

-

L

L :R o H S + P B T

B :B la ck In su lator

W:White In su lator

1 :With Front Latch

2 :W/O Front Latch

◎

U :B lu e In su lator

Centronic Right Angle Type , Z Shape / Rivet

Specifications

Current Rate:1 AMP

Insulation Resistance:1000MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-55°C to +105°C

11.90±0.20

Material

Insulator:Polyester,UL 94V-0

◎

Standard:PBT

Terminal:Copper Alloy

A

B

C

D

15.50±0.20

P art N o.

C E N R -F 14-L

C E N R -F 24-L

C E N R -F 36-L

C E N R -F 50-L

A ±0.20 B ±0.20 C ±0 .20 D ±0 .20

44.05 35.99

54.95 46.85

67.69 59.74

82.85 74.85

25.20 12.96

35.65 23.76

48.90 36.72

64.10 51.84

2.16

4.20

2 4 .3 0 ±0.20

B

2.16

4.20

1.00

4.00±0.30

Order Information

C E N R -

F :F em ale

R e co m m e n d e d P C B Layout

(P C B T O LE R A N C E ±0 .0 5)

3.10

F

X X

◎

S :S elective

S A :S e le ctive 5u"

S B :S e le ctive 10 u"

S C :S e le ctive 20 u"

S D :S e le ctive 30 u"

X

-

L

L :R o H S + P B T

N o. o f Co ntacts

(14,24,36 ,5 0)

B :B la ck In su lator

W:White In su lator

1 :With

Front Latch

2 :W/O

Front Latch

◎

U :B lu e In su lator

www.amtek-co.com.tw

5-33
