MLB201209-0060BM datasheet, PDF

Datasheet> All Categories > Passive components> MLB201209-0060BM

MLB201209-0060BM: DescriptionChip Bead,Ferrite; CategoryPassive components; File Size5MB，11 Pages; ManufacturerETC2

Download Datasheet Parametric View All

MLB201209-0060BM Overview

Chip Bead,Ferrite

MLB201209-0060BM Parametric

Parameter Name	Attribute value
minimum frequency	100 MHz
maximum frequency	100 MHz
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
state	Contact Mfr
case_code	0603
structure	Chip Bead
Maximum DC resistance	0.2000 ohm
material	Ferrite
cking_method	TR
Dimensions	L1.6XB.8XH.8 (mm)/L.063XB.0315XH.0315 (inch)
Rated current	1 A
series	MLB-160808
sub_category	Other Filters
heigh	0.8000 mm
length	1.6 mm
width__mm_	.8

Preview

Download Datasheet

View All

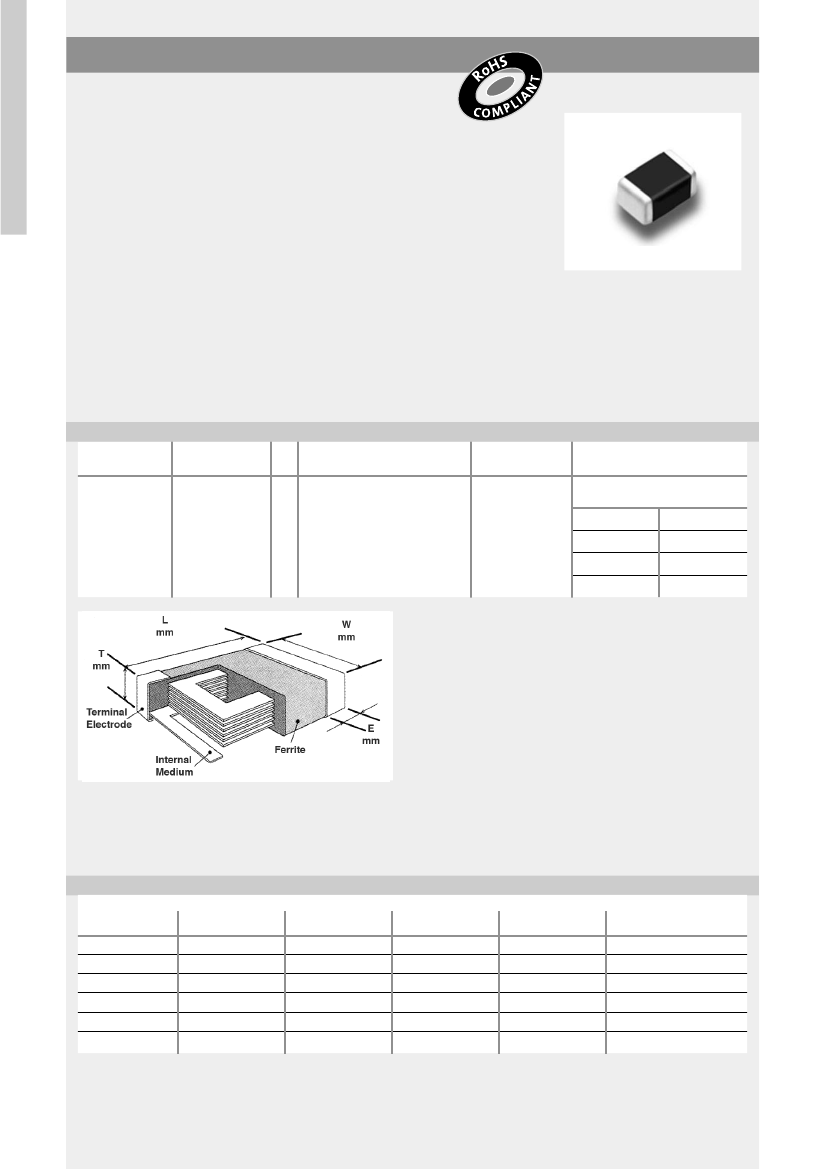

M U LT I LA Y E R T Y P E

HIGH CURRENT FERRITE CHIP BEAD

MULTILAYER

•

Impedance Range: 30 to 1300

Ω.

Operating Temperature Range: -55°C to +125°C.

Soldering Method: Reflow or Wave Soldering, suitable for lead free soldering.

Packaging Method: Tape & Reel (per EIA Specifications).

Storage Temperature: max. 40°C, RH 70%.

ROHS compliant.

Features

• Combination of high frequency noise suppression with capability of handling high current.

• Current ratings up to 6 Amps with low DCR.

Application Field

• High current DC power lines, Circuits where a Stable ground in unavailable.

Part Number Code

MLB

Series Name

160808 -

Size Code

0060

Impedance

(ex.0010 =10

Ω

± 25%)

Classification

Rated Current

(A, B, and P) L= 1000mA Q= 3000mA

M= 1500mA R= 4000mA

N= 2000mA U= 5000mA

P= 2500mA W= 6000mA

Shape and Dimensions

Size code

0603

0805

1206

1210

1806

1812

Size

160808

201209

311611

322513

451616

453215

Length(L)

1.6±0.15

2.0±0.2

3.2±0.2

4.5±0.25

unit mm

Width (W)

0.8±0.15

1.25±0.2

1.6±0.2

2.5±0.2

1.6±0.2

3.2±0.25

Thickness (T)

0.8±0.15

0.9±0.2

1.1±0.2

1.3±0.2

1.6±0.2

1.5±0.25

Electrode Width (E)

0.3±0.2

0.5±0.3

0.6±0.4
