BB02-DF181-K06-250000

Description
Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle
CategoryThe connector    The connector

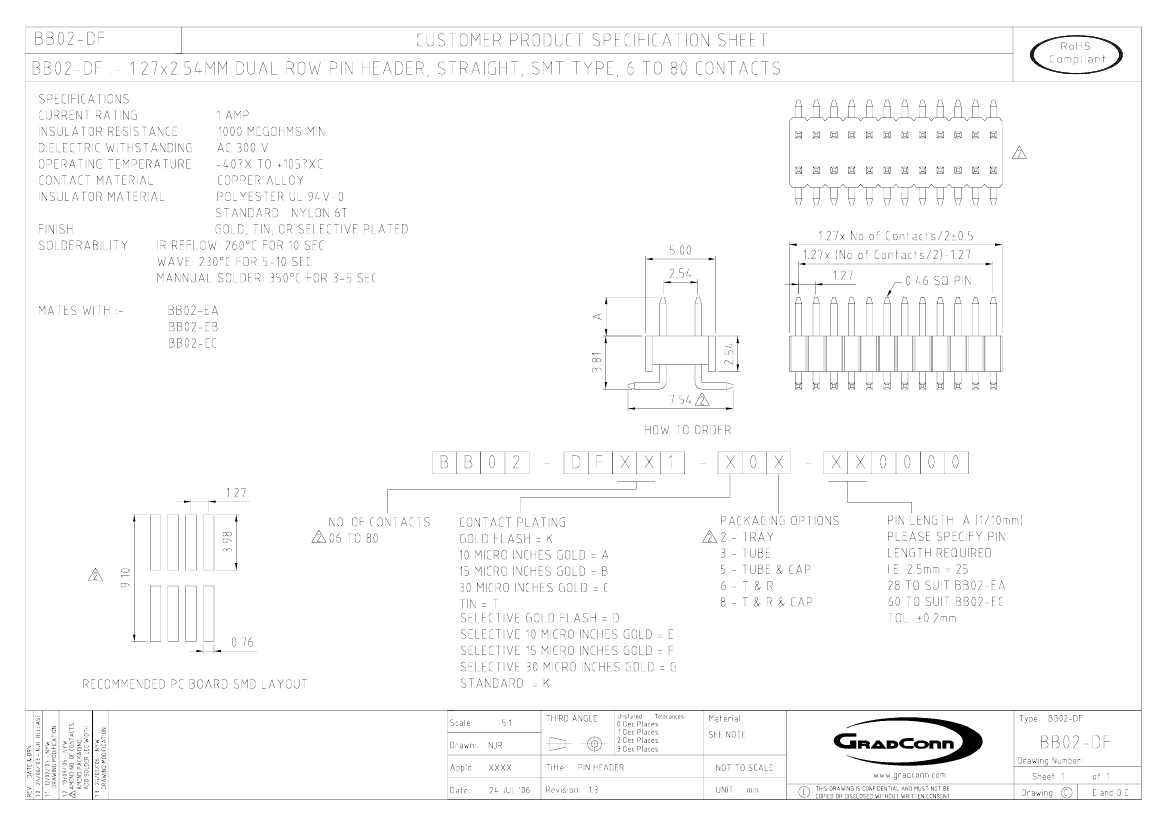

File Size77KB,1 Pages
ManufacturerGradConn Ltd
Download Datasheet Parametric View All

BB02-DF181-K06-250000 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Receptacle

BB02-DF181-K06-250000 Parametric

Parameter NameAttribute value
MakerGradConn Ltd
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS AND TAPE/REEL PACKAGING
body width0.197 inch
subject depth0.15 inch
body length0.45 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage300VAC V
Insulation resistance1000000000 Ω
insulator materialNYLON
Manufacturer's serial numberBB02-DF
Plug contact pitch0.05 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.1054 mm
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.27 mm
Termination typeSURFACE MOUNT
Total number of contacts18
