1279DTKSH00: DescriptionPCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size36KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279DTKSH00 Overview

PCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279DTKSH00 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LEFT EJECT, W/LOGO, 5V
Board mount options	M2 THREADED HOLES
body width	0.614 inch
subject depth	4.898 inch
body length	2.642 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of ports	2
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	136

Preview

Download Datasheet

View All

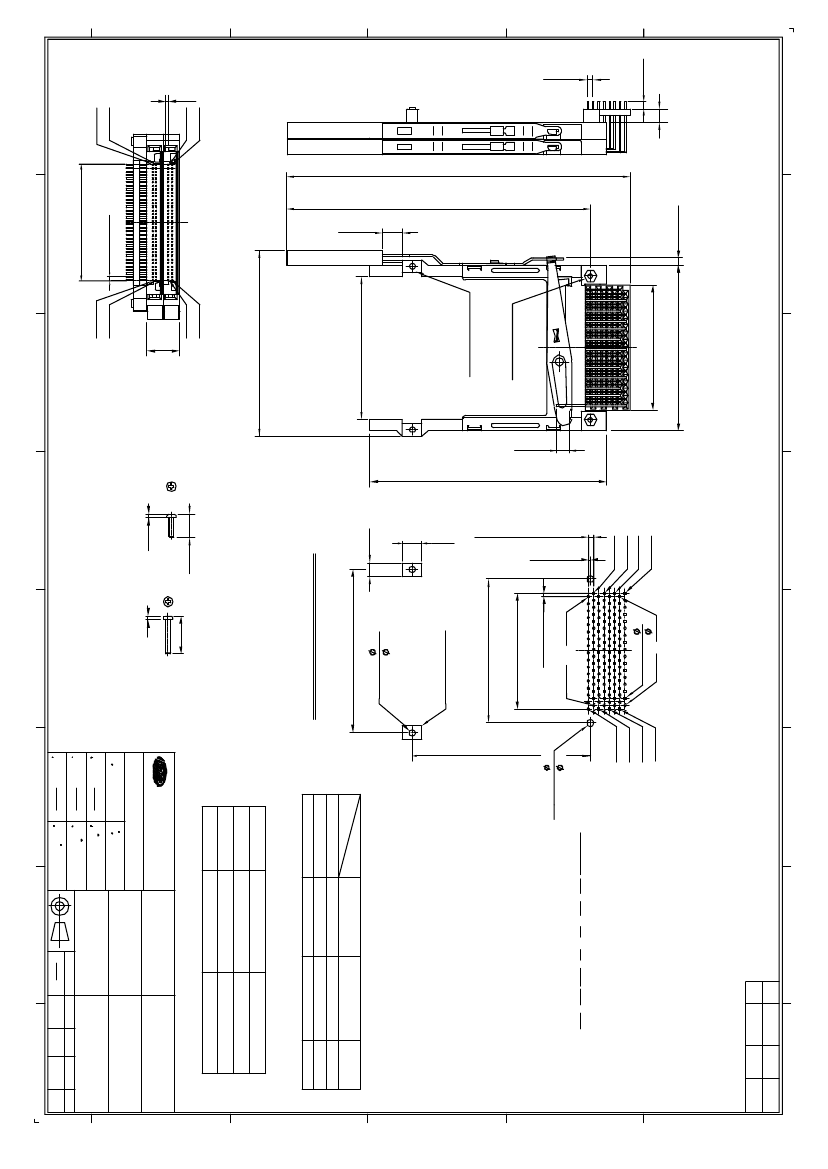

REV. ECO. NO.

CHG

APPD.

Features:

DWG REL.

2.6

.102

T-#01

T-#35

B-#01

B-#35

(2.7)

(.106)

59.8

2.354

45.4

1.787

T-#02 T-#33

0.79± 0.05

.031± .002

T-#34

T-#68

B-#34

B-#68

* Material:

1. Insulator: UL 94V-0 LCP,PBT

2. Contact: Copper Alloy

* Color : Black

* With 2 PCS M2 X 5.0mm and

2 PCS M2 X C mm screws

* Accept PCMCIA Type I,

Type II or Type III card

Ordering Information:

0.70 ± 0.10

.028 ± .004

1.905

.075

B-#36

B-#67

1.27± 0.05

.050± .002

41.91 ± 0.08

1.650 ± .003

2.30± 0.05

.091± .002

64.50± 0.10

2.539± .004

1279

T K *

* 0 *

5 6 7

2-M2 NUTS

85.5

3.366

124.42

4.898

2-M2 NUTS

109.8

4.323

52.07 ± 0.10

2.050 ± .004

EMI,ESD PAD

7.00

.276

7.4

.291

51.6

2.031

5.00

.197

59.00 ±

2.323 ±

3.20± 0.05

.126± .002

0.10

.004

RECOMMENDED HOLE PATTERN

1. Series No.

2. D = Double stack(with logo)

N = Double stack(without logo)

3. T = Through hole

4. K = Metal Left ejection bar

5. Contact plating

F = Selective gold flash over 50u" nickel overall

S = Selective gold flash over 40u" PdNi

K= Selective 30u" gold over 50u" nickel

J = Selective 15u" gold over 50u" nickel

6. An attached table (1) A

7. Special options

8. An attached table (1) B

L (2)

1.905± 0.05

.075± .002

( H) A = 4.0 mm

( J ) A = 5.0 mm

( S) A = 5.5 mm

DIM B = 1.1mm

(0) Voltage 5V

1279*TK*H00

1279*TK*J00

1279*TK*S00

DIM B = 2.2mm

(V) Voltage 3.3V

1279*TK*H0V

1279*TK*J0V

1279*TK*S0V

DIM C =

18.3

19.3

(1)

67.1

2.642

T-#01

T-#35

T-#34

T-#68

11.6

.456

PIN TYPE

DETECT

GENERAL

POWER

5.0

1.3

DIM. L ± 0.10(.004)

3.50(.138)

4.25(.167)

5.00(.197)

PIN NUMBER

36, 67

ALL OTHER PINS

1,17,34,35,51,68

(2)

APPROVED:

LEOCO CORPORATION

PART NO.:

DATE:

1279*TK**0*

B-#34

B-#68

1.27 ± 0.05

.050 ± .002

41.91 ± 0.08

1.650 ± .003

GENERAL TOLERANCE

CHECKED:

XXX ±

0.30

.012

0.20

.008

0.10

.004

B-#01

B-#35

2°

DATE:

TITLE:

DOUBLE STACK PC CARD PLUG

AND LEFT METAL EJECTOR

DRAWN:

DRAWING NO.:

1°

0.5°

DATE:

1279MFS

UNITS

SCALE

SIZE

SHEET

REV.

XXX ±

0.1°

inch

1/1
