1279NTMFJH0 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 1279NTMFJH0

Preview

1279NTMFJH0: DescriptionPCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size40KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279NTMFJH0 Overview

PCMCIA Connector, 68+68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279NTMFJH0 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/O LOGO, RIGHT EJECT BAR, 5V
Board mount options	M2 THREADED HOLES
body width	0.654 inch
subject depth	4.768 inch
body length	2.642 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	8
Number of ports	2
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	136

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

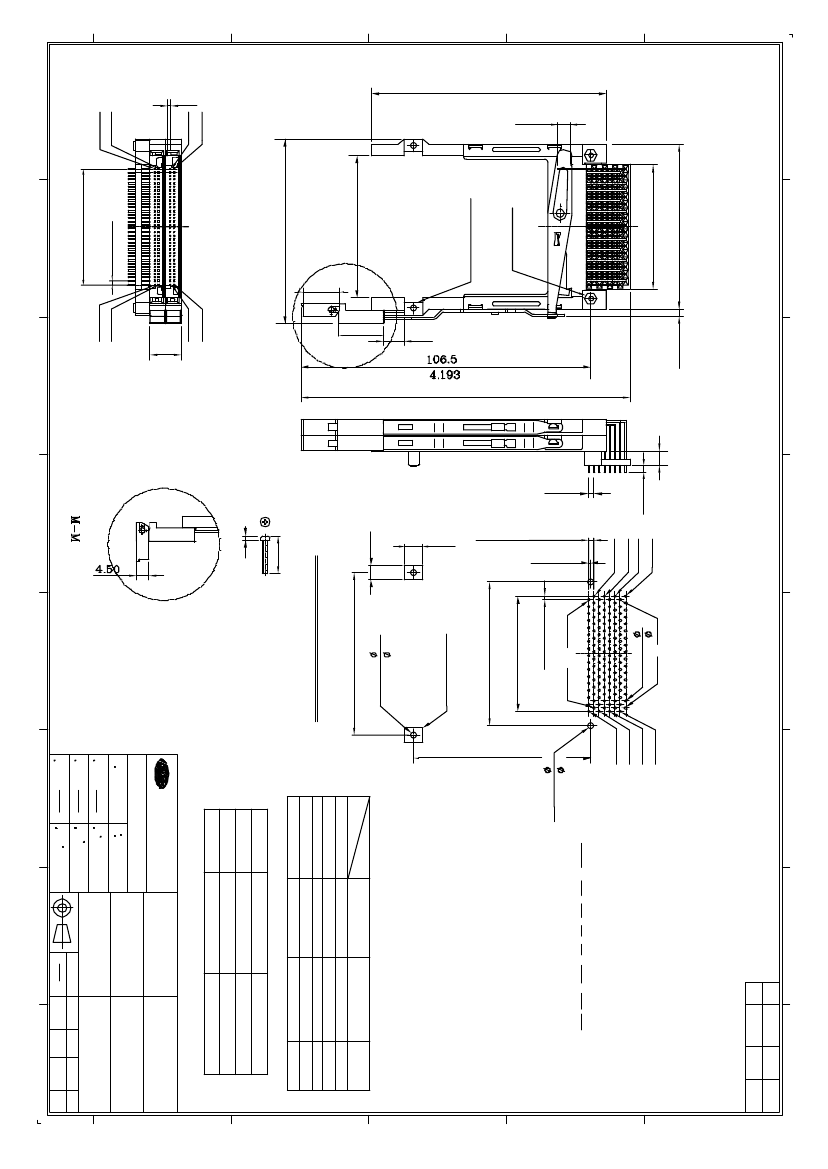

REV. ECO. NO.

CHG

APPD.

A

DWG REL.

Features:

A

59.8

2.354

45.4

1.787

A

2.6

.102

T-#01

T-#35

B-#01

B-#35

T-#33

T-#02

0.79± 0.05

.031± .002

(2.7)

(.106)

T-#34

T-#68

B-#34

B-#68

* Material:

1. Insulator: UL 94V-0 LCP,PBT

2. Contact: Copper Alloy

* Color : Black

* With 4 PCS M2x DIM C mm screws

* Accept PCMCIA Type I,

Type II or Type III card

A

Ordering Information:

0.70 ± 0.10

.028 ± .004

1.905

.075

B

B-#36

1.27± 0.05

.050± .002

B-#67

2.30± 0.05

.091± .002

41.91 ± 0.08

1.650 ± .003

1279

1

*

2

T

3

M

4

*

5

*

6

H

*

7

8

B

2-M2 NUTS

85.5

3.366

12１．１

４．７６８

2-M2 NUTS

52.07 ± 0.10

2.050 ± .004

EMI,ESD PAD

7.00

.276

C

1. Series No.

2. D = Double stack(with logo)

N = Double stack(without logo)

3. T = Through hole

4. M = Right foldable ejection bar (big shell)

5. Contact plating

F = Selective gold flash over 50µ " nickel overall

K= Selective 30µ " gold over 50µ " nickel

J = Selective 15µ " gold over 50µ " nickel

6. An attached table (1) A

7. Special options

8. An attached table (1) B

1.905± 0.05

.075± .002

64.50± 0.10

2.539± .004

5.00

.197

2x

59.00 ±

2.323 ±

3.20± 0.05

.127± .002

0.10

.004

RECOMMENDED HOLE PATTERN

L (2)

C

7.4

.291

51.6

2.031

．６５５５

16.65

13.25

D

67.1

2.642

C

1.3

A

( G)

(F)

( H)

( J)

(S)

．５２２

B

A = 2.2mm

A = 3.0 mm

A = 4.0 mm

A = 5.0 mm

A = 5.5 mm

DIM B = 1.1mm

(0) Voltage 5V

1279*TM*GH0

1279*TM*FH0

1279*TM*HH0

1279*TM*JH0

1279*TM*SH0

DIM B = 2.2mm

(V) Voltage 3.3V

1279*TM*GHV

1279*TM*FHV

1279*TM*HHV

1279*TM*JHV

1279*TM*SHV

DIM C =

mm

16.3

17.3

18.3

19.3

D

(1)

B

T-#01

T-#35

T-#34

T-#68

11.6

.456

PIN TYPE

DETECT

GENERAL

POWER

DIM. L ± 0.10(.004)

3.50(.138)

4.25(.167)

5.00(.197)

PIN NUMBER

36, 67

ALL OTHER PINS

1,17,34,35,51,68

(2)

E

LEOCO CORPORATION

APPROVED:

PART NO.:

DATE:

1279*TM**H*

1.27 ± 0.05

.050 ± .002

41.91 ± 0.08

1.650 ± .003

B-#34

B-#68

E

GENERAL TOLERANCE

．１７７２

CHECKED:

X

XX ±

XXX ±

±

0.30

.012

0.20

.008

0.10

.004

B-#01

B-#35

X

±

2°

DATE:

TITLE:

DOUBLE STACK PC CARD PLUG

AND RIGHT METAL EJECTOR

DRAWN:

X

±

1°

DRAWING NO.:

XX

±

0.5°

DATE:

1279N6S

UNITS

SCALE

SIZE

SHEET

REV.

XXX ±

0.1°

mm

inch

~

1

2

3

4

5

6

A3

1/1

A

7

8

Recommended Resources

STK0030 power amplifier circuit diagram

Audio vibration thawing circuit diagram

Thermal wire circuit diagram B

Thermocouple amplifier circuit

Effective value - DC conversion circuit

Main circuit diagram of half-bridge asymmetric PWM control converter
