1279STEFG0V: DescriptionPCMCIA Connector, 68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size28KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

1279STEFG0V Overview

PCMCIA Connector, 68 Contact(s), 4 Row(s), Male, Right Angle, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

1279STEFG0V Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/LOGO,W/O GUIDE, 3.3V
Board mount options	M2 THREADED HOLES
body width	0.315 inch
subject depth	1.535 inch
body length	2.354 inch
Body/casing type	RECEPTACLE
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
maximum insertion force	LIF N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1279
Plug contact pitch	0.05 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of ports	1
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	68

Preview

Download Datasheet

View All

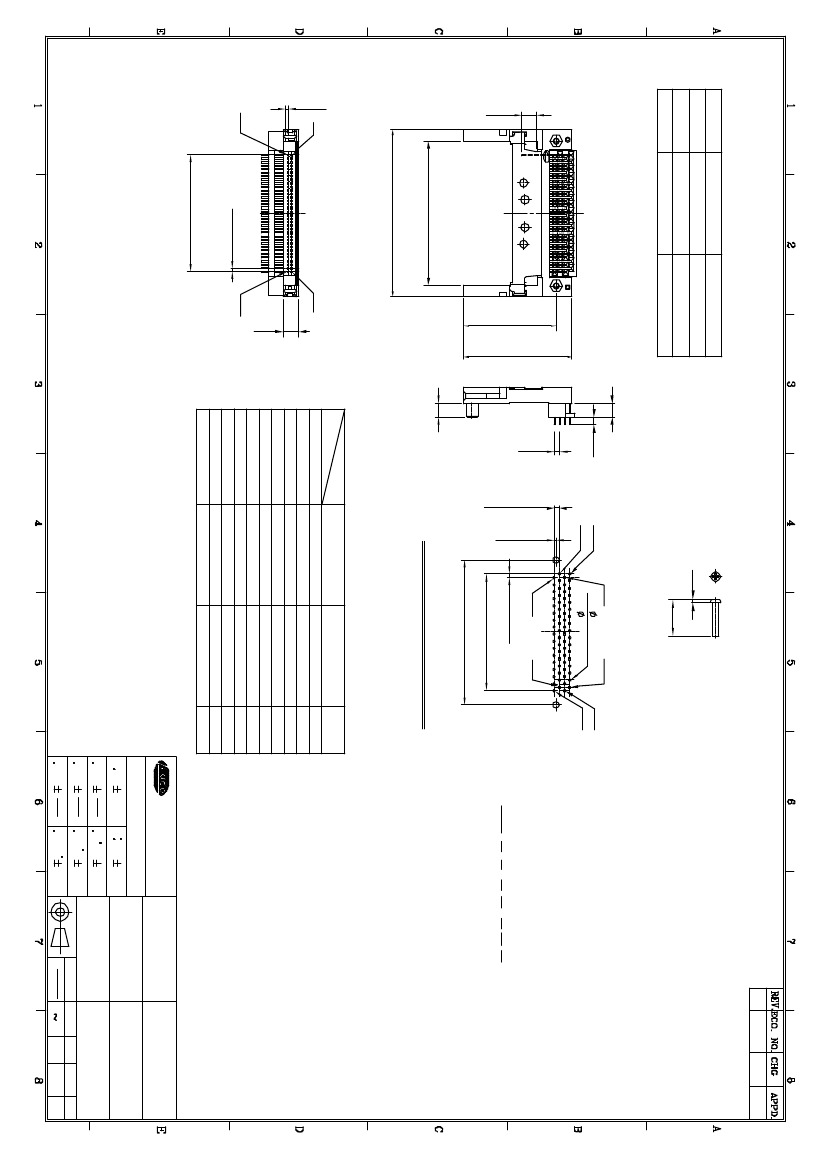

DWG REL.

PIN TYPE

DETECT

GENERAL

1.3

POWER

(2)

2.6

.102

#35

0.79±0.05

.031±.002

#33

5.00(.197)

1,17,34,35,51,68

DIM. L ±

0.10(.004)

3.50(.138)

4.25(.167)

PIN NUMBER

36, 67

ALL OTHER PINS

Features:

#34

#68

* Material:

1. Insulator: UL 94V-0 LCP

2. Contact: Copper alloy

* Color : Black

* With 2 PCS M2 screws

* Accept PCMCIA Type I,

#36

1.27±0.05

.050±.002

41.91±

0.08

1.650±

.003

52.07±

0.10

2.050±

.004

#67

Type II or Type III card

1.905

.075

1.905±

0.05

.075±.002

0.70±0.10

.028±.004

33.25

1.309

39.00

1.535

Ordering Information:

1279

* T E * * 0 *

2 3 4 5 6 7 8

L(2)

51.60

2.031

59.80

2.354

RECOMMENDED HOLE PATTERN

(G) A=2.2mm

(F) A=3.0mm

(H) A=4.0mm

(J) A=5.0mm

(S) A=5.5mm

(M) A=6.0mm

(N) A=7.0mm

(P) A=8.0mm

(Q) A=9.0mm

(R)A=10.0mm

#34

#35

1.27±0.05

.050±.002

41.91±

0.08

1.650±

.003

#68

DIM B=1.1mm

Voltage 5V

1279*TE*G00

1279*TE*F00

1279*TE*H00

1279*TE*J00

1279*TE*S00

1279*TE*M00

1279*TE*N00

1279*TE*P00

1279*TE*Q00

1279*TE*R00

DIM B=2.2mm

Voltage 3.3V

1279*TE*G0V

1279*TE*F0V

1279*TE*H0V

1279*TE*J0V

1279*TE*S0V

1279*TE*M0V

1279*TE*N0V

1279*TE*P0V

1279*TE*Q0V

1279*TE*R0V

1. Series No.

2. S = Single stack(with logo)

M= Single stack(without logo)

3. T = Through hole

4. E = Without guide

5. Contact plating

S = Selective gold flash over 40μ" PdNi

K = Selective 30μ" gold over 50μ" nickel

F = Selective gold flash over 50μ" nickel

J = Selective 15μ" gold over 50μ" nickel

DIM "C"

10.3

11.3

12.3

13.3

14.3

15.3

16.3

17.3

18.3

6. An attached table (1) A

7. Special options

8. An attached table (1) B

5.80

.228

(1)

LEOCO CORPORATION

APPROVED:

PARTS NO.:

1279*TE**0*

DATE:

GENERAL TOLERANCE

CHECKED:

TITLE:

XXX

0.30

.012

0.20

.008

0.10

.004

2°

DATE:

PC CARD PLUG

(SINGLE STACK)

1°

DRAWN:

DRAWING NO.:

0.5°

DATE:

1279CIS

UNITS

XXX

0.1°

inch

SCALE

SIZE

SHEET REV.

1/1
