DB-25SFF0CC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DB-25SFF0CC

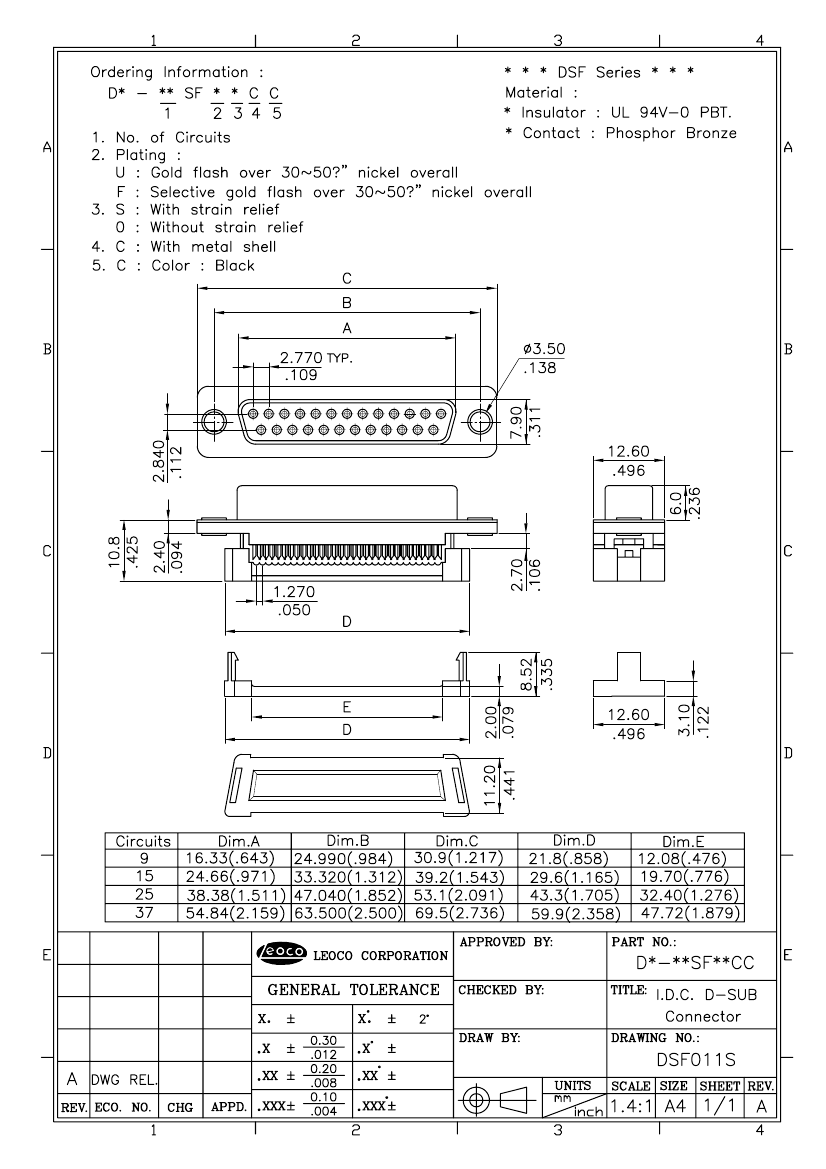

DB-25SFF0CC: DescriptionD Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug; CategoryThe connector The connector; File Size69KB，1 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

DB-25SFF0CC Overview

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug

DB-25SFF0CC Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	W/O STRAIN RELIEF
body width	0.496 inch
subject depth	0.425 inch
body length	2.091 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSF
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	HOLE .138-.163
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	NICKEL
Termination type	IDC
Total number of contacts	25
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

DB-25SFF0CC Related Products

	DB-25SFF0CC	DC-37SFU0CC	DC-37SFFSCC	DB-25SFU0CC	DB-25SFUSCC	DE-09SFF0CC	DE-09SFFSCC	DE-09SFU0CC
Description	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug	D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Hole .138-.163, Plug
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	W/O STRAIN RELIEF	W/O STRAIN RELIEF	W/STRAIN RELIEF	W/O STRAIN RELIEF	W/STRAIN RELIEF	W/O STRAIN RELIEF	W/STRAIN RELIEF	W/O STRAIN RELIEF
body width	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch	0.496 inch
subject depth	0.425 inch	0.425 inch	0.425 inch	0.425 inch	0.425 inch	0.425 inch	0.425 inch	0.425 inch
body length	2.091 inch	2.736 inch	2.736 inch	2.091 inch	2.091 inch	1.217 inch	1.217 inch	1.217 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DSF	DSF	DSF	DSF	DSF	DSF	DSF	DSF
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163	HOLE .138-.163
Installation option 2	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	25	37	37	25	25	9	9	9
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
ECCN code	EAR99	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
