CSX-750PBC100000000T: DescriptionCMOS Output Clock Oscillator, 1MHz Min, 100MHz Max, 100MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size84KB，1 Pages; ManufacturerCITIZEN; Websitehttp://ce.citizen.co.jp/e/index.html; Environmental Compliance

Download Datasheet Parametric View All

CSX-750PBC100000000T Overview

CMOS Output Clock Oscillator, 1MHz Min, 100MHz Max, 100MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

CSX-750PBC100000000T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CITIZEN
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	CSX-750P
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	100 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	100 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.6mm
power supply	3.3 V
Certification status	Not Qualified
longest rise time	4 ns
Maximum slew rate	25 mA
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

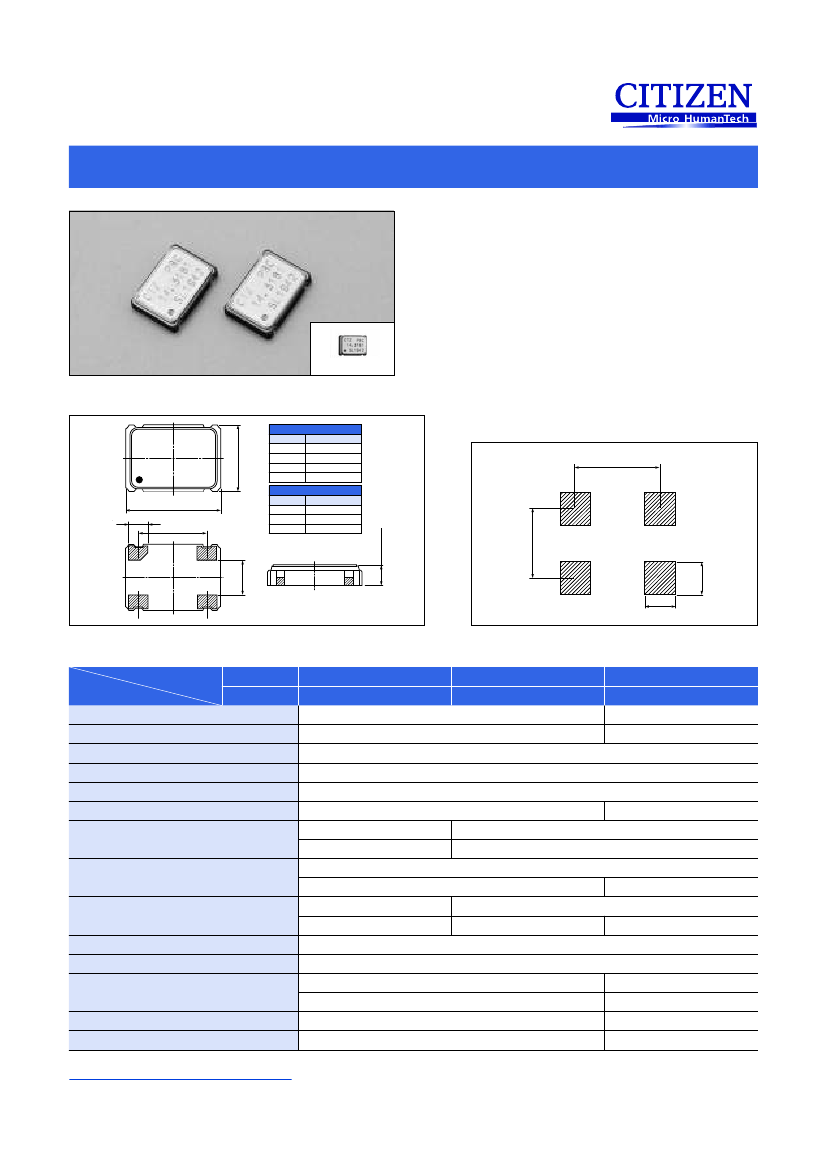

PROGRAMMABLE OSCILLATORS

(SMD • Ceramic Package)

RoHS compliant

CSX-750P SERIES

■

FEATURES

2000pcs/reel

7Wide

range of output frequency by PLL technology.

7Quick

sample delivery and short lead time in mass

production.

7Low

current consumption with output enable

function (OE) or stand by function (STAND-BY).

7Suitable

for various applications such as

communication devices, AV devices and measuring

instruments.

Life-size

■

DIMENSION [mm]

Pin Assignment

Pin No.

Connection

＃1

OE or Stand By

＃2

GND

OUT

＃3

＃4

Vdd

Function

＃1 input ＃3 Output condition

H

Oscillation out

Open

Oscillation stop

L

■

SOLDER PAD LAYOUT [mm]

5.08

7.0±0.15

1.4

#1

5.08

#2

5.0±0.15

1.6 Max.

4.20

#4

#3

1.80

■

STANDARD SPECIFICATIONS

Model

Item

Frequency Range

Supply Voltage

Frequency Stability

Operating Temperature Range

Storage Temperature Range

Current consumption

Duty

TTL level（1.4V）

CMOS level（1/2 Vdd）

（＊）

＊ Model is determined by the selection for the output enable or stand-by function, the frequency stability and the supply voltage.

OE

STAND-BY

（＊）

CSX-750 PT

CSX-750 PK

（＊）

CSX-750 PC

CSX-750 PD

（＊）

CSX-750 PB

（＊）

CSX-750 PJ

＊）

（

1.000MHz∼100.000MHz

Vdd : 3.3V±0.3V

1.000MHz ∼ 125.000MHz

Vdd : 5.0V±0.5V

−

20℃∼

＋

70℃ 40℃∼

＋

85℃）

（−

−

55℃∼

＋

125℃

B : ±50ppm, C : ±100ppm, E : ±50ppm

−

40℃∼

＋

85℃） F : ±100ppm

−

40℃∼

＋

85℃）

（

,

（

45mA Max.

45∼55%

−

0.9Vdd Min.

0.4V Max.

5TTL Max.

−

25pF Max.

4 nsec Max.

10 msec Max.

V

IH

V

IL

2.0V Min.

0.8V Max.

30mA Max.

50μA Max.

−

45∼55%

25mA Max.

Output Voltage

V

OH

V

OL

TTL

CMOS

0.1Vdd Max.

15pF Max.

Output Load

Rise and Fall Time

Start-up time

Input Voltage

Disable current

Stand-by current

0.7Vdd Min.

0.2Vdd Max.

15mA Max.

20μA Max.
