MMBZ5265ELT1G

Description
Zener Voltage Regulators
CategoryDiscrete semiconductor    diode
File Size153KB,6 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Environmental Compliance
Download Datasheet Parametric Compare View All

MMBZ5265ELT1G Overview

Zener Voltage Regulators

MMBZ5265ELT1G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerON Semiconductor
Parts packaging codeSOT-23
package instructionLEAD FREE, PLASTIC, CASE 318-08, 3 PIN
Contacts3
Manufacturer packaging codeCASE 318-08
Reach Compliance Codecompli
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance185 Ω
JEDEC-95 codeTO-236
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.225 W
Certification statusNot Qualified
Nominal reference voltage62 V
surface mountYES
technologyZENER
Terminal surfaceTin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
Working test current2 mA
MMBZ52xxELT1G Series,
SZMMBZ52xxELT1G Series
Zener Voltage Regulators
225 mW SOT−23 Surface Mount

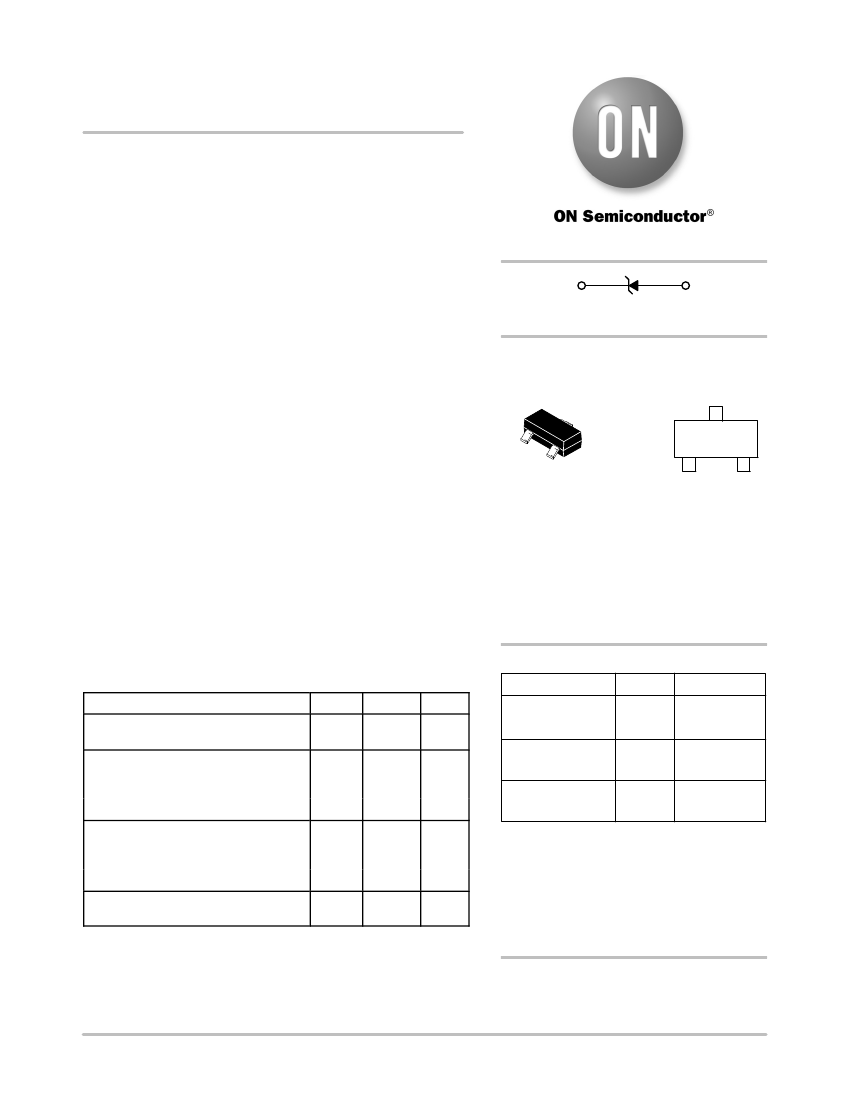

This series of Zener diodes is offered in the convenient, surface
mount plastic SOT−23 package. These devices are designed to provide
voltage regulation with minimum space requirement. They are well
suited for applications such as cellular phones, hand held portables,
and high density PC boards.
Features
http://onsemi.com
3
Cathode
1
Anode
225 mW Rating on FR−4 or FR−5 Board
Zener Voltage Range
2.4 V to 91 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for High Density Applications
ESD Rating of Class 3 (>16 kV) per Human Body Model
Peak Power
225 W (8 x 20
ms)
AEC−Q101 Qualified and PPAP Capable
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements
Pb−Free Packages are Available
Mechanical Characteristics:
CASE:
Void-free, transfer-molded, thermosetting plastic case
FINISH:
Corrosion resistant finish, easily solderable
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES:
MARKING
DIAGRAM
3
1
2
SOT−23
CASE 318
STYLE 8
1
Bxx M
G
G
Bxx
xx
M
G
= Device Code
= (Refer to page 2)
= Date Code*
= Pb−Free Package
(Note: Microdot may be in either location)
*Date Code orientation may vary depending
upon manufacturing location.
260°C for 10 Seconds
POLARITY:
Cathode indicated by polarity band
FLAMMABILITY RATING:
UL 94 V−0
MAXIMUM RATINGS
Rating
Peak Power Dissipation @ 20
ms
(Note 1)
@ T
L
25°C
Total Power Dissipation on FR−5 Board,
(Note 2) @ T
A
= 25°C
Derated above 25°C
Thermal Resistance, Junction−to−Ambient
Total Power Dissipation on Alumina
Substrate, (Note 3) @ T
A
= 25°C
Derated above 25°C
Thermal Resistance, Junction−to−Ambient
Junction and Storage Temperature Range
Symbol
P
pk
P
D
Max
225
Unit
W
ORDERING INFORMATION
Device
MMBZ52xxELT1G
SZMMBZ52xxELT1G
225
1.8
556
300
2.4
417
−65
to
+150
mW
mW/°C
°C/W
mW
mW/°C
°C/W
°C
Package
SOT−23
(Pb−Free)
SOT−23
(Pb−Free)
SOT−23
(Pb−Free)
Shipping
3000 / Tape &
Reel
3000 / Tape &
Reel
10000 / Tape &
Reel
MMBZ52xxELT3G
R
qJA
P
D
R
qJA
T
J
, T
stg
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Nonrepetitive current pulse per Figure 9.
2. FR−5 = 1.0 X 0.75 X 0.62 in.
3. Alumina = 0.4 X 0.3 X 0.024 in., 99.5% alumina.
©
Semiconductor Components Industries, LLC, 2011
DEVICE MARKING INFORMATION
See specific marking information in the device marking
column of the Electrical Characteristics table on page 2 of
this data sheet.
December, 2011
Rev. 7
1
Publication Order Number:
MMBZ5221ELT1/D

MMBZ5265ELT1G Related Products

MMBZ5265ELT1G MMBZ5226ELT3G MMBZ5235ELT3G MMBZ5236ELT3G MMBZ5239ELT3G MMBZ5253ELT3G SZMMBZ52xxELT1G
Description Zener Voltage Regulators Zener Voltage Regulators Zener Voltage Regulators Zener Voltage Regulators Zener Voltage Regulators Zener Voltage Regulators Zener Voltage Regulators
Is it Rohs certified? conform to conform to conform to conform to conform to conform to -
Maker ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor - -
Parts packaging code SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 - -
package instruction LEAD FREE, PLASTIC, CASE 318-08, 3 PIN R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 -
Contacts 3 3 3 3 3 - -
Manufacturer packaging code CASE 318-08 CASE 318-08 CASE 318-08 CASE 318-08 CASE 318-08 - -
Reach Compliance Code compli compli compli unknow compli compli -
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 -
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE -
Diode component materials SILICON SILICON SILICON SILICON SILICON SILICON -
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE -
Maximum dynamic impedance 185 Ω 28 Ω 5 Ω 6 Ω 10 Ω 35 Ω -
JEDEC-95 code TO-236 TO-236 TO-236 TO-236 TO-236 TO-236 -
JESD-30 code R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 R-PDSO-G3 -
JESD-609 code e3 e3 e3 e3 e3 - -
Number of components 1 1 1 1 1 1 -
Number of terminals 3 3 3 3 3 3 -
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C -
Minimum operating temperature -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY -
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE -
Peak Reflow Temperature (Celsius) 260 260 260 260 260 NOT SPECIFIED -
polarity UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL UNIDIRECTIONAL -
Maximum power dissipation 0.225 W 0.225 W 0.225 W 0.225 W 0.225 W 0.225 W -
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified - -
Nominal reference voltage 62 V 3.3 V 6.8 V 7.5 V 9.1 V 25 V -
surface mount YES YES YES YES YES YES -
technology ZENER ZENER ZENER ZENER ZENER ZENER -
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) MATTE TIN - -
Terminal form GULL WING GULL WING GULL WING GULL WING GULL WING GULL WING -
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED 40 40 NOT SPECIFIED -
Maximum voltage tolerance 5% 5.15% 5% 5.07% 4.95% 5% -
Working test current 2 mA 20 mA 20 mA 20 mA 20 mA 5 mA -
