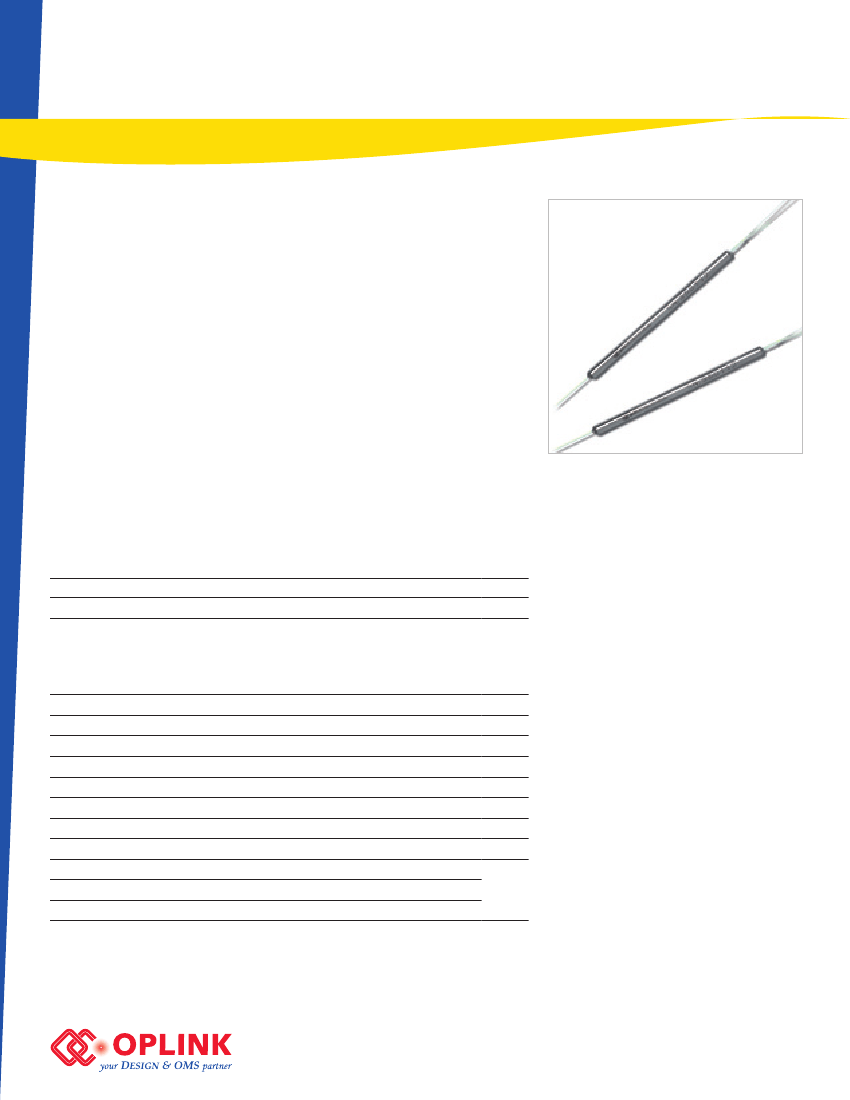

Multi-Mode Single Window
Wideband Fiber Coupler
(1x2, 2x2)
MMFC Series
Product Description
Oplink’s single window, multi-mode wideband fiber couplers are highly stable
for multi-port optical signal splitting. They have very good uniformity, low ex-
cess loss and very low polarization sensitivity. All devices are tested accord-
ing to industry standard test procedures and are supplied with all pertinent
measurement data.
Oplink can provide customized designs to meet specialized feature applica-
tions. Also, Oplink offers modular assemblies that integrate other components
to form a full function module.
Performance Specificationns
MMFC Series
Premium
Grade A
Unit
Features
Configuration
1x2 or 2x2
850,
1310,
1550,
850 & 1310,
1310 & 1550
< 4.0
< 0.4
< 1.0
< 0.002
> 40
500
-40 to +70
-40 to +85
P1: 250μm multi-mode bare fiber
P2: 900μm loose tube
P3: 3mm cable
(ø)3.0 x (L)54
(ø)3.0 x (L)60
(L)96 x (W)12 x (H)6.4
mm
< 4.5
< 0.8
< 1.0
< 0.002
Low Excess Loss
Good Uniformity
Excellent Environmental Stability
Operating Wavelength
nm
Insertion Loss *
Uniformity (50/50)
Typical Excess Loss **
Temperature Sensitivity
Directivity
Maximum Power Handling
Operating Temperature
Storage Temperature
Package Dimension ***
dB
dB
dB
dB/ °C
dB
mW
°C
°C
Applications
Data Link
LAN
Sensors
Values are referenced without connector loss.
* for 50/50 split ratio
** measured under the stable mode condition with LED light source.
Oplink MMFC Series use (62.5/125 μm and 50/125 μm) multi-mode fiber.
***The mechanical tolerance should be +/-0.2 mm on all package dimensions unless otherwise custom specified.
R02.20090612
Multi-Mode Single Window Wideband
Fiber Coupler
(1x2, 2x2)
MMFC Series
Mechanical Drawing / Package Dimensions (dimension in mm)
Port 1 In
L
Port 2 Main (High%)
Port 4 (terminated for 1x2
configuration)
Ø
Port 3 Tap (Low%)
46335 Landing Pkwy Fremont, CA 94538 Tel: (510) 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com • www.oplink.com
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM
design team or account manager for your requirements and ordering information (510) 933-7200.
MMFC
0
0
Wavelength
850/1310 nm = 1
1310/1550 nm = 2
1310 nm = 3
1550 nm = 5
850 nm = 8
Type
1x2 = 1
2x2 = 2
Split Ratio
50/50 = 50
Grade
P Grade = P
A Grade = A
Package
Type
P1=1
P2=2
P3=3
Fiber Length
1 Meter= 1*
1.5 Meters= 5
2 Meters= 2
Connetor Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
Fiber Type
62.5/125 fiber = 1
50/125 fiber = 2
R02.20090612
