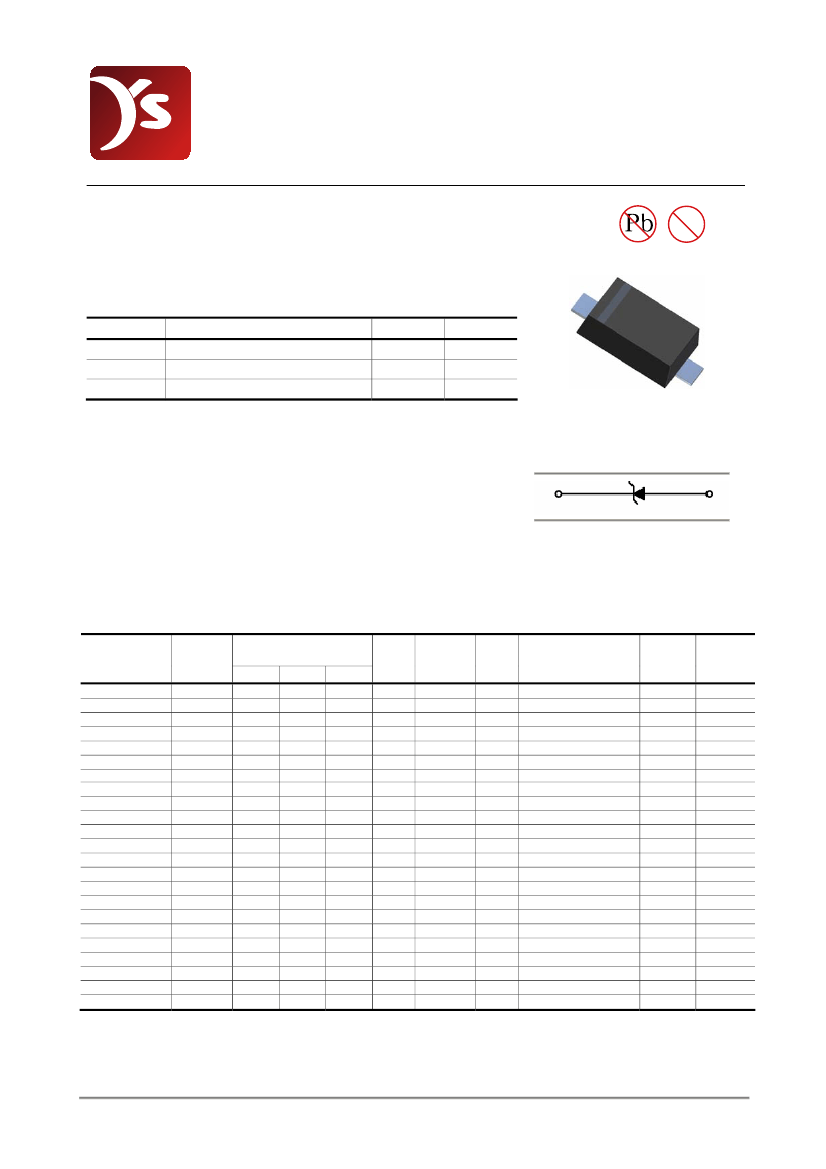

DATA SHEET
SEMICONDUCTOR
MMSZ Series
500mW SOD-123FL SURFACE MOUNT
Flat Lead Surface Mount Plastic Package
Zener Voltage Regulators
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
OPR
Power Dissipation
Storage Temperature Range
Operating Temperature Range
T
A
= 25°C unless otherwise noted
Value
500
-65 to +150
-65 to +150
Units
mW
°C
°C
H
Parameter
These ratings are limiting values above which the serviceability of the diode may be impaired.
SOD-123 Flat Lead
Specification Features:
Wide Zener Voltage Range Selection, 2.4V to 75V
VZ Tolerance Selection of ±2% (B Series)
Flat Lead SOD-123 Plastic Package
Surface Device Type Mounting
Moisture Sensitivity Level 1
Clip Bonding Construction, Good Thermal Capability
Pb Free Version and RoHS Compliant
Matte Tin(Sn) Lead Finish with Nickel(Ni) Underplate
Band Indicates Cathode
Cathode
ELECTRICAL SYMBOL
Anode
Electrical Characteristics
Device
Type
MMSZ2V4B
MMSZ2V7B
MMSZ3V0B
MMSZ3V3B
MMSZ3V6B
MMSZ3V9B
MMSZ4V3B
MMSZ4V7B
MMSZ5V1B
MMSZ5V6B
MMSZ6V2B
MMSZ6V8B
MMSZ7V5B
MMSZ8V2B
MMSZ9V1B
MMSZ10VB
MMSZ11VB
MMSZ12VB
MMSZ13VB
MMSZ15VB
MMSZ16VB
MMSZ18VB
MMSZ20VB
Device
Marking
Min
2V4B
2V7B
3V0B
3V3B
3V6B
3V9B
4V3B
4V7B
5V1B
5V6B
6V2B
6V8B
7V5B
8V2B
9V1B
10VB
11VB
12VB
13VB
15VB
16VB
18VB
20VB
2.35
2.65
2.94
3.23
3.53
3.82
4.21
4.61
5.00
5.49
6.08
6.66
7.35
8.04
8.92
9.80
10.78
11.76
12.74
14.70
15.68
17.64
19.60
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
(Volts)
Nom
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
Max
2.45
2.75
3.06
3.37
3.67
3.98
4.39
4.79
5.20
5.71
6.32
6.94
7.65
8.36
9.28
10.20
11.22
12.24
13.26
15.30
16.32
18.36
20.40
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
94
94
89
89
84
84
84
75
56
37
9
14
14
14
14
18
18
23
28
28
37
42
51
I
ZK
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Z
ZK
@ I
ZK
(Ω)
Max
564
564
564
564
564
564
564
470
451
376
141
75
75
75
94
141
141
141
160
188
188
212
212
I
R
@ V
R
(µA)
Max
45
18
9
4.5
4.5
2.7
2.7
2.7
1.8
0.9
2.7
1.8
0.9
0.63
0.45
0.18
0.09
0.09
0.09
0.045
0.045
0.045
0.045
V
R
(Volts)
1
1
1
1
1
1
1
2
2
2
4
4
5
5
6
7
8
8
8
10.5
11.2
12.6
14.0
http://www.yeashin.com
1
REV.02 20110725
MMSZ Series
Electrical Characteristics
Device
Type
Device
Marking
Min
T
A
= 25°C unless otherwise noted
V
Z
@ I
ZT
(Volts)
Nom
Max
I
ZT
(mA)
Z
ZT
@ I
ZT
(Ω)
Max
51
65
75
75
75
84
122
141
160
169
188
202
226
240
I
ZK
(mA)
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
Z
ZK
@ I
ZK
(Ω)
Max
235
235
282
282
306
329
329
353
353
376
400
423
447
470
I
R
@ V
R
(µA)
Max
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
0.045
V
R
(Volts)
15.4
16.8
18.9
21.0
23.0
25.2
27.3
30.1
33.0
35.7
39.2
43.4
47.6
52.5
MMSZ22VB
22VB
21.56
22
22.44
5
MMSZ24VB
24VB
23.52
24
24.48
5
MMSZ27VB
27VB
26.46
27
27.54
5
MMSZ30VB
30VB
29.40
30
30.60
5
MMSZ33VB
33VB
32.34
33
33.66
5
MMSZ36VB
36VB
35.28
36
36.72
5
MMSZ39VB
39VB
38.22
39
39.78
5
MMSZ43VB
43VB
42.14
43
43.86
5
MMSZ47VB
47VB
46.06
47
47.94
5
MMSZ51VB
51VB
49.98
51
52.02
5
MMSZ56VB
56VB
54.88
56
57.12
5
MMSZ62VB
62VB
60.76
62
63.24
5
MMSZ68VB
68VB
66.64
68
69.36
5
MMSZ75VB
75VB
73.50
75
76.50
5
V
F
Forward Voltage = 900mV Maximum @
I
F
= 10 mA for all types
Notes:
1.
2.
3.
4.
The Zener Voltage (V
Z
) is tested under pulse condition of 10mS.
The device numbers listed have a standard tolerance on the nominal zener voltage of ±2%.
For detailed information on price, availability and delivery of nominal zener voltages between the voltages shown and tighter
voltage tolerances, contact your nearest Y S Terhnology representative.
The zener impedance is derived from the 60-cycle ac voltage, which results when an ac current having an rms value equal to
10% of the dc zener current (I
ZT
or
I
ZK
) is superimposed to
I
ZT
or
I
ZK.
http://www.yeashin.com
2
REV.02 20110725
DEVICE CHARACTERISTICS
MMSZ Series

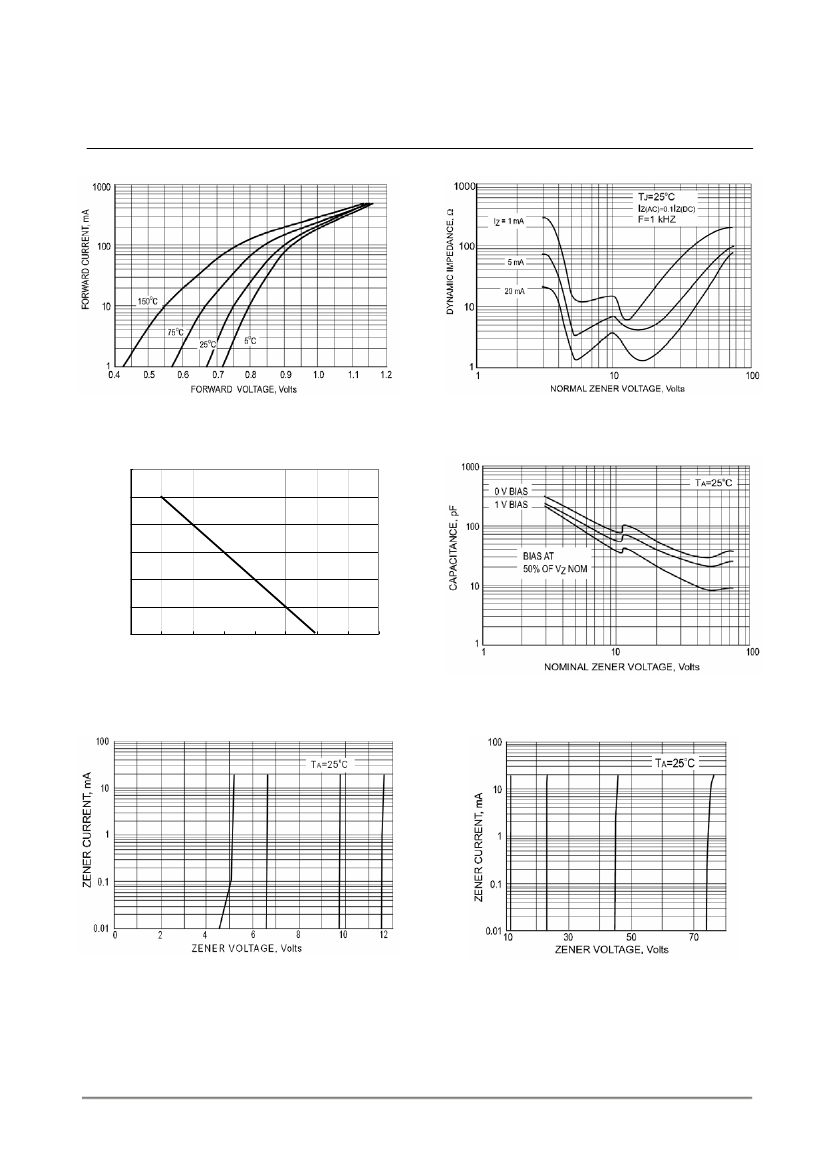

Fig.1 TYPICAL FORWARD VOLTAGE
Fig.2
EFFECT OF ZENER VOLTAGE ON ZENER IMPEDANCE
600
POWER PASSIPATION,mW
500
400
300
200
100
0
0
25
50
75
100
125
150
175
200
TEMPERATURE [
℃
]
Fig.3 POWER DISSIPATION VS. AMBIENT TEMP.
Fig.4
TYPICAL CAPACITANCE
Fig.5 ZENER BREAKDOWN CHARACTERISTICS
Fig.6 ZENER BREAKDOWN CHARACTERISTICS
http://www.yeashin.com
3
REV.02 20110725

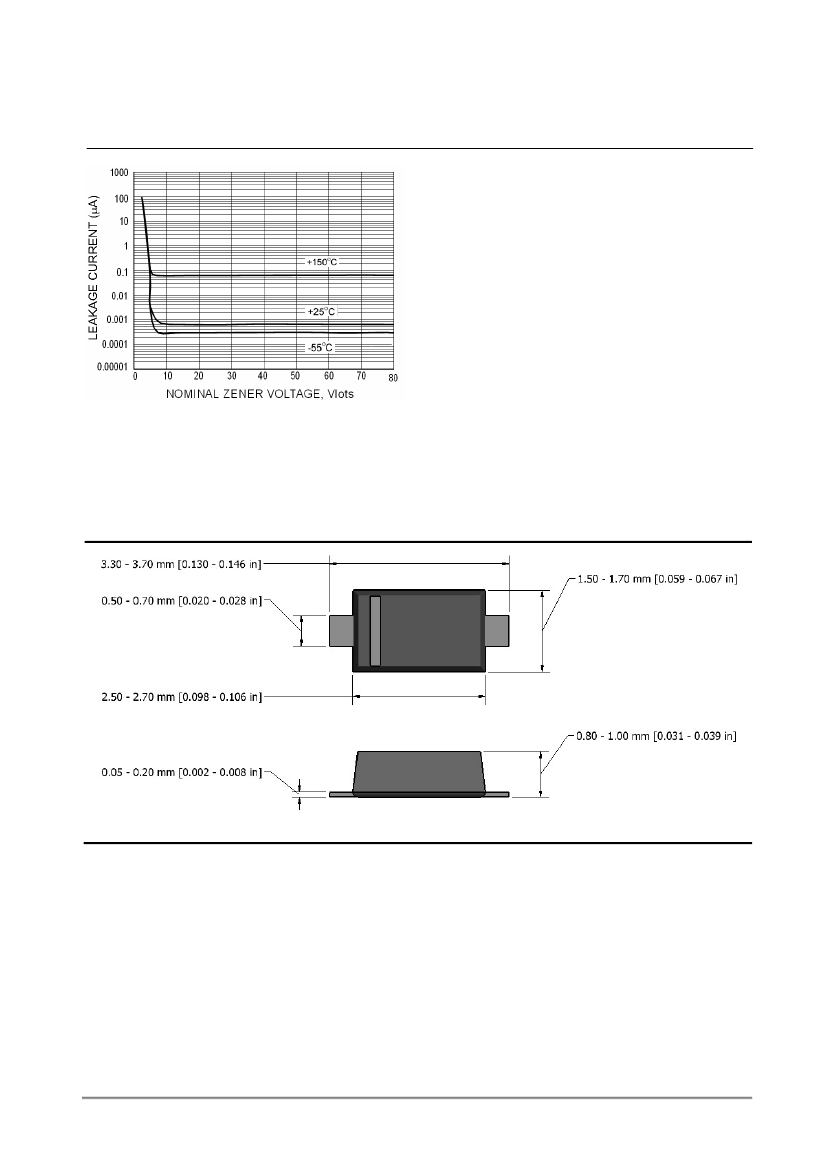

PACKAGE OUTLINE & DIMENSIONS
MMSZ Series
Fig.7 TYPICAL LEAKGE CURRENT
Flat Lead SOD-123 Package Outline
http://www.yeashin.com
4
REV.02 20110725
