MMSZ4678-MMSZ4717

Zener Diodes

Features

Pb−Free Packages are Available

Wide Zener Reverse Voltage Range

−

1.8 V to 43 V

Small Package Size for High Density Applications

ESD Rating of Class 3 (>16 kV) per Human Body Model

Maximum Ratings @ T

=25℃ unless otherwise specified

Characteristic

Forward voltage

=10mA

Power Dissipation

Thermal Resistance, Junction to Ambient Air

Operating and Storage Temperature Range

Symbol

θJA

STG

Value

0.9

350

357

-65 to +150

Unit

℃/W

℃

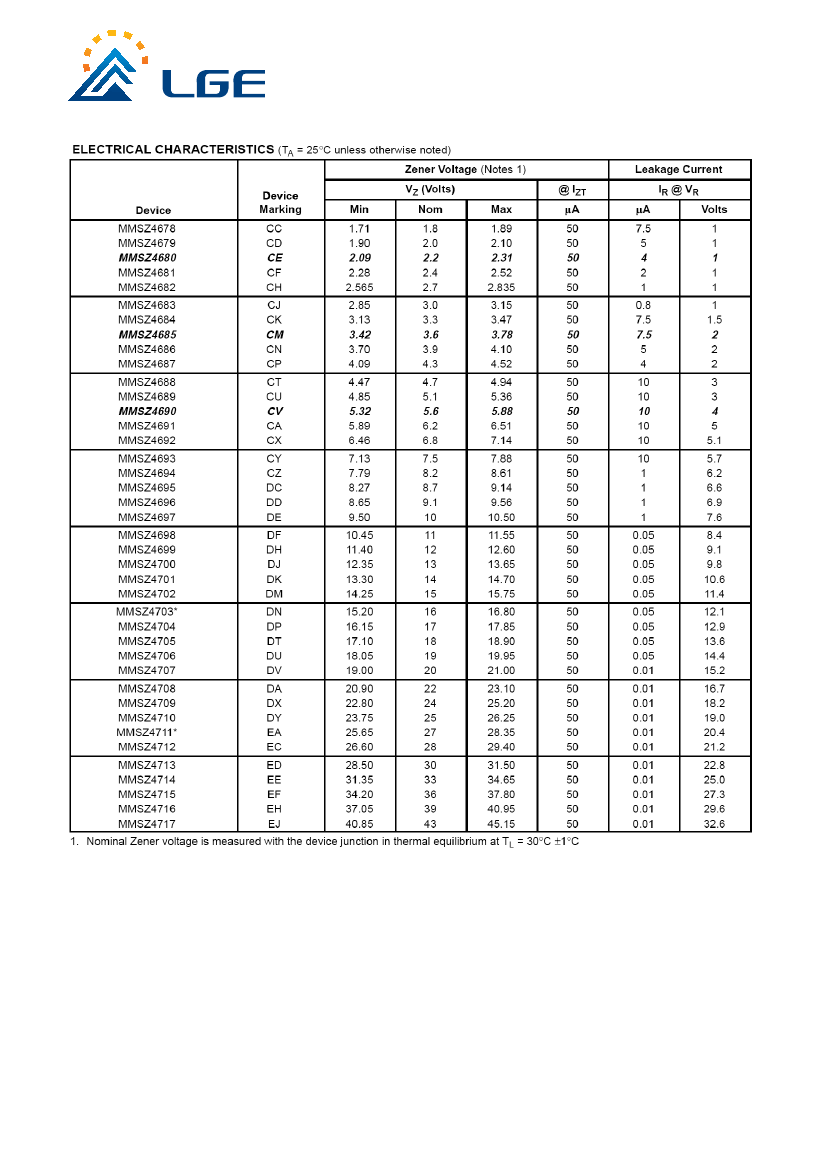

ELECTRICAL CHARACTERISTICS (T

=25℃unless otherwise noted)

symbol

Parameter

Reverse zener voltage @ I

Reverse current

Reverse leakage current@ V

Reverse voltage

Forward current

Forward voltage @ I

http://www.luguang.cn

mail:lge@luguang.cn
