EH-D-03

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle
CategoryThe connector    The connector
File Size88KB，1 Pages
ManufacturerMorethanall Co., Ltd.
Websitehttp://www.morethanall.com
Download Datasheet Parametric Compare View All

EH-D-03 Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle

EH-D-03 Parametric

Parameter NameAttribute value
MakerMorethanall Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.15 inch
subject depth0.236 inch
body length0.394 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorWHITE
insulator materialNYLON
Manufacturer's serial numberEH-D
Plug contact pitch0.098 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
polarization keyGUIDE SLOT(S)
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.13 inch
Terminal pitch2.4892 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts3

Preview

Download Datasheet

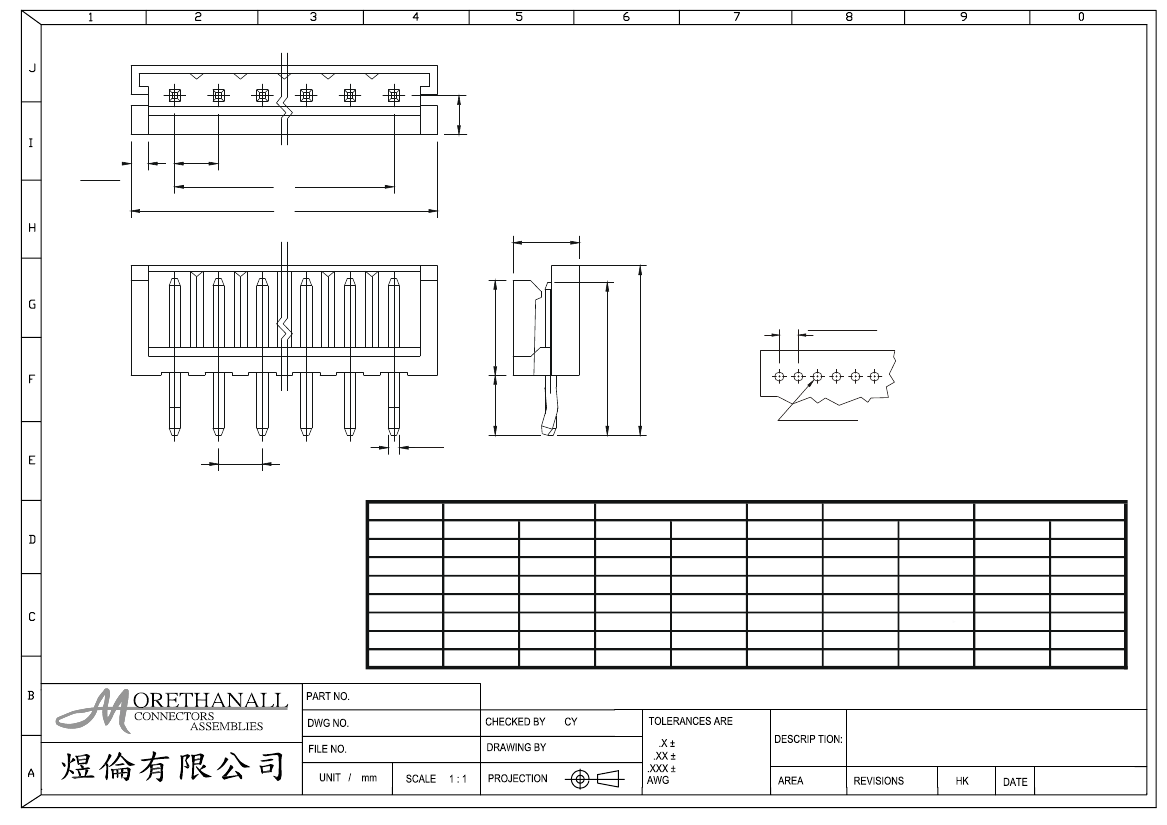

EH Series Straight Pin Headers
.085
2.15
*
*
*
*
*
*
*
Material : Nylon UL 94V-0
Contact : Phosphor bronze
Current rating : 1A, AC/DC
Voltage rating : 125V, AC/DC
Standard color: white
.025" (0.64mm) straight square pins
2-15 circuits available
.039
1.00
.098
2.50
A
B
.150
3.80
.208
5.30
.130
3.30
.331
8.40
.336
9.30
.098+/-.002
2.50+/-0.05
TYP
.098
2.50
.025
0.64
Dimensional information - inch/mm
Circuits
.040+/-.002
TYP
1.02+/-0.05
RECOMMENDED PCB LAYOUT
Dim. A
inch
0.098
0.197
0.295
0.394
0.492
0.591
0.689
mm
2.50
5.00
7.50
10.00
12.50
15.00
17.50
Dim. B
inch
0.295
0.394
0.492
0.591
0.689
0.787
0.886
mm
7.50
10.00
12.50
15.00
17.50
20.00
22.50
Circuits
Dim. A
inch
0.787
0.886
0.984
1.083
1.181
1.280
1.378
mm
20.00
22.50
25.00
27.50
30.00
32.50
35.00
Dim. B
inch
0.984
1.083
1.181
1.280
1.378
1.476
1.575
mm
25.00
27.50
30.00
32.50
35.00
37.50
40.00
2
3
4
5
6
7
8
EH-D-xx
EH-D-xx
9
10
11
12
13
14
15

EH-D-03 Related Products

EH-D-03 EH-D-02 EH-D-04 EH-D-05 EH-D-06 EH-D-07 EH-D-12 EH-D-13
Description Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, 0.098 inch Pitch, Solder Kinked Leads Terminal, White Insulator, Receptacle
Maker Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd. Morethanall Co., Ltd.
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
body width 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch 0.15 inch
subject depth 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch 0.236 inch
body length 0.394 inch 0.295 inch 0.492 inch 0.591 inch 0.689 inch 0.787 inch 1.28 inch 1.378 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Insulator color WHITE WHITE WHITE WHITE WHITE WHITE WHITE WHITE
insulator material NYLON NYLON NYLON NYLON NYLON NYLON NYLON NYLON
Manufacturer's serial number EH-D EH-D EH-D EH-D EH-D EH-D EH-D EH-D
Plug contact pitch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch 0.098 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE ONE ONE
PCB row number 1 1 1 1 1 1 1 1
Number of rows loaded 1 1 1 1 1 1 1 1
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
polarization key GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S) GUIDE SLOT(S)
Rated current (signal) 1 A 1 A 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL UL UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.13 inch 0.13 inch 0.13 inch 0.13 inch 0.13 inch 0.13 inch 0.13 inch 0.13 inch
Terminal pitch 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm 2.4892 mm
Termination type SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS SOLDER KINKED LEADS
Total number of contacts 3 2 4 5 6 7 12 13
