A01A-40-B-S-B-1-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> A01A-40-B-S-B-1-G

A01A-40-B-S-B-1-G: DescriptionBoard Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Latch, Black Insulator, Plug,; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerDon Connex Electronics Co., Ltd.

Download Datasheet Parametric View All

A01A-40-B-S-B-1-G Overview

Board Connector, 40 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Latch, Black Insulator, Plug,

A01A-40-B-S-B-1-G Parametric

Parameter Name	Attribute value
Maker	Don Connex Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.272 inch
subject depth	0.669 inch
body length	2.185 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A01A
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	40

Preview

Download Datasheet

View All

A01a

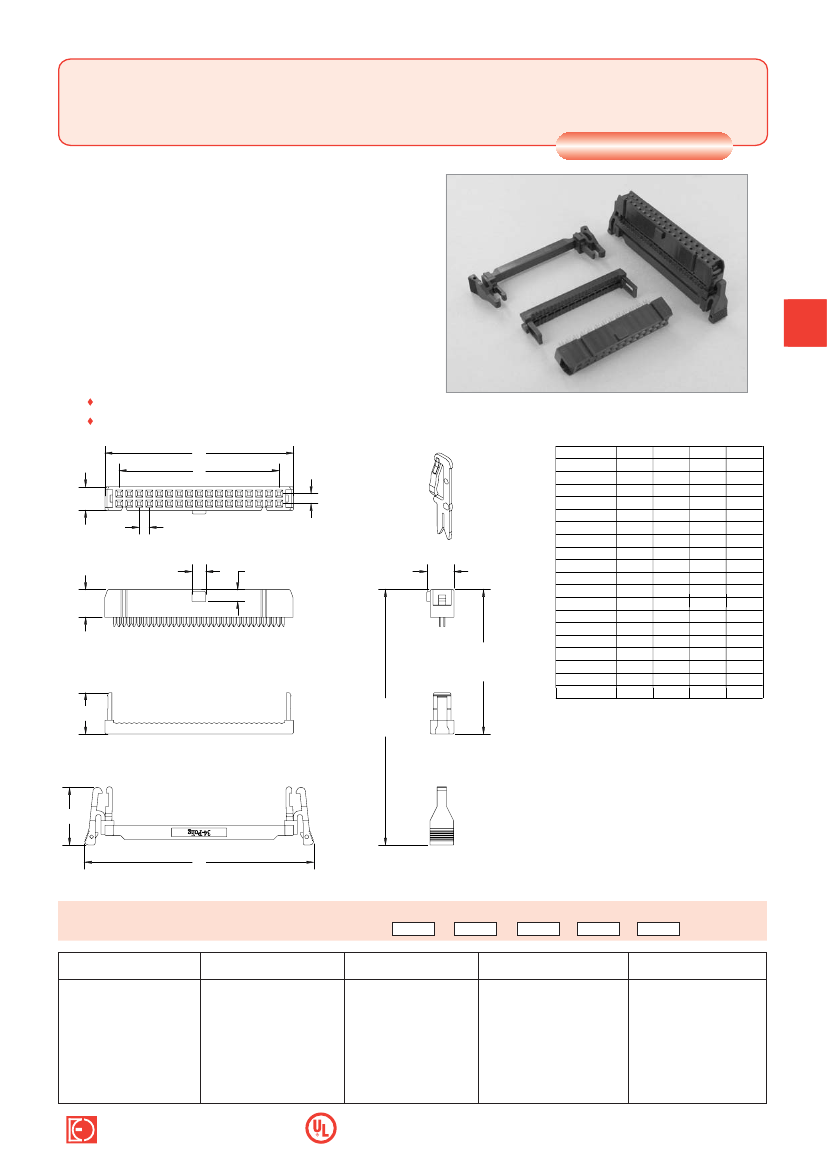

SPECIFICATIONS

Material

Spring Latch: Nylon 66

IDC SOCKET WITH SPRING LATCH

PITCH: 2.54mm

Insulator : PBT, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze or Brass

Electrical

Current Rating : 1 Amp

Contact Resistance : 30 m

max.

Insulation Resistance : 3000 M

min.

Dielectric Withstanding Voltage : 500V AC for 1minute

Operating Temperature : -40

℃

to +105

℃

Terminated with L01-1.27mm pitch flat ribbon cable.

Mating Suggestion : C03, C03b, C04, C04c & C04d series.

6.0

2.54

POSITION

12.32

14.86

17.40

19.94

22.48

25.02

30.10

35.18

37.72

42.80

47.88

50.42

55.50

60.58

68.20

75.82

80.90

83.44

85.98

5.08

7.62

10.16

12.70

15.24

17.78

22.86

27.94

30.48

35.56

40.64

43.18

48.26

53.34

60.96

68.58

73.66

76.20

78.74

1.85

3.50

22.70

25.24

27.78

30.32

32.86

35.40

40.48

45.56

48.10

53.18

58.26

60.80

65.88

70.96

78.58

86.20

91.28

93.82

96.36

7.0

3.0

6.9

(10.5)

TERMINATED

HEIGHT

10.5

(17.0)

TERMINATED

HEIGHT

14.6

HOW TO ORDER:

1.NO. OF CONTACT

06 08 10 12 14

16 20 24 26 30

34 36 40 44 50

56 60 62 64

A01a -

- G (RoHS)

2.CONTACT MATERIAL

A: BRASS

B: PHOSPHOR BRONZE

3.CONTACT PLATING

T: TIN PLATED

S: SELECTIVE

G: GOLD FLASH

A: 5u'' INCH GOLD

B: 10u'' INCH GOLD

C: 15u'' INCH GOLD

D: 30u'' INCH GOLD

Connector: E163339

Flat cable : E162690

Wiring Harnesses: E312257

4.SPECIAL FUNCTION

A: W BAR

B: W/O BAR

5.INSULATOR COLOR

1. BLACK

DON CONNEX

ELECTRONICS CO., LTD.

TEL:886 2-86483356 FAX:886 2-86485885

E-mail: info@donconnex.com.tw
