Technical specification :
Rated voltage:
IEC 61076-2-104
Current rating:
IEC 61076-2-104
30 V
3 A at 40°
C
A
M8x1
Ø6,5
Insulation resistance:
IEC 60512
Pollution degree:
IEC 60664-1
Degree of protection:
IEC 60529
Temperature range:
IEC 60664-1
>=100 M
3/2
IP 67, in mated
condition
-30°C ... +80°C
>=100
32
1,5
L
n
8
Mating cycles:
IEC 60512-9a
Materials:
Contact:
Contact plating:
Contact carrier:
Connector housing:
Moulding body:
D
CuZn
Nickel, gold plated
TPU GF, UL 94
CuZn, nickel plated
TPU, UL 94, grey
A
3
1
Contact assignment:
1
2
3
brown
white
blue
black
4
2
4
Part no:
42-11195
42-11196
42-11197
42-11198
Description:
SAL - 8 - RSFU4 - 0,5 / A1
SAL - 8 - RSFU4 - 1 / A1
SAL - 8 - RSFU4 - 2 / A1
SAL - 8 - RSFU4 - 3 / A1
SAL - 8 - RSFU4 - ... / A1
Length L: Cable:
0,5m
1m
2m
3m
x
PVC,
grey, 4x0,25mm²
Cable: 781-A12400
D see data sheet cable
DO NOT ALTER CAD DRAWING BY HAND
42-xxxxx
dim. in mm
date
name
Directive 2002/95/EC RoHS compliant
Index:a 23.08.11 BCB Ä3941
data modified
title:

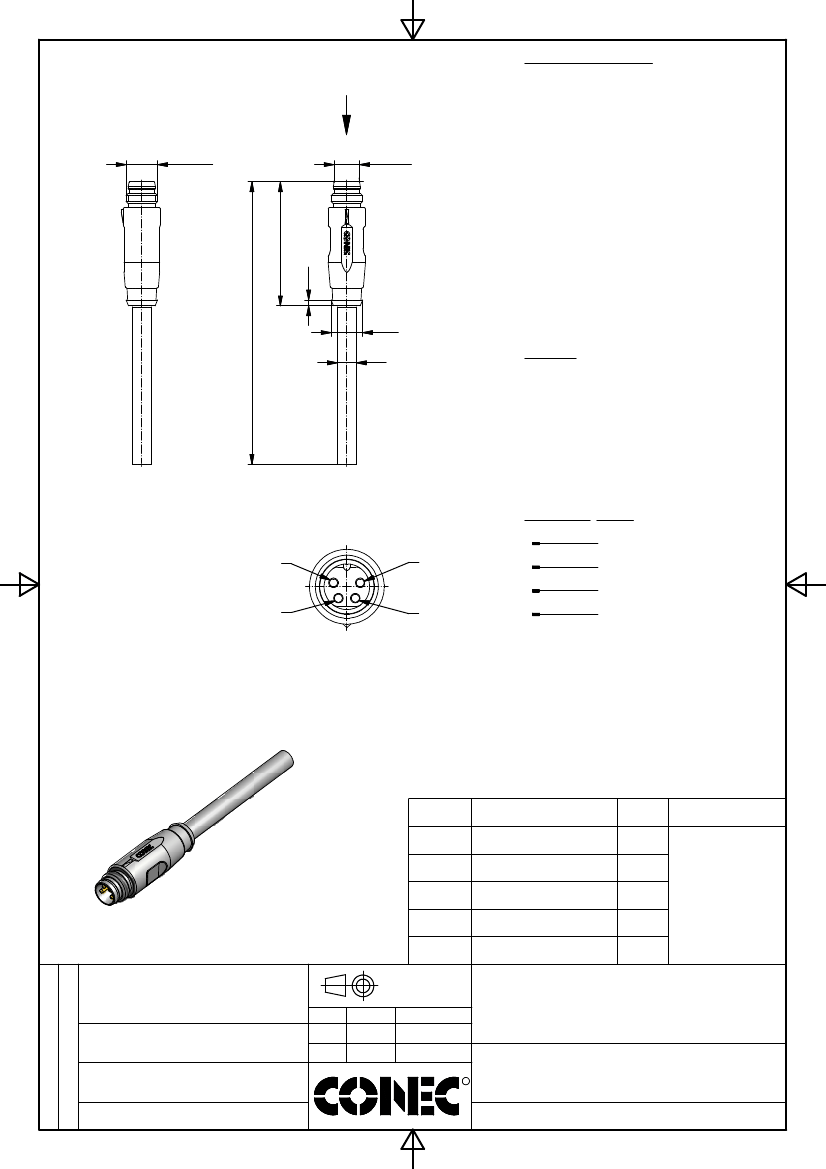

Male connector M8x1 axial screw /
snap, thread fixed
dwg no:
R
tolerance of cable:
L <= 4m: L + 40mm
L > 4m: L + 1%
0
0,0
0,00
± 0,50mm
± 0,25mm
± 0,10mm
drawn
21.09.10
appd.
Burschik
Franz
21.09.10
general tolerance:
42K1A262
part no:
THIS DRAWING MAY NOT BE COPIED OR REPRODUCED IN ANY WAY, AND
MAY NOT BE PASSED ON TO A THIRD PARTY WITHOUT WRITTEN PERMISSION.
OWNERSHIP AND COPYRIGHT OF CONEC GmbH
see table
