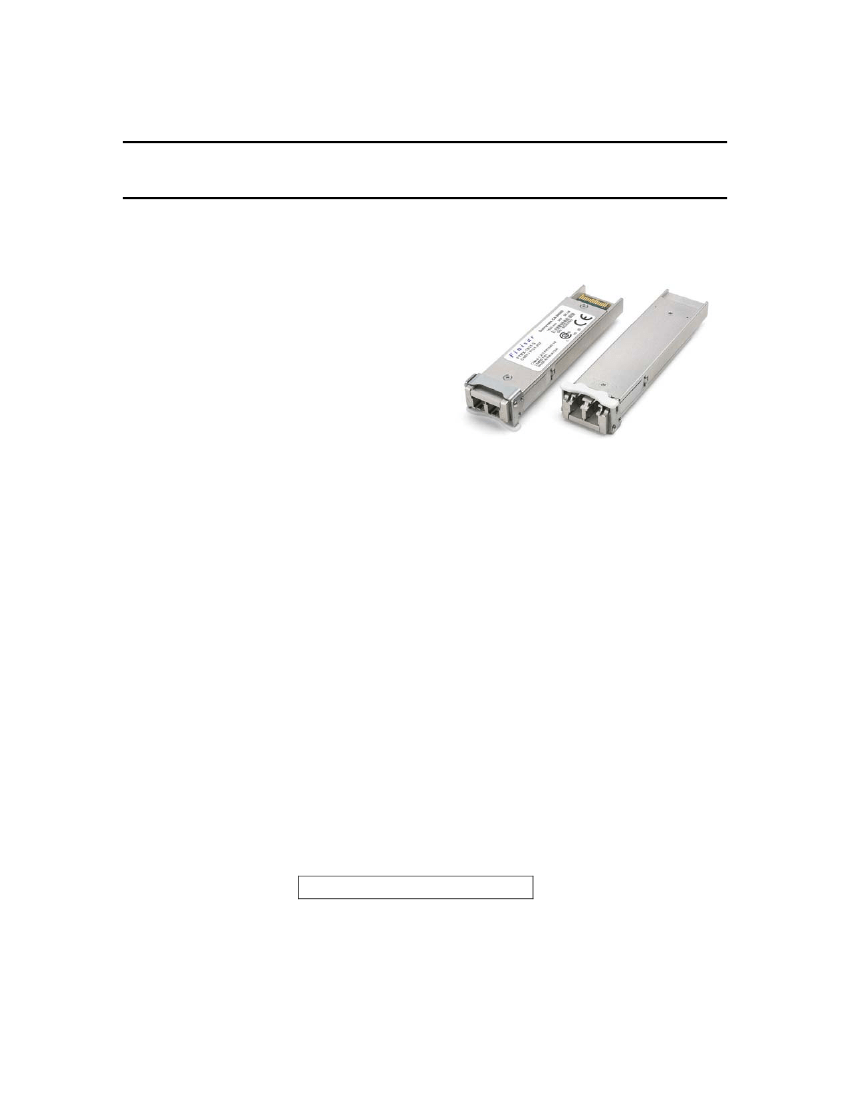

Finisar
Product Specification
RoHS-6 Compliant
10Gb/s DWDM 80km Multi-Rate XFP Optical Transceiver
FTLX3811M3xx
PRODUCT FEATURES
•
•
•
•
•
•
•
•
•
•
Supports 9.95Gb/s to 11.1Gb/s
bit rates
Hot-pluggable XFP footprint
Maximum link length of 80km
RoHS-6 compliant (lead-free)
Temperature-stabilized DWDM-rated
EML transmitter
100GHz ITU Grid, C-Band
Duplex LC connector
Power dissipation <3.5W
Built-in digital diagnostic functions
Temperature range: -5°C to 70°C
•
•
•
•
APPLICATIONS
•
DWDM 10Gb/s SONET/SDH
ITU-T G.698.1 S-D100S1-2D
DWDM 10Gb/s SONET/SDH
ITU-T G.709
DWDM 80km 10G Ethernet
DWDM 80km 10G Fibre Channel
DWDM 80km 10G Ethernet with FEC
Finisar’s 80km FTLX3811M3xx Small Form Factor 10Gb/s (XFP) transceivers comply with the
current XFP Multi-Source Agreement (MSA) Specification
1
. They exceed the requirements for
DWDM 10Gb/s SONET/SDH interfaces per ITU-T G.698.1 S-D100S1-2D, and support DWDM
10-Gigabit Ethernet, 10-Gigabit Fibre Channel, and 10-Gigabit Ethernet with FEC applications.
Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP
MSA. The transceiver is RoHS compliant and lead free per Directive 2002/95/EC
3
, and Finisar
Application Note AN-2038
4
.
PRODUCT SELECTION
FTLX3811M3xx
xx:
100GHz ITU-T channel (see next page)
©
Finisar Corporation 11-January-2011
Rev C1
Page 1
FTLX3811M3xx DWDM XFP Product Specification – January 2011
Finisar
Center Wavelength (nm)
1563.86
1563.05
1562.23
1561.42
1560.61
1559.79
1558.98
1558.17
1557.36
1556.55
1555.75
1554.94
1554.13
1553.33
1552.52
1551.72
1550.92
1550.12
1549.32
1548.51
1547.72
1546.92
1546.12
1545.32
1544.53
1543.73
1542.94
1542.14
1541.35
1540.56
1539.77
1538.98
1538.19
1537.40
1536.61
1535.82
1535.04
1534.25
1533.47
1532.68
1531.90
1531.12
1530.33
1529.55
1528.77
Channel #
17*
18*
19*
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61*
Product Code
FTLX3811M317
FTLX3811M318
FTLX3811M319
FTLX3811M320
FTLX3811M321
FTLX3811M322
FTLX3811M323
FTLX3811M324
FTLX3811M325
FTLX3811M326
FTLX3811M327
FTLX3811M328
FTLX3811M329
FTLX3811M330
FTLX3811M331
FTLX3811M332
FTLX3811M333
FTLX3811M334
FTLX3811M335
FTLX3811M336
FTLX3811M337
FTLX3811M338
FTLX3811M339
FTLX3811M340
FTLX3811M341
FTLX3811M342
FTLX3811M343
FTLX3811M344
FTLX3811M345
FTLX3811M346
FTLX3811M347
FTLX3811M348
FTLX3811M349
FTLX3811M350
FTLX3811M351
FTLX3811M352
FTLX3811M353
FTLX3811M354
FTLX3811M355
FTLX3811M356
FTLX3811M357
FTLX3811M358
FTLX3811M359
FTLX3811M360
FTLX3811M361
Frequency (THz)
191.7
191.8
191.9
192.0
192.1
192.2
192.3
192.4
192.5
192.6
192.7
192.8
192.9
193.0
193.1
193.2
193.3
193.4
193.5
193.6
193.7
193.8
193.9
194.0
194.1
194.2
194.3
194.4
194.5
194.6
194.7
194.8
194.9
195.0
195.1
195.2
195.3
195.4
195.5
195.6
195.7
195.8
195.9
196.0
196.1
*This
channel is supported with limited availability -- Please contact Finisar for further details.
©
Finisar Corporation 11-January-2011
Rev C1
Page 2
FTLX3811M3xx DWDM XFP Product Specification – January 2011
Finisar
I.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Pin Descriptions
Logic
Symbol
GND
VEE5
Mod-Desel
Interrupt
TX_DIS
VCC5
GND
VCC3
VCC3
SCL
SDA
Mod_Abs
Mod_NR
RX_LOS
GND
GND
RD-
RD+
GND
VCC2
P_Down/RST
Name/Description
Module Ground
Optional –5.2 Power Supply –
Not required
Module De-select; When held low allows the module to
respond to 2-wire serial interface commands
Interrupt (bar); Indicates presence of an important condition
which can be read over the serial 2-wire interface
Transmitter Disable; Transmitter laser source turned off
+5 Power Supply
Module Ground
+3.3V Power Supply
+3.3V Power Supply
Serial 2-wire interface clock
Serial 2-wire interface data line
Module Absent; Indicates module is not present. Grounded
in the module.
Module Not Ready; Finisar defines it as a logical OR
between RX_LOS and Loss of Lock in TX/RX.
Receiver Loss of Signal indicator
Module Ground
Module Ground
Receiver inverted data output
Receiver non-inverted data output
Module Ground
+1.8V Power Supply
Power Down; When high, places the module in the low
power stand-by mode and on the falling edge of P_Down
initiates a module reset
Reset; The falling edge initiates a complete reset of the
module including the 2-wire serial interface, equivalent to a
power cycle.
+1.8V Power Supply
Module Ground
Reference Clock non-inverted input, AC coupled on the
host board –
Not required
Reference Clock inverted input, AC coupled on the host
board –
Not required
Module Ground
Module Ground
Transmitter inverted data input
Transmitter non-inverted data input
Module Ground
Ref.
1
LVTTL-I
LVTTL-O
LVTTL-I
2
1
LVTTL-I
LVTTL-
I/O
LVTTL-O
LVTTL-O
LVTTL-O
2
2
2
2
2
1
1
CML-O
CML-O
1
LVTTL-I
22
23
24
25
26
27
28
29
30
PECL-I
PECL-I
VCC2
GND
RefCLK+
RefCLK-
GND
GND
TD-
TD+
GND
1
1
1
CML-I
CML-I
1
Notes:
1. Module circuit ground is isolated from module chassis ground within the module.
2. Open collector; should be pulled up with 4.7k – 10kohms on host board to a voltage between 3.15V
and 3.6V.
©
Finisar Corporation 11-January-2011
Rev C1
Page 3
FTLX3811M3xx DWDM XFP Product Specification – January 2011
Finisar

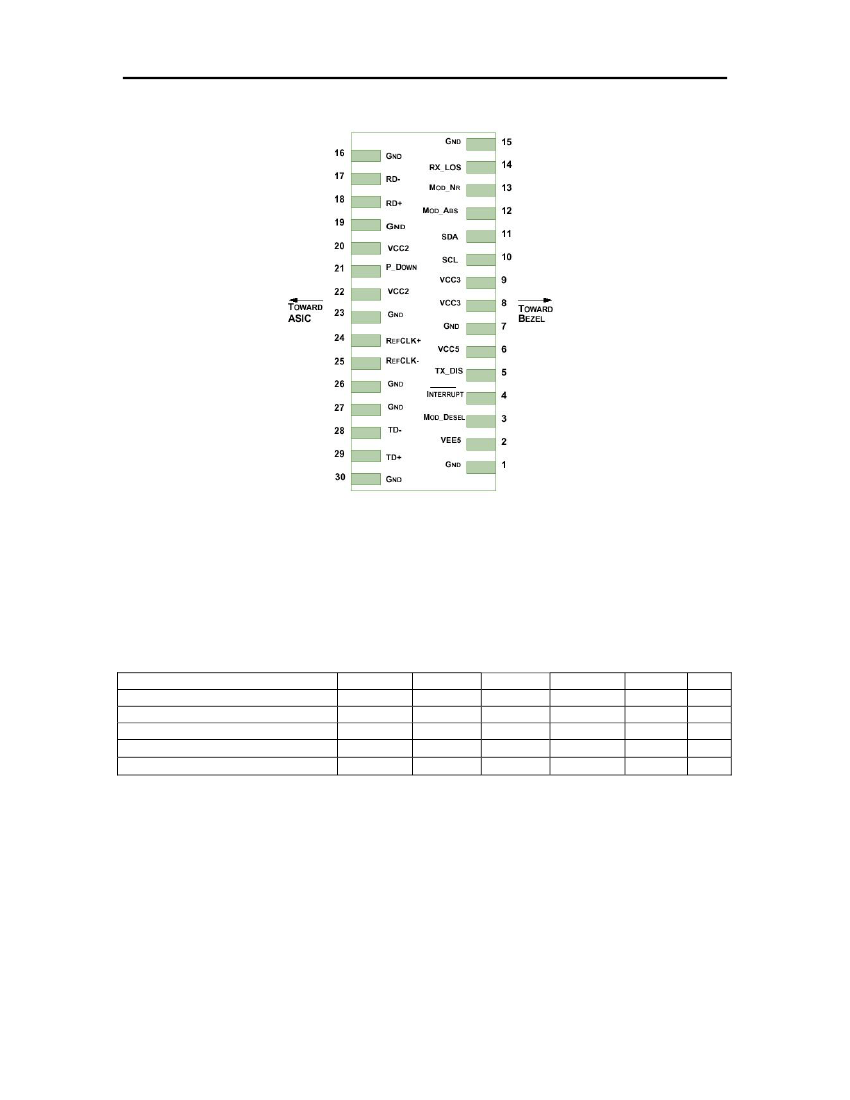

Diagram of Host Board Connector Block Pin Numbers and Names
II.
Absolute Maximum Ratings
Parameter
Maximum Supply Voltage #1
Maximum Supply Voltage #2
Maximum Supply Voltage #3
Storage Temperature
Case Operating Temperature
Symbol
Vcc3
Vcc5
Vcc5
T
S
T
OP
Min
-0.5
-0.5
-0.5
-40
-5
Typ
Max
4.0
6.0
2.0
85
70
Unit
V
V
V
°C
°C
Ref.
©
Finisar Corporation 11-January-2011
Rev C1
Page 4
FTLX3811M3xx DWDM XFP Product Specification – January 2011
Finisar
III.
Electrical Characteristics
(T
OP
= -5 to 70
°C,
V
CC5
= 4.75 to 5.25 Volts)
Symbol
Vcc5
Vcc3
Vcc2
Icc5
Icc3
Icc2
P
R
in
Vin,pp
V
D
V
EN
Min
4.75
3.13
1.71
Typ
Max
5.25
3.46
1.89
350
400
750
3.5
Unit
V
V
V
mA
mA
mA
W
Ω
mV
V
V
us
mV
ps
ps
V
V
Ref.
Parameter
Supply Voltage #1
Supply Voltage #2
Supply Voltage #3
Supply Current – Vcc5 supply
Supply Current – Vcc3 supply
Supply Current – Vcc2 supply
Module total power
Transmitter
Input differential impedance
Differential data input swing
Transmit Disable Voltage
Transmit Enable Voltage
Transmit Disable Assert Time
Receiver
Differential data output swing
Data output rise time
Data output fall time
LOS Fault
LOS Normal
Power Supply Rejection
Reference Clock
Clock differential input impedance
Reference Clock frequency
Differential clock input swing
Clock output rise/fall time
Reference clock frequency tolerance
1
2
3
100
120
2.0
GND
820
Vcc
GND+ 0.8
10
850
38
38
Vcc
HOST
GND+0.5
See Note 6 below
100
Baud/64
640
200
-100
1600
1250
+100
650
Vout,pp
t
r
t
f
V
LOS fault
V
LOS norm
PSR
Rclk
in
f0
Vclkin,pp
t
rf
Df
340
Vcc – 0.5
GND
4
5
5
6
6
7
Ω
MHz
mV
ps
PPM
5
Notes:
1. Maximum total power value is specified across the full temperature and voltage range.
2. After internal AC coupling.
3. Or open circuit.
4. Into 100 ohms differential termination.
5. 20 – 80 %
6. Loss Of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0
indicates normal operation; logic 1 indicates no signal detected.
7. Per Section 2.7.1. in the XFP MSA Specification
1
.
IV.
Optical Characteristics
(EOL, T
OP
= -5 to 70°C, V
CC5
= 4.75 to 5.25 Volts)
©
Finisar Corporation 11-January-2011
Rev C1
Page 5
