57K-30140C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 57K-30140C

Preview

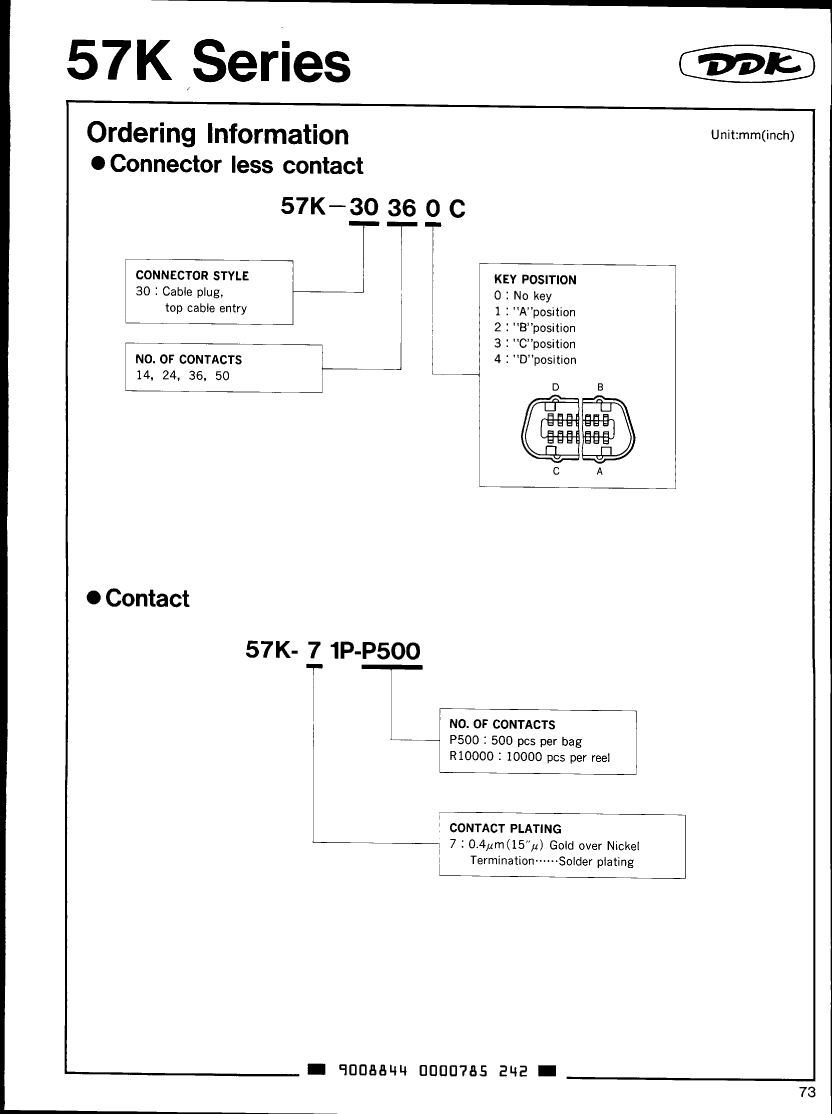

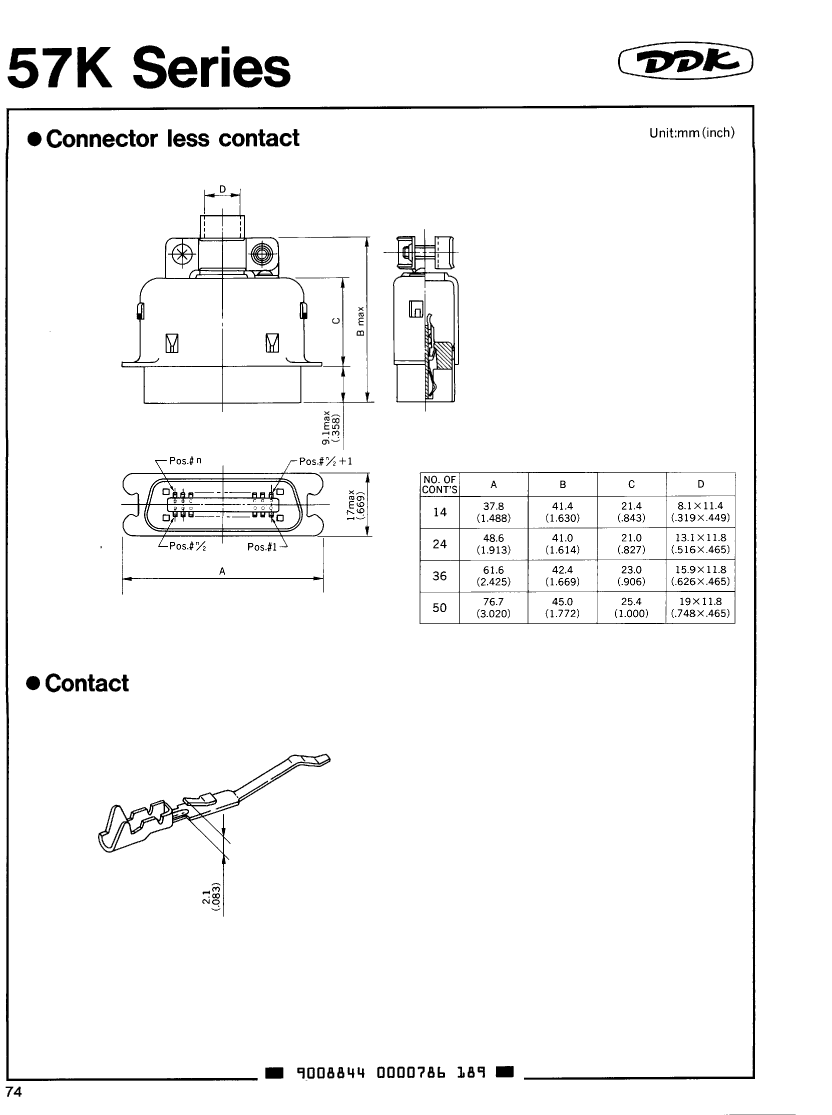

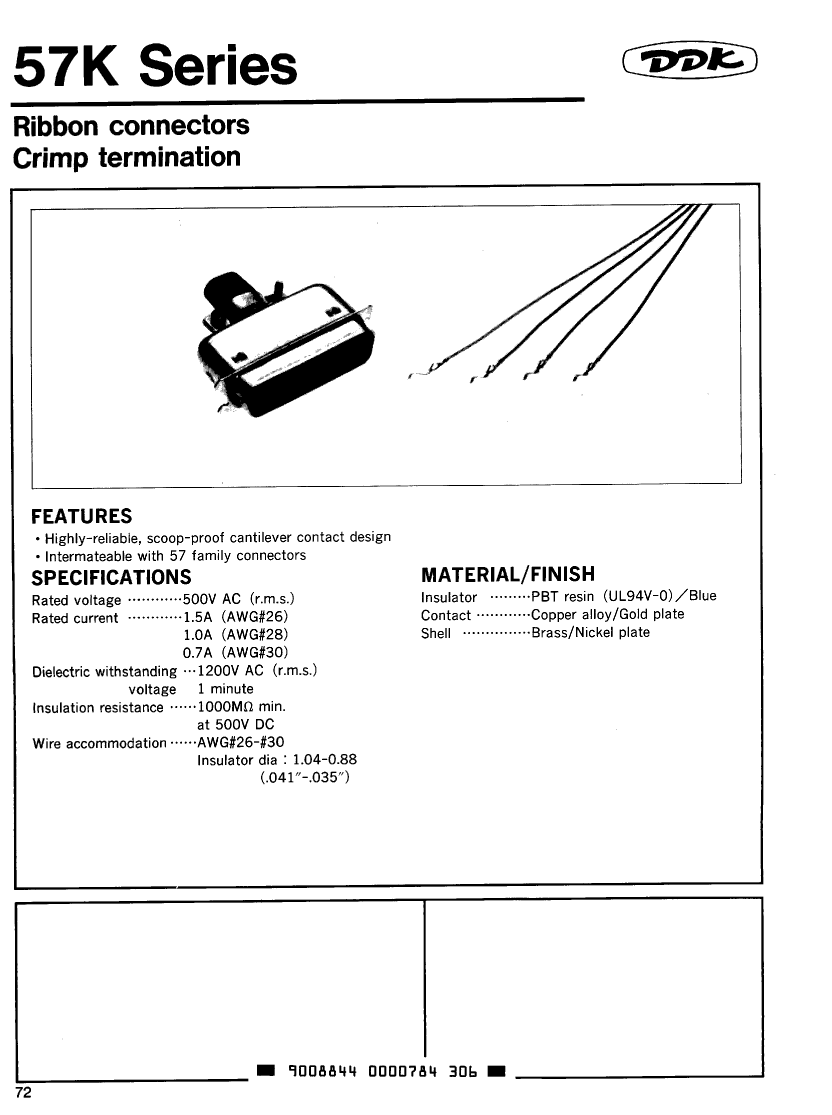

57K-30140C: DescriptionD Type Connector, 14 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug; CategoryThe connector The connector; File Size136KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

57K-30140C Overview

D Type Connector, 14 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug

57K-30140C Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.669 inch
subject depth	1.272 inch
body length	1.488 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
Minimum insulation diameter	0.035 inch
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	57K
Installation option 1	BAIL MT F
Installation type	CABLE
Number of rows loaded	2
Rated current (signal)	0.7 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Termination type	CRIMP
Total number of contacts	14
Maximum wire diameter	26 AWG
Minimum wire diameter	30 AWG

Preview

Download Datasheet

View All

57K-30140C Related Products

	57K-30140C	57K-30144C	57K-30504C	57K-30141C
Description	D Type Connector, 14 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug	D Type Connector, 14 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug	D Type Connector, 50 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug	D Type Connector, 14 Contact(s), Female, Crimp Terminal, Bail Mt F, Plug
Maker	DDK	DDK	DDK	DDK
Reach Compliance Code	unknown	unknown	unknown	unknown
body width	0.669 inch	0.669 inch	0.669 inch	0.669 inch
subject depth	1.272 inch	1.272 inch	1.413 inch	1.272 inch
body length	1.488 inch	1.488 inch	3.02 inch	1.488 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V	1200VAC V
Minimum insulation diameter	0.035 inch	0.035 inch	0.035 inch	0.035 inch
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	57K	57K	57K	57K
Installation option 1	BAIL MT F	BAIL MT F	BAIL MT F	BAIL MT F
Installation type	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2
Rated current (signal)	0.7 A	0.7 A	0.7 A	0.7 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS	BRASS
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	14	14	50	14
Maximum wire diameter	26 AWG	26 AWG	26 AWG	26 AWG
Minimum wire diameter	30 AWG	30 AWG	30 AWG	30 AWG
Other features	-	KEY POLARIZATION	KEY POLARIZATION	KEY POLARIZATION
