MO1CL52A473J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MO1CL52A473J

MO1CL52A473J: DescriptionRESISTOR, METAL OXIDE FILM, 2 W, 5 %, 200 ppm, 47000 ohm, THROUGH HOLE MOUNT; CategoryPassive components; File Size107KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

MO1CL52A473J Overview

RESISTOR, METAL OXIDE FILM, 2 W, 5 %, 200 ppm, 47000 ohm, THROUGH HOLE MOUNT

MO1CL52A473J Parametric

Parameter Name	Attribute value
Maximum operating temperature	235 Cel
Minimum operating temperature	-55 Cel
Processing package description	AXIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
packaging shape	TUBULAR PACKAGE
Terminal shape	WIRE
terminal coating	TIN COPPER
Installation features	THROUGH HOLE MOUNT
Rated temperature	70 Cel
Manufacturer Series	MO
deviation	5 %
resistance	47000 ohm
Craftsmanship	METAL OXIDE FILM
Resistor type	RESISTOR
Operating Voltage	350 V
Temperature Coefficient	200
Rated power P	2 W

Preview

Download Datasheet

View All

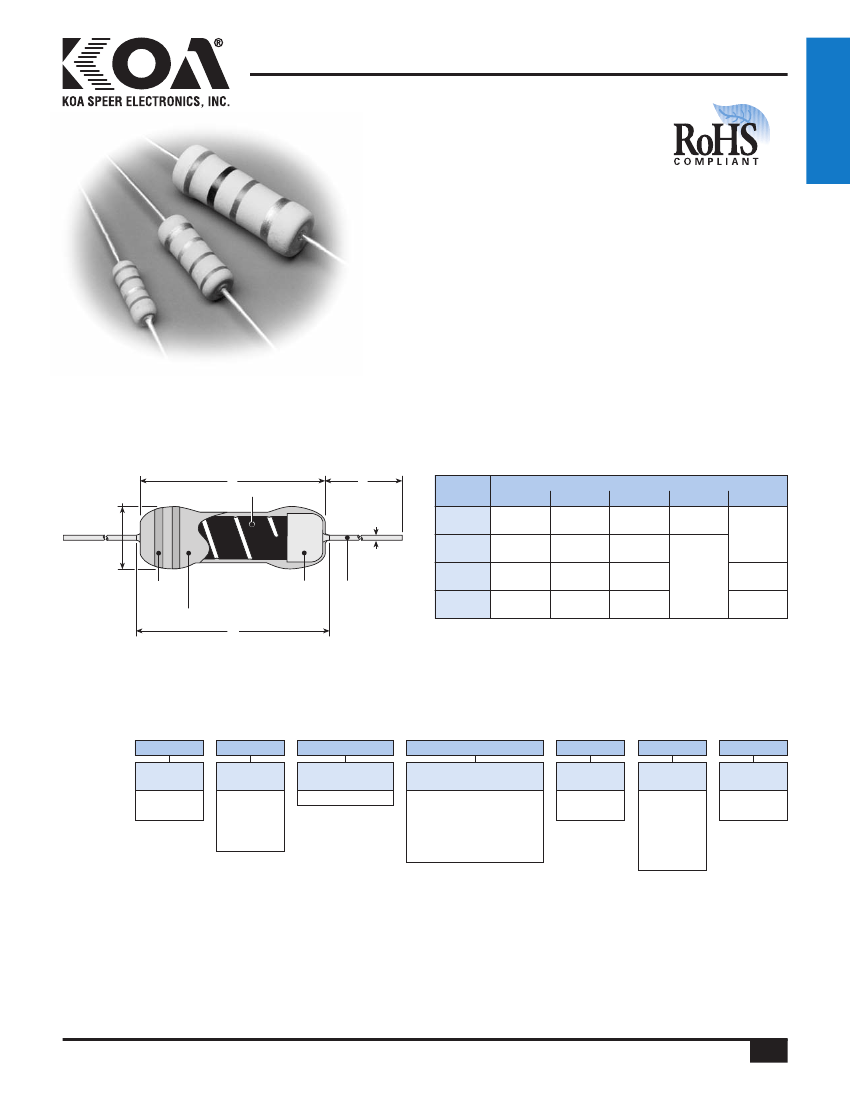

metal oxide power type leaded resistor

features

•

Flameproof silicone coating equivalent to (UL94V0)

Suitable for automatic machine insertion

High reliability for performance

Marking: Blue-gray body color with color-coded bands

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

dimensions and construction

Ceramic Body

Type

MO1/2

MOX1/2

MO1

MOX1

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

MO2

MOX2

MO3

MOX3

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.437

(11.1)

.59

(15.0)

.709

(18.0)

1.10

(28.0)

.126±.02

(3.2±0.5)

.157±.02

(4.0±0.5)

.236±.039

(6.0±1.0)

.354±.039

(9.0±1.0)

.031

(0.8)

.028

(0.7)

.945 Min.

(24.0 Min.)

1.18±.118

(30.0±3.0)

1.50±.118

(38.0±3.0)

ordering information

New Part #

Type

MOX

Power

Rating

1/2: 0.5W

1: 1W

2: 2W

3: 3W

Termination

Material

C: SnCu

T52

Taping and Forming

Axial: T52, T521, T631

Stand-off Axial: L52, L521,

L631, L, U, M Forming

(MO3/MOX3 bulk

packaging only)

Packaging

A: Ammo

R: Reel

473

Nominal

Resistance

2 significant

figures + 1

multiplier

“R” indicates

decimal on

value <10Ω

Tolerance

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

1/09/09

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

123

resistors
