155-1-012-0-F-BS1

Description
Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking
CategoryThe connector    The connector

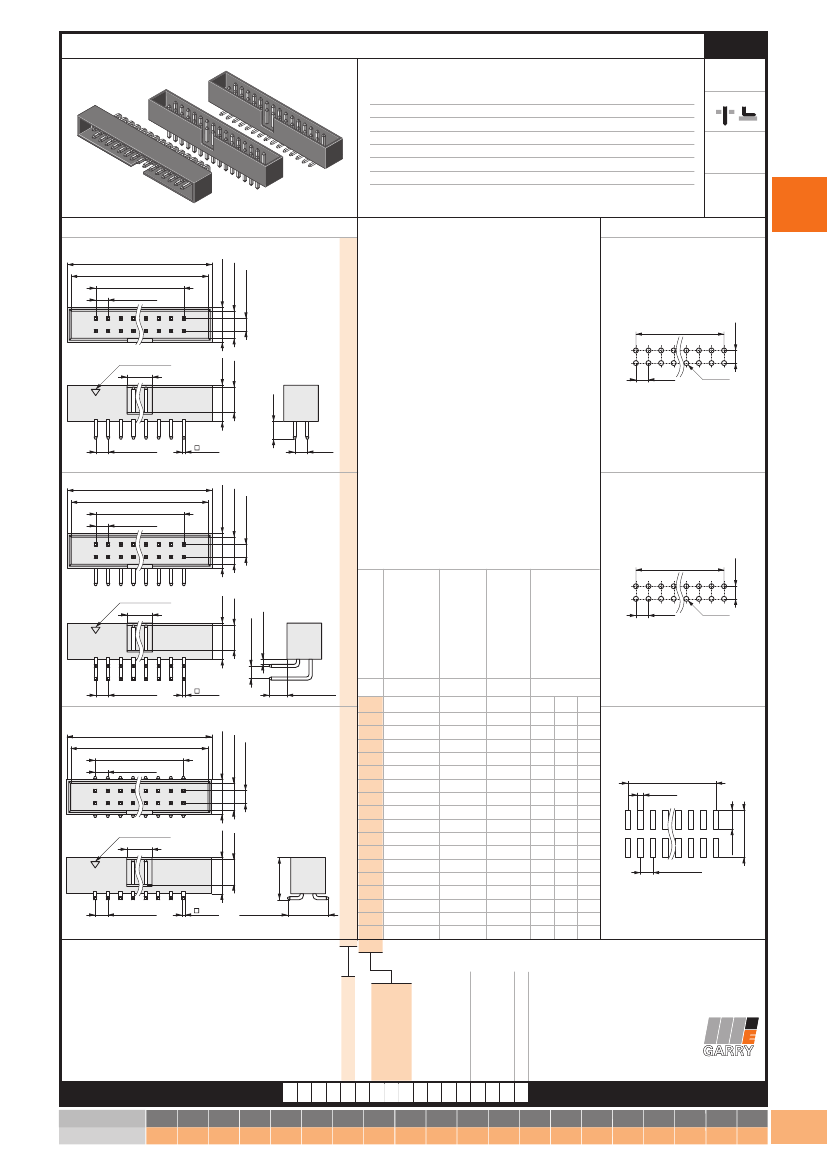

File Size1MB,1 Pages
ManufacturerMPE-Garry GmbH
Download Datasheet Parametric View All

155-1-012-0-F-BS1 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking

155-1-012-0-F-BS1 Parametric

Parameter NameAttribute value
MakerMPE-Garry GmbH
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.217 inch
subject depth0.226 inch
body length0.748 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
insulator materialTHERMOPLASTIC
Manufacturer's serial number155
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.11 inch
Terminal pitch2.0066 mm
Termination typeSOLDER
Total number of contacts12
Pin Header SMD Shrouded 2,00 mm
Rated current
1,5 A
Rated voltage
150 V
RMS
/ V
DC
Withstand voltage
500 V
RMS
for one minute
Material contact
Copper alloy
Material insulator
High temp. thermoplast UL94V-0
Operating temperature -40°C to +105°C
Max. processing temper. 260°C for 10 seconds
All dimensions in mm.
Series
155
pitch
termination
contact
size
2,00
MPE-Garry GmbH • Schäfflerstraße 13 • 87629 Füssen • Germany • Phone: +49 (0) 83 62 / 91 56-0 • Fax: +49 (0) 83 62 / 91 56-500 • Email: vk@mpe-connector.de • www.mpe-connector.de
max.
pincount
0,50
068
Product
group
Variation
5,50±0,15
4,40±0,15
2,00±0,10
A ±0,30
C ±0,25
B ±0,20
2,00±0,10
PCB Layout
3
5,75
4,00
PIN1 MARK
4,00
1
2,00
2,80
ø0,80
2,00±0,10
0,50
2,00
5,50±0,15
4,40±0,15
2,00±0,10
A ±0,30
C ±0,25
B ±0,20
2,00±0,10
5,75
4,00
no. of contacts
see figure left
see figure left
2,00±0,10
0,50
2,80±0,10
n
006
008
010
012
014
016
020
024
026
030
032
034
040
044
050
060
064
068
A
13,00
15,00
17,00
19,00
21,00
23,00
27,00
31,00
33,00
37,00
39,00
41,00
47,00
51,00
57,00
67,00
71,00
75,00
B
4,00
6,00
8,00
10,00
12,00
14,00
18,00
22,00
24,00
28,00
30,00
32,00
38,00
42,00
48,00
58,00
62,00
66,00
Plating contact (T,F,S)
5,50±0,15
4,40±0,15
2,00±0,10
A ±0,30
C ±0,25
B ±0,20
2,00±0,10
5,75
4,00
PIN1 MARK
4,00
2,00±0,10
0,50
6,50±0,25
Cap:
0 = Without cap
1 = With cap
Packaging (S,R)
Cap (0,1)
Variation (1,2,3)
No. of contacts
Plating:
T = Sn
F = Au
S = Selective Au
Packaging:
S = Standard
R = Reel
6,70
2,00±0,10
www.mpe-connector.de
Order code:
Mating series
see page
155-?-???-0-?-B??
160
6-8
3,00
7,50±0,10
3
11,80
13,80
15,80
17,80
19,80
21,80
25,80
29,80
31,80
35,80
37,80
39,80
45,80
49,80
55,80
65,80
69,80
73,80
see figure left
2,00±0,20
0,80±0,25
PIN1 MARK
4,00
2
available in variation
2,00
ø0,80
C
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
(n/2-1)x2,00 ±0,20
0,89
2,00
(n/2-1) x 2,00
2,00
(n/2-1) x 2,00
3-33
