DBCB28D25BGABB1

Description
Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug
CategoryThe connector    The connector
File Size100KB,1 Pages
ManufacturerDUBILIER
Websitehttp://www.dubilier.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

DBCB28D25BGABB1 Overview

Board Connector, 50 Contact(s), 2 Row(s), Female, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Plug

DBCB28D25BGABB1 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerDUBILIER
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.118 inch
subject depth0.134 inch
body length1.268 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage250VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial numberDBCB28
Plug contact pitch0.05 inch
Match contact row spacing0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing1.27 mm
Rated current (signal)0.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.094 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts50
FEMALE HEADER
Industry compatible
Competitively priced
Dual Row
No of contacts 10-100
Gold plating contacts
FEMALE HEADER SMT/THROUGH HOLE 1.27 PITCH
SECTION 8
1.27mm pitch
SPECIFICATION
Material & Finish
Insulator:
Contact:
LCP, glass reinforced, rated UL 94V-0
Phosphor Bronze
Electrical Characteristics
Rating Current:
Contact Resistance:
Insulation Resistance:
Dielectric Voltage:
0.5 Amp DC
30 mΩ
1000 MΩ min.
250v AC for 1 minute
Operating Temperature:
-40°C to +105°C
* Mating suggestion: C11, C12 series.

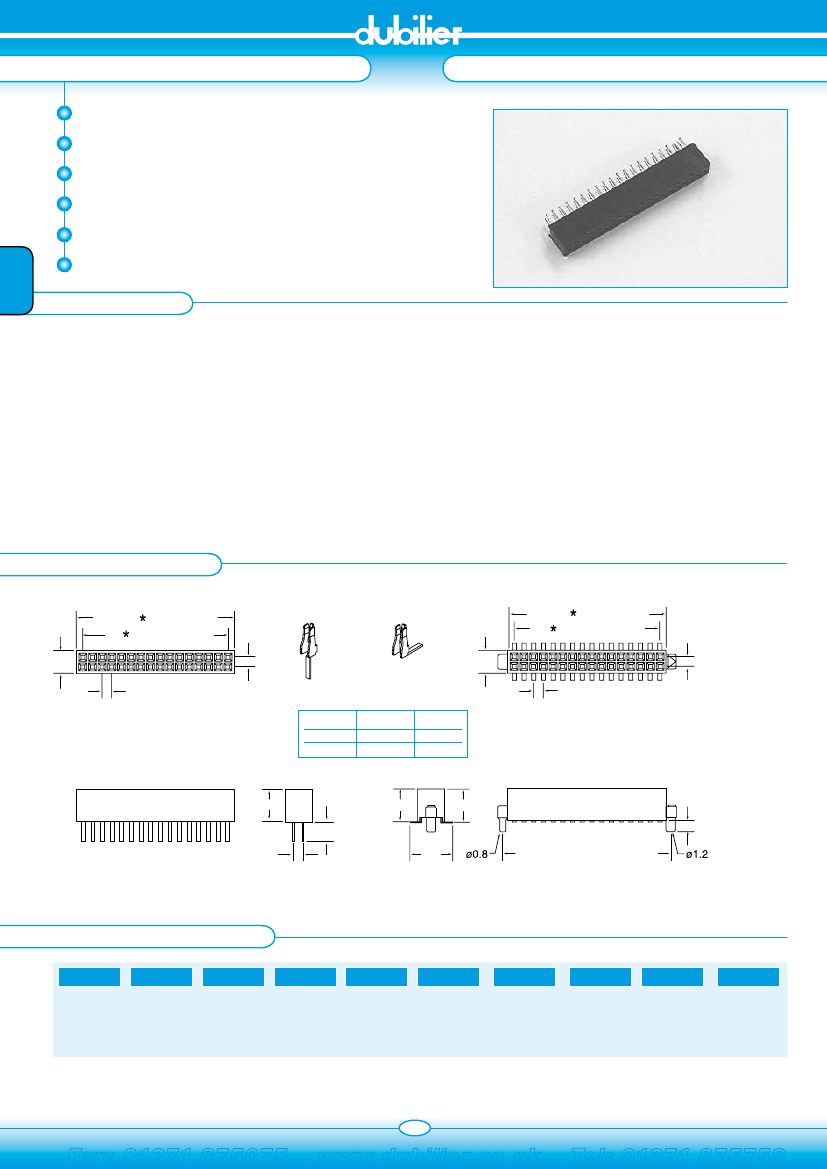

OUTLINE DRAWING
0.46+1.27 POSTITION NO.
1.27 (POSTITION NO.-1)
3.0
1.27
Type
A
B
X
3.4
4.3
Y
3.6
4.5
1.27
3.0
1.27
0.46+1.27 POSTITION NO.
1.27 (POSTITION NO.-1)
1.27
X
2.4
1.27
X
Y
1.3
4.5
3.04+1.27(POSITION NO.-1)
ORDERING INFORMATION
DBC
Dubilier
Connectors
B28
Series
D
No. of Rows
D = Dual Row
10
B
G
Contact Plating
G =Gold
A
Mounting Type
A = Through hole
B = SMT
B
Height
B = 4.3mm
B
Peg
B = Without
1
Colour
1 = Black
No. of Contacts Contact Material
05-50
B = Phosphor
Bronze
212
Fax: 01371 875075
www.dubilier.co.uk
Tel: 01371 875758
