LNA328A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LNA328A

LNA328A: DescriptionZener Diode, 2.8V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7; CategoryDiscrete semiconductor diode; File Size123KB，1 Pages; ManufacturerInternational Semiconductor Inc

Download Datasheet Parametric Compare View All

LNA328A Overview

Zener Diode, 2.8V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7

LNA328A Parametric

Parameter Name	Attribute value
Maker	International Semiconductor Inc
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	50 Ω
JEDEC-95 code	DO-7
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.6 W
Certification status	Not Qualified
Nominal reference voltage	2.8 V
surface mount	NO
technology	ZENER
Terminal form	WIRE
Terminal location	AXIAL
Maximum voltage tolerance	5%
Working test current	0.02 mA

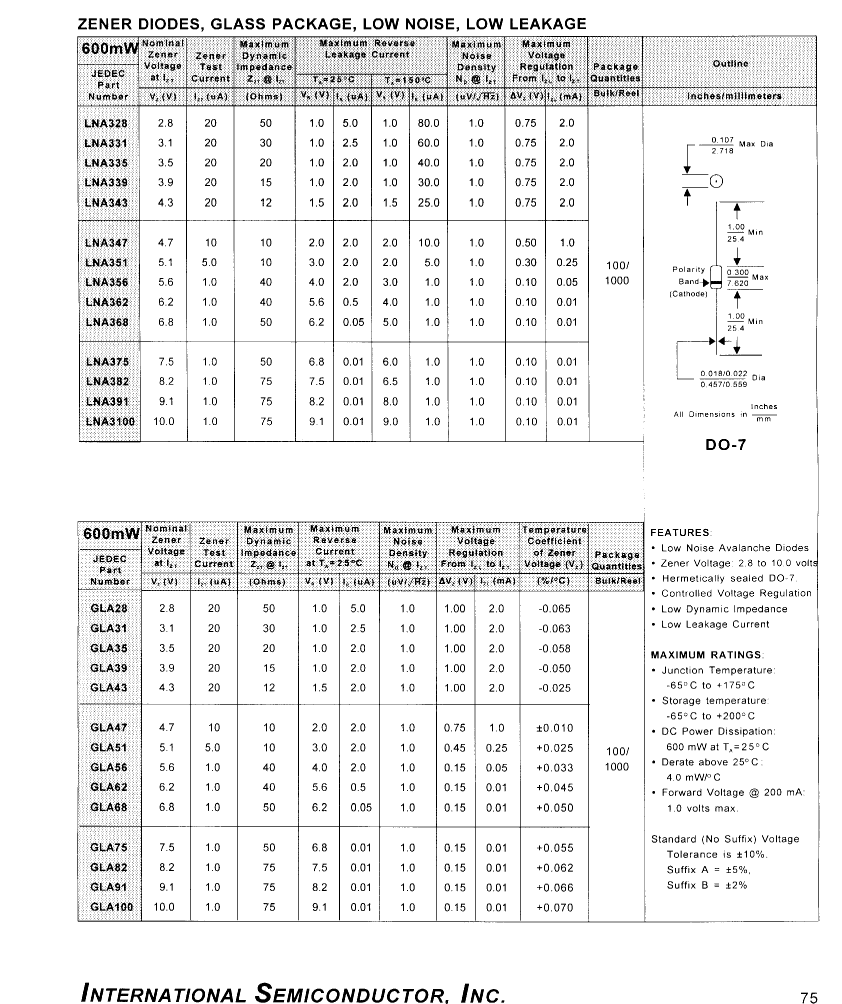

Preview

Download Datasheet

View All

LNA328A Related Products

	LNA328A	GLA39B	GLA47B	LNA339B	GLA28A	GLA35A	LNA343A	LNA331A
Description	Zener Diode, 2.8V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 3.9V V(Z), 2%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 4.7V V(Z), 2%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 3.9V V(Z), 2%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 2.8V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 3.5V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 4.3V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7	Zener Diode, 3.1V V(Z), 5%, 0.6W, Silicon, Unidirectional, DO-7
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE	ZENER DIODE
Maximum dynamic impedance	50 Ω	15 Ω	10 Ω	15 Ω	50 Ω	20 Ω	12 Ω	30 Ω
JEDEC-95 code	DO-7	DO-7	DO-7	DO-7	DO-7	DO-7	DO-7	DO-7
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W	0.6 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	2.8 V	3.9 V	4.7 V	3.9 V	2.8 V	3.5 V	4.3 V	3.1 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER	ZENER
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum voltage tolerance	5%	2%	2%	2%	5%	5%	5%	5%
Working test current	0.02 mA	0.02 mA	0.01 mA	0.02 mA	0.02 mA	0.02 mA	0.02 mA	0.02 mA
Maker	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	International Semiconductor Inc	-	-
