7213L1YCQE datasheet, PDF - EEWORLD Datasheet

7213L1YCQE: DescriptionToggle Switch, DPDT, On-on-(on), Horizontal, 5A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Paddle Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size188KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

7213L1YCQE Overview

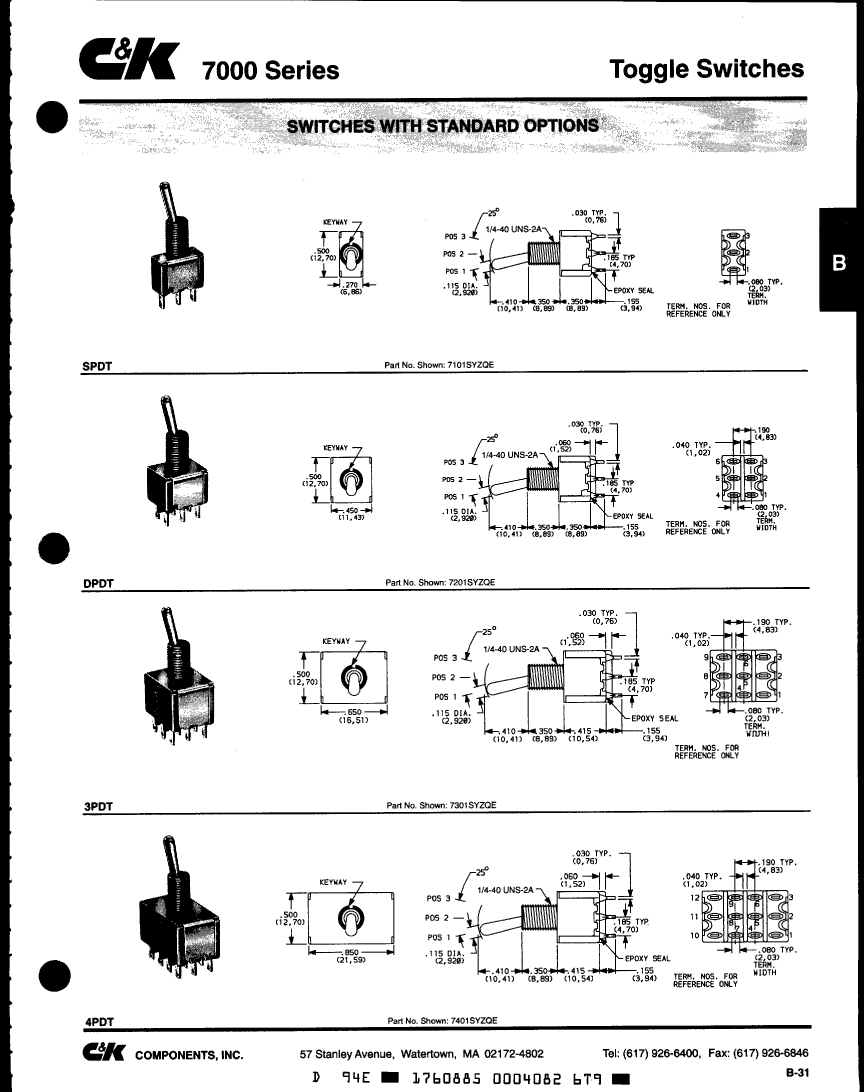

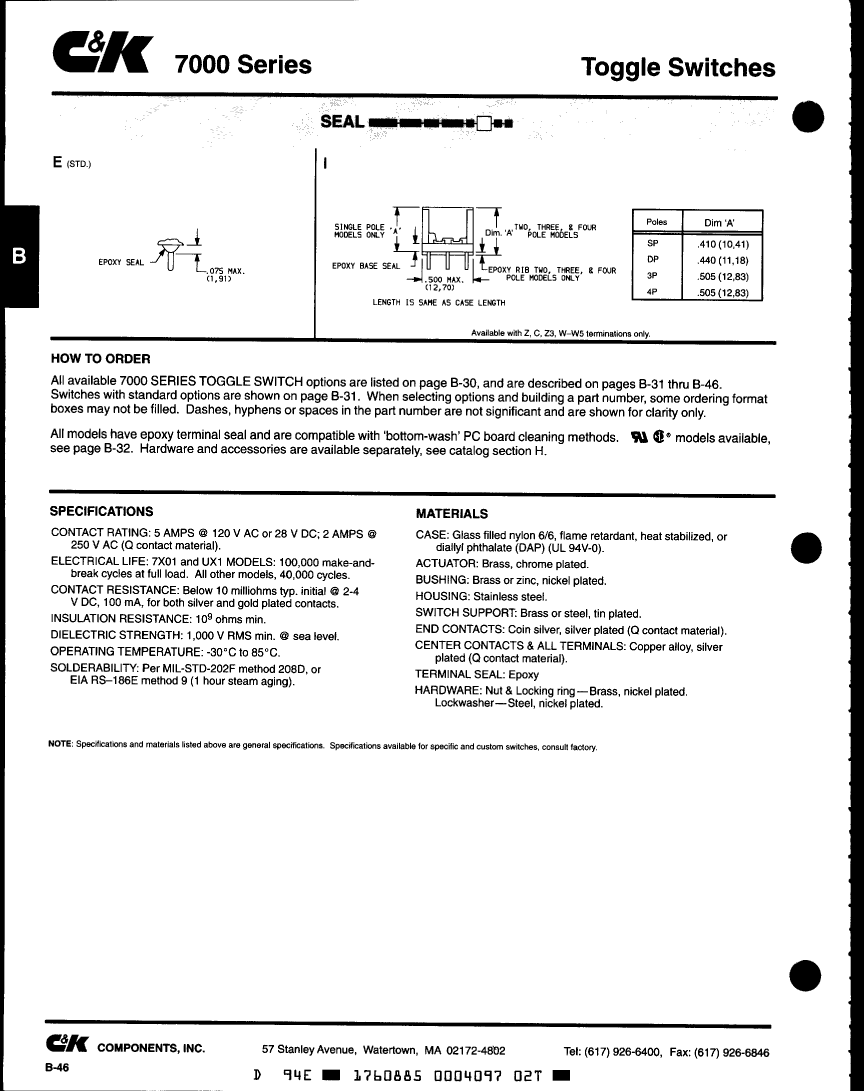

Toggle Switch, DPDT, On-on-(on), Horizontal, 5A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Paddle Actuator, Through Hole-right Angle

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	25 deg
Actuator color	WHITE
Executor completed	BRIGHT CHROME
Actuator length	0.64 inch
Actuator material	BRASS
Actuator type	PADDLE
body width	11.43 mm
body height	40.386 mm
Body length or diameter	12.7 mm
Casing diameter	0.25 inch
Nozzle length	0.35 inch
Casing type	1/4-40
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	ON-ON-(ON)
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	40000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	7200
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	6
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	HORIZONTAL
switch function	DPDT
Switch type	TOGGLE SWITCH
Terminal length	0.25 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
