RGC1/32C1240DPA: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.032W, 124ohm, 15V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 01005, CHIP, ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT; CategoryPassive components The resistor; File Size139KB，1 Pages; ManufacturerKamaya; Environmental Compliance

Download Datasheet Parametric View All

RGC1/32C1240DPA Overview

Fixed Resistor, Metal Glaze/thick Film, 0.032W, 124ohm, 15V, 0.5% +/-Tol, 50ppm/Cel, Surface Mount, 01005, CHIP, ANTIMONY AND HALOGEN FREE, ROHS COMPLIANT

RGC1/32C1240DPA Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kamaya
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.13 mm
Package length	0.4 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.2 mm
method of packing	TR, PRESSED PAPER, 7 INCH
Rated power dissipation(P)	0.03 W
Rated temperature	70 °C
resistance	124 Ω
Resistor type	FIXED RESISTOR
size code	01005
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	50 ppm/°C
Terminal surface	Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	15 V

Preview

Download Datasheet

View All

Products News

No.:

SESM1F12022M16(E)

Date:

Apr 2012

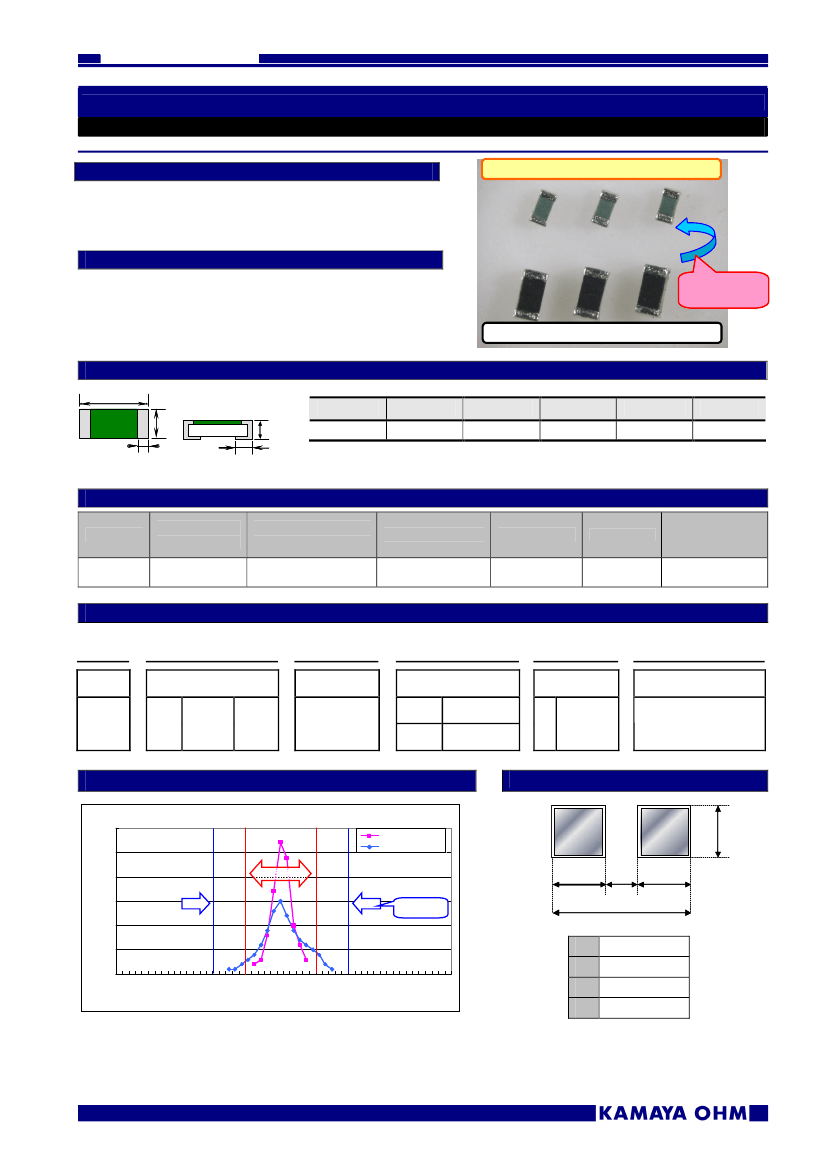

Miniature Fixed Thick Film Chip Resistors ; Rectangular Type & Precision RGC1/32 (01005 Size)

RGC1/32 SERIES

Features

01005 Inch with

Tol.：D(±0.5％), T.C.R：±50×10

-6

/℃.

Excellent Dimension Accuracy with Unique Laser Scribing.

>>dimensional precision in 4σ<<20μm

01005 Size Precision Type RGC1/32

RoHS Directive compliance

*Halogen Free & Antimony Free

Major Applications

Suitable for Small portable device that require high precision.

>>Smart Phone, DSC, Digital Media Prayer

>>Small Module equipment Ex). PA module

About 55%

Size down!!

0201Size General purpose RMC1/20

Dimensions

L

Unit:mm

Type

W

c

d

H

L

0.4±0.02

W

0.2±0.02

H

0.13±0.02

c

0.08±0.03

d

0.1±0.03

RGC1/32

Ratings

Style

RGC1/32

Size

Metric (Inch)

0402

(01005)

Rated Dissipation /

Rated Voltage

0.032W / 15V

Rated

Resistance

Range

100

to 100k

T.C.R

±50×10

-6

/℃

℃

Tolerance
