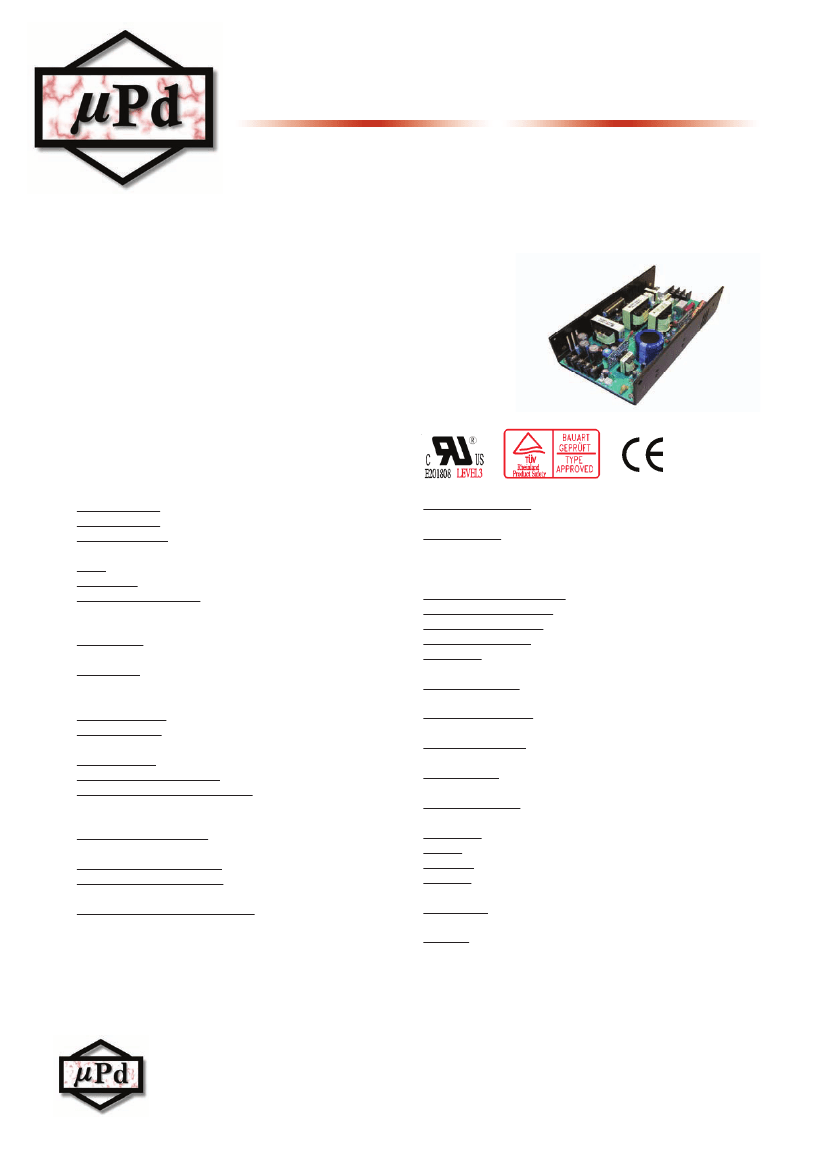

350W AC-DC ACTIVE PFC SWITCHING POWER SUPPLY
MPA350x SERIES
FEATURES:
Low leakage current 500uA max. at 240Vac or 200uA max. at 120Vacw
Providing Peak Power 600W within 500uS duty duration
Power Factor Corrected to EN61000-3-2 class D
Compact Size: 4.25W X 8L X 2H inches
Approved to UL CUL TUV CE and CB
Optional Top Cover & Built-in Fan
Universal AC input
PRODUCT SPECIFICATIONS:
Input Voltage:
47~63 Hz, 90 - 264 VAC full range.
Input Current:
5.5A at 90 VAC full load.
Inrush Current:
70A peak maximum (Measuring at
230 VAC and full load cold start).
PFC:
Power factor correction meets EN61000-3-2 Class D.
Fan Drive:
12 VDC/160 mA offering to drive an external fan.
Transient Response:
output voltage returns to within 1% in
less than 2.5 mS for a 50% dynamic load peak. Does not
exceed 5%.
Overshoot:
Turn on-off overshoot does not exceed 5%
nominal voltage.
Efficiency:
70% for 3.3V, 75% for 5V, 80% for 12V and
82% minimum for other outputs (Measuring at 230V and
full load).
Turn On Delay:
1 second maximum at 120 VAC.
Hold Up Time:
20 mS minimum at 120 VAC and 80% of
rated maximum load.
Adjustability:
Output user adjustable ±5% minimum.
Input Circuit Protection:
250V/6.3A fuse inserted.
AC Under Voltage Protection:
Power shuts down if Vin
goes under 79V ±2V. Automatic recovery once Vin goes
back over 86V ±3V.
Over Load Protection:
110-135% hiccup mode, auto-
recovery.
Short Circuit Protection:
Continuous with auto-recovery.
Over Voltage Protection:
Unit latches down if the output
exceeds 130%. To reset, recycle the AC input.
Over-Temperature Protection:
Output voltage drops if the
operating ambient temp exceeds 85°C. Auto-recovery.
CB
Power Supply On:
Green LED designated as LED 1 on
the PCB.
Power Good:
Power on signal designated as PG on PCB
goes high 100-500 mS after the output reaches the
regulation limit. It goes low at least 1 mS before loss of
regulation.
Operating Temperature:
0°C to +50°C
Storage Temperature:
-20°C to +85°C
Operating Humidity:
5% to 90% RH, Non-condensing
Storage Humidity:
5% to 95% RH, Non-condensing
Vibration:
Frequency 5 to 50 Hz, acceleration ±7.35
M/(SxS) on X,Y and Z Axis
EMC Standards:
CISPR 22 / EN55022 class B, EN61000-
3-2,3, EN61000-4-2,3,4,5,6,8,11, EN55024 CE Marked.
Safety Regulation:
Approved to UL60950, CSA C22.2 No.
60950, TUV EN60950 and CB certificate available.
Leakage Current:
500 uA max. @ 240 VAC input. 200 uA
max. @ 120VAC input.
HI-POT Test:
3 Sec 1500 VAC input line to chassis;
3000 VAC primary to secondary; 1500 VAC Primary to core.
Grounding Test:
Apply 25A from the ground pin to the furthest
earth connection point. Max. resistance 0.1ohm.
Warranty:
2 years
MTBF:
100000 Hrs (according to MIL-HBK-217F) at 30°C
Cooling:
30 CFM required to achieve full ratings
Burn in:
Applying full load at 230 VAC input in 45°C ±5°C
burn-in room for 1 hour.
Enclosure:
U-case: 8 X 4.25 X 2 inches. U-case with FAN:
8 X 4.25 X 2.5 inches.
Weight:
Maximum weight is 800g.
MicroPower Direct
www.micropowerdirect.com
■
292 Page Street, Ste D Stoughton, MA 02072
TEL:
(781) 344-8226
■
FAX:
(781) 344-8481
■
E-Mail:
sales@micropowerdirect.com
MicroPower Direct
Go Direct -
MicroPower Direct
- For Product, Performance and Price
OUTPUT VOLTAGE / CURRENT RATING CHART:
Measured at output power connector.
Model
Output voltage
Present
MPA350x-03
MPA350x-05
MPA350x-12
MPA350x-15
MPA350x-18
MPA350x-24
MPA350x-36
MPA350x-48
MPA350x-54
＊
Max. Output current
Convection
30A
30A
19.16A
19.16A
14.37A
10.45A
7.41A
5.47A
4.25A
30CFM
60A
60A
29.16A
29.16A
21.87A
15.9A
11.29A
8.33A
6.48A
Regulation
Ripple & noise
Range
3-4V
5-6V
12-15V
12-15V
16-21V
22-30V
31-41V
42-53V
54-60V
3.3V
5V
12V
15V
18V
24V
36V
48V
54V
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
MPA350x-00z
series are designated as: x = U (U-channel), C(U-channel with Cover) or F(Cover with Internal fan).
Z = T(Terminal Strips) or M(Molex connectors).
＊
Ripple & noise measured from 10 kHz to 20 Mhz at output terminals with parallel 0.1µF ceramic and 22µF electrolytic capacitors.
＊
Providing peak power to 600W within 500 uS for all models, longer duty duration need contact manufacture in advance.
＊
1% minimum load is required to maintain the ripple and regulation.
＊
Output is fully isolated.
＊
Models provided with the optional cover (MPA350C), require 30 CFM forced air flow to achieve max rating.

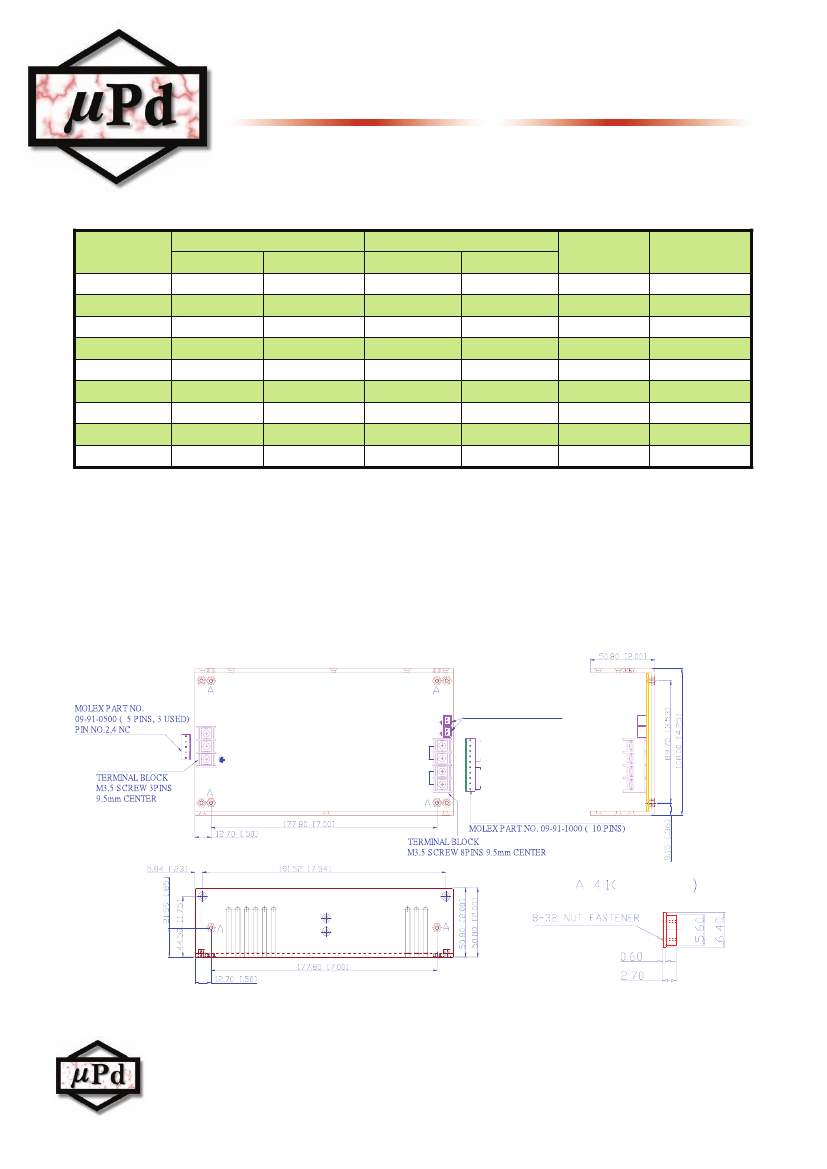

OUTLINE DRAWING:
Overall Size: 8(L) x 4.25(W) x 2(H)inches; Weight: Maximum weight is 800g
Type A: U-Chassis only
PG
FAN1
Mating JST XHP-2 or equivalent
VO+
VO-
VO-
VO+
MicroPower Direct
www.micropowerdirect.com
■
292 Page Street, Ste D Stoughton, MA 02072
L
N
Mounting hole
8 Places
TEL:
(781) 344-8226
■
FAX:
(781) 344-8481
■
E-Mail:
sales@micropowerdirect.com
MicroPower Direct
Go Direct -
MicroPower Direct
- For Product, Performance and Price

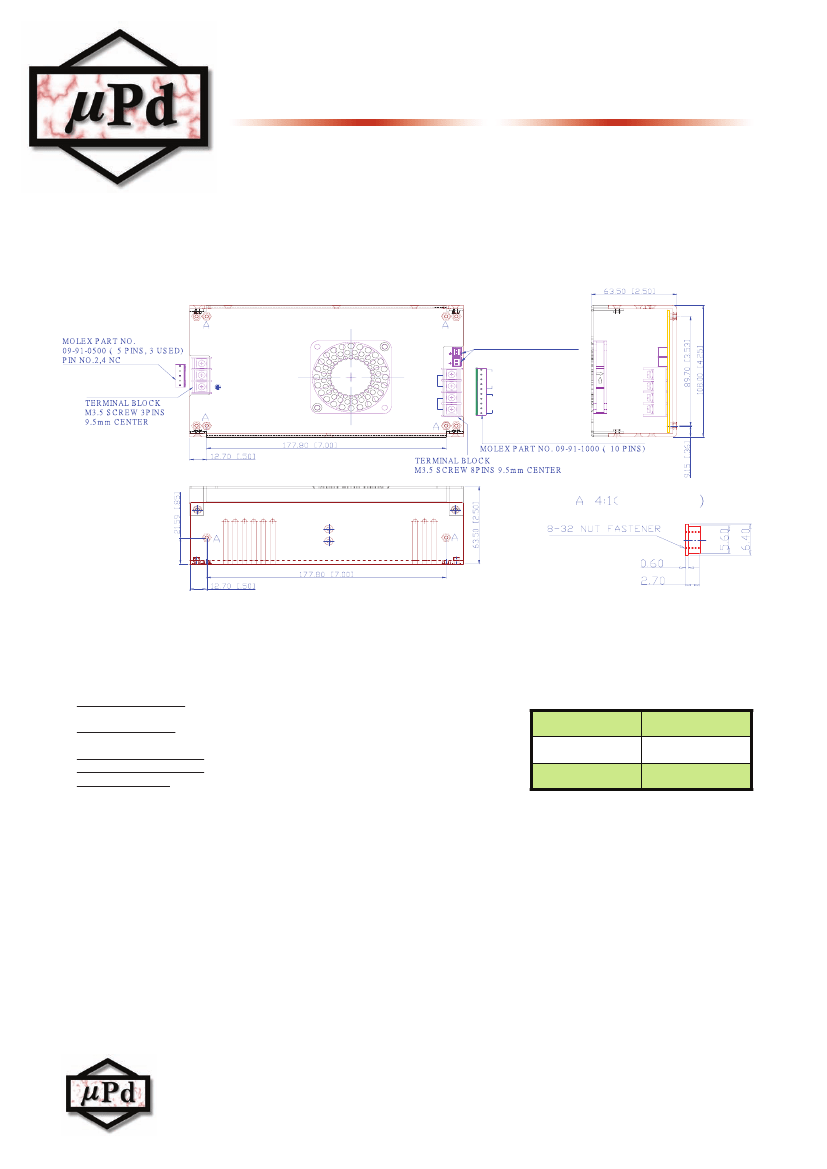

Type B: U-Chassis + Top Cover with Built-in Fan
PG
FAN1
Mating JST XHP-2 or equivalent
VO+
VO-
VO-
VO+
L
N
Mounting hole
8 Places
AC Input Connector:
Howder 6-32. 3 pin Terminal block 9.5MM Center (HI-201-3P) or Molex Part No. 09-91-0500 or equivalent (5
pin,3 used). Pin1: FG; Pin2: Neutral; Pin3: Line.
Howder
Molex
Output Connector:
Howder 6-32. 4 pin Terminal block 9.5MM Center (HI-201-4P)
or Molex Part No. 09-91-1000 or equivalent (10 pins)
VO- : Pins 1-2
VO- : Pins 1-5
Output Pin Assignment: (See table in right)
FAN and PG Connector:
Mating JST XHP-2 or equivalent (CHYAO SHIUNN JS-2001-02)
VO+ : Pins 3-4
VO+ : Pins 6-10
Mounting Inserts:
8 Places 8-32 flush nut, screws must not protrude into unit by more
than 4mm sees outline drawing for location.
Notes:
MicroPower Direct
www.micropowerdirect.com
■
292 Page Street, Ste D Stoughton, MA 02072
TEL:
(781) 344-8226
■
FAX:
(781) 344-8481
■
E-Mail:
sales@micropowerdirect.com
