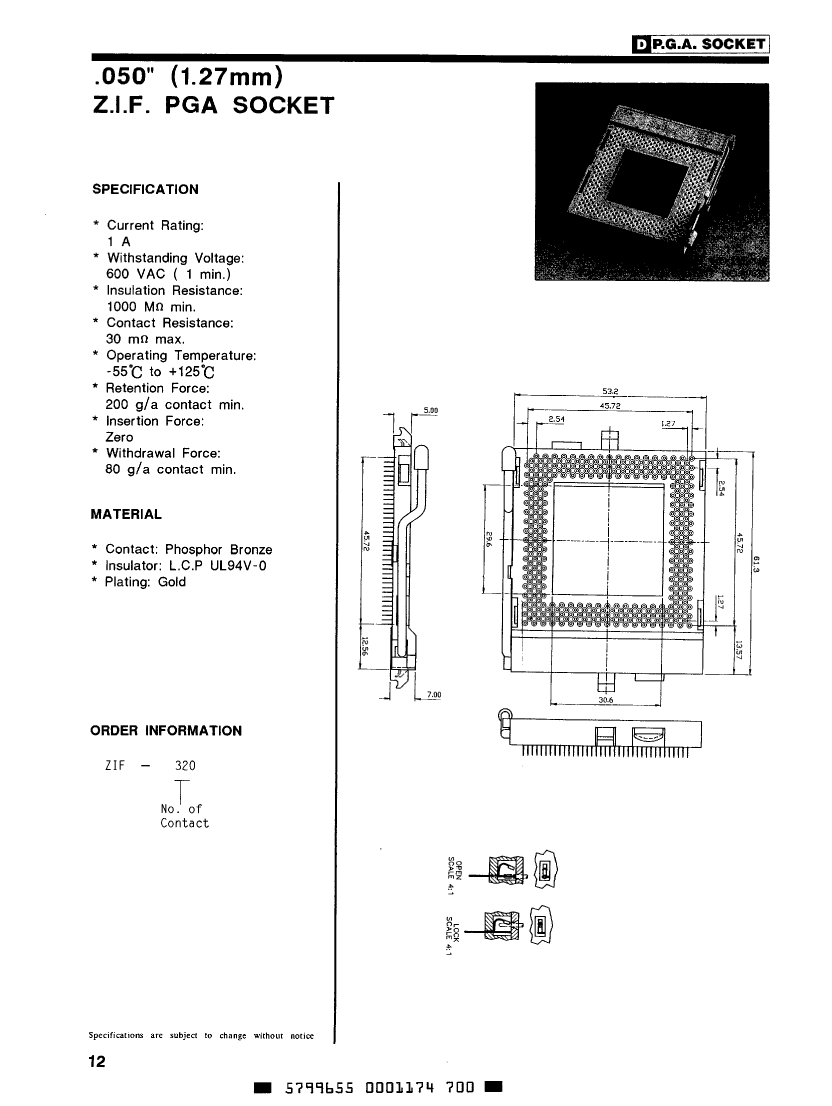

ZIF-320: DescriptionIC Socket, PGA320, 320 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder; CategoryThe connector socket; File Size76KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric View All

ZIF-320 Overview

IC Socket, PGA320, 320 Contact(s), 2.54mm Term Pitch, 0.1inch Row Spacing, Solder

Parameter Name	Attribute value
Maker	Marktech
Reach Compliance Code	unknown
ECCN code	EAR99
body width	2.094 inch
subject depth	0.276 inch
body length	2.413 inch
Contact structure	19X19
Contact to complete cooperation	AU
Contact material	P-CUSN
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA320
Dielectric withstand voltage	600VAC V
Shell material	LIQUID CRYSTAL POLYMER
Insulation resistance	1000000000 Ω
Manufacturer's serial number	ZIF
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	320
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	INTER
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
