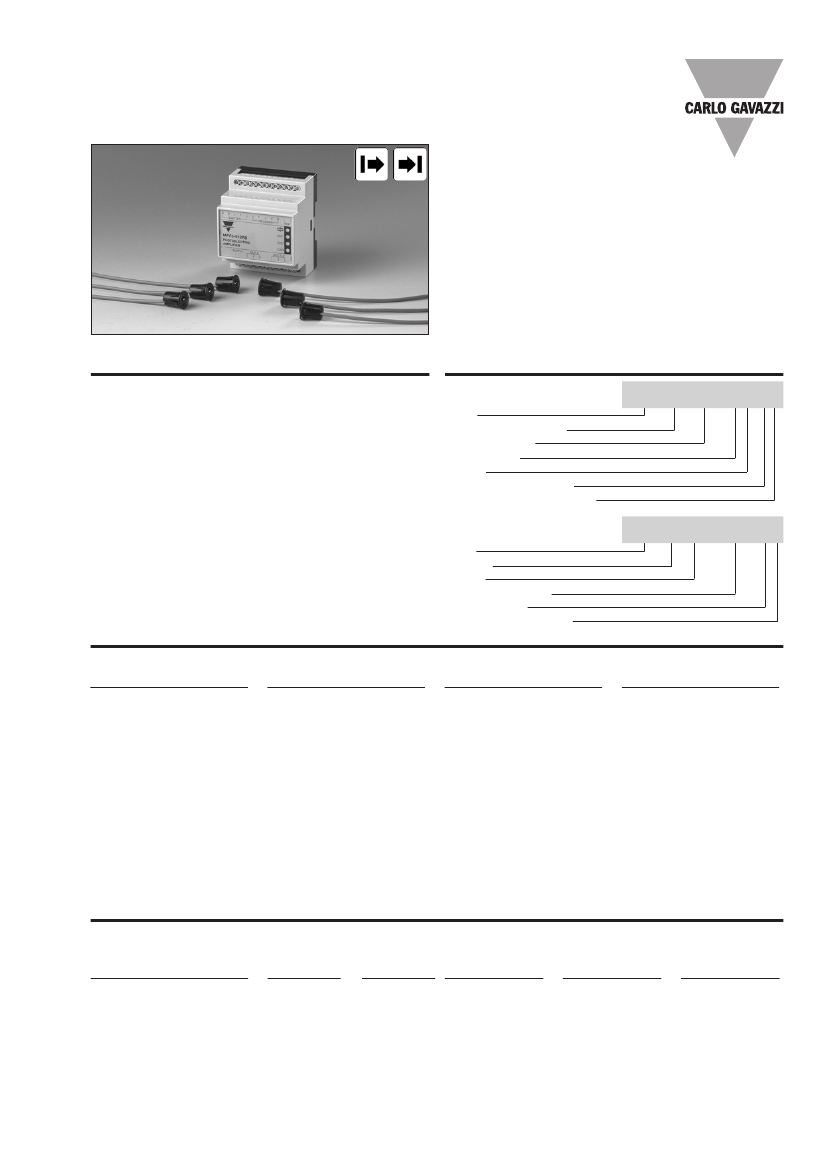

Photoelectrics
Through-beam System, Relay Output
Type MPF.RS
•
•
•
•
•
•
•
•
•
•
•
•
•
Industrial doors and gates
Range: 15 m
Modulated infrared light
Option with individually adjustable channel sensitivity
Amplifier with “Snap-ON” photoelectric switches
Supply voltage: 12-24 VAC/DC, 115 VAC or 230 VAC
Output: SPST relay
LED indications for light ON and supply ON
4 module M36 DIN rail housing
Ø12 mm “Snap-ON”, Ø18 or M14 photoelectric housing
1, 2 or 3 multiplexed channels
With make or break test input
UL 325, EN 12453 (TÜV approved)
Product Description
The MPFRS.. is a family of
inexpensive general purpose
photoelectric sensors in 3 dif-
ferent types of housings with
separate amplifier. They are
designed to meet the require-
ments for industrial doors and
gates. The “Snap-ON” photo
switch can be mounted in
material with a thickness from
0.6 mm and up to 2.25 mm.
The sensor set is easy to use
and no adjustments are nec-
essary. The amplifier has a
test input designed to disable
the emitters and therefore
evaluate the sensor function.
Multiplexed channels prevent
cross-talk between each set
of photosensors. The ampli-
fiers are available with the fol-
lowing
voltages:
12-24
VAC/DC, 115 VAC and 230
VAC. The output is made as
positive security e.g. power
lost, short-circuit or broken
sensor cable makes the relay
go to off state.
Ordering Key
Amplifier
Type
Number of channels
Voltage supply
Output relay
Safety
Adjustable sensitivity
Inverted test input (break)
MPF 3 230 RS AI
Sensor
Type
Emitter
Range
Housing diameter
Optical angle
Connectors on cable
Ordering no.
Supply: 115 VAC
MPF1-115 RS
MPF2-115 RS
MPF3-115 RS
MPF1-115 RSI *)
MPF2-115 RSI *)
MPF3-115 RSI *)
MPF1-115 RSA *)
MPF2-115 RSAv
MPF3-115 RSA *)
MPF1-115 RSAI *)
MPF2-115 RSAI *)
MPF3-115 RSAI *)
MPF T 15 M14 4C
Type Selection, Amplifier
Housing
WxHxD
70 x 57 x 86 mm
Ordering no.
Supply: 12-24 VAC/DC
MPF1-912 RS
MPF2-912 RS
MPF3-912 RS
MPF1-912 RSI *)
MPF2-912 RSI *)
MPF3-912 RSI *)
MPF1-912 RSA *)
MPF2-912 RSA *)
MPF3-912 RSA *)
MPF1-912 RSAI *)
MPF2-912 RSAI *)
MPF3-912 RSAI *)
Ordering no.
Supply: 230 VAC
MPF1-230 RS
MPF2-230 RS
MPF3-230 RS
MPF1-230 RSI *)
MPF2-230 RSI *)
MPF3-230 RSI *)
MPF1-230 RSA *)
MPF2-230 RSA
MPF3-230 RSA *)
MPF1-230 RSAI *)
MPF2-230 RSAI *)
MPF3-230 RSAI *)
*) Products available on request
Type Selection, Photoelectric Switch
Housing
diameter
Ø12 mm
M14
D18
Ø12 mm
M14
D18
Fitting for Ø12
Rated
operational
distance (S
n
)
15 m
15 m
15 m
15 m
15 m
15 m
Optical
angle
4°
4°
4°
4°
4°
4°
Ordering no.
Emitter
MPFT 15-4
MPFT 15-M14-4
MPFT 15-D18-4
MPFT 15-4C
MPFT 15-M14-4C
MPFT 15-D18-4C
Ordering no.
Receiver
MPFR-4
MPFR-M14-4
MPFR-D18-4
MPFR-4C
MPFR-M14-4C
MPFR-D18-4C
AMPF-MB1
Ordering no.
Fitting
Specifications are subject to change without notice (12.09.2005)
1
MPFRS
Specifications, Amplifier
Rated operational volt.
AC types
(U
B
)
Terminals 1 & 3
MPF.- 230 RS.
MPF.- 115 RS.
MPF.- 912 RS.
Dielectric voltage
MPF.- 230 RS.
Rated impulse withstand volt.
Rated operational power
MPF.- 912 RS
AC supply
DC supply
MPF.- 115/230 RS
AC supply
DC supply
Output Specifications
Resistive load
MPF.-xxx RS, RSA, RSI, RSAI
600.000 switchings
300.000 switchings
100.000 switchings
AC15
AC14
DC13
Rated insulation volt.
(U
i
)
MPF.- 230 RS.
MPF.- 115 RS.
MPF.- 912 RS.
Operating frequency
(f)
Light/dark ratio 1:1
Contact output
Response time
OFF-ON (t
ON
)
ON-OFF (t
OFF
)
Power ON delay
(t
v
)
Output function
MPF1+2
MPF3
Indication function
Supply ON
Beam ON (no object present)
Environment
Overvoltage category
Degree of protection
Pollution degree
Temperature
Operating
Storage
Connection
Protection output
1 A@250 VAC/30 VDC
2 A@250 VAC/30 VDC
2 A@250 VAC/30 VDC (UL)
0.75 A@240 VAC
0.60 A@120 VAC
0.22 A@125 VDC
250 VAC (rms)
120 VAC (rms)
50 VAC (rms), 50 VDC
Test input
MPF.- 230 RS.
MPF.- 115 RS.
MPF.- 912 RS.
Testfunction activated
Testfunction deactivated
MPF.- 912 RSI.
Testfunction deactivated
Testfunction activated
Housing material
Weight
MPF.- 115/230 RS
MPF.- 912 RS
CE-marking
UL-marking
TÛV-marking
Relay 2 x SPST
Relay 2 x SPST + 2 x SPST
LED, green
LED, yellow
III (IEC 66064)
IP 40 (IEC 60529/60947-5-2)
3 (IEC 60664/60664A,
60947-1)
-20° to +60°C (-4° to +140°F)
-30° to +80°C (-22° to +176°F)
Screw terminals
(max. 2.5 mm
2
)
Reverse output, transients,
short-circuit
Potential-free contact
Potential-free contact
Max. 28 V@15 mA AC/DC
≥
3.5 V AC/DC
≤
1.0 V AC/DC
Max. 28 V@15 mA AC/DC
≥
3.5 V AC/DC
≤
1.0 V AC/DC
PC
280 g
126 g
Yes
Yes (UL 508, UL 325)
Yes (EN 12453)
230 VAC ± 15%, 50 to 60 Hz
115 VAC ± 15%, 50 to 60 Hz
12-24 VAC/DC ± 15%, 50 to 60 Hz
4 kVAC (rms)
4 kV (1.2/50
μs)
3 VA
2W
max. 4.5 VA
max. 4.5 VA
10 Hz
≤
50 ms
≤
40 ms
≤
300 ms
Specifications, Photoelectric Switches
Rated operation dist. (S
n
)
Light source
Light type
Ambient light
Housing material
MPFT15-4/C
MPFT15-D18-4/C
MPFR-4/C
MPFR-D18-4/C
Housing
Backpart
MPFT15-M14-4/C
MPFR15-M14-4/C
Housing
Backpart
Connection
MPFT15-XXX-4
MPFR15-XXX-4
Cable
15 m - 8 m (UL 325)
LED 880 nm
Infrared modulated
> 20.000 lux
MPFT15-XXX-4C
Red connector pair
MPFR15-XXX-4C
White connector pair
Connector is placed 15 cm from sensorhead
Cable
PVC, grey, 10 m, Ø 2.9 mm
2
Degree of protection
IP 67 (IEC 60529/60947-5-2)
Mounting
“Snap-ON”
Ø12 mm or fitting
MPFT15-4/C
MPFR-4/C
Rubber profile
MPFT15-D18-4/C
MPFR-D18-4/C
Threaded barrel
MPFT15-M14-4/C
MPFR-M14-4/C
CE-marking
UL-marking
TÛV-marking
D18
PC
ABS
Stainless steel/PC
PTE
M14
PVC, grey, 10 m, Ø 2.9 mm
2
Yes
Yes (UL 508, UL 325)
Yes (EN 12453)
2
Specifications are subject to change without notice (12.09.2005)
MPFRS
Wiring Diagrams
RX1
RX2
RX3
TX3
TX2
TX1
1)
2)
2)
1)
RX1
RX2
1
2
BK
BU
13 14 15 16 17 18 19 20 21 22 23 24
3
2
1
1
2
3
TEST
EMITTER
RECEIVER
13 14 15 16 17 18 19 20 21 22 23 24
3
RD
2
RD
BK
1
RD
BK
BK
RX3
3
BU
TX3
TX2
TX1
BU
TEST
EMITTER
RECEIVER
+
SUPPLY
230 V
-
+
OUT 3
250 VAC
OUT 1+2
TP
30 VDC
Max. 2 A TP
+
SUPPLY
115/230 V
OUT 3
250 VAC
OUT 2
TP
30 VDC
Max. 2 A TP
1
2
3
4
5
6
7
8
9 10 11 12
1
1
2
3
4
5
6
7
8
9 10 11 12
1) Not MPF1 and MPF2
2) Not MPF1
1) Not MPF1 and MPF2
2) Not MPF1
Test input make, shown for 115/230 version
Test input break, shown for 115/230 version
AC/DC
AC/DC
AC/DC
AC/DC
23
24
23
24
23
24
23
24
TEST
TEST
TEST
TEST
DC
DC
DC
DC
23
24
23
24
23
24
23
24
TEST
TEST
TEST
TEST
Test input make, shown for 912 version
Test input break, shown for 912 version
Operation Diagram
Power supply
Object present
Output contact closed
Tv
Toff
Ton
Ton
Specifications are subject to change without notice (12.09.2005)
3
MPFRS
Detection Diagram
Emitter
X
Y
Receiver
Excess Gain
(feet)
1000
0
60
40
20
(cm)
0
-20
-40
-60
0
9.5
26.2
39.4
52.5
65.6
23.8
Excess gain
15.7
7.9
(inch)
0
100
10
-7.9
-15.7
-23.8
4
8
12
Sensing Range (m)
16
20
1
1000
10000
Range [mm]
100000
Max. Rating
------ Potentiometer in min.

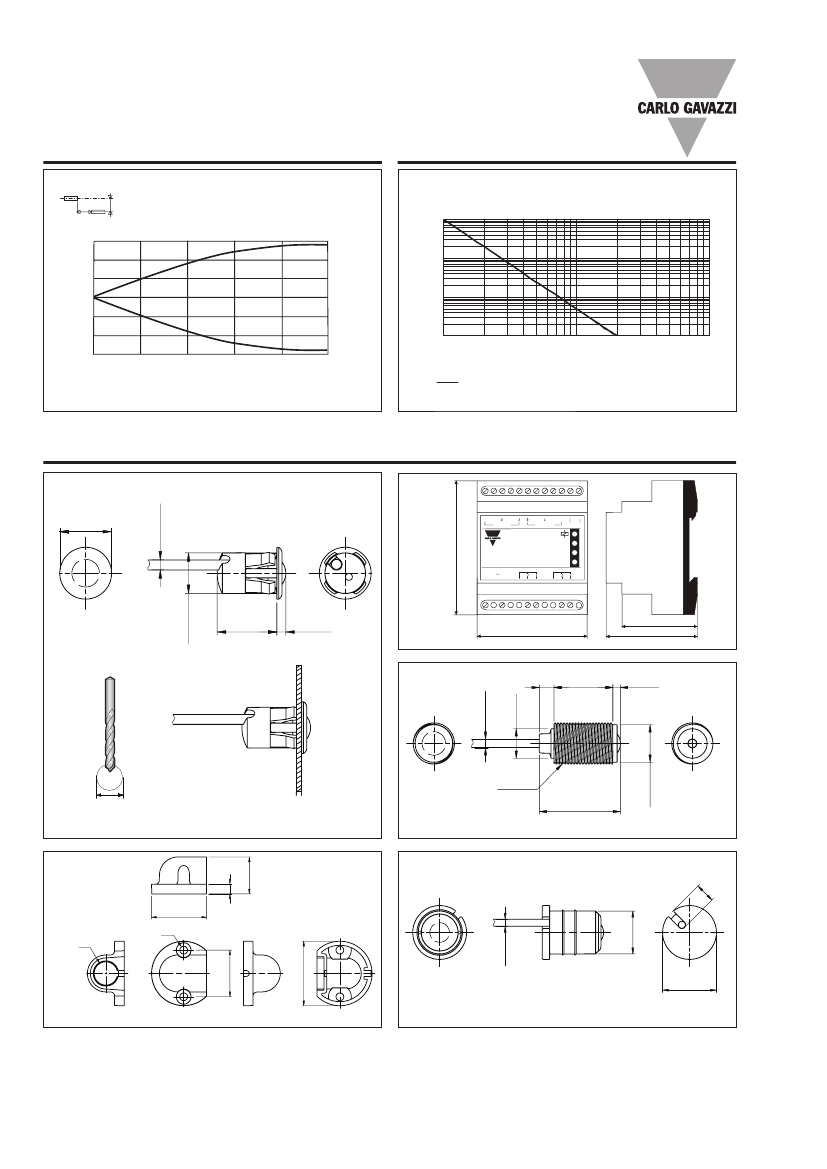

Dimensions
3
2
1
1
2
3
TEST
Ø15
Ø2.9
EMITTER
RECEIVER
86
CH1
MPF3-230RS
PHOTOELECTRIC
AMPLIFIER
SUPPLY
230 V
CH2
CH3
OUT 3 250 VAC OUT 1+2
30 VDC
MAX 2A
Ø11.8
17.3
2.6
Amplifier
70
48
57
5
Ø2.9
20
2.6
Ø10
M14 x 1
Ø12
0.6 - 2.25 mm
27.6
Ø12
To be mounted in material with a thickness of 0.6 - 2.25 mm
M14
19
Ø12.8
8.
1
28.3
Ø6
5
33.2
24
Ø2.9
R6
Ø17.5
Ø22
Fitting for Ø12
D18
4
Specifications are subject to change without notice (12.09.2005)
Installation Hints
To avoid interference from inductive voltage/
current peaks, separate the prox. switch pow-
er cables from any other power cables, e.g.
motor, contactor or solenoid cables
Relief of cable strain
Protection of the sensing face
Switch mounted on mobile carrier
Incorrect
Correct
The cable should not be pulled
A proximity switch should not serve as
mechanical stop
Any repetitive flexing of the
cable should be avoided
Delivery Contents
•
Amplifier, MPF..
•
Installation instruction
•
Packaging:
cardboard box
Specifications are subject to change without notice (12.09.2005)
5
