5-1470359-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-1470359-0

5-1470359-0: DescriptionCONNECTOR, 50 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size75KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1470359-0 Overview

CONNECTOR, 50 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT

5-1470359-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TE Connectivity
Reach Compliance Code	unknow
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

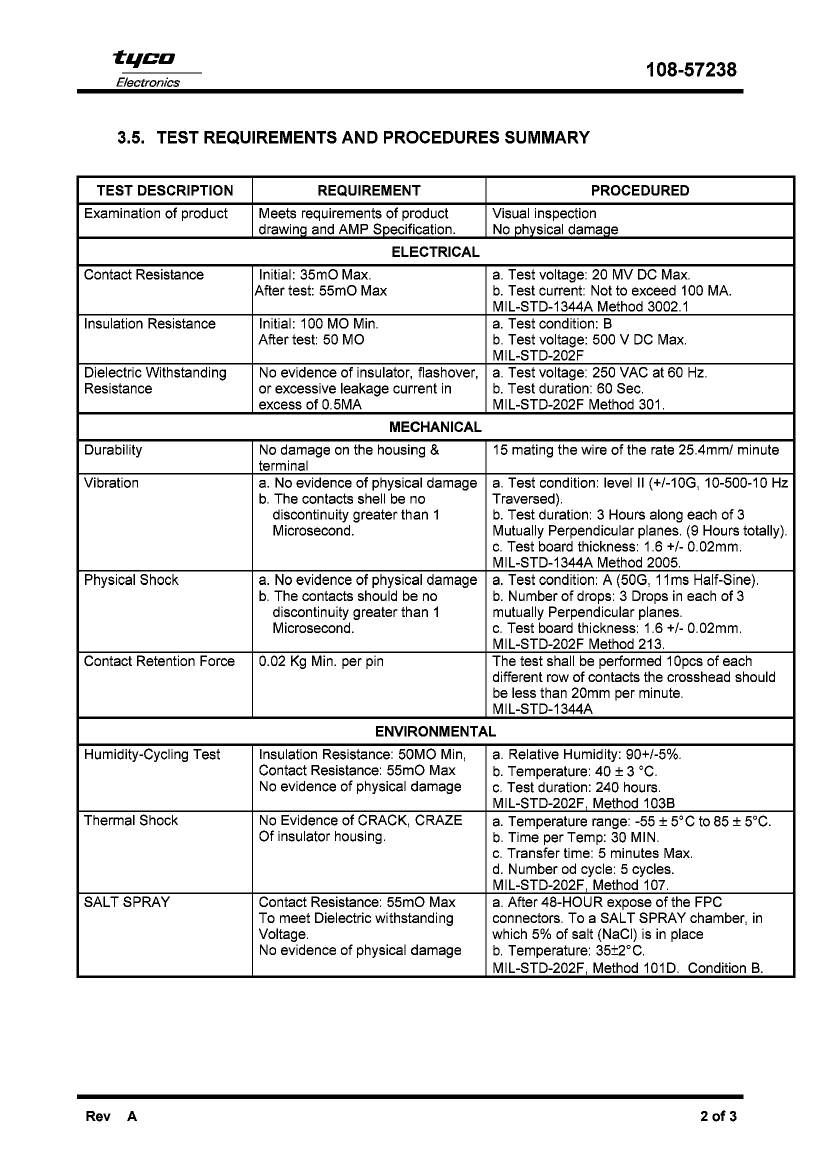

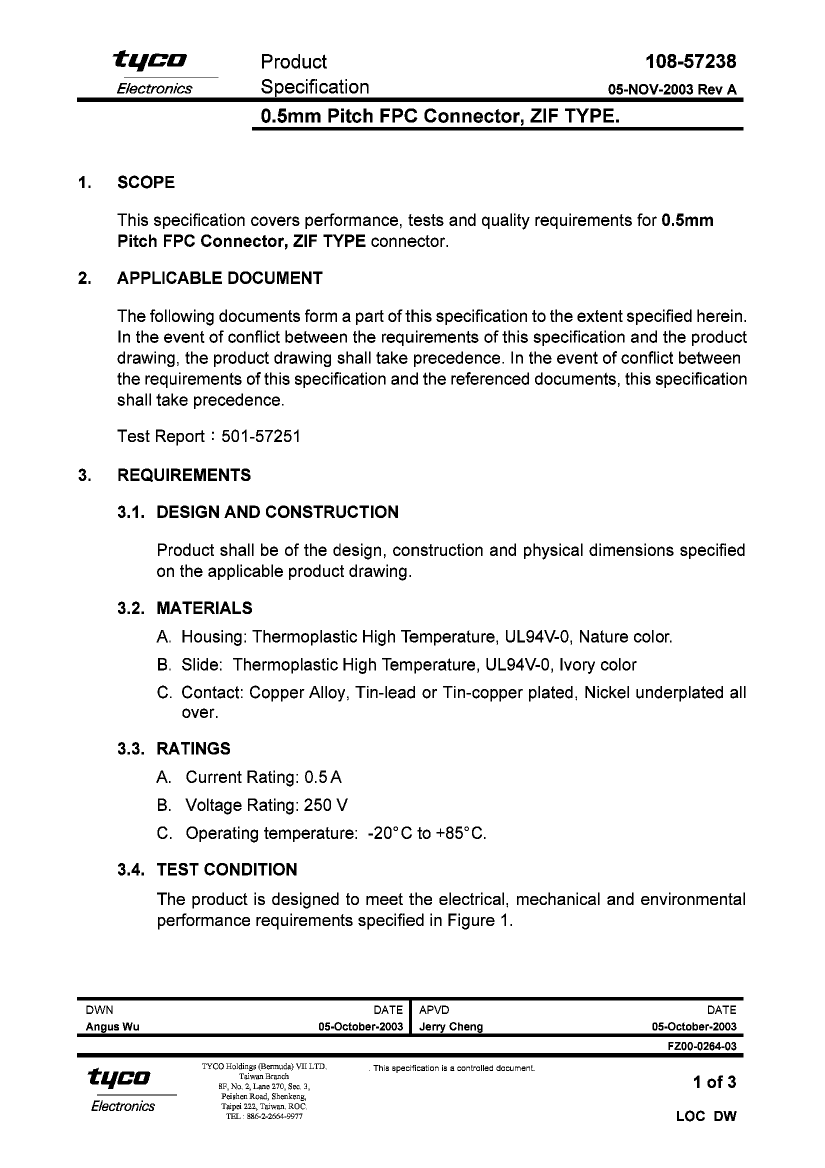

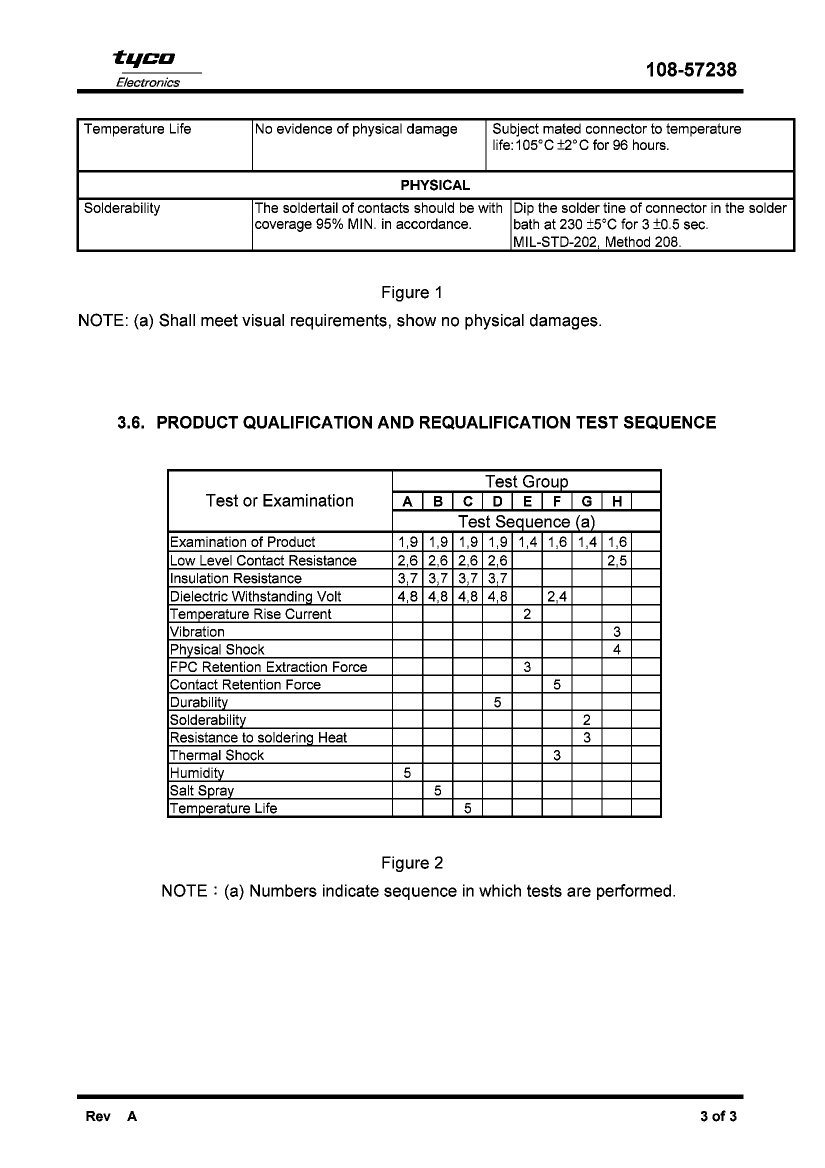

Preview

Download Datasheet

View All

5-1470359-0 Related Products

	5-1470359-0	4-1470360-0	SR220	3-1470359-2	1470359-5	H263625T	2-1470359-4
Description	CONNECTOR, 50 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	CONNECTOR, 40 CONTACT(S), FEMALE, STRAIGHT FFC/FPC CONNECTOR, SURFACE MOUNT	SCHOTTKY BARRIER RECTIFIER	CONNECTOR, 32 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	CONNECTOR, 5 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT	Board Connector, 126 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle	CONNECTOR, 24 CONTACT(S), FEMALE, RIGHT ANGLE FFC/FPC CONNECTOR, SURFACE MOUNT
Is it Rohs certified?	incompatible	incompatible	-	incompatible	incompatible	-	incompatible
Reach Compliance Code	unknow	unknow	-	unknown	unknown	compliant	unknown
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	-	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	BOARD CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	TIN LEAD	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	-	FEMALE	FEMALE	MALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	NOT SPECIFIED	-	NOT SPECIFIED
DIN compliance	NO	NO	-	NO	NO	-	NO
Filter function	NO	NO	-	NO	NO	-	NO
IEC compliance	NO	NO	-	NO	NO	-	NO
MIL compliance	NO	NO	-	NO	NO	-	NO
Mixed contacts	NO	NO	-	NO	NO	-	NO
Installation method	RIGHT ANGLE	STRAIGHT	-	RIGHT ANGLE	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	-	1	1	2	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	-	0.5 mm	0.5 mm	2.54 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	40	-	32	5	126	24
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0	-	94V-0
Base Number Matches	1	1	-	1	1	-	1
