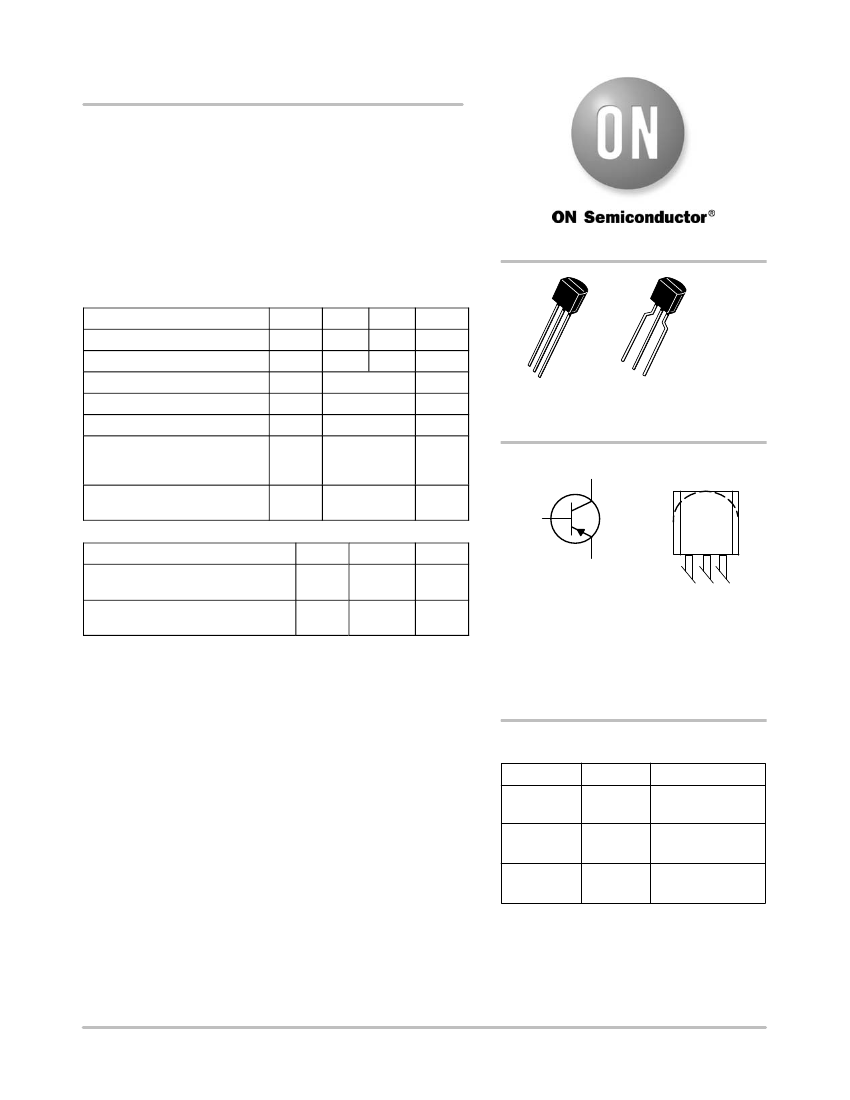

BF421, BF423
High Voltage Transistors
PNP Silicon
Features
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating
Collector
−Emitter
Voltage
Collector
−Base
Voltage
Emitter
−Base
Voltage
Collector Current
−
Continuous
Collector Current
−
Peak
Total Device Dissipation (Note 1)
@ T
A
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
CM
P
D
BF421
−300
−300
BF423
−250
−250
Unit
Vdc
Vdc
Vdc
mAdc
mA
mW
mW/°C
°C
3
BASE
Symbol
R
qJA
R
qJL
Max
150
68
Unit
°C/W
°C/W
12
http://onsemi.com
−5.0
−500
100
830
6.6
−55
to +150
1
TO−92
CASE 29
STYLE 14
2
3
STRAIGHT LEAD
BULK PACK
3
BENT LEAD
TAPE & REEL
AMMO PACK
COLLECTOR
2
MARKING
DIAGRAM
BF
42x
AYWW
G
G
T
J
, T
stg
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance,
Junction−to−Ambient
Thermal Resistance,
Junction−to−Lead
1
EMITTER
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Mounted on a FR4 board with 200 mm
2
of 1 oz copper and lead length of
5 mm.
BF42x = Device Code
x = 1 or 3
A
= Assembly Location
Y
= Year
WW
= Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
Device
BF421ZL1G
BF423G
BF423ZL1G
Package
TO−92
(Pb−Free)
TO−92
(Pb−Free)
TO−92
(Pb−Free)
Shipping
2000/Ammo Pack
5000 Units/Box
2000/Ammo Pack
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2010
July, 2010
−
Rev. 5
1
Publication Order Number:
BF421/D
BF421, BF423
PACKAGE DIMENSIONS
TO−92 (TO−226)
CASE 029−11
ISSUE AM
A
R
P
L
SEATING
PLANE
B
STRAIGHT LEAD
BULK PACK
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. CONTOUR OF PACKAGE BEYOND DIMENSION R
IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P AND
BEYOND DIMENSION K MINIMUM.
INCHES
MIN
MAX
0.175
0.205
0.170
0.210
0.125
0.165
0.016
0.021
0.045
0.055
0.095
0.105
0.015
0.020
0.500
---
0.250
---
0.080
0.105
---
0.100
0.115
---
0.135
---
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.407
0.533
1.15
1.39
2.42
2.66
0.39
0.50
12.70
---
6.35
---
2.04
2.66
---
2.54
2.93
---
3.43
---
K
X X
H
V
1
D
G
J
C
N
N
SECTION X−X
DIM
A
B
C
D
G
H
J
K
L
N
P
R
V
STYLE 14:
PIN 1. EMITTER
2. COLLECTOR
3. BASE
R
A
B
BENT LEAD
TAPE & REEL
AMMO PACK
P
T
SEATING
PLANE
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. CONTOUR OF PACKAGE BEYOND
DIMENSION R IS UNCONTROLLED.
4. LEAD DIMENSION IS UNCONTROLLED IN P
AND BEYOND DIMENSION K MINIMUM.
MILLIMETERS
MIN
MAX
4.45
5.20
4.32
5.33
3.18
4.19
0.40
0.54
2.40
2.80
0.39
0.50
12.70
---
2.04
2.66
1.50
4.00
2.93
---
3.43
---
K
G
X X
V
1
D
J
C
N
SECTION X−X
DIM
A
B
C
D
G
J
K
N
P
R
V
